Leviton 85103 Oversized Duplex Wall Plate Instruction Manual

1. Įvadas

Thank you for choosing the Leviton 85103 Oversized 1-Gang Duplex Wall Plate. This wall plate is designed to cover a standard duplex receptacle, providing a clean and finished appearance while also being oversized to conceal larger wall openings or imperfections around the electrical box. It is made from durable thermoset material and is suitable for various residential and commercial applications.

Please read this manual thoroughly before installation to ensure proper and safe use of the product. Keep these instructions for future reference.

2. Saugos informacija

ĮSPĖJIMAS: To avoid fire, shock, or death, always turn off power at the circuit breaker or fuse box before wiring or installing this product. Improper installation can result in serious injury or property damage.

• Prieš dirbdami su elektros komponentais, visada atjunkite maitinimą.
• Jei nesate tikri dėl šių instrukcijų, kreipkitės į kvalifikuotą elektriką.
• Šis gaminys skirtas naudoti tik patalpose.
• Do not overtighten mounting screws, as this may cause the wall plate to crack.

3. Pakuotės turinys

• One (1) Leviton 85103 Oversized 1-Gang Duplex Wall Plate (Brown)
• Mounting screw(s) (typically one screw for duplex plates)

4. Specifikacijos

Image 1: Leviton 85103 Oversized Duplex Wall Plate showing approximate dimensions of 3.5 inches width and 5.25 inches height.

5. Diegimas / sąranka

This section outlines the general steps for installing the Leviton 85103 wall plate. Ensure you have read and understood the safety information before proceeding.

1. Išjungti maitinimą: Locate the circuit breaker or fuse that controls the power to the electrical outlet where you intend to install the wall plate. Turn off the power completely. Verify that the power is off using a voltage testeris.
2. Remove Old Wall Plate (if applicable): Carefully unscrew and remove the existing wall plate from the electrical receptacle.
3. Inspect Receptacle: Ensure the duplex receptacle is properly installed and securely mounted to the electrical box.
4. Position New Wall Plate: Align the Leviton 85103 oversized duplex wall plate over the duplex receptacle, ensuring the openings match the receptacle's slots.
5. Saugi sieninė plokštė: Insert the provided mounting screw(s) into the center hole(s) of the wall plate and thread them into the receptacle. Per daug nepriveržkite, as this can cause the thermoset plastic to crack. Tighten just enough so the plate is snug against the wall.
6. Atkurti maitinimą: Kai sieninė plokštė bus tvirtai pritvirtinta, atkurkite elektros tiekimą per grandinės pertraukiklį arba saugiklių dėžutę.

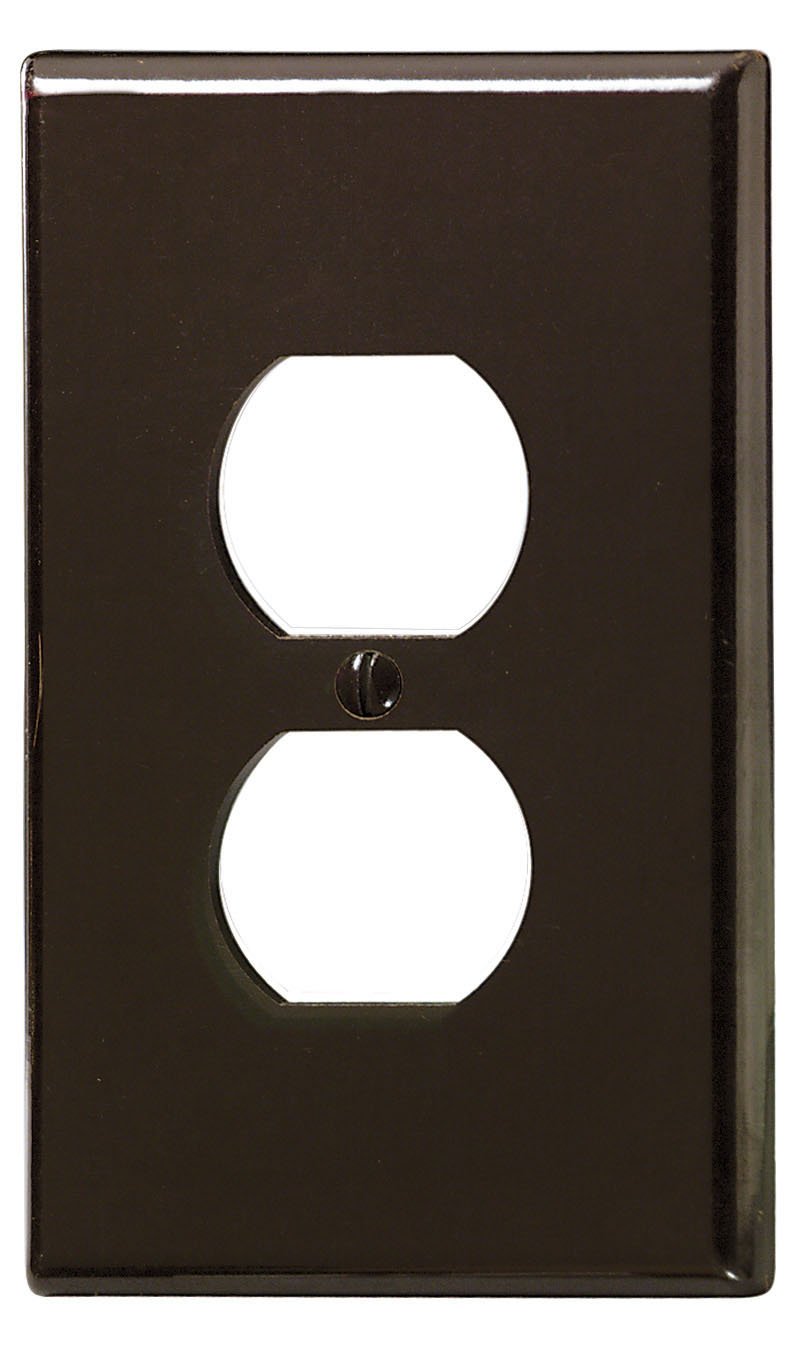

2 pav.: Stambus planas view of the Leviton 85103 Oversized Duplex Wall Plate, showing the two receptacle openings and the central mounting screw hole. This image represents the product ready for installation over a duplex outlet.

6. Operacija

The Leviton 85103 wall plate serves as a protective and aesthetic cover for a standard duplex electrical receptacle. Once installed, it provides a finished look and helps to prevent accidental contact with electrical wiring within the wall box. The operation of the wall plate itself is passive; its primary function is to safely enclose the electrical device.

7. Priežiūra

The Leviton 85103 wall plate requires minimal maintenance.

• Valymas: To clean the wall plate, wipe it with a soft, damp cloth. Use mild soap if necessary. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or material.
• Patikra: Periodically check the wall plate for any signs of damage, cracks, or discoloration. If damage is observed, turn off power to the outlet and replace the wall plate.

8. Problemų sprendimas

• Wall Plate Does Not Sit Flush:
  • Ensure the electrical receptacle is properly seated and secured within the electrical box.
  • Check for any obstructions behind the wall plate.
  • Verify that the mounting screws are tightened evenly, but not excessively.
• Wall Plate Cracks During Installation:
  • This typically occurs due to overtightening the mounting screws. The thermoset plastic, while durable, can crack under excessive pressure. Replace the cracked plate and tighten screws gently until snug.
• Missing Mounting Screw:
  • If a mounting screw is missing, contact Leviton customer support or obtain a suitable replacement screw designed for wall plates.

9. Garantija ir palaikymas

Leviton products are designed for quality and reliability. For specific warranty information regarding the Leviton 85103 wall plate, please refer to the documentation included with your purchase or visit the official Leviton website. The product description mentions a "Manufacturer Warranty Description: Warranty".

For technical support, product inquiries, or to report issues, please contact Leviton customer service directly. Contact information can typically be found on the Leviton websvetainėje arba produkto pakuotėje.

Taip pat galite apsilankyti „Leviton“ parduotuvė „Amazon“ platformoje daugiau informacijos ir susijusių produktų.
