Prime-Line M 6008 Tub Enclosure Roller and Bracket Instruction Manual

Produktas baigtasview

The Prime-Line M 6008 Tub Enclosure Roller and Bracket assembly is designed to restore smooth operation to sliding shower doors in standard tub-enclosure systems. These top-hung roller assemblies are constructed with durable nylon rollers, steel ball bearings, and stamped steel brackets, ensuring reliable performance.

This product is supplied as a 2-pack and includes all necessary mounting hardware for installation. A Phillips head screwdriver is the only tool required for assembly.

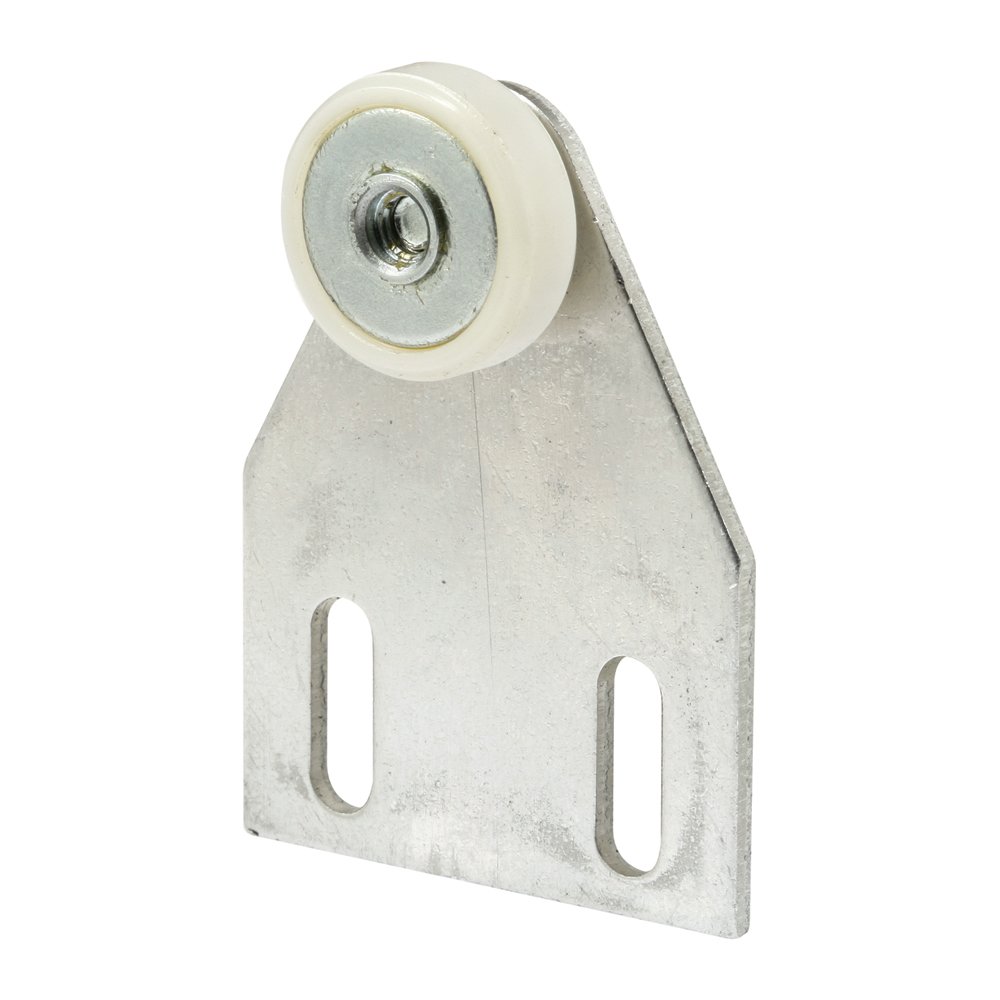

Image: Prime-Line M 6008 Tub Enclosure Roller and Bracket, showing the complete assembly.

Pakuotės turinys

• 2 x Tub Enclosure Roller and Bracket Assemblies
• Montavimo įranga

Specifikacijos

Montavimo instrukcijos

Before beginning installation, ensure you have a Phillips head screwdriver. Compare the dimensions of the new rollers with your existing hardware and the line art drawing to ensure compatibility.

Image: Line art drawing showing dimensions (3/4" O.D. roller, 1/4" width, 2" height, 1-1/2" bracket width) for accurate measurement and installation.

1. Paruošimas: Carefully remove the sliding shower door from its track. If replacing existing rollers, remove the old roller assemblies from the door frame.
2. Dimension Check: Refer to the provided line art drawing for precise dimensions of the M 6008 roller and bracket. Ensure these match the requirements of your tub enclosure system.
3. Padėties nustatymas: Align the new Prime-Line M 6008 roller and bracket assembly with the designated mounting holes on the top edge of your shower door frame. The bracket is designed for top-hung systems.
4. Saugus montavimas: Use the included mounting hardware and a Phillips head screwdriver to firmly attach the roller assemblies to the shower door frame. Ensure they are securely fastened but do not overtighten.
5. Re-hang Door: Carefully re-hang the shower door onto its track, ensuring the rollers are properly seated within the track.
6. Bandomoji operacija: Gently slide the door back and forth to confirm smooth and unobstructed movement. Adjust the door's position if necessary to achieve optimal sliding.

Operacija

Once installed, the Prime-Line M 6008 rollers facilitate the smooth gliding of your tub enclosure shower door along its track. The nylon rollers with steel ball bearings are designed for low friction movement, allowing for easy opening and closing of the door.

Priežiūra

To ensure continued smooth operation and extend the lifespan of your rollers, periodic maintenance is recommended:

• Valymas: Regularly clean the shower door tracks and the roller wheels to remove any accumulated soap scum, dirt, or debris that could impede smooth movement. Use a mild cleaner and a soft cloth.
• Patikra: Periodically inspect the rollers for any signs of wear, damage, or misalignment. Ensure the mounting screws remain tight.
• Tepimas (nebūtina): If the rollers begin to feel stiff, a small amount of silicone-based lubricant can be applied to the roller axles, avoiding contact with the roller surface that touches the track.

Trikčių šalinimas

• Durys neslysta sklandžiai:
  • Check the track for obstructions (debris, hair, etc.) and clean thoroughly.
  • Inspect the rollers for damage or excessive wear. Replace if necessary.
  • Ensure the door is properly aligned in the track and the rollers are seated correctly.
• Door Jams or Sticks:
  • Verify that the mounting hardware is secure and the rollers are not loose.
  • Check for any warping or damage to the shower door frame or track itself.

Informacija apie garantiją

Prime-Line warrants its goods against manufacturing defects for a period of 1 year from the date of purchase. This warranty does not cover user-related damage or damage incurred during installation. The warranty is void if products are subjected to abnormal conditions, misapplication, or abuse.

For specific return policies, please refer to the retailer where the product was purchased. Amazon's return policy typically allows for returns within 30 days.

Palaikymas

For further assistance or inquiries regarding your Prime-Line M 6008 Tub Enclosure Roller and Bracket, please visit the official Prime-Line store or contact their customer support.
