AEG PST 500 X Jigsaw User Manual

Įvadas

The AEG PST 500 X Jigsaw is a robust and versatile electric power tool designed for cutting various materials, primarily wood. Featuring a powerful 440-watt motor and the convenient Fixtec blade change system, this jigsaw offers efficient and precise cutting performance. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your AEG PST 500 X Jigsaw. Please read these instructions carefully before operating the tool and keep them for future reference.

Bendrosios saugos instrukcijos

Always follow basic safety precautions when using electric power tools to reduce the risk of fire, electric shock, and personal injury.

• Darbo zonos sauga: Darbo vieta turi būti švari ir gerai apšviesta. Netvarkingos arba tamsios vietos skatina nelaimingus atsitikimus. Nenaudokite elektrinių įrankių sprogioje aplinkoje, pavyzdžiui, ten, kur yra degių skysčių, dujų ar dulkių.
• Elektros sauga: Elektrinių įrankių kištukai turi atitikti lizdą. Niekada jokiu būdu nekeiskite kištuko. Venkite kūno kontakto su įžemintais paviršiais, tokiais kaip vamzdžiai, radiatoriai, viryklės ir šaldytuvai.
• Asmeninis saugumas: Visada dėvėkite akių apsaugos priemones. Dirbdami ilgą laiką, naudokite klausos apsaugos priemones. Tinkamai apsirenkite; venkite laisvų drabužių ar papuošalų. Suriškite ilgus plaukus.
• Įrankio naudojimas ir priežiūra: Nenaudokite elektrinio įrankio per jėgą. Naudokite savo darbui tinkamą elektrinį įrankį. Prieš atlikdami bet kokius pakeitimus, keisdami priedus ar padėdami elektrinius įrankius sandėliuoti, atjunkite kištuką nuo maitinimo šaltinio.
• Specifinis dėlionės saugumas: Įsitikinkite, kad ruošinys tvirtai pritvirtintasamped. Keep hands away from the cutting area. Wait for the blade to stop completely before setting the tool down.

Produktas baigtasview

Familiarize yourself with the components of your AEG PST 500 X Jigsaw.

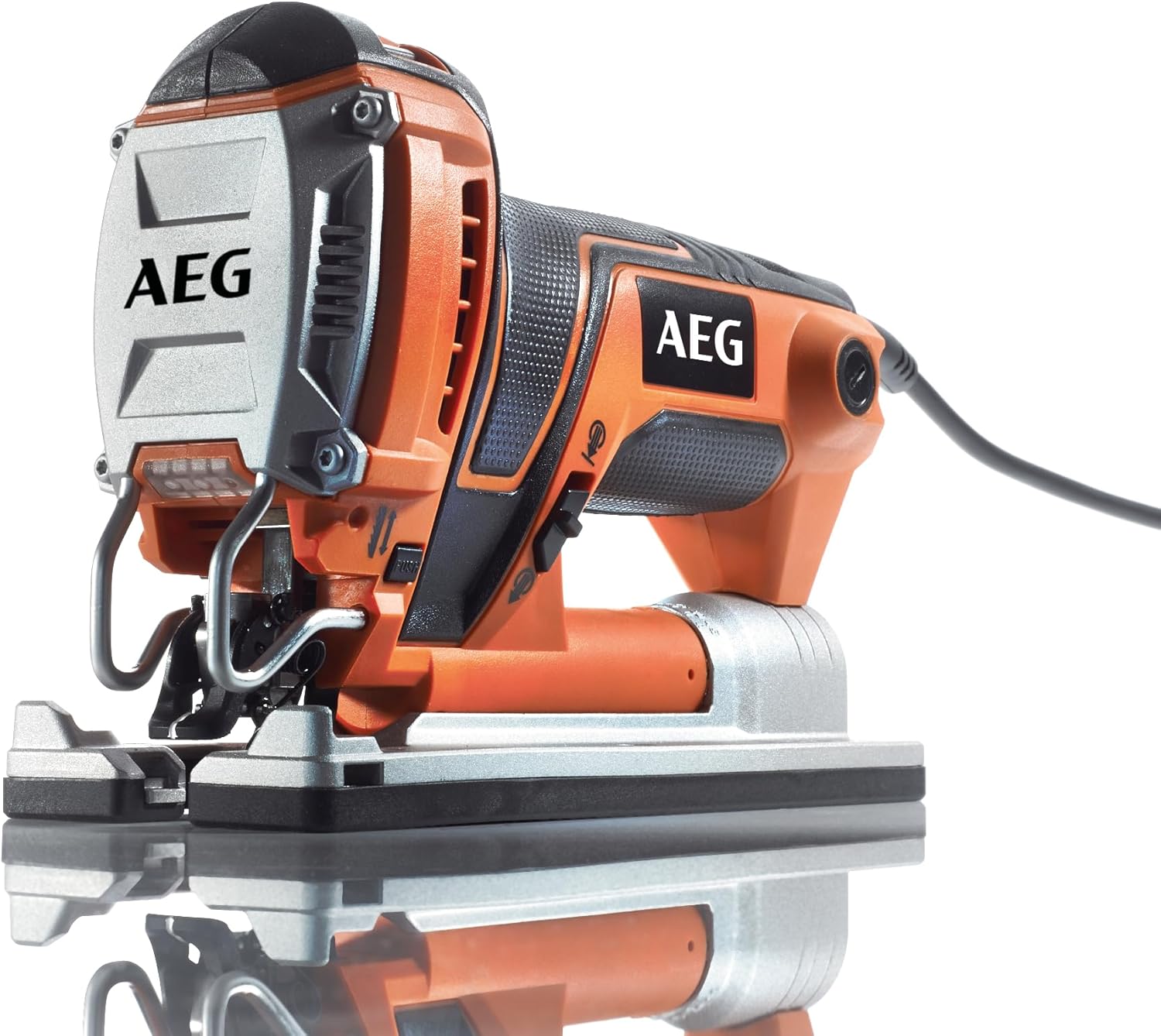

1 pav.: priekis view of the AEG PST 500 X Jigsaw, highlighting the motor housing and blade area.

2 pav.: šonas view of the AEG PST 500 X Jigsaw, showing the handle and power cord connection.

Pagrindinės funkcijos:

• Galingas 440 vatų variklis: Suteikia ampgalia įvairioms pjovimo užduotims.
• Fixtec Blade Change System: Allows for quick and tool-free blade replacement.
• Reguliuojama pagrindo plokštė: Enables horizontal adjustments for bevel cuts up to 45 degrees.
• Du-StagŠvytuoklės veiksmas: Selectable pendulum stroke for optimized cutting performance and cleaner results across different materials.
• Dulkių ištraukimo prievadas: Skirta dulkių ištraukimo sistemai prijungti, kad darbo vieta būtų švari.

Sąranka

1. Pjūklo disko montavimas

1. Įsitikinkite, kad siaurapjūklis yra atjungtas nuo maitinimo šaltinio.
2. Locate the Fixtec blade clamp mechanizmas.
3. Paspauskite peilįamp lever or button (refer to specific tool design) to open the clamp.
4. Insert the saw blade into the blade holder with the teeth facing forward. Ensure the blade is fully seated.
5. Atleiskite ašmenis clamp lever/button to secure the blade. Gently pull on the blade to confirm it is firmly locked in place.

2. Pagrindo plokštės reguliavimas nuožulniems pjūviams

1. Atjunkite įrankį nuo maitinimo šaltinio.
2. Atlaisvinkite varžtus arba svirtį, tvirtinančią pagrindinę plokštę.
3. Tilt the base plate to the desired angle for bevel cuts (up to 45 degrees). Use the angle scale for precision.
4. Tvirtai priveržkite varžtus arba svirtį, kad pritvirtintumėte pagrindinę plokštę.
5. Always perform a test cut on scrap material to verify the angle before cutting your main workpiece.

3. Prisijungimas prie maitinimo

• Ensure the power switch is in the "OFF" position before plugging in the tool.
• Connect the power cord to a suitable 220 Volt AC power outlet.

Naudojimo instrukcijos

1. Įjungimas/išjungimas

• To start the jigsaw, press the power switch.
• To stop the jigsaw, release the power switch. Note: Some models may have a lock-on button for continuous operation, which must be disengaged to turn off the tool.

2. Selecting Pendulum Action

Dvejetaitage pendulum action allows for faster cutting in softer materials and cleaner cuts in harder materials.

• Higher Pendulum Setting: For faster, more aggressive cuts in wood and softer materials. This setting may result in a rougher cut edge.
• Lower/No Pendulum Setting: For finer, cleaner cuts in wood, plastics, and metals. This setting is slower but provides better control and finish.
• Adjust the pendulum setting using the dedicated lever or dial on the tool.

3. Pjovimo būdai

Visada įsitikinkite, kad ruošinys yra tvirtai pritvirtintasamped, kad pjovimo metu nejudėtų.

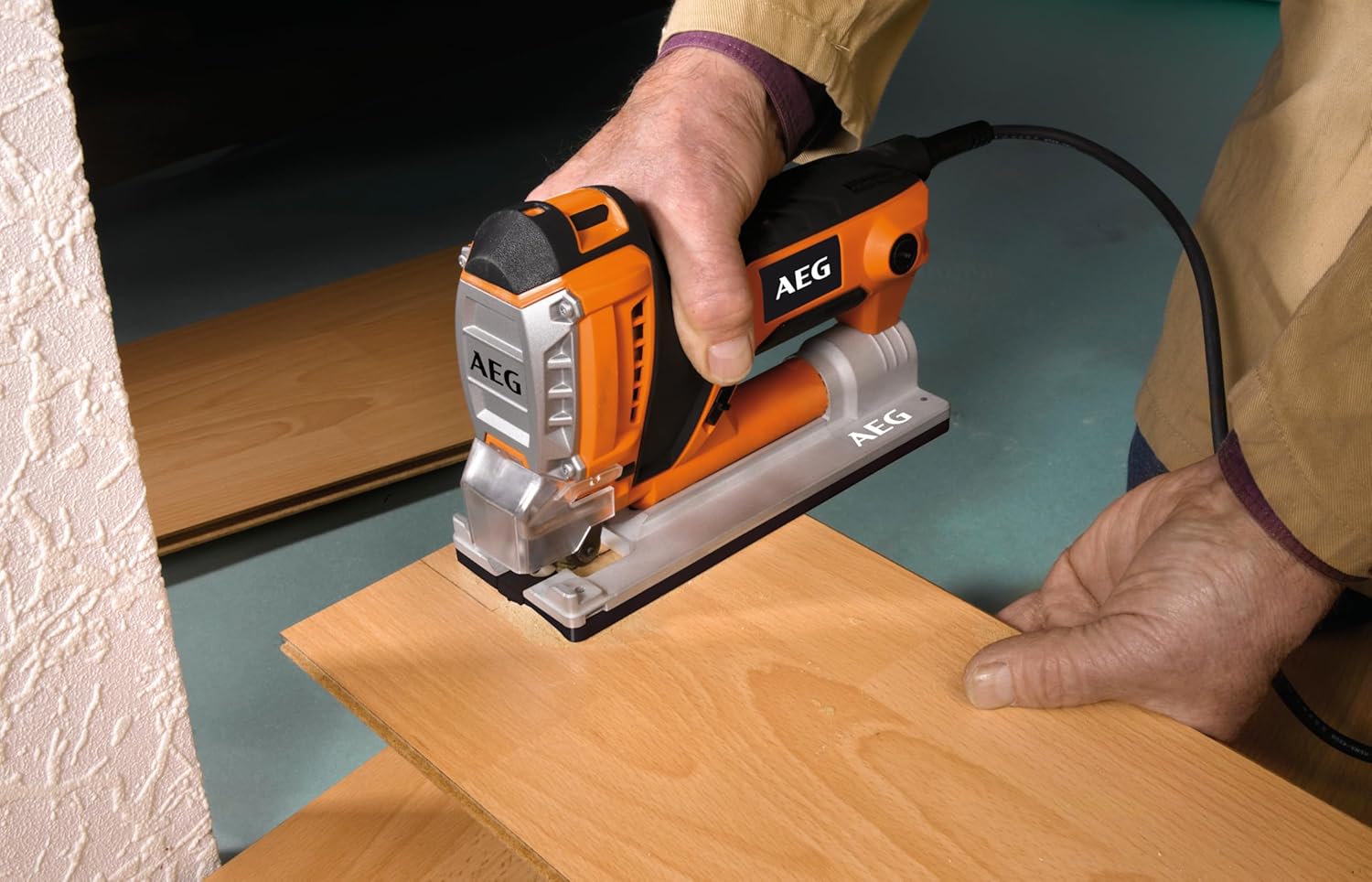

Figure 3: User demonstrating cutting a wooden board with the AEG PST 500 X Jigsaw.

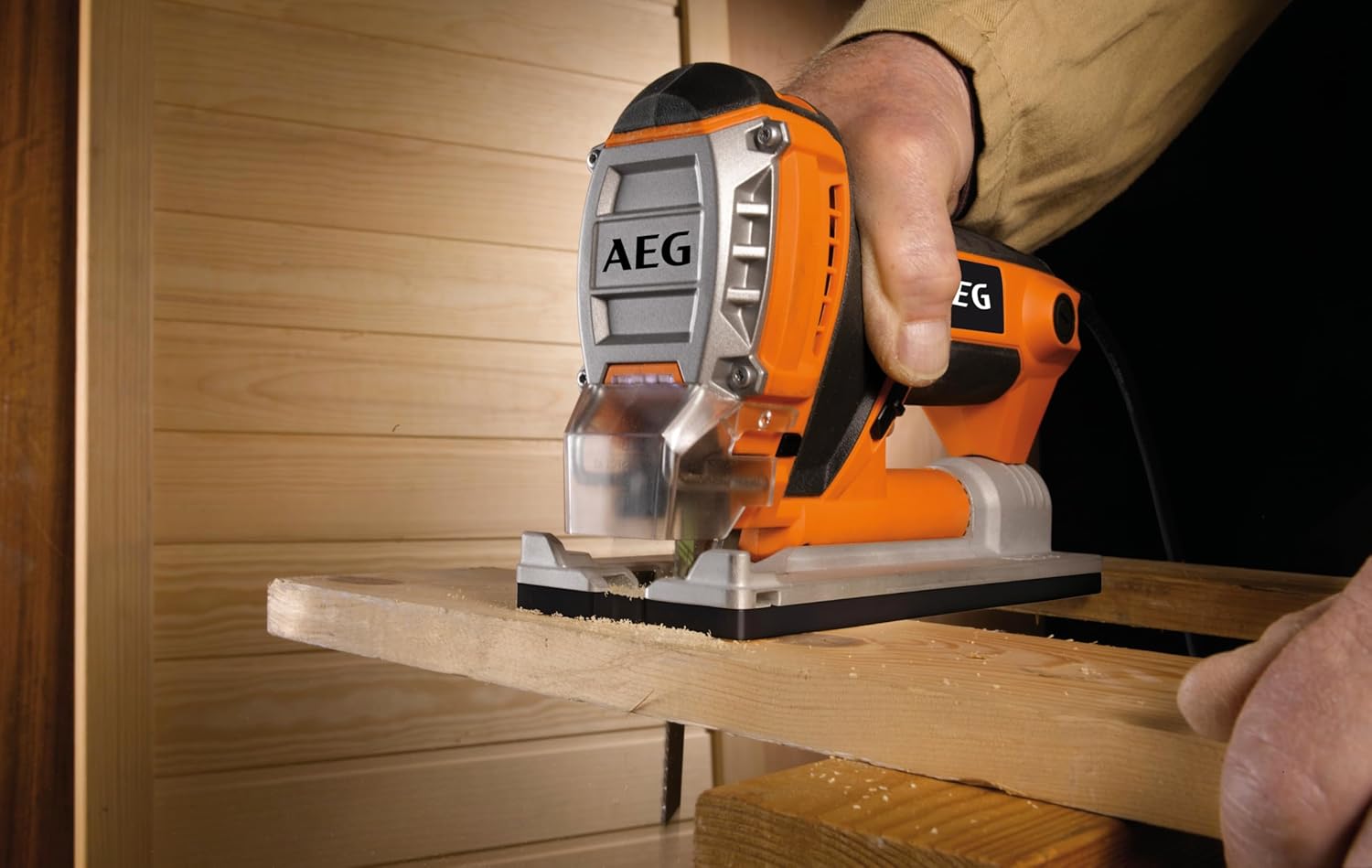

Figure 4: Close-up of the AEG PST 500 X Jigsaw in action, performing a cut on wood.

• Pjovimo pradžia: Place the front edge of the base plate flat on the workpiece. Start the tool and allow the blade to reach full speed before slowly guiding it into the material along your marked line.
• Tiesūs pjūviai: Maintain steady pressure and guide the tool smoothly along the cutting line. For long straight cuts, consider using a straight edge guide (not included).
• Kreivės pjūviai: Use a narrower blade for tighter curves. Guide the tool slowly, allowing the blade to follow the curve without forcing it.
• Įstrižiniai pjūviai: After adjusting the base plate angle (as described in Setup), proceed with cutting as usual, ensuring the base plate remains flat on the workpiece.
• Įgiliniai pjūviai: For internal cuts without a pilot hole, tilt the tool forward so the front edge of the base plate rests on the workpiece. Start the tool, then slowly lower the rear of the base plate until the blade plunges through the material.

Priežiūra

Regular maintenance ensures the longevity and optimal performance of your jigsaw. Always disconnect the tool from the power supply before performing any maintenance.

• Valymas: Regularly clean the ventilation openings and the blade area to prevent dust buildup. Use a soft brush or compressed air. Do not use water or solvents.
• Ašmenų keitimas: Replace dull or damaged blades promptly. Refer to the "Installing the Saw Blade" section for proper procedure.
• Maitinimo laidas: Inspect the power cord for any damage before each use. If damaged, have it repaired by a qualified service technician.
• Saugykla: Dėlionę laikykite sausoje, saugioje, vaikams nepasiekiamoje vietoje.

Trikčių šalinimas

Specifikacijos

Note: The specification for "Included components: Battery" in the source data appears to be an error, as this is a corded electric tool and operates via an electrical cable.

Garantija ir palaikymas

Informacija apie garantiją

The AEG PST 500 X Jigsaw comes with a Ribota garantija. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and limitations.

Atsarginių dalių prieinamumas

Spare parts for this product are available in the EU for a period of 5 metai nuo pirkimo datos.

Pagalba klientams

For technical assistance, service, or warranty claims, please contact AEG customer support. Contact information can typically be found on the AEG official website or on the product packaging. When contacting support, please have your model number (PST 500 X or 4935428260) and purchase date available.
