Įvadas
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Briggs & Stratton 19N137-0053-F1 XR Series 10 HP 306cc Horizontal Shaft Engine. This engine is designed to deliver dependable power for demanding work environments, featuring a premium Dual Clean air filtration system, recoil starter, and Maintenance-free Magnetron electronic ignition. It includes a Dura-Bore cast iron cylinder sleeve for extended life, an installed muffler, a low-oil sensor, and a fuel tank. Please read this manual thoroughly before operating the engine.
1 pav.: Kampinis view of the Briggs & Stratton 19N137-0053-F1 XR Series Engine.
Saugos informacija
Visada teikite pirmenybę saugumui, kai naudojate variklį arba atliekate jo techninę priežiūrą. Nesilaikant saugos nurodymų, galite sunkiai susižaloti ar net mirti.
- Perskaitykite vadovą: Understand all instructions and warnings before operating the engine.
- Anglies monoksido pavojus: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Operate the engine only outdoors in a well-ventilated area.
- Degalų sauga: Gasoline is highly flammable. Store fuel in approved containers, away from ignition sources. Refuel in a well-ventilated area with the engine off and cool. Do not smoke while refueling.
- Karšti paviršiai: Variklio komponentai, ypač duslintuvas, veikimo metu labai įkaista ir kurį laiką išlieka karšti po išjungimo. Venkite sąlyčio, kad išvengtumėte nudegimų.
- Judančios dalys: Keep hands, feet, and clothing away from moving parts such as the flywheel and PTO shaft.
- 65 pasiūlymas Įspėjimas: Šis gaminys gali paveikti jus su cheminėmis medžiagomis, įskaitant variklio išmetamąsias dujas, kurios Kalifornijos valstijoje gali sukelti vėžį, ir anglies monoksidą, kuris Kalifornijos valstijoje gali sukelti apsigimimus ar kitą reprodukcinę žalą. Norėdami gauti daugiau informacijos, eikite į www.P65Warnings.ca.gov.
Sąranka
Proper setup ensures optimal performance and longevity of your engine.
1. Variklio montavimas
Ensure the engine is securely mounted to a stable, level surface or equipment frame. Use appropriate hardware and follow the equipment manufacturer's guidelines for installation. The PTO ball bearing helps ensure smooth operation and extends the life of the engine by minimizing wear and tear, making proper mounting crucial for alignment.
2. Variklio alyvos pildymas
The engine is shipped without oil. Before starting, fill the crankcase with the recommended type and amount of oil.
- Padėkite variklį ant lygaus paviršiaus.
- Nuimkite alyvos užpildymo dangtelį / matuoklį.
- Slowly add 37 uncijos of recommended engine oil (refer to the engine's oil chart for specific viscosity based on ambient temperature).
- Check the oil level using the dipstick; do not overfill.
- Tvirtai užsukite alyvos įpylimo dangtelį / matuoklį.
This engine features a low-oil sensor, which will prevent the engine from starting or shut it down if the oil level is too low, protecting the engine from damage.
3. Degalų įpylimas
Use fresh, clean, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 fuel or gasoline containing more than 10% ethanol.
- Įsitikinkite, kad variklis išjungtas ir atvėsęs.
- Nuimkite degalų dangtelį.
- Fill the fuel tank, leaving some space for fuel expansion. Do not overfill.
- Tvirtai užsukite degalų bako dangtelį.
2 paveikslas: viršuje view of the engine, highlighting the fuel tank and air filter assembly.
3 pav.: šonas view of the engine, showing the recoil starter and operational controls.
Variklio valdymas
Follow these steps for starting and stopping your Briggs & Stratton engine.
1. Paleidimo procedūra
- Ensure the engine is on a level surface and connected to the equipment.
- Patikrinkite alyvos ir degalų lygį.
- Pasukite droselio valdiklį į FAST padėtį.
- Droselio svirtį perkelkite į padėtį „FULL CHOKE“ (šaltam užvedimui). Šiltam užvedimui droselio gali ir nereikėti.
- Pasukite variklio jungiklį į ON padėtį.
- Grasp the recoil starter handle firmly and pull slowly until resistance is felt, then pull rapidly with a full arm stroke. Do not let the rope snap back; guide it gently.
- Varikliui užsivedus, jam šylant, palaipsniui perjunkite droselio valdiklį į išjungimo padėtį.
2. Sustabdymo procedūra
- Droselio svirtį perkelkite į lėto arba tuščiosios eigos padėtį.
- Pasukite variklio jungiklį į OFF padėtį.
- If equipped, turn the fuel valve to the OFF position.
Priežiūra
Regular maintenance is crucial for the longevity and reliable performance of your engine. Refer to your engine's specific maintenance schedule for detailed intervals.
1. Variklio alyvos keitimas
Variklio alyvą keiskite po pirmųjų 5 darbo valandų, vėliau kas 50 valandas arba kasmet, atsižvelgiant į tai, kas įvyksta anksčiau.
- Paleiskite variklį kelias minutes, kad alyva sušiltų.
- Turn off the engine and disconnect the spark plug wire.
- Padėkite tinkamą indą po alyvos išleidimo kaiščiu.
- Išsukite alyvos išleidimo kamštį ir alyvos užpildymo dangtelį / matuoklį, kad alyva galėtų visiškai ištekėti.
- Replace the drain plug and refill with 37 uncijos of recommended oil.
- Check the oil level and replace the fill cap/dipstick.
2. Oro filtro priežiūra
This engine features a premium Dual Clean air filtration system. Inspect the air filter regularly and clean or replace as needed, especially in dusty conditions.
- Nuimkite oro filtro dangtelį.
- Carefully remove the foam pre-cleaner and paper cartridge.
- Clean the foam pre-cleaner with warm water and mild detergent, rinse thoroughly, and allow to air dry. Lightly oil with engine oil and squeeze out excess.
- Tap the paper cartridge gently to remove loose dirt. Replace if heavily soiled or damaged.
- Reassemble the air filter components.
Figure 4: Carburetor side of the engine, showing the air filter assembly.
3. Uždegimo žvakių patikra
Uždegimo žvakę tikrinkite kasmet arba kas 100 darbo valandų. Išvalykite arba pakeiskite pagal poreikį.
- Nuimkite uždegimo žvakės laidą.
- Norėdami nuimti uždegimo žvakę, naudokite uždegimo žvakės veržliaraktį.
- Inspect for fouling, wear, or damage. Clean with a wire brush if necessary.
- Check the spark plug gap (refer to engine specifications for correct gap).
- Reinstall the spark plug and torque to specifications. Reconnect the spark plug wire.
The Maintenance-free Magnetron electronic ignition system ensures reliable starting without requiring ignition timing adjustments.
Trikčių šalinimas
This section provides solutions to common engine problems.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Variklis neužsives | Nėra kuro arba pasenęs kuras | Add fresh fuel. Drain old fuel if necessary. |
| Žemas alyvos lygis | Add engine oil to the correct level. The low-oil sensor prevents starting. | |
| Uždegimo žvakė sugedusi arba užsiteršusi | Išvalykite arba pakeiskite uždegimo žvakę. Patikrinkite tarpelį. | |
| Droselis netinkamai nustatytas | Adjust choke for cold or warm start conditions. | |
| Variklis dirba nelygiai | Nešvarus oro filtras | Išvalykite arba pakeiskite oro filtrą. |
| Pasenęs kuras | Drain fuel tank and carburetor, refill with fresh fuel. | |
| Uždegimo žvakių problemos | Patikrinkite ir išvalykite arba pakeiskite uždegimo žvakę. | |
| Galios praradimas | Nešvarus oro filtras | Išvalykite arba pakeiskite oro filtrą. |
| Incorrect engine speed | Sureguliuokite droselio valdiklį. |
Specifikacijos
Detailed technical specifications for the Briggs & Stratton 19N137-0053-F1 XR Series Engine.
- Modelis: 19N137-0053-F1
- Prekinis ženklas: Briggs & Stratton
- Poslinkis: 306cc
- Galios įvertinimas: 14.50 Gross Torque*
- Maksimalus RPM: 3600
- Alkūninio veleno matmenys: 3/4" diameter x 2-1/2" length
- Crankshaft Drilled & Tapped: 3/8-24
- Crankshaft Keyway: 1/4 colio
- Alyvos talpa: 37 oz (1.09 liters)
- Įkrovimo sistema: 9 Amp
- Uždegimo sistema: Maintenance-free Magnetron Electronic Ignition
- Cilindro įvorė: Ilgaviduris ketus
- Valve Design: Viršutinis vožtuvas (OHV)
- Oro filtravimas: Premium Dual Clean System
- Svoris: 81.1 svaro (apytiksliai)
*Briggs & Stratton uses Gross Torque (GT) to measure power on smaller engines and Gross Horsepower (GHP) for larger engines.
Matmenų brėžiniai

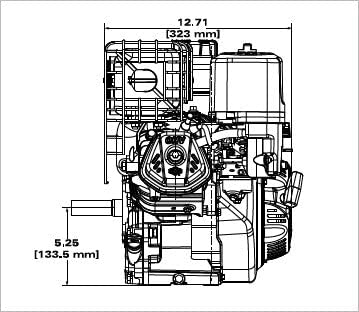

5 pav.: šonas view dimensional drawing of the engine, showing key measurements.

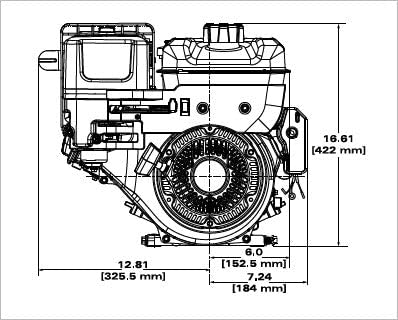

6 pav.: priekis view dimensional drawing of the engine, showing key measurements.
Figure 7: Detailed drawing of the crankshaft dimensions.
Informacija apie garantiją
This Briggs & Stratton engine comes with a manufacturer limited warranty:
- Naudojimas vartotojui: 2 metai
- Komercinis naudojimas: 1 metai
Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your engine or visit the official Briggs & Stratton websvetainę.
Palaikymas ir kontaktai
For technical assistance, replacement parts, or further inquiries regarding your Briggs & Stratton engine, please contact Briggs & Stratton customer support or an authorized service dealer.
It is crucial to ensure you are choosing the right replacement for your original equipment or engine model. If you are unsure, contact the manufacturer with your engine's model, type, and code numbers for accurate assistance.
Apsilankykite oficialioje „Briggs & Stratton“ parduotuvėje. website for service locator and contact information: www.briggsandstratton.com
