Generac Maintenance Kit 0J57640SSM for 410cc 8kW HSB Generators Instruction Manual

1. Įvadas

The Generac Preventative Maintenance Kit 0J57640SSM is designed to provide all necessary components for routine maintenance of your Generac automatic home-standby generator. Regular maintenance ensures optimal performance and extends the lifespan of your generator.

This kit is specifically for Generac 410cc 8kW HSB (Home Standby) generators manufactured in 2008 or newer. Performing maintenance annually, or more frequently in dusty environments, is recommended.

2. Rinkinio turinys

The 0J57640SSM Maintenance Kit includes the following genuine Generac parts:

• (2) Quarts of Generac Full Synthetic 5W-30 Engine Oil: Formulated for optimal engine protection and performance.
• (1) Oil Filter: Designed to remove contaminants from engine oil.
• (1) Air Filter: Ensures clean air intake for efficient combustion.
• (1) Spark Plug: Provides reliable ignition for the engine.
• (1) Funnel: Aids in clean oil filling.
• (1) Reminder Card: For tracking future maintenance.
• (1) Shop Towel: For cleanup during maintenance.

3. Suderinamumas

This maintenance kit is compatible with Generac 410cc 8kW HSB generators manufactured in 2008 or newer. Refer to your generator's owner's manual for specific maintenance requirements and part numbers.

Compatible Generator Model Numbers:

• 0055010
• 0055180
• 0055181
• 0055260
• 0055340
• 0056100
• 0058700
• 0058701
• 0058820
• 0058821
• 0058910
• 0058911
• 0058970

4. Techninės priežiūros grafikas

Generac recommends performing routine maintenance on your home-standby generator at least once per year or after every 200 hours of operation, whichever comes first. In environments with excessive dust or debris, more frequent maintenance may be necessary.

Always consult your generator's owner's manual for the most accurate and detailed maintenance schedule specific to your model.

5. Installation and Replacement Instructions

Before beginning any maintenance, ensure the generator is turned off, cooled down, and disconnected from its power source to prevent accidental startup. Refer to your generator's owner's manual for detailed safety precautions and specific component locations.

5.1. Engine Oil Replacement

Aprašymas: Two black bottles of Generac Full Synthetic 5W-30 Engine Oil. Each bottle is labeled with 'GENERAC' and 'FULL SYNTHETIC SAE 5W-30 ENGINE OIL'. These are the two quarts of oil included in the maintenance kit.

1. Locate the oil drain plug on your generator. Place a suitable container beneath it to collect used oil.
2. Remove the drain plug and allow all old oil to drain completely.
3. Reinstall the drain plug securely.
4. Locate the oil fill cap. Using the provided funnel, slowly pour the two quarts of Generac Full Synthetic 5W-30 Engine Oil into the engine.
5. Check the oil level using the dipstick, ensuring it is within the recommended range. Add more oil if necessary, but do not overfill.
6. Tvirtai užsukite alyvos įpylimo dangtelį.

5.2. Oil Filter Replacement

Aprašymas: An orange Generac oil filter with the text 'GENERAC GENUINE PARTS' and 'Part #: 070185E' visible on its side. The image also shows its dimensions: 2 3/4 inches in width and 3 1/2 inches in height.

1. Locate the existing oil filter. Place a drip pan underneath to catch any residual oil.
2. Using an oil filter wrench, carefully unscrew the old oil filter counter-clockwise and remove it.
3. Apply a thin film of new engine oil to the rubber gasket of the new Generac oil filter.
4. Screw on the new oil filter clockwise by hand until the gasket makes contact with the engine block. Then, tighten it an additional 1/2 to 3/4 turn. Do not overtighten.
5. Wipe away any spilled oil with the shop towel.

5.3. Oro filtro keitimas

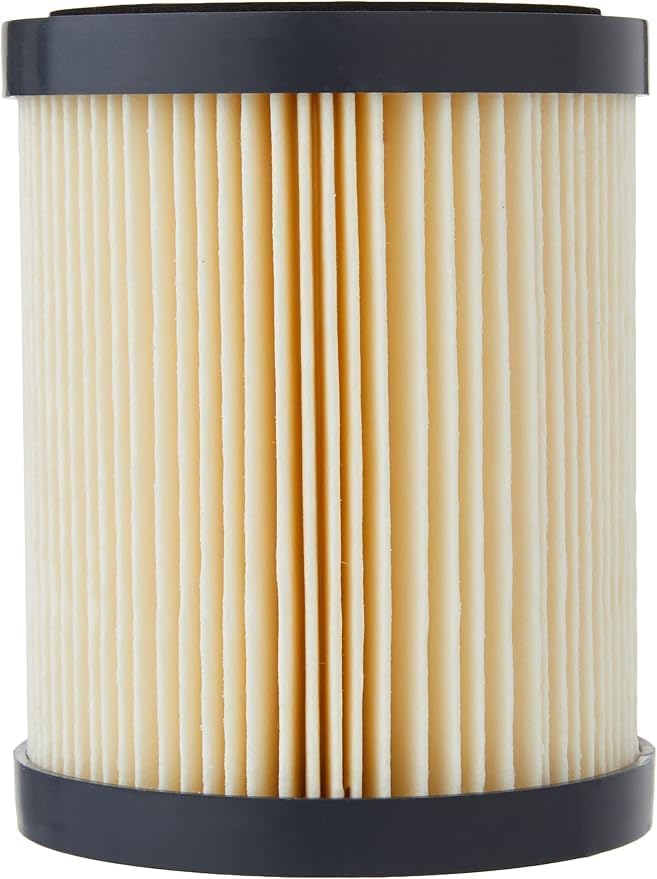

Aprašymas: A cylindrical air filter composed of pleated paper filtration material with black rubber end caps. This filter is designed to capture airborne particles before they enter the engine.

1. Locate the air filter housing, typically found near the carburetor or intake manifold.
2. Open the air filter housing by releasing the clips or screws that secure it.
3. Remove the old air filter. Note its orientation.
4. Išvalykite oro filtro korpuso vidų nuosėdas.
5. Insert the new Generac air filter, ensuring it is seated correctly in the housing.
6. Uždarykite ir pritvirtinkite oro filtro korpusą.

5.4. Uždegimo žvakės keitimas

Aprašymas: A spark plug featuring a white ceramic insulator and metal threaded body. The image indicates its dimensions: 1 1/2 inches for the ceramic part, 1 inch for the threaded part, and a total length of 3 inches, with a 5/8 inch hex size.

1. Locate the spark plug(s) on the engine. Disconnect the spark plug wire(s).
2. Using a spark plug wrench, carefully unscrew the old spark plug counter-clockwise and remove it.
3. Inspect the new Generac spark plug for the correct gap setting as specified in your generator's manual. Adjust if necessary.
4. Naują uždegimo žvakę įsukite į cilindro galvutę ranka, kad išvengtumėte sriegių susisukimo.
5. Once finger-tight, use the spark plug wrench to tighten it an additional 1/4 to 1/2 turn. Do not overtighten.
6. Reconnect the spark plug wire(s) firmly.

6. Problemų sprendimas

This section addresses common issues related to maintenance kit components. For comprehensive generator troubleshooting, refer to your generator's owner's manual.

• Oil Leakage after Change: Ensure the oil drain plug and oil filter are tightened correctly. Check the oil filter gasket for proper seating and damage.
• Engine Not Starting after Spark Plug Change: Verify the spark plug wire is securely connected. Ensure the new spark plug is correctly gapped and tightened.
• Sumažintas variklio našumas: A clogged air filter can restrict airflow. Ensure the new air filter is installed correctly and the housing is sealed.

7. Specifikacijos

8. Garantija ir palaikymas

Generac genuine parts are covered by Generac's standard warranty. For specific warranty details regarding this maintenance kit or its individual components, please refer to the warranty information provided with your Generac generator or contact Generac customer support directly.

For technical assistance or further inquiries, please visit the official Generac website or contact their customer service department. Always provide your generator's model and serial number when seeking support.
