1. Įvadas
Thank you for choosing the Generic 84-120 Inch Adjustable Tension Curtain Rod. This product is designed for easy, tool-free installation, providing a versatile solution for hanging curtains, shower curtains, or creating room dividers. Its adjustable length and strong tension mechanism ensure a secure fit in various openings without causing damage to walls or frames. Please read this manual carefully to ensure proper installation and long-lasting use of your tension rod.
Image 1.1: The Generic Adjustable Tension Curtain Rod, shown fully extended. This rod features a simple twist-and-lock mechanism for length adjustment and rubber end caps for secure, non-slip placement.
2. Saugos informacija
- Svorio limitas: Do not overload the tension rod. While sturdy, excessive weight can cause the rod to fall, potentially leading to injury or damage. Refer to the specifications for typical weight capacity.
- Saugi vieta: Ensure the rod is firmly tensioned between two stable surfaces. Improper tensioning may result in the rod slipping or falling.
- Vaikai ir augintiniai: Keep small children and pets away from the installation area during setup to prevent accidents.
- Suderinamumas su paviršiumi: This rod is designed for smooth, flat, and sturdy surfaces. Avoid installing on fragile or uneven surfaces that may not withstand the tension.
3. Pakuotės turinys
Patikrinkite pakuotę, kad įsitikintumėte, jog yra visi komponentai:
- 1 x Generic 84-120 Inch Adjustable Tension Curtain Rod
Note: No additional tools or hardware are required for installation.
4. Sąranka ir diegimas
The Generic Adjustable Tension Curtain Rod is designed for quick and easy installation without the need for tools, drilling, or screws.
- Measure Your Opening: Determine the width of the window frame, doorway, or space where you intend to install the rod. Ensure it is within the rod's adjustable range of 84 to 120 inches.
- Adjust Initial Length: Hold the rod with both hands. Rotate the two sections of the rod in opposite directions (twist one section clockwise and the other counter-clockwise) to extend or retract it. Adjust the rod to be approximately 1 to 2 inches longer than your measured opening. This slight excess length is crucial for creating tension.
- Padėkite strypą: Place one end of the rod against the desired surface (e.g., inside a window frame).
- Taikyti įtampą: Compress the rod slightly by pushing the other end against the opposite surface. The internal spring mechanism will create tension, holding the rod firmly in place. Ensure the rubber end caps are flush against the surfaces for maximum grip.
- Patikrinkite stabilumą: Gently tug on the rod to confirm it is securely installed and does not slip. If it feels loose, remove it and repeat step 2, extending the rod slightly more before re-installing.

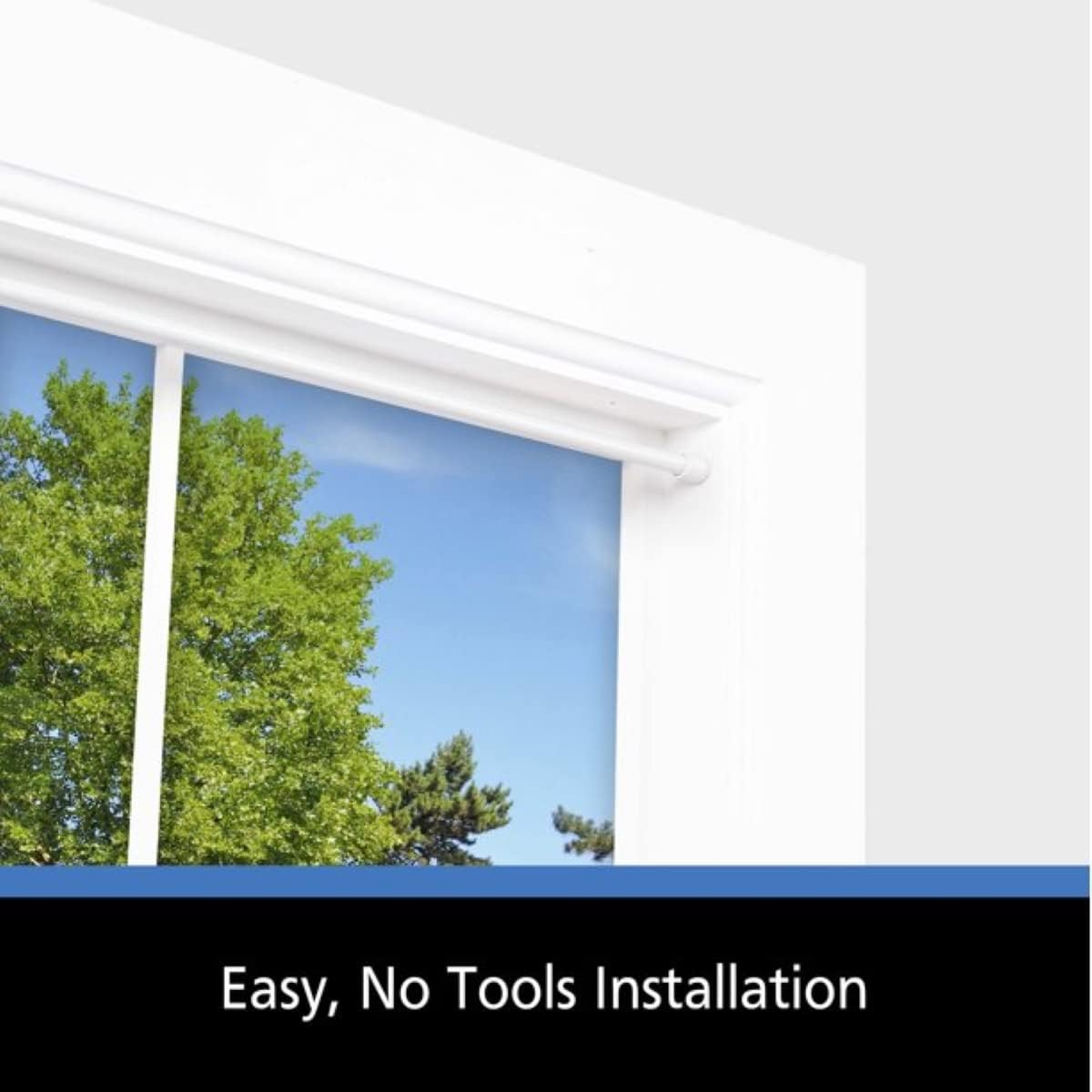

4.1 pav.: pvz.ample of the tension rod installed within a window frame, demonstrating its tool-free installation.
5. Naudojimo instrukcijos
Once installed, the tension rod requires minimal operation. Its primary function is to hold items securely.
- Hanging Items: After installation, you can hang curtains, drapes, or other lightweight items directly onto the rod. Ensure the total weight does not exceed the rod's capacity.
- Reguliavimo padėtis: To reposition the rod, simply remove it by compressing it slightly, then re-install it in the new desired location following the setup steps.
- Laikinas naudojimas: The tension rod is ideal for temporary installations as it leaves no permanent marks or damage.
6. Priežiūra
To ensure the longevity and proper function of your tension rod, follow these simple maintenance guidelines:
- Valymas: Wipe the rod with a soft, damp cloth to remove dust or dirt. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Inspect End Caps: Periodically check the rubber end caps for wear or damage. Ensure they are clean and free of debris to maintain optimal grip.
- Saugykla: When not in use, store the rod in a dry place, preferably in its retracted state, to protect the spring mechanism.
7. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Rod keeps falling or slipping. | Insufficient tension; rod is too short. Surfaces are slippery or uneven. Overloaded with too much weight. | Remove the rod and extend it slightly more (1-2 inches longer than the opening) before re-installing. Ensure end caps and surfaces are clean and dry. Reduce the weight of items hung on the rod. |
| Rod is difficult to adjust. | Mechanizmas yra standus arba nešvarus. | Ensure the rod is clean. Apply a small amount of silicone-based lubricant (not oil-based) to the twisting mechanism if necessary, but avoid getting it on the end caps. |
| Rod leaves marks on walls. | Excessive tension. Rough or delicate wall surface. | Reduce tension slightly while ensuring stability. Consider placing a small, soft pad (e.g., felt) between the end caps and delicate surfaces, though this may reduce grip. |
8. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelio numeris | 2-695-01 |
| Reguliuojamas ilgis | 84–120 colio |
| Strypo skersmuo | 1 colio |
| Gaminio matmenys | 120 x 1 x 1 colio (pilnai išskleistas) |
| Prekės svoris | 1.1 svaro |
| Montavimo tipas | Tension Mounted |
| Spalva | Baltas |
| UPC | 044294116511 |
| Gamintojas | Bendras |
9. Garantija ir palaikymas
Dėl garantijos informacijos ar techninės pagalbos kreipkitės į pardavėją, iš kurio įsigijote produktą, arba susisiekite tiesiogiai su gamintoju. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą.
Manufacturer: Generic
