1. Produktas baigtasview
The EcoSmart 60-Watt Equivalent Soft White A19 Non-Dimmable LED Light Bulb is designed to provide efficient and long-lasting illumination for indoor applications. Each bulb consumes only 9 watts of power while delivering brightness equivalent to a 60-watt incandescent bulb. These LED bulbs offer a soft white light appearance (2700K) and are built for durability with shatter-resistant construction.
Key features include an estimated lifespan of up to 15,000 hours, significant energy savings over their operational life, and a standard A19 shape with an E26 medium base for easy installation in most common fixtures.
Figure 1: EcoSmart 8-pack LED light bulb packaging and a single bulb. This image displays the EcoSmart 8-pack LED light bulb packaging, highlighting key features such as '60W Replacement', '800 Lumens', 'Soft White', and '3 Year Warranty'. A single EcoSmart A19 LED bulb is shown in front of the box.
2. Saugos informacija
- ĮSPĖJIMAS: Elektros smūgio pavojus. Neatidaryti.
- Ensure power is turned OFF at the switch and circuit breaker before installation, removal, or inspection.
- Do not use with dimmers. This bulb is non-dimmable. Using it with a dimmer may cause damage to the bulb or the dimmer, and will void the warranty.
- Suitable for indoor use only. Do not expose to water or wet locations.
- Nenaudokite visiškai uždarose šviestuvuose, nes tai gali sutrumpinti lemputės tarnavimo laiką.
- Nenaudoti ten, kur tiesiogiai veikia vanduo.
- Darbinė temperatūra: nuo -20 °C iki +40 °C (nuo -4 °F iki +104 °F).
- Šis prietaisas nėra skirtas naudoti su avariniais išėjimais.
3. Sąranka ir diegimas
- Išjunkite maitinimą: Before replacing any light bulb, ensure the power to the fixture is turned off at the wall switch and the main circuit breaker to prevent electrical shock.
- Išimkite seną lemputę: Allow the old bulb to cool completely before carefully unscrewing it counter-clockwise from the light fixture. Dispose of the old bulb according to local regulations.
- Įdiekite naują lemputę: Carefully screw the EcoSmart LED bulb clockwise into the compatible E26 medium base socket until it is snug. Do not overtighten.
- Atkurti galią: Once the new bulb is securely installed, turn the power back on at the circuit breaker and then at the wall switch.
Įsitikinkite, kad šviestuvas yra skirtas lemputės galiaitage (9W LED equivalent to 60W incandescent) and that the socket type is E26 medium base.
4. Naudojimo instrukcijos
The EcoSmart A19 LED light bulb operates like a standard incandescent bulb. Once installed in a compatible fixture and power is restored, simply use the wall switch connected to the fixture to turn the light ON or OFF.
- Nepritemdomas: This bulb is designed for non-dimmable circuits only. Do not connect it to a dimmer switch.
- Momentinis įjungimas: The LED bulb provides full brightness immediately upon switching on, with no warm-up time required.
- Šviesos išvaizda: Emits a soft white light at 2700 Kelvin, creating a warm and inviting atmosphere.
5. Priežiūra
- Valymas: Prieš valydami, įsitikinkite, kad maitinimas išjungtas ir lemputė atvėsusi. Nuvalykite lemputę minkštu, sausu skudurėliu. Nenaudokite skystų valiklių ar abrazyvinių medžiagų.
- Pakeitimas: Due to the long lifespan of LED bulbs, frequent replacement is not typically required. When replacement is necessary, follow the installation steps outlined in Section 3.
- Saugykla: Jei laikote lemputes, laikykite jas originalioje pakuotėje vėsioje, sausoje vietoje, kad apsaugotumėte jas nuo pažeidimų.
6. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Lemputė neužsidega. | Armatūrai nėra energijos. | Check if the wall switch is ON. Check the circuit breaker for the room. |
| Lemputė netinkamai įsukta. | Turn off power, then carefully re-screw the bulb into the socket until snug. | |
| Sugedusi lemputė arba šviestuvas. | Test the bulb in a known working fixture. If the bulb still doesn't work, it may be faulty. If other bulbs work in the fixture, the fixture may be faulty. | |
| Lemputė mirksi arba ūžia. | Naudojamas su šviesos reguliatoriumi. | This bulb is non-dimmable. Remove from dimmer circuit and use in a standard ON/OFF switch circuit. |
| Laisvas ryšys. | Turn off power, then carefully re-screw the bulb into the socket until snug. |
7. Specifikacijos

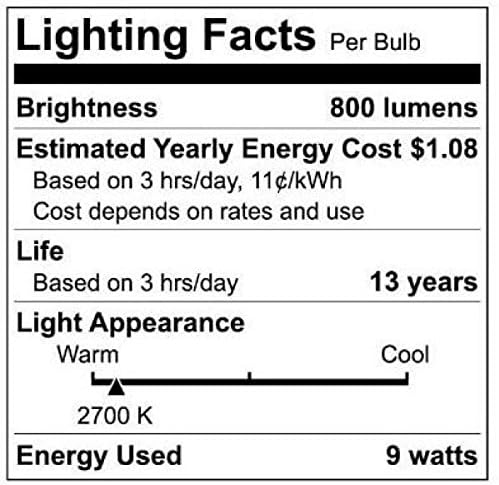

Figure 2: Lighting Facts for EcoSmart LED Bulb. This label provides detailed 'Lighting Facts' for a single EcoSmart LED bulb, indicating 800 lumens brightness, an estimated yearly energy cost of $1.08, a life of 13 years (based on 3 hours/day), a soft white light appearance at 2700K, and 9 watts of energy used.
- Modelio pavadinimas: A800ST-Q1-07
- Prekinis ženklas: EcoSmart
- Šviesos šaltinio tipas: LED
- Lemputės formos dydis: A19
- Lemputės pagrindas: E26 Vidutinis
- Vattage: 9 vatų
- Kaitinamosios lempos ekvivalentas vattage: 60 vatų
- Brightness (White Brightness): 800 liumenų
- Šviesos spalva: Minkšta balta
- Spalvos temperatūra: 2700 kelvinų
- Spalvų perteikimo indeksas (CRI): 80.00
- ttage: 120 voltų
- Priimta ttage Dažnis: Nuo 100 iki 120 voltų ir 60 hercų
- Naudojimas viduje / lauke: Vidinis
- Ypatinga funkcija: Energetiškai efektyvus
- Kontrolės metodas: Push Button (Standard switch)
- Ryšio technologija: Normal bulb (Not Smart Home Compatible)
- Šviesos šaltinio veikimo laikas: 15,000 valandų (apytiksliai 13.7 metai, skaičiuojant 3 valandas per dieną)
- Numatomos metinės energijos sąnaudos: $1.08 (based on 3 hours/day, 11¢/kWh)
- Medžiagos tipas: Varis (vidiniai komponentai)
- UPC: 693690568068
8. Informacija apie garantiją
This EcoSmart LED light bulb is backed by a 3 metų ribota garantija from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For warranty claims or further details, please retain your proof of purchase and contact EcoSmart customer support.
9. Pagalba klientams
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact EcoSmart customer service. Refer to the product packaging or the official EcoSmart websvetainę, kurioje rasite naujausią kontaktinę informaciją.
Internetiniai ištekliai: For additional product information and FAQs, visit the official EcoSmart websvetainę.
