Hitachi RMC322HBD 2.0 Ton 3 Star Split AC User Manual

1. Įvadas

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hitachi RMC322HBD 2.0 Ton 3 Star Split Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your unit.

2. Svarbios saugos instrukcijos

Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Įsitikinkite, kad maitinimo šaltinis atitinka įrenginio specifikacijas.
• Nenaudokite oro kondicionieriaus šlapiomis rankomis.
• Nekiškite pirštų ar daiktų į oro įleidimo / išleidimo angas.
• Užtikrinkite tinkamą įžeminimą, kad išvengtumėte elektros smūgio.
• Pasirūpinkite, kad aplink lauko įrenginį nebūtų jokių kliūčių.
• Nebandykite patys taisyti įrenginio. Kreipkitės į kvalifikuotus techninės priežiūros darbuotojus.
• Prieš valydami arba atlikdami techninę priežiūrą, išjunkite maitinimą.

3. Gaminio komponentai

The Hitachi RMC322HBD Split AC system consists of two main units: an indoor unit and an outdoor unit, along with a remote control and installation accessories.

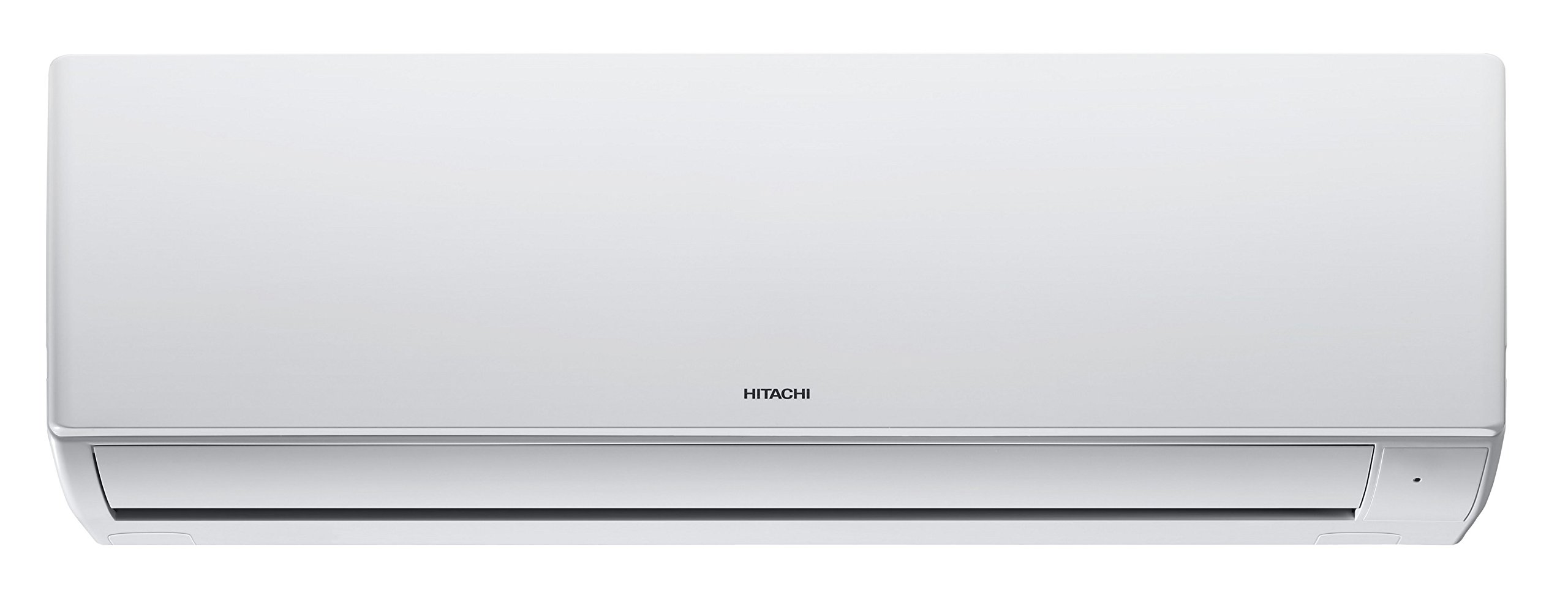

3.1 paveikslas: Priekyje view of the Hitachi RMC322HBD indoor unit. This unit is typically mounted inside the room and is responsible for circulating cooled air.

3.2 paveikslas: Šoninė view of the Hitachi RMC322HBD indoor unit, showing its compact design suitable for various room aesthetics.

• Vidinis blokas: Houses the evaporator coil, fan, air filter, and control electronics. It is designed for wall mounting.
• Lauko blokas: Contains the compressor, condenser coil, and expansion valve. It is installed outside the building.
• Nuotolinio valdymo pultas: Used to operate the AC unit from a distance, allowing adjustment of settings such as temperature, mode, and fan speed.
• Montavimo rinkinys: Includes necessary pipes, wires, and mounting brackets for installation.

4. Diegimo vadovas

Installation of this split air conditioner requires specialized skills and tools. It is strongly recommended that installation be performed by a qualified and certified technician to ensure proper functioning, safety, and warranty validity.

4.1 Svetainės pasirinkimas

• Vidinis blokas: Pasirinkite vietą, kurioje oras pasiskirstytų tolygiai, atokiau nuo tiesioginių saulės spindulių ar šilumos šaltinių. Užtikrinkite pakankamai vietos aplink įrenginį techninei priežiūrai.
• Lauko blokas: Select a well-ventilated area, free from obstructions, and away from direct sunlight or strong winds. Ensure the unit is placed on a stable, level surface.

4.2 Vidinio įrenginio montavimas

The indoor unit should be securely mounted on a wall using the provided mounting plate. Ensure the wall is strong enough to support the unit's weight. Proper drainage for condensate water must be established.

4.3 Mounting the Outdoor Unit

The outdoor unit should be installed on a rigid base to minimize vibration and noise. Ensure there is adequate clearance for airflow around the unit. Connect the refrigerant pipes and electrical wiring between the indoor and outdoor units.

4.4 Elektros jungtys

All electrical work must comply with local codes and regulations. Connect the unit to a dedicated power circuit with appropriate voltage (230 Volts) and a circuit breaker. Ensure all connections are secure and properly insulated.

4.5 Drenažas

The indoor unit produces condensate water during operation. Ensure the drain hose is properly installed with a downward slope to allow for continuous drainage, preventing water leakage.

5. Operating Your AC

Your Hitachi RMC322HBD AC unit is controlled via a wireless remote control. Familiarize yourself with the remote's functions for optimal use.

5.1 Nuotolinio valdymo pulto funkcijos

Nuotolinio valdymo pultas leidžia:

• Maitinimo įjungimas/išjungimas: Įjungia arba išjungia įrenginį.
• Režimo pasirinkimas: Choose between Cooling, Fan, Dry, or Auto modes.
• Temperatūros reguliavimas: Nustatykite norimą kambario temperatūrą.
• Ventiliatoriaus greitis: Sureguliuokite ventiliatoriaus greitį (mažas, vidutinis, didelis, automatinis).
• Sūpynės funkcija: Control the direction of the air deflector (Wide angle deflector).
• Laikmatis: Nustatykite, kad įrenginys įsijungtų arba išsijungtų automatiškai.
• Ypatingos savybės: Activate specific functions like Anti Bacterial Filter or Sleep mode.

5.2 Pagrindinės operacijos

1. Point the remote control towards the indoor unit.
2. Press the 'ON/OFF' button to start the unit.
3. Select your desired operating mode using the 'MODE' button.
4. Adjust the temperature using the 'TEMP UP/DOWN' buttons.
5. Sureguliuokite ventiliatoriaus greitį pagal poreikį.

5.3 Ypatingos savybės

• Antibakterinis filtras: Helps to remove bacteria and allergens from the air, improving indoor air quality.
• Banguoto peilio dizainas: Contributes to efficient airflow and quiet operation.
• Plataus kampo deflektorius: Leidžia plačiau paskirstyti orą kambaryje.
• Filtro švaros indikatorius: Notifies you when the air filter requires cleaning, ensuring consistent performance.

6. Priežiūra ir priežiūra

Regular maintenance is crucial for the efficient and long-lasting operation of your AC unit. Always disconnect power before performing any maintenance.

6.1 Oro filtro valymas

The air filters should be cleaned regularly, typically every two weeks or when the 'Filter Clean Indicator' illuminates. Dirty filters can reduce cooling efficiency and airflow.

1. Atidarykite priekinį vidaus bloko skydelį.
2. Nuimkite oro filtrus.
3. Filtrus valykite dulkių siurbliu arba nuplaukite drungnu vandeniu ir švelniu plovikliu.
4. Allow the filters to dry completely in a shaded area before reinstalling.
5. Uždarykite priekinį skydelį.

6.2 Vidinio bloko valymas

Wipe the indoor unit's surface with a soft, dry cloth. For stubborn stains, use a damp cloth with a neutral detergent, then wipe dry. Do not use harsh chemicals or abrasive cleaners.

6.3 Lauko įrenginio priežiūra

Periodically check the outdoor unit for any obstructions (leaves, debris) around the condenser coils and clear them. Ensure the area around the unit remains clear for proper airflow. Professional cleaning of the outdoor unit's coils is recommended annually.

6.4 Sezoninė priežiūra

• Prieš vasarą: Have a professional technician inspect the refrigerant levels and overall system performance.
• Prieš žiemą: If the unit will not be used for an extended period, clean all components thoroughly and cover the outdoor unit to protect it from harsh weather.

7. Problemų sprendimas

Prieš kreipdamiesi į klientų aptarnavimo tarnybą, peržiūrėkite toliau pateiktą lentelę, kurioje pateikiamos dažniausiai pasitaikančios problemos ir galimi jų sprendimai.

Jei problema išlieka ir išbandžius šiuos sprendimus, kreipkitės į įgaliotąjį techninės priežiūros personalą.

8. Techninės specifikacijos

9. Informacija apie garantiją

Your Hitachi RMC322HBD Split AC comes with a limited warranty to cover manufacturing defects. The warranty details are as follows:

• 1 metai ant gaminio.
• 1 metai on the condenser.
• 5 metai ant kompresoriaus.

Please retain your purchase receipt as proof of purchase for warranty claims. The warranty does not cover damages resulting from improper installation, misuse, lack of maintenance, or unauthorized repairs. For detailed terms and conditions, refer to the warranty card included with your product.

10. Pagalba klientams

For any inquiries, technical assistance, or service requests regarding your Hitachi RMC322HBD Split AC, please contact Hitachi customer support. Ensure you have your model number (RMC322HBD) and purchase details ready when contacting support.

You can typically find contact information for Hitachi customer service on their official websvetainėje arba dokumentuose, pateiktuose kartu su jūsų produktu.
