1. Svarbios saugos instrukcijos
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.
Bendrieji elektrinių įrankių saugos įspėjimai
- Darbo zonos sauga: Darbo vieta turi būti švari ir gerai apšviesta. Netvarkingos arba tamsios vietos skatina nelaimingus atsitikimus. Nenaudokite elektrinių įrankių sprogioje aplinkoje, pavyzdžiui, ten, kur yra degių skysčių, dujų ar dulkių.
- Elektros sauga: Elektrinių įrankių kištukai turi atitikti lizdą. Niekada jokiu būdu nekeiskite kištuko. Nenaudokite jokių adapterių kištukų su įžemintais elektriniais įrankiais. Venkite kūno kontakto su įžemintais paviršiais, tokiais kaip vamzdžiai, radiatoriai, viryklės ir šaldytuvai.
- Asmeninis saugumas: Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. Always wear eye protection. Use hearing protection when operating the tool.
- Įrankio naudojimas ir priežiūra: Nenaudokite elektrinio įrankio per jėgą. Naudokite savo darbui tinkamą elektrinį įrankį. Prieš atlikdami bet kokius pakeitimus, keisdami priedus ar laikydami elektrinius įrankius, atjunkite kištuką nuo maitinimo šaltinio. Nenaudojamus elektrinius įrankius laikykite vaikams nepasiekiamoje vietoje.
- Paslauga: Pasirūpinkite, kad jūsų elektrinį įrankį aptarnautų kvalifikuotas remontininkas, naudodamas tik identiškas atsargines dalis. Taip bus užtikrintas elektrinio įrankio saugumas.
2. Produktas baigtasview ir komponentai
The HECHT HEC-1069 is a professional rotary hammer designed for drilling with impact and chiseling tasks. It features a powerful 1600 W motor and an SDS-MAX chuck for tool-free accessory changes.
Įtraukti komponentai:
- HECHT HEC-1069 Rotary Hammer
- Pagalbinė rankena
- 18 mm Diameter Drill Bit (SDS-MAX)
- 32 cm Long Pointed Chisel (SDS-MAX)
- Lubricating Grease Tube
- Maintenance Wrench
- Two Carbon Brushes
- Transporto dėklas

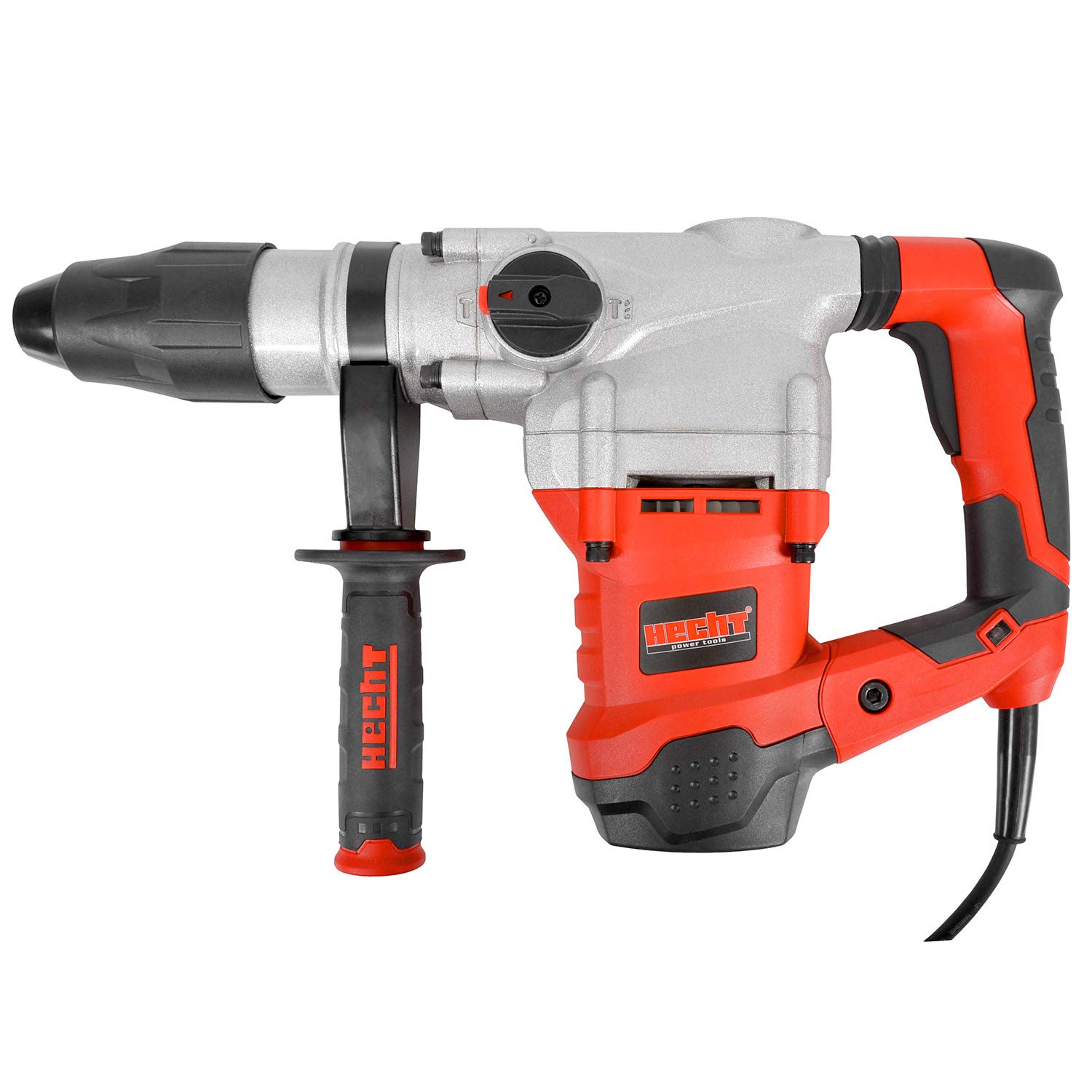

Image 2.1: The HECHT HEC-1069 Rotary Hammer, showing the main unit, auxiliary handle, drill bit, chisel, lubricating grease, maintenance wrench, and the robust transport case.
Image 2.2: The robust transport case, designed to securely store the rotary hammer and its accessories.
3. Sąranka ir surinkimas
3.1 Pagalbinės rankenos pritvirtinimas
The auxiliary handle provides a secure and stable grip for comfortable handling during operation. Loosen the handle clamp, slide the handle onto the tool's barrel, and tighten it in a comfortable position.
Image 3.1: Detail of the auxiliary handle, showing its textured grip for enhanced control.
3.2 Installing SDS-MAX Drill Bits and Chisels
The SDS-MAX chuck allows for quick, tool-free changes of drill bits and chisels. Ensure the tool is unplugged before changing accessories.
- Nuvalykite grąžto arba kalto kotą.
- Apply a small amount of lubricating grease to the shank of the accessory.
- Atitraukite įrankio griebtuvo apykaklę.
- Insert the SDS-MAX accessory into the chuck until it clicks into place.
- Release the chuck collar. Pull on the accessory to ensure it is securely locked. A slight axial play is normal for SDS-MAX systems.
Image 3.2: The SDS-MAX chuck, designed for quick and secure accessory changes.
Image 3.3: Included SDS-MAX accessories: an 18mm drill bit and a 32cm pointed chisel, along with the maintenance wrench and lubricating grease.
4. Naudojimo instrukcijos
The HECHT HEC-1069 offers two primary operating modes: drilling with impact (perforation) and chiseling (burinage).
4.1 Režimo pasirinkimas
Režimo pasirinkimo jungiklis yra įrankio šone. Pasukite jungiklį, kad pasirinktumėte norimą veikimo režimą:
- Drilling with Impact: For drilling holes in concrete, masonry, and stone.
- Kalimas: For breaking concrete, removing tiles, or light demolition work.
Note: Ensure the tool is unplugged before changing modes to prevent accidental activation.
Image 4.1: The mode selector switch, used to choose between drilling with impact and chiseling functions.
4.2 Bendras veikimas
- Ensure the correct accessory is installed and the desired mode is selected.
- Prijunkite įrankį prie tinkamo 230 V maitinimo lizdo.
- Tvirtai laikykite įrankį abiem rankomis, naudodami pagrindinę ir pagalbinę rankenas.
- Uždėkite grąžtą arba kaltą ant ruošinio.
- Press the trigger switch to start the tool. Apply steady, firm pressure. Do not force the tool; allow the impact mechanism to do the work.
- When finished, release the trigger switch and unplug the tool.
The powerful 1600 W motor and 3530 impacts per minute ensure efficient work even on demanding tasks.
5. Priežiūra
Regular maintenance ensures the longevity and optimal performance of your HECHT HEC-1069 rotary hammer. Always unplug the tool before performing any maintenance.
5.1 Valymas
- Po kiekvieno naudojimo įrankio išorę nuvalykite minkšta, d šluosteamp audinys.
- Kad išvengtumėte perkaitimo, laikykite ventiliacijos angas švarias nuo dulkių ir šiukšlių.
- Clean the SDS-MAX chuck regularly to ensure smooth accessory changes.
Image 5.1: Detail of the ventilation openings, which must be kept clear for proper cooling.
5.2 Tepimas
The impact mechanism requires periodic lubrication. Use the provided lubricating grease or a suitable equivalent.
- Locate the lubrication port, usually covered by a cap on the gear housing.
- Use the maintenance wrench to open the cap.
- Apply a small amount of grease into the mechanism. Do not overfill.
- Tvirtai uždarykite dangtelį.
Image 5.2: The lubrication port on the tool, with an example of the lubricating grease to be applied.
Image 5.3: The design facilitates easy maintenance, including access to lubrication points.
5.3 Anglies šepetėlių keitimas
Carbon brushes are wear parts and should be inspected periodically. Replace both carbon brushes simultaneously when they are worn down to approximately 1/4 inch (6 mm) or less. Refer to a qualified service technician for replacement if you are unsure.
6. Problemų sprendimas
This section addresses common issues you might encounter with your HECHT HEC-1069 rotary hammer.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Įrankis neįsijungia. | Nėra maitinimo; Sugedęs maitinimo laidas / kištukas; Susidėvėję angliniai šepetėliai. | Check power outlet and cord. Replace power cord/plug if damaged. Inspect and replace carbon brushes. |
| Sumažinta smūgio jėga. | Insufficient lubrication; Worn impact mechanism; Worn carbon brushes. | Lubricate the impact mechanism. Have the tool inspected by a service technician. Inspect and replace carbon brushes. |
| Accessory not locking in chuck. | Chuck collar not fully pulled back; Dirty chuck; Damaged chuck. | Ensure chuck collar is fully retracted. Clean the chuck and accessory shank. If damaged, seek professional repair. |
| Per didelis kibirkščiavimas variklyje. | Susidėvėję angliniai šepetėliai; Užsiteršęs komutatorius. | Inspect and replace carbon brushes. Have the commutator cleaned by a service technician. |
7. Techninės specifikacijos
| Specifikacija | Vertė |
|---|---|
| Modelio numeris | HEC-1069 |
| Prekės ženklas | Hechtas |
| Maitinimo įvestis | 1600 W |
| ttage | 230 voltų |
| Maitinimo šaltinis | Su laidu elektra |
| Poveikio greitis | 3530 smūgių/min |
| Chucko tipas | SDS-MAX |
| Max Chuck Size / Drilling Capacity | 18 mm |
| Prekės svoris | 11 kg (approx. based on package weight) |
| Pakuotės matmenys | 50 x 40 x 14 cm |
8. Garantija ir palaikymas
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Hecht products are designed for durability and performance.
If you encounter any issues or require technical assistance, please contact Hecht customer support or your authorized dealer. Ensure you have your model number (HEC-1069) and purchase details available when seeking support.
