Generic Power Supply and Main Board

1. Įvadas

This manual provides essential information for the safe and correct installation, operation, and maintenance of the Generic Power Supply and Main Board, models TP.MT5581.PB761 and V400HJ9-D03. This board is designed as a replacement component for VIZIO D40f-G9 televisions. Please read these instructions thoroughly before proceeding with any installation.

2. Saugos informacija

Įspėjimas: Electrical components can be dangerous. Improper installation or handling may result in electric shock, fire, or damage to the television. Always follow these safety guidelines:

• Ensure the television is completely disconnected from the power source before beginning any work.
• Discharge any residual static electricity from your body before handling the board by touching a grounded metal object.
• Wear appropriate personal protective equipment, such as anti-static gloves.
• If you are not confident in your ability to perform this installation, seek assistance from a qualified technician.
• Do not attempt to repair or modify the board.

3. Montavimas

This section outlines the steps for replacing the power supply and main board in your VIZIO D40f-G9 television.

3.1. Lenta baigtaview

Familiarize yourself with the layout and key connection points of the replacement board.

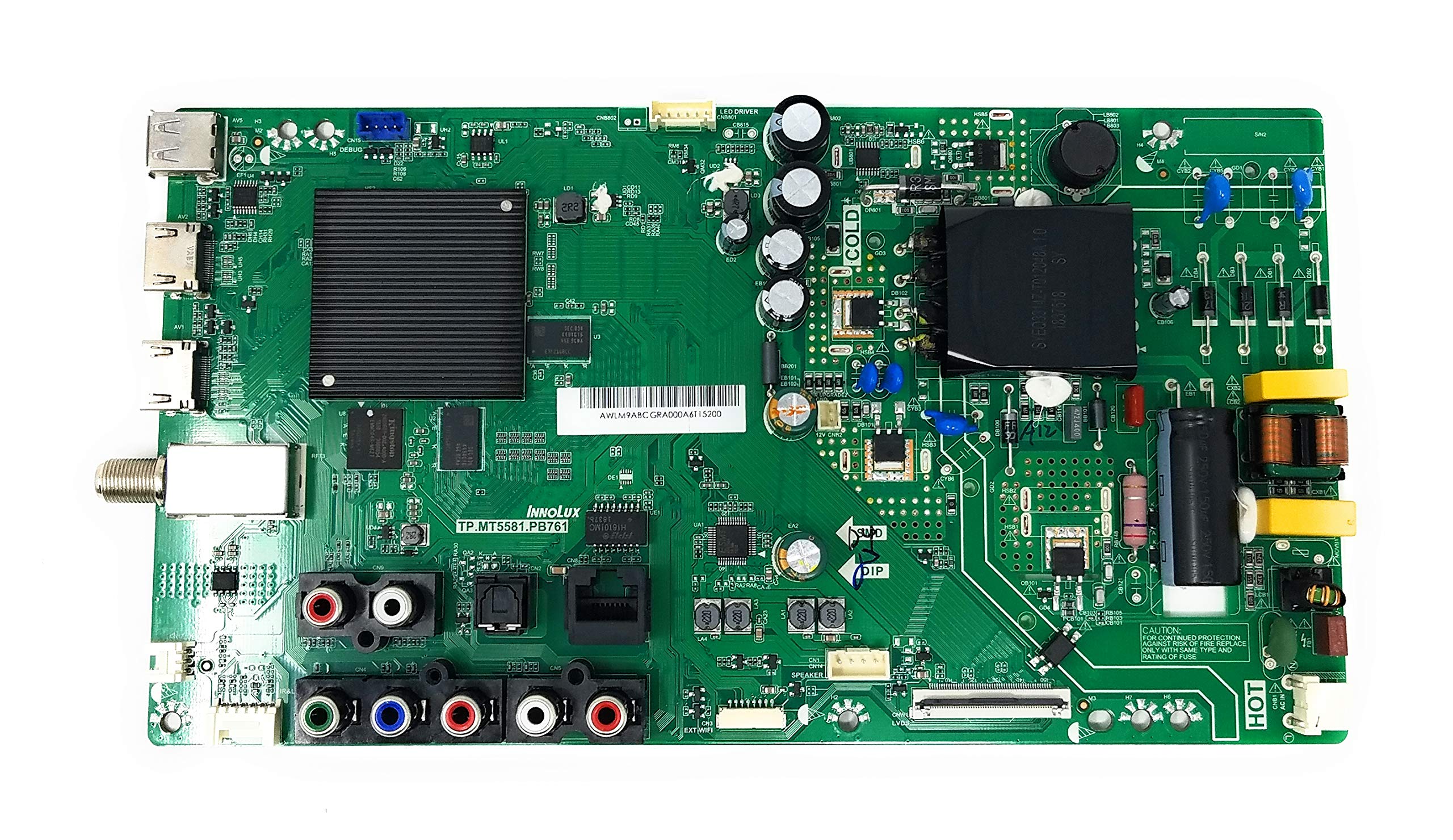

Figure 1: Generic Power Supply and Main Board TP.MT5581.PB761, V400HJ9-D03. This image displays the main board, highlighting key sections such as the power input, various audio/video ports, and internal components. Note the 'HOT' and 'COLD' sections for safety, as well as connectors for HDMI, USB, RJ45 (Ethernet), Optical Out, Line Out, Audio In, and CVBS In/YPbPr In.

3.2. Diegimo žingsniai

1. Paruošimas: Ensure the television is unplugged from the wall outlet. Place the TV face down on a soft, clean surface to prevent screen damage.
2. Nuimkite galinį skydelį: Locate and remove all screws securing the TV's back panel. Carefully lift and remove the back panel.
3. Locate Existing Board: Identify the existing power supply and main board assembly. It will be the large circuit board with numerous connections.
4. Atjunkite kabelius: Carefully disconnect all cables connected to the existing board. This includes power cables, ribbon cables, and input/output cables (e.g., HDMI, USB, Ethernet, audio). Note the orientation and connection points for reassembly.
5. Pašalinti seną lentą: Unscrew the mounting screws that secure the old board to the TV chassis. Carefully lift and remove the old board.
6. Įdiekite naują plokštę: Position the new TP.MT5581.PB761, V400HJ9-D03 board into place, aligning it with the screw holes. Secure it with the screws removed earlier. Do not overtighten.
7. Iš naujo prijunkite laidus: Reconnect all cables to their corresponding ports on the new board. Ensure all connections are firm and correctly oriented. Refer to your notes or photos taken during disassembly if needed.
8. Replace Back Panel: Carefully place the TV's back panel back into position and secure it with all screws.

4. Eksploatavimas (patikrinimas po įrengimo)

Įdiegę atlikite šiuos patikrinimus, kad užtikrintumėte tinkamą veikimą:

1. Maitinimas: Plug the television back into a power outlet. The TV should power on, and the standby indicator light should illuminate.
2. Patikrinkite ekraną: Turn on the TV. A picture should appear on the screen.
3. Test Inputs: Connect various devices (e.g., cable box, game console) to the HDMI, USB, and other input ports to confirm they are functioning correctly.
4. Check Audio: Verify that sound is produced through the TV speakers or connected audio output.

5. Priežiūra

The power supply and main board generally require no routine maintenance. To ensure longevity:

• Laikykite televizorių švarioje, be dulkių aplinkoje.
• Avoid exposing the television to excessive moisture or extreme temperatures.
• Užtikrinkite tinkamą vėdinimą aplink televizorių, kad jis neperkaistų.

6. Problemų sprendimas

If you encounter issues after installing the new board, consider the following:

• Nėra galios: Double-check all power cable connections, both to the board and the wall outlet. Ensure the outlet is functional.
• Nėra vaizdo / garso: Verify that all ribbon cables and input/output cables are securely connected. Ensure the correct input source is selected on the TV.
• Protarpiais pasitaikančios problemos: Re-check all connections for looseness. Ensure no foreign objects are inside the TV.
• Still Experiencing Problems: If issues persist, it may indicate a problem with another component of the television or an incorrect installation. Re-verify all steps or consult a professional technician.

7. Specifikacijos

8. Garantija ir palaikymas

Šis produktas tiekiamas su a 30 dienų garantija nuo įsigijimo datos, apimanti gamybos defektus. Ši garantija netaikoma žalai, atsiradusiai dėl netinkamo įrengimo, netinkamo naudojimo, nelaimingų atsitikimų ar neleistinų modifikacijų.

For technical support or warranty claims, please contact your retailer or the manufacturer directly. Please have your purchase receipt and product model numbers ready when contacting support.
