Mountfield MHT 2322 Petrol Hedge Trimmer

1. Įvadas

Thank you for choosing the Mountfield MHT 2322 Petrol Hedge Trimmer. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new hedge trimmer. Please read these instructions carefully before using the product and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the life of your tool.

2. Saugos instrukcijos

Operating a petrol hedge trimmer requires strict adherence to safety guidelines to prevent injury and damage. Always wear appropriate personal protective equipment (PPE) including eye protection, hearing protection, gloves, and sturdy footwear. Ensure the work area is clear of bystanders, pets, and obstacles. Never operate the trimmer when fatigued or under the influence of alcohol or medication. Familiarize yourself with the controls and emergency stop procedures before starting the engine.

• Always inspect the hedge trimmer for damage or loose parts before each use.
• Handle fuel with extreme care. Mix and refuel in a well-ventilated area, away from ignition sources.
• Keep hands and feet away from the cutting blades at all times, especially when the engine is running.
• Neeksploatuokite drėgnomis sąlygomis ar lyjant.
• Turn off the engine and ensure blades have stopped before performing any maintenance or clearing blockages.

3. Produktas baigtasview ir Savybės

The Mountfield MHT 2322 is a powerful and robust petrol hedge trimmer designed for efficient garden maintenance. It features a 22.5cc 2-stroke engine and double-action blades for effective cutting.

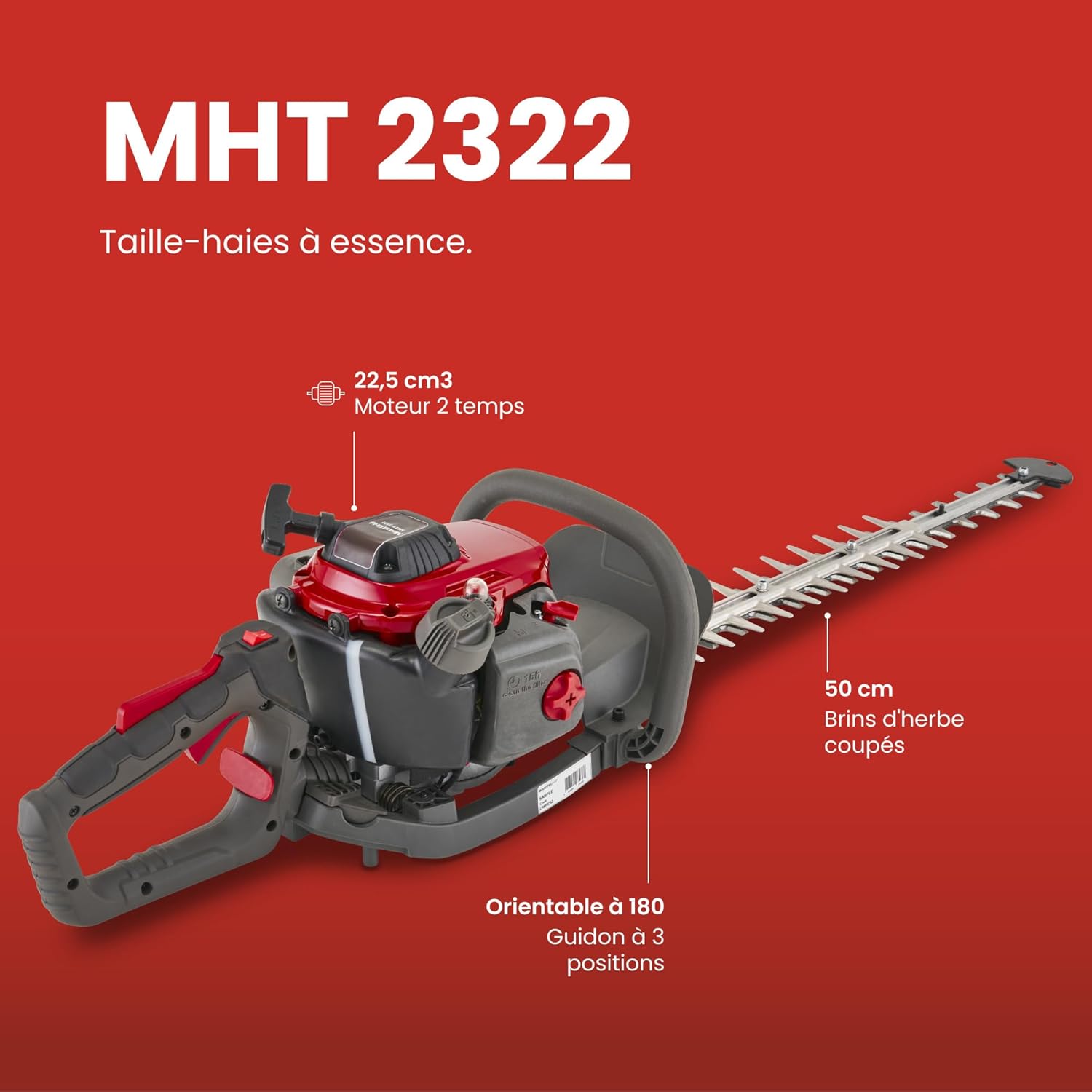

1 paveikslas: Diagram of the Mountfield MHT 2322 Petrol Hedge Trimmer, highlighting its 22.5 cm³ 2-stroke engine, 50 cm effective cutting length, and 180° rotatable handle with 3 positions.

2 paveikslas: Illustration detailing the high cutting performance features of the MHT 2322, including its 22.5 CC 2-stroke engine, 60 cm double-action reciprocating blades, easy start primer, and 27 mm cutting capacity.

Pagrindinės funkcijos:

• Galingas variklis: 22.5 cc 2-stroke petrol engine for demanding tasks.
• Double-Action Blades: 70 cm blade length (50 cm effective cutting length) with 27 mm tooth spacing for efficient cutting of thick hedges.
• Ergonomiška rankena: 180° rotatable handle with three grip positions for comfortable operation at various angles.
• Anti-Vibration System (VCS): Spring-limited vibration for reduced user fatigue.
• Easy Start Primer: Facilitates quick and reliable starting.
• Blade Tip Protector: Allows cutting close to walls or hard surfaces without damaging the blades.
• Patvari konstrukcija: Solid build and high-quality components for long-term use.

3 paveikslas: Iš arti view of the ergonomic and comfortable handle of the Mountfield MHT 2322, highlighting its three grip positions, pivotable handle, and vibration-limiting spring (VCS). The trimmer weighs 5.6 kg.

4 paveikslas: Image showing the robust and reliable construction of the Mountfield MHT 2322, emphasizing its solid build and high-quality components designed for long-term use and durability.

4. Sąranka

4.1 Išpakavimas

Carefully remove all components from the packaging. Check for any damage during transit. Ensure all parts listed in the packing contents are present. Dispose of packaging materials responsibly.

4.2 Kuro maišymas

The MHT 2322 operates on a 2-stroke engine and requires a specific fuel mixture. Mix unleaded petrol with high-quality 2-stroke engine oil at a ratio of 50:1 (50 parts petrol to 1 part oil). Use a clean, approved fuel container for mixing. Shake the mixture thoroughly before pouring it into the fuel tank. Never use stale fuel or an incorrect mixture, as this can damage the engine and void the warranty.

4.3 Degalų bako pildymas

Ensure the engine is off and cool before refueling. Open the fuel cap slowly to release any pressure. Fill the tank carefully, avoiding spills. Do not overfill. Securely close the fuel cap after filling.

5. Naudojimo instrukcijos

5.1 Variklio užvedimas

1. Padėkite gyvatvorių žirklę ant lygaus, stabilaus paviršiaus.
2. Press the primer bulb several times until fuel is visible in the bulb.
3. Move the choke lever to the 'CLOSED' position (cold start).
4. Tvirtai ir sklandžiai traukite starterio virvę, kol variklis užsives (paprastai 1–3 kartus).
5. Once the engine fires, move the choke lever to the 'OPEN' position.
6. Dar kartą traukite starterio virvę, kol variklis užsives ir veiks sklandžiai.
7. Prieš pradėdami darbą, leiskite varikliui kelias akimirkas apšilti.

5.2 Holding the Trimmer

Hold the hedge trimmer firmly with both hands, ensuring a balanced grip. The MHT 2322 features a 180° rotatable handle with three grip positions, allowing you to adjust the handle for optimal comfort and control when trimming different sides of a hedge.

5 paveikslas: A user demonstrating the operation of the Mountfield MHT 2322 Petrol Hedge Trimmer, showcasing its ergonomic design and ease of use for trimming hedges.

5.3 Apipjaustymo būdai

• Viršutinis apipjaustymas: Hold the trimmer with the blades angled slightly towards the hedge. Use a sweeping motion to cut across the top.
• Šoninis apipjaustymas: Hold the trimmer vertically. Use an upward sweeping motion for best results, allowing cuttings to fall away.
• Storos šakos: The 27 mm cutting capacity allows for cutting thicker branches. Do not force the blades through excessively thick material.
• Maintain a steady pace and avoid overreaching.

5.4 Variklio išjungimas

To stop the engine, release the throttle trigger and move the engine stop switch to the 'OFF' position. Ensure the blades have come to a complete stop before setting the trimmer down.

6. Priežiūra

Regular maintenance is crucial for the longevity and safe operation of your Mountfield MHT 2322 hedge trimmer. Always ensure the engine is off and cool, and the spark plug cap is disconnected before performing any maintenance.

6.1 Peilių valymas

After each use, clean the blades thoroughly to remove sap, debris, and dirt. Use a stiff brush and a suitable cleaning agent. Lubricate the blades with a light machine oil or blade lubricant to prevent rust and ensure smooth operation.

6.2 oro filtras

Check and clean the air filter regularly, especially in dusty conditions. A clogged air filter can reduce engine performance. Remove the filter cover, take out the filter element, and clean it with warm soapy water or compressed air. Ensure it is completely dry before reinstalling.

6.3 Uždegimo žvakė

Inspect the spark plug periodically. Clean any carbon deposits and check the electrode gap. Replace the spark plug if it is worn or damaged.

6.4 Kuro sistema

Inspect fuel lines for cracks or leaks. If storing the trimmer for an extended period, drain the fuel tank or use a fuel stabilizer to prevent fuel degradation.

6.5 Saugykla

Store the hedge trimmer in a clean, dry, and well-ventilated area, out of reach of children. Ensure the blade guard is in place. If storing for a long period, perform end-of-season maintenance as described above.

7. Problemų sprendimas

This section addresses common issues you might encounter with your Mountfield MHT 2322 hedge trimmer. For problems not listed here, please contact customer support.

8. Specifikacijos

9. Garantija ir palaikymas

9.1 Gamintojo garantija

The Mountfield MHT 2322 Petrol Hedge Trimmer comes with a 2 metų gamintojo garantija. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, neglect, improper maintenance, or unauthorized modifications.

9.2 Pagalba klientams

If you have any questions, require technical assistance, or need to make a warranty claim, please contact Mountfield customer support. Refer to the contact information provided with your product packaging or visit the official Mountfield websvetainėje, kur rasite išsamios pagalbos.
