Įvadas
This manual provides detailed instructions for the installation, operation, and maintenance of your OEDRO Rear Bumper Combo. This bumper is designed for 2018-2026 Jeep Wrangler JL and Unlimited JLU (2/4 Doors) models. It features a full-width design with a hitch receiver, D-rings, and a paintable trim panel. Please read these instructions thoroughly before beginning installation to ensure proper fitment and safe operation.
Svarbi pastaba: This bumper is not compatible with 2018-2026 Jeep Gladiator models and models equipped with rear parking sensors.
Pakuotės turinys
Prieš pradėdami diegti, patikrinkite, ar yra visi komponentai:
- 1x galinis buferis
- 2 x D formos žiedo formos apkabos
- 1 x montavimo įrangos rinkinys
- 1 x naudojimo instrukcija (šis dokumentas)
Vaizdas: Viršview of the OEDRO Rear Bumper components, highlighting the license plate bracket, detachable decorative plate, D-ring shackle with isolator, harness bracket, and separate hitch receiver.
Sąranka ir diegimas
Professional installation is recommended. Ensure the vehicle is on a level surface and properly supported before beginning. Always wear appropriate safety gear.
Reikalingi įrankiai (neįtraukta):
- Lizdinių veržliarakčių rinkinys
- Sukamasis veržliaraktis
- Pry Tool (for trim removal)
- Drill (if relocating trailer electrical box)
- Apsauginiai akiniai ir pirštinės
Diegimo žingsniai:
- Paruoškite transporto priemonę: Park the Jeep on a flat, stable surface. Engage the parking brake. Disconnect the negative terminal of the vehicle's battery.
- Remove Factory Bumper:
- Locate and remove all bolts securing the factory rear bumper to the vehicle frame.
- Disconnect any wiring harnesses attached to the bumper (e.g., license plate lights, trailer wiring).
- Carefully remove the factory bumper. It may require two people due to its weight.
- Install OEDRO Rear Bumper:
- Position the OEDRO rear bumper onto the vehicle frame. Align the mounting holes.
- Secure the bumper using the provided mounting hardware. Hand-tighten all bolts first.
- Once all bolts are in place, progressively tighten them to the manufacturer's specified torque settings.
- Prijunkite laidus: Reconnect any necessary wiring harnesses for license plate lights or trailer electrical systems. Note: Some users have reported needing to relocate the trailer electrical box and drill new mounting holes. Ensure proper wiring and functionality.
- Įdiekite numerio ženklo laikiklį: Attach the provided license plate bracket to the designated area on the bumper. Ensure it is securely fastened and visible.
- Install D-ring Shackles: Attach the D-ring shackles to the recovery points on the bumper. Ensure the isolators are correctly seated to prevent rattling.
- Galutiniai patikrinimai: Reconnect the vehicle battery. Test all lights and electrical connections. Ensure all bolts are tightened.
Image: A blue Jeep Wrangler JL with the OEDRO rear bumper installed, showcasing the hitch receiver and D-rings. This image illustrates the bumper's appearance after installation.
Vaizdas: Stambus planas view of the OEDRO rear bumper's detachable design, specifically showing the license plate bracket and hitch receiver from a lower angle.
Veikimas ir funkcijos
The OEDRO Rear Bumper Combo enhances your vehicle's utility and appearance. Understand its features for optimal use.
Hitch Receiver:
The integrated hitch receiver allows for towing and mounting accessories. Always adhere to your vehicle's towing capacity and local regulations. Ensure the hitch pin is securely installed before use.
D formos žiedo formos apkabos:
The D-ring shackles provide secure recovery points for off-road situations. Use only rated recovery straps and equipment. Always ensure shackles are fully tightened before applying load.
Paintable Trim Panel:
The bumper includes a pretreated, detachable trim panel that can be customized with paint or decals to match your vehicle's color or personal style. Remove the panel carefully before painting and allow it to dry completely before reattaching.
Image: Two Jeep Wranglers, one blue and one red, equipped with OEDRO rear bumpers. The image highlights the customizable paintable trim panels, with the red bumper showing red panels and the blue bumper showing blue panels.
Video: This video demonstrates how to customize the OEDRO Wrangler bumpers, including the paintable trim panels, to create a personalized style.
Video: This video showcases the OEDRO Bumper with its paintable trim feature, illustrating the customization options available.
Spare Tire Clearance:
The bumper is designed to accommodate a spare tire. However, some larger tire sizes (e.g., 33" or 35") may require modifications to the spare tire mount or may interfere with the tailgate operation. Verify clearance with your specific tire size after installation.
Image: A blue Jeep Wrangler JL from the rear, featuring the OEDRO rear bumper and a spare tire mounted on the tailgate. This image demonstrates the bumper's compatibility with a spare tire.
Priežiūra
Regular maintenance will ensure the longevity and performance of your OEDRO Rear Bumper.
- Valymas: Wash the bumper regularly with mild soap and water to remove dirt, salt, and other debris. Avoid abrasive cleaners or harsh chemicals that could damage the powder coat finish.
- Patikra: Periodically inspect all mounting hardware for tightness. Re-torque bolts as necessary. Check for any signs of damage, rust, or wear.
- Rūdžių prevencija: The bumper features a carbide black powder coat finish for rust resistance. If the finish is scratched or damaged, touch up with appropriate paint to prevent rust formation.
Image: A cross-section diagram detailing the rust resistance features of the OEDRO bumper, showing the all-steel build, rust-resistant layer, and textured powder coat finish.
Trikčių šalinimas
Žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:
| problema | Galima priežastis | Sprendimas |
|---|---|---|
| Spare tire rubs bumper or tailgate won't open. | Larger than stock spare tire (e.g., 33" or 35") without appropriate spare tire carrier modifications. | Verify tire size compatibility. An aftermarket spare tire carrier or extension may be required for larger tires. |
| No license plate light. | Wiring not connected, faulty light, or bumper design does not include an integrated light. | Ensure license plate light wiring is correctly connected. If no integrated light is present, an external license plate illumination solution may be required to comply with local regulations. |
| Trailer electrical box does not fit. | Original mounting location incompatible with new bumper. | Relocate the trailer electrical box to a suitable position. This may require drilling new mounting holes. Ensure all wiring is properly secured and protected. |
| Bumper appears scratched or damaged upon arrival. | Pristatymo žala arba gamybos defektas. | Inspect product immediately upon receipt. Contact OEDRO customer support with photographic evidence of damage for assistance. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | OEDRO |
| Modelio numeris | US8X486E |
| Automobilio dalies padėtis | Galinis |
| Medžiaga | Anglies plienas |
| Spalva | Juoda ir sidabrinė |
| Prekės svoris | 63 svaro |
| Gaminio matmenys (D x P x A) | 14.17 "D x 66.14" P x 11.02" A |
| Išorinė apdaila | Carbide black powder coat |
| Suderinamas transporto priemonės tipas | 2018-2026 Jeep Wrangler JL & Unlimited JLU (2/4 Doors) |
| Įtraukti komponentai | Rear Bumper, 2 D-ring Shackles, Mounting Hardware, Instruction |

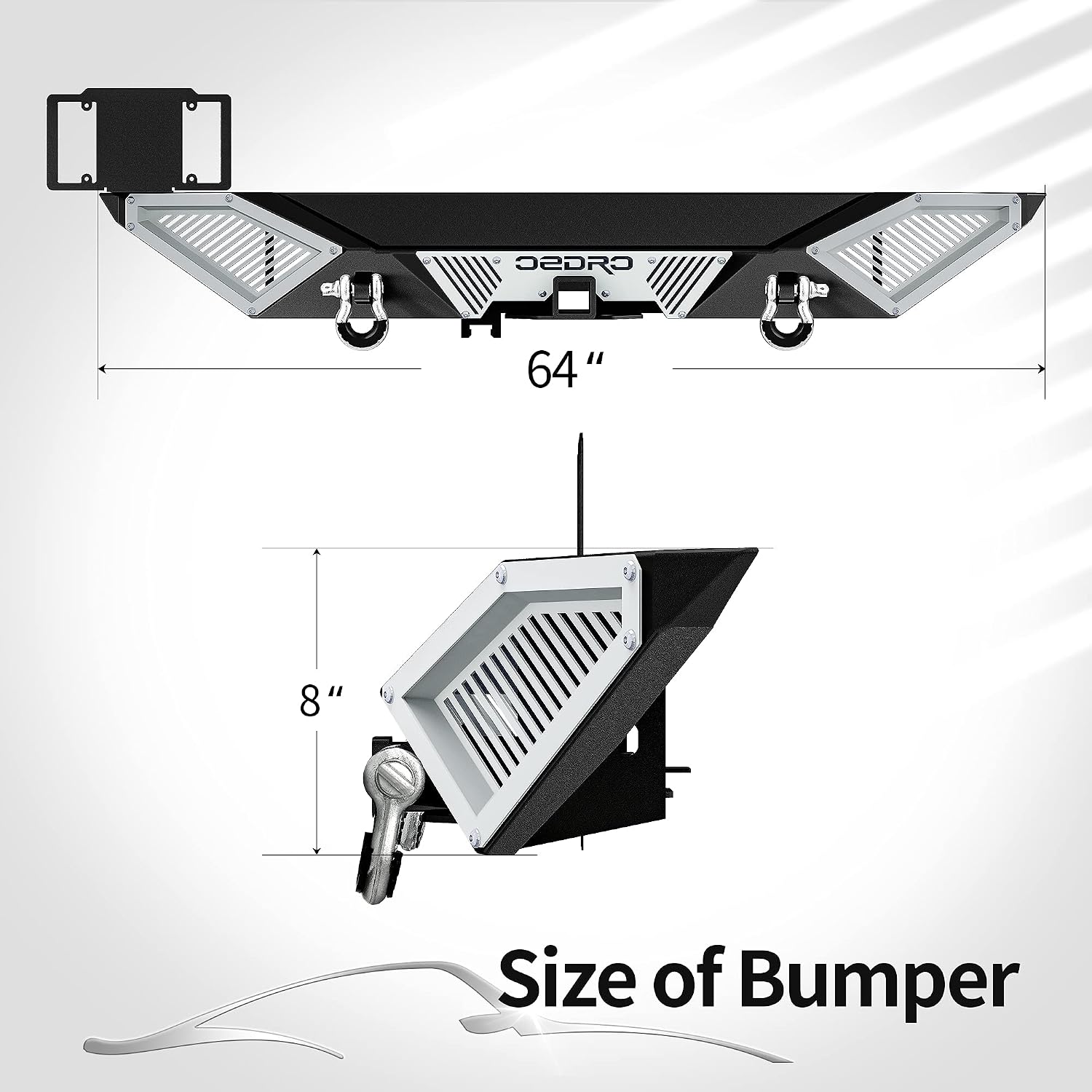

Image: A diagram illustrating the key dimensions of the OEDRO rear bumper, including its overall width and the height of the side panel.
Informacija apie garantiją
The OEDRO Rear Bumper Combo is covered by a Ribota viso gyvenimo garantijaŠi garantija taikoma medžiagų ir gamybos defektams, atsiradusiems įprasto naudojimo sąlygomis. Dėl konkrečių sąlygų ir nuostatų file a warranty claim, please refer to the official OEDRO websvetainėje arba susisiekite su klientų aptarnavimo tarnyba.
Pagalba klientams
If you have any questions regarding the installation, operation, or maintenance of your OEDRO Rear Bumper, please contact OEDRO customer support. Have your model number (US8X486E) and purchase information ready for faster service.
For additional resources and product information, visit the official OEDRO websvetainė: OEDRO Store
