Piscifun Alloy M Baitcasting Fishing Reel User Manual

Įvadas

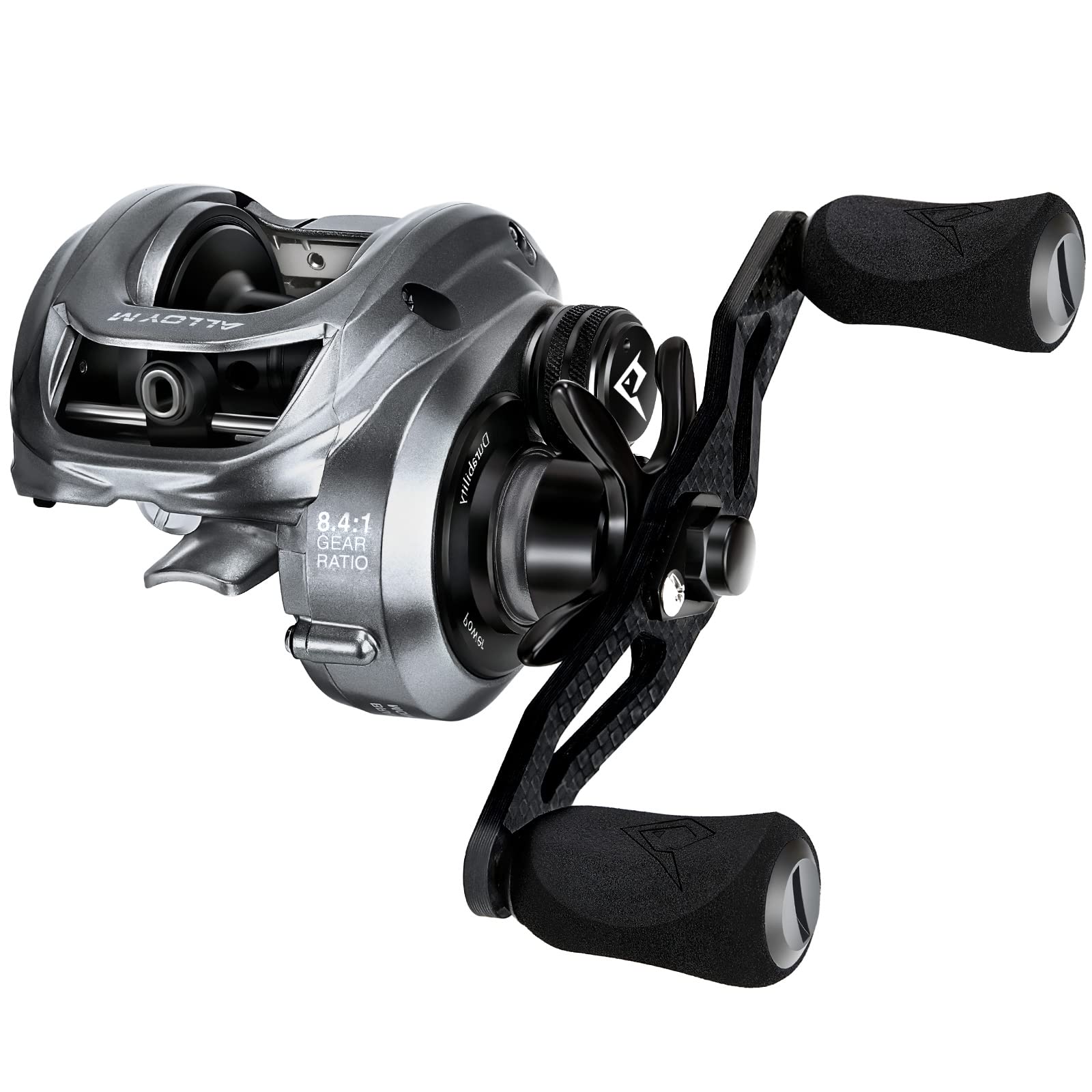

Thank you for choosing the Piscifun Alloy M Baitcasting Fishing Reel. This manual provides essential information for the proper setup, operation, and maintenance of your new fishing reel. Designed for both freshwater and saltwater environments, the Alloy M reel features an aluminum frame, a precise magnetic braking system, and a powerful drag to enhance your fishing experience.

Produkto savybės

• Puikus patvarumas: Constructed with an ADC12 grade aluminum frame, offering exceptional durability, corrosion resistance, and impact resistance. Weighing only 7.4 oz, it is suitable for both fresh and saltwater fishing.



• Precise Magnetic Braking: Features a finely tuned magnetic braking system with 12 magnets for quick, on-the-fly adjustments, minimizing backlashes and improving casting efficiency.



• Powerful Drag System: Equipped with four 10% larger carbon drag washers and an oversized Hamai CNC brass gear, providing a powerful 22lbs of maximum drag. This system ensures smooth performance and the ability to handle large fish.



• Ultra Smooth Performance: Incorporates 8 double-shielded high-quality ball bearings and 1 roller bearing for an exceptionally smooth retrieve, even under heavy loads. High-speed NMB bearings contribute to maximum casting distance.



• Versatile Gear Ratios: Available in 7.5:1 and 8.4:1 gear ratio options, allowing adaptability to various fishing techniques and styles.
• Ergonomiškas dizainas: Features an extended carbon handle for improved leverage and high-density EVA knobs with the Piscifun logo for comfort and resilience during prolonged use.

Sąranka

1. Attaching the Reel to Your Rod

1. Sulygiuokite ritės kojelę su ritės laikiklio padėtimi ant meškerės.
2. Tighten the reel seat nut securely to ensure the reel is firmly attached and does not wobble.

2. Žvejybos linijos suvyniojimas

The Piscifun Alloy M reel is compatible with various line types, including braided line. Proper spooling is crucial to prevent tangles and ensure optimal casting performance.

1. Pass the line through the rod guides, starting from the tip down to the reel.
2. Tie the line to the reel spool using an arbor knot or a similar secure knot.
3. Begin winding the line onto the spool, maintaining consistent tension. Ensure the line lays evenly across the spool. Do not overfill the spool; leave a small gap from the edge to prevent line overrun.

3. Adjusting the Magnetic Braking System

The magnetic braking system controls the spool's rotation during casting to prevent backlashes. The Alloy M features a 12-magnet system for fine-tuning.

1. Locate the magnetic brake adjustment dial on the side of the reel.
2. For initial setup, set the dial to a higher number (more braking force) to minimize backlashes, especially for beginners or when using lighter lures.
3. As you gain experience, you can reduce the braking force for longer casts. Adjust incrementally based on lure weight and wind conditions.

4. Adjusting the Spool Tension Knob

The spool tension knob works in conjunction with the magnetic brake to control the spool's free spin.

1. Attach your lure to the line.
2. Tighten the spool tension knob until the lure falls slowly when the thumb bar is pressed.
3. Adjust until the lure falls smoothly to the ground with minimal overrun after it hits. This setting helps prevent backlashes when the lure hits the water.

5. Adjusting the Star Drag

The star drag system controls the amount of resistance the reel applies when a fish pulls line. The Alloy M offers up to 22lbs of max drag.

1. Turn the star-shaped knob clockwise to increase drag tension and counter-clockwise to decrease it.
2. Set the drag to approximately 25-30% of your line's breaking strength. This allows the line to pay out before breaking under pressure from a fish.
3. Always test your drag before fishing to ensure it is set correctly.

Naudojimo instrukcijos

1. Kastingas

1. Hold the rod with the reel facing upwards.
2. Press the thumb bar to disengage the spool. Keep your thumb firmly on the spool to prevent line from coming off prematurely.
3. Make a smooth casting motion. As the rod moves forward, lift your thumb off the spool to release the line.
4. Just before the lure hits the water, gently feather the spool with your thumb to slow it down and prevent backlashes.

2. Atgavimas

1. Once the lure is in the water, turn the handle to engage the reel.
2. Retrieve the line at the desired speed, utilizing the 7.5:1 or 8.4:1 gear ratio for appropriate lure presentation.

3. Setting the Hook and Fighting Fish

1. When a fish strikes, quickly and firmly lift the rod tip to set the hook.
2. Maintain tension on the line and use the rod to guide the fish. Allow the drag to work by letting the fish pull line when it runs, preventing line breakage.
3. Pump the rod and reel in the slack line to bring the fish closer.

Priežiūra

Regular maintenance will extend the life and performance of your Piscifun Alloy M reel.

• Po kiekvieno naudojimo:
  • Wipe down the reel with a clean, damp šluoste nešvarumams, druskai ir šiukšlėms pašalinti.
  • For saltwater use, lightly rinse the reel with fresh water (do not submerge) and dry thoroughly.
  • Visiškai atlaisvinkite stabdžių mechanizmą, kad sandėliavimo metu stabdžių poveržlės nebūtų suspaustos.
• Periodinis tepimas:
  • Apply a small amount of high-quality reel oil to the bearings and moving parts as recommended by fishing reel maintenance guides.
  • Apply a thin layer of reel grease to the main gears.
  • Avoid over-lubrication, as this can attract dirt and hinder performance.
• Saugykla:
  • Ritiną laikykite sausoje, vėsioje vietoje, apsaugotoje nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
  • Apsvarstykite galimybę naudoti ritės dangtelį arba dėklą, kad apsaugotumėte ją nuo dulkių ir fizinių pažeidimų.

Trikčių šalinimas

Specifikacijos

Garantija ir palaikymas

For warranty information, technical support, or any inquiries regarding your Piscifun Alloy M Baitcasting Fishing Reel, please contact Piscifun customer service directly. Refer to the official Piscifun webkontaktinę informaciją rasite svetainėje arba pirkimo dokumentuose.

You can visit the official Piscifun store for more information: Piscifun Store
