Įvadas
Ačiū, kad pirkoteasing the Outsunny Metal Garden Dining Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor table. Please read these instructions carefully before use and retain them for future reference.
Image: The Outsunny Metal Garden Dining Table, showcasing its tempered glass top and metal frame, designed for outdoor use.
Saugos informacija
- Didžiausia apkrova: Do not exceed the maximum load of 154 lbs (70 kg) on the tabletop.
- Stabilumas: Ensure the table is placed on a flat, stable surface to prevent tipping.
- Surinkimas: Follow all assembly instructions carefully. It is recommended that 4 people assist with assembly for safety and ease.
- Skėčio naudojimas: When using an umbrella with the table, ensure the umbrella is securely anchored and closed during strong winds to prevent damage or injury.
- Stiklinis viršus: The tempered glass top is durable but can break if subjected to severe impact. Handle with care.
- Vaikai: Keep children away from the table during assembly and supervise them when near the table during use.
Pakuotės turinys
Prieš pradėdami surinkimą, patikrinkite, ar yra visos toliau išvardytos dalys ir ar jos nepažeistos. Jei kokių nors dalių trūksta arba jos pažeistos, netęskite surinkimo ir susisiekite su klientų aptarnavimo tarnyba.
- Grūdinto stiklo stalviršis
- Metalinio rėmo komponentai (kojelės, atramos)
- Hardware Pack (Screws, Washers, Nuts)
- Umbrella Hole Ring and Cap
- Instrukcijų vadovas
Reikalingi įrankiai (neįtraukta): Atsuktuvas
Sąrankos ir surinkimo instrukcijos
Please read all steps before beginning assembly. It is recommended to assemble the table on a soft, clean surface to prevent scratches.
- Išpakuokite komponentus: Atsargiai išimkite visas dalis iš pakuotės ir padėkite jas ant apsaugoto paviršiaus.
- Pritvirtinkite kojas prie rėmo: Connect the metal legs to the main frame using the provided screws and hardware. Ensure all connections are finger-tight at this stage.
- Install Support Bars: Secure any cross-support bars between the legs or frame as indicated in the diagrams.
- Uždėkite stiklinį viršų: Carefully place the tempered glass tabletop onto the assembled frame. Ensure it aligns correctly with the frame and any suction cups or securing points.
- Secure Glass Top: If applicable, secure the glass top to the frame using any provided clips or screws.
- Insert Umbrella Hole Components: Place the umbrella hole ring and cap into the designated opening in the glass top.
- Priveržkite visas tvirtinimo detales: Once all components are in place and aligned, fully tighten all screws and fasteners with a screwdriver. Do not overtighten.
- Galutinis patikrinimas: Švelniai pakratykite stalą, kad įsitikintumėte, jog jis stabilus ir visos jungtys tvirtos.

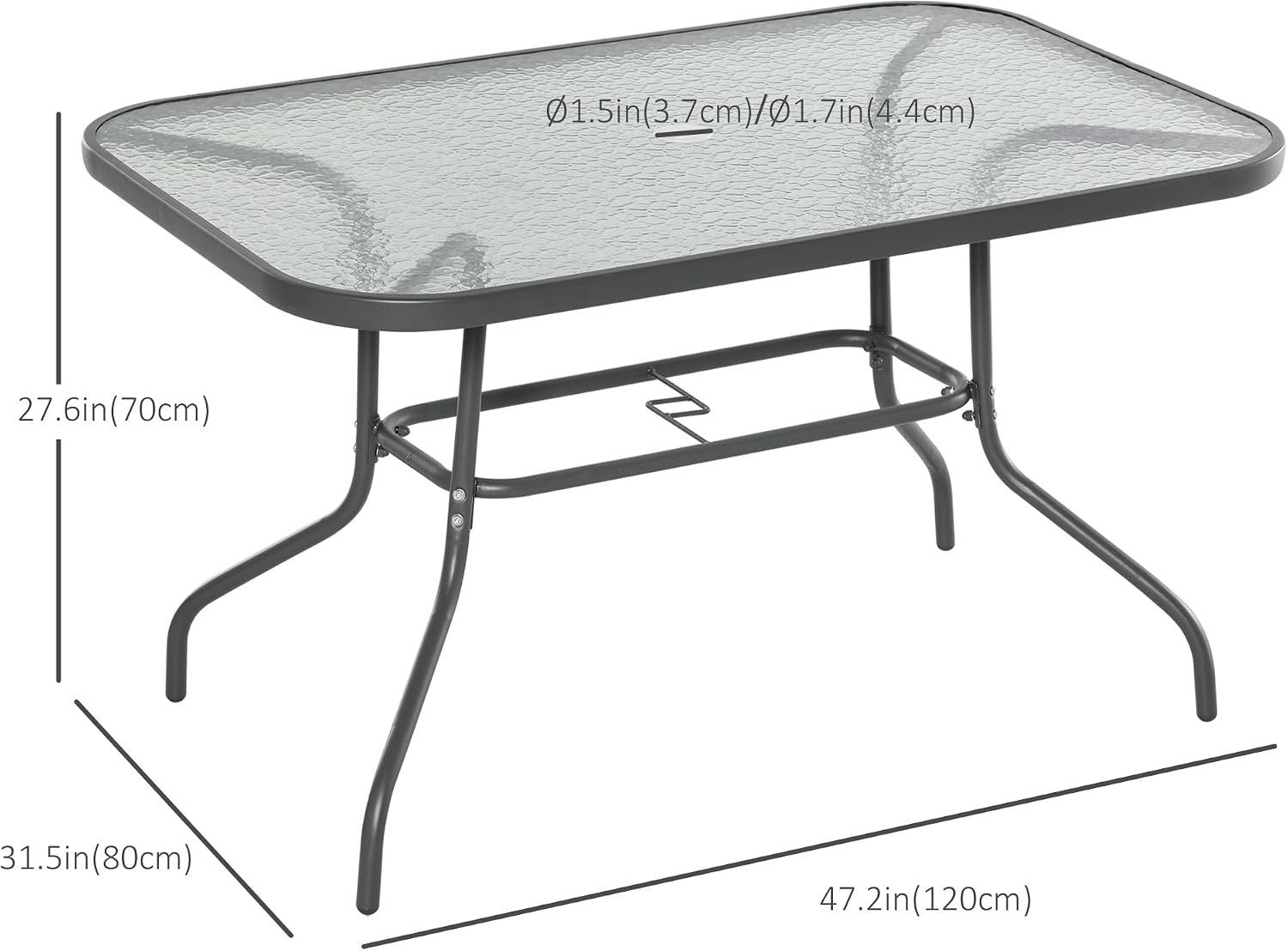

Image: A diagram illustrating the dimensions of the dining table, including length, width, height, and umbrella hole diameter.
Vaizdas: Išsamus view of the table's construction, highlighting round corners, customized sturdy screws, extra support for stability, and unique leg design.
Naudojimo instrukcijos
This dining table is designed for outdoor use in various settings such as patios, gardens, and balconies.
- Vieta: Position the table on a level, stable surface.
- Skėčio naudojimas: Insert a patio umbrella pole through the center hole. The hole accommodates poles with diameters of 1.45 inches (3.7 cm) or 1.7 inches (4.4 cm). Use the provided cap when an umbrella is not in use.
- Svorio pasiskirstymas: Distribute weight evenly across the tabletop. Do not place heavy objects on one side only.
Image: The Outsunny dining table set up on a patio with an umbrella and two chairs, demonstrating its intended use.
Image: A graphic illustrating the versatility of the table for use in various outdoor environments like patios, poolside, and gardens, as well as indoor spaces.
Priežiūra
- Valymas: Wipe the tempered glass top and metal frame with a damp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly. Avoid abrasive cleaners or harsh chemicals.
- Patikra: Periodiškai patikrinkite visus varžtus ir tvirtinimo detales, kad įsitikintumėte, jog jie yra tvirtai priveržti. Prireikus priveržkite.
- Apsauga nuo oro sąlygų: While designed for outdoor use, covering the table during extreme weather conditions (heavy rain, snow, strong winds) or prolonged periods of non-use will extend its lifespan.
- Saugykla: If storing indoors for the off-season, ensure the table is clean and dry.
Vaizdas: Stambus planas views detailing the 5mm thick water wave tempered glass, the durable metal construction frame, and the built-in umbrella hole with its components.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Stalas po surinkimo nestabilus. | Fasteners are not fully tightened or table is on an uneven surface. | Ensure all screws and bolts are securely tightened. Move the table to a level surface. |
| Glass top does not sit flush. | Frame components are not assembled correctly or glass is misaligned. | Disassemble and re-assemble the frame, ensuring all parts are correctly oriented. Carefully re-position the glass top. |
| Umbrella does not fit in the hole. | Umbrella pole diameter is too large or too small for the provided inserts. | Verify your umbrella pole diameter. The table accommodates 1.45" (3.7 cm) or 1.7" (4.4 cm) poles. |
Specifikacijos
- Modelis: 84B-376V01
- Bendri matmenys: 47.25 colių ilgio x 31.5 colio pločio x 27.5 colio aukščio (120 cm ilgio x 80 cm pločio x 70 cm aukščio)
- Medžiaga: Metal frame, Tempered Glass top
- Spalva: Anglies pilka
- Prekės svoris: 13.97 kg (30.8 svaro)
- Didžiausia apkrova: 154 svarai (70 kg)
- Skėčio skylės skersmuo: 1.45" (3.7 cm) / 1.7" (4.4 cm) or 44 mm
- Reikalingas surinkimas: Taip
- Rekomenduojami surinkėjai: 4
- Priežiūros instrukcijos: Nuvalykite Švarus
Garantija ir palaikymas
Šis „Outsunny“ produktas yra su 90 dienų garantija nuo gamintojo defektųPrašome išsaugoti pirkimo įrodymą garantiniams reikalavimams.
For customer support, missing parts, or warranty inquiries, please contact Aosom Canada:
- Gamintojas: Aosomas Kanada
- Vieta: Markhamas, Ontarijas, Kalifornija
- Telefonas: 1-416-792-6088
