National Semiconductor LM70CIMM-3 Temperature Sensor

1. Įvadas

The LM70CIMM-3 is a digital temperature sensor manufactured by National Semiconductor. It provides accurate temperature readings in a compact 8-pin MSOP (Micro Small Outline Package) for surface mount applications. This manual provides essential information for its proper handling, installation, and operation, ensuring reliable performance in various electronic projects and industrial applications.

2. Produktas baigtasview

The LM70CIMM-3 is designed for precision temperature sensing. Key features include its small form factor, digital output, and suitability for a wide range of applications from prototyping to industrial control. This particular offering is a lot of 10 pieces, packaged to ensure ESD safety and quality.

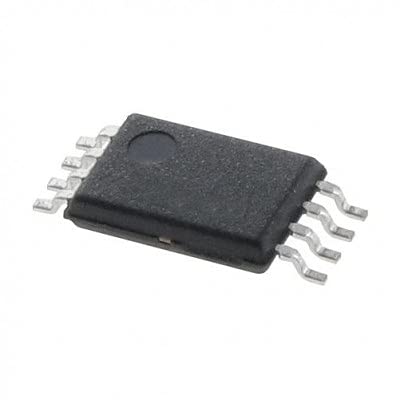

Figure 1: The LM70CIMM-3 temperature sensor. This image displays the compact 8-pin Micro Small Outline Package (MSOP) of the LM70CIMM-3 temperature sensor, highlighting its small form factor suitable for surface mount applications.

• Paketo tipas: Micro Small Outline Package (MSOP)
• Pin Count: 8 kontaktų
• Funkcija: Skaitmeninis temperatūros jutiklis
• Taikymas: Suitable for breadboard, DIY, maker, repair, and prototype projects.
• Pakuotė: New, never used parts, packaged in ESD safe packaging.

3. Sąranka ir diegimas

The LM70CIMM-3 is a surface mount device (SMD) requiring careful handling and soldering. Proper installation is crucial for its functionality and longevity.

1. ESD atsargumo priemonės: Always wear an anti-static wrist strap and work on an ESD-safe mat when handling the sensor. Electrostatic discharge can permanently damage the device.
2. Litavimas: Use appropriate soldering equipment and techniques for MSOP packages. Refer to the official National Semiconductor LM70 datasheet for recommended soldering profiles and maximum temperature limits.
3. Smeigtuko orientacija: Identify the pin 1 indicator on the package to ensure correct orientation during soldering. Incorrect orientation can lead to device malfunction or damage.
4. Maitinimas: Connect the sensor to a stable and clean power supply within its specified operating voltage asortimentas.
5. Duomenų ryšiai: Connect the digital communication pins (e.g., SPI or I2C, as specified in the datasheet) to your microcontroller or processing unit.

For detailed pinout diagrams and electrical characteristics, consult the official LM70 datasheet from National Semiconductor Corporation.

4. Naudojimo instrukcijos

Once installed, the LM70CIMM-3 can be operated by interfacing with its digital communication protocol.

1. Inicijavimas: Power on your system. The sensor typically requires a brief stabilization period after power-up.
2. Ryšio protokolas: Implement the appropriate communication protocol (e.g., SPI or I2C) in your microcontroller's firmware. The LM70 datasheet provides detailed information on register addresses, command structures, and data formats.
3. Skaitymo temperatūra: Send the command to request a temperature reading. The sensor will respond with digital data representing the measured temperature.
4. Duomenų konvertavimas: Convert the raw digital data into a meaningful temperature unit (e.g., Celsius or Fahrenheit) using the conversion formula provided in the LM70 datasheet.
5. Nuolatinis stebėjimas: For continuous temperature monitoring, periodically poll the sensor for new readings.

Ensure your software correctly handles the sensor's output format and any error codes that may be returned.

5. Priežiūra

The LM70CIMM-3 is a solid-state device designed for reliable, long-term operation with minimal maintenance requirements.

• Aplinkos sąlygos: Ensure the sensor operates within its specified temperature and humidity ranges. Extreme conditions can affect performance and lifespan.
• Švara: Keep the sensor and its immediate environment free from dust, debris, and corrosive substances. A gentle wipe with a dry, lint-free cloth may be used if necessary, ensuring no static discharge.
• Fizinė apžiūra: Periodically inspect solder joints and connections for any signs of damage or degradation, especially in environments subject to vibration or temperature cycling.

Avoid applying mechanical stress to the sensor package or pins.

6. Problemų sprendimas

If you encounter issues with the LM70CIMM-3, consider the following troubleshooting steps:

• Nėra temperatūros rodmenų:
  • Patikrinkite maitinimo šaltinio tūrįtage ir stabilumas.
  • Check all electrical connections and solder joints for continuity.
  • Confirm correct pin orientation and absence of short circuits.
  • Ensure the communication protocol (SPI/I2C) is correctly implemented in your software.
• Neteisingi arba netikslūs rodmenys:
  • Check for electrical noise on the power supply or data lines.
  • Ensure the sensor is not exposed to extreme temperatures outside its operating range.
  • Verify the data conversion formula in your software matches the datasheet specifications.
  • Inspect for physical damage to the sensor package.
• Įrenginys nereaguoja:
  • Re-check power and ground connections.
  • Confirm the clock and data lines are correctly connected and signals are present.
  • Consider potential ESD damage if proper precautions were not taken during handling.

Always refer to the official LM70 datasheet for detailed electrical characteristics and application notes.

7. Specifikacijos
