Generic Carburetor for Oleo Mac 936 Chainsaw Instruction Manual

1. Produktas baigtasview

This document provides instructions for the installation, operation, and maintenance of the Generic Carburetor, designed as a direct replacement for Walbro carburetors in Oleo Mac 936 chainsaw models. This carburetor is an aftermarket component intended to restore proper fuel delivery and engine performance.

Before proceeding with installation, carefully read all instructions and ensure this carburetor is compatible with your specific chainsaw model. Always compare the new part with the original part to confirm fitment.

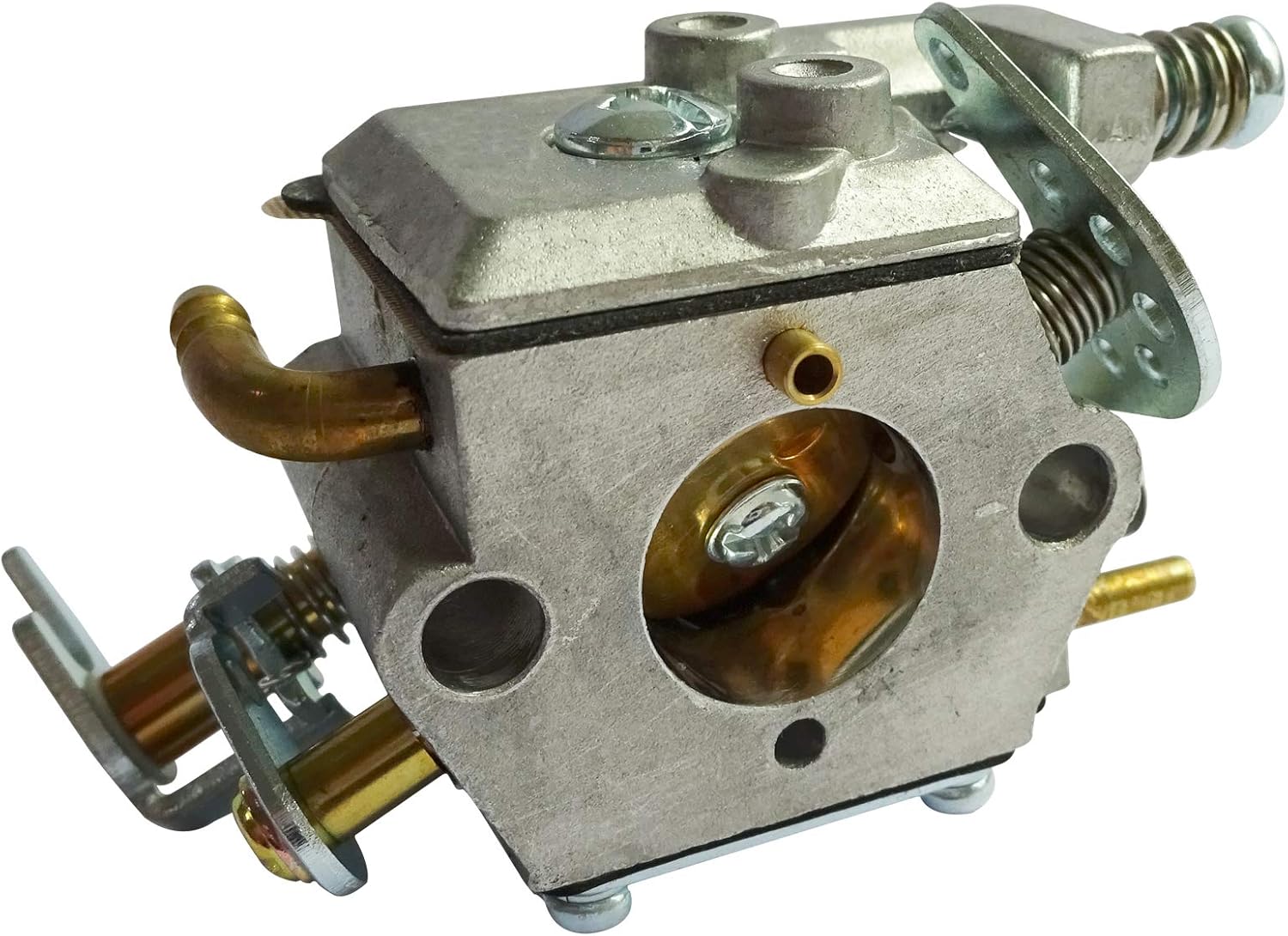

1.1 vaizdas: priekis view of the Generic Carburetor. This image shows the general appearance and primary components.

2. Saugos informacija

Always prioritize safety when working with power tools and fuel systems. Failure to follow these safety guidelines can result in serious injury or property damage.

• Atjunkite uždegimo žvakę: Prieš atlikdami bet kokius techninės priežiūros ar montavimo darbus, visada atjunkite uždegimo žvakės laidą, kad variklis netyčia neužsivestų.
• Kuro tvarkymas: Work in a well-ventilated area. Avoid open flames, sparks, or other ignition sources. Fuel is highly flammable.
• Akių apsauga: Dėvėkite tinkamas akių apsaugos priemones, kad apsisaugotumėte nuo degalų purslų ar šiukšlių.
• Pirštinės: Wear protective gloves to prevent skin contact with fuel and other chemicals.
• Išleiskite degalus: Before removing the old carburetor, drain the fuel tank to minimize spills.
• Profesionali pagalba: Jei abejojate dėl kurio nors diegimo proceso etapo, kreipkitės į kvalifikuotą techninės priežiūros specialistą.

3. Pakuotės turinys

Atidarę pakuotę, patikrinkite, ar yra visi komponentai ir ar jie nepažeisti.

• 1 x Generic Carburetor (Replacement for Oleo Mac 936 / Walbro)

Note: Gaskets, fuel lines, or other accessories may not be included and might need to be purchased separately or reused from the original carburetor if in good condition.

4. Sąranka ir diegimas

This section outlines the general steps for replacing the carburetor. Specific procedures may vary slightly depending on your chainsaw model. Refer to your chainsaw's original service manual for detailed instructions.

1. Paruoškite grandininį pjūklą: Ensure the chainsaw is turned off, the spark plug wire is disconnected, and the fuel tank is drained. Place the chainsaw on a stable, flat surface.
2. Prieiga prie karbiuratoriaus: Remove the air filter cover, air filter, and any other components obstructing access to the carburetor. This typically involves removing screws or clips.
3. Disconnect Linkages and Lines: Carefully disconnect the throttle linkage, choke linkage, and any fuel lines connected to the old carburetor. Note their positions for reassembly.


4.1 paveikslas: Kampinis view of the carburetor, highlighting potential connection points for fuel lines and linkages.

4. Seno karbiuratoriaus nuėmimas: Unscrew the mounting bolts or nuts that secure the carburetor to the engine intake manifold. Carefully remove the old carburetor and any old gaskets.
5. Įdiekite naują karbiuratorių: Place new gaskets (if applicable) onto the intake manifold. Position the new Generic Carburetor, ensuring it aligns correctly with the mounting studs/holes. Secure it with the mounting bolts/nuts, tightening them evenly.

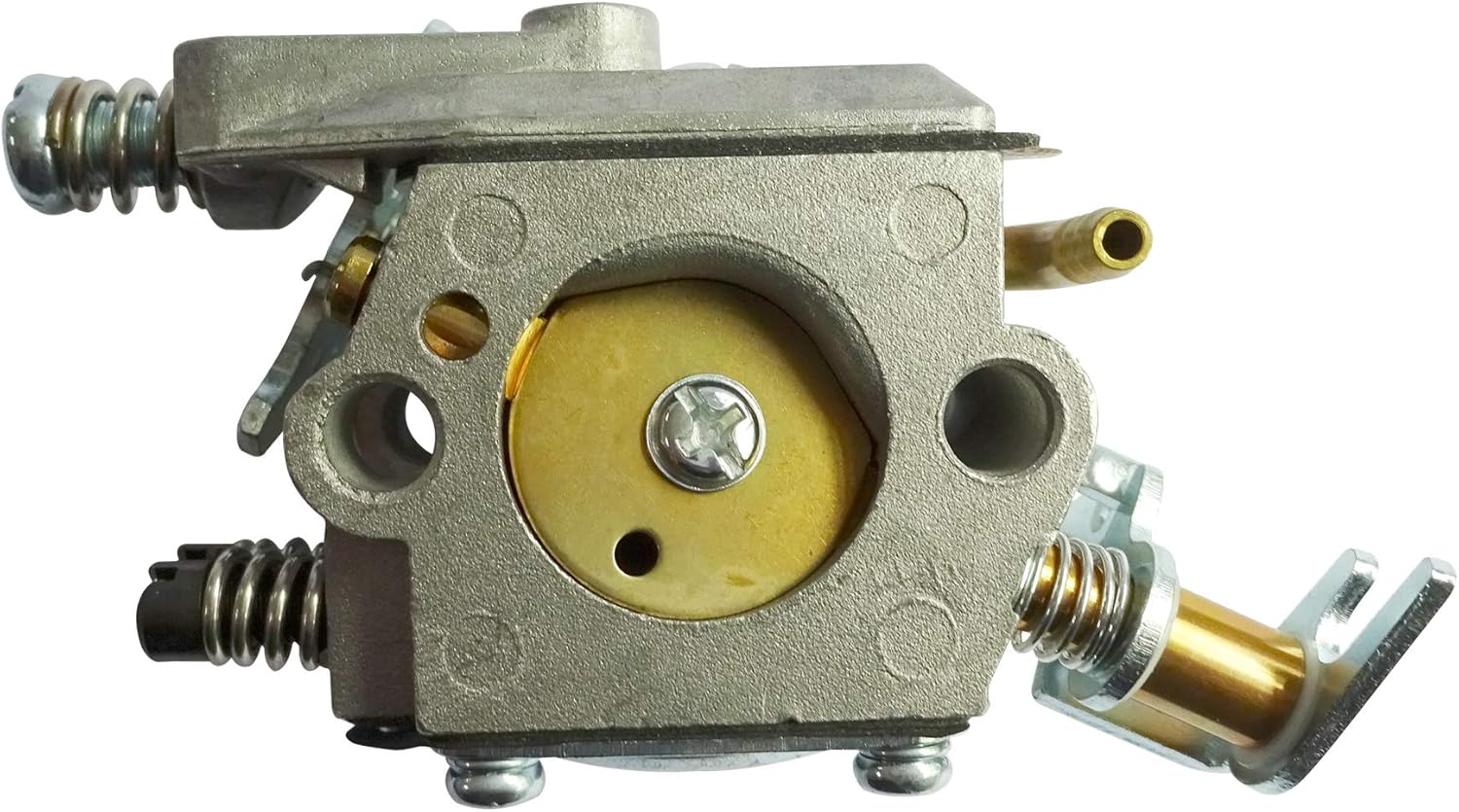

4.2 paveikslėlis: Šonas view of the carburetor, showing the location of typical adjustment screws (High, Low, Idle).

6. Reconnect Linkages and Lines: Reattach the throttle linkage, choke linkage, and fuel lines to their correct positions on the new carburetor. Double-check all connections for security.

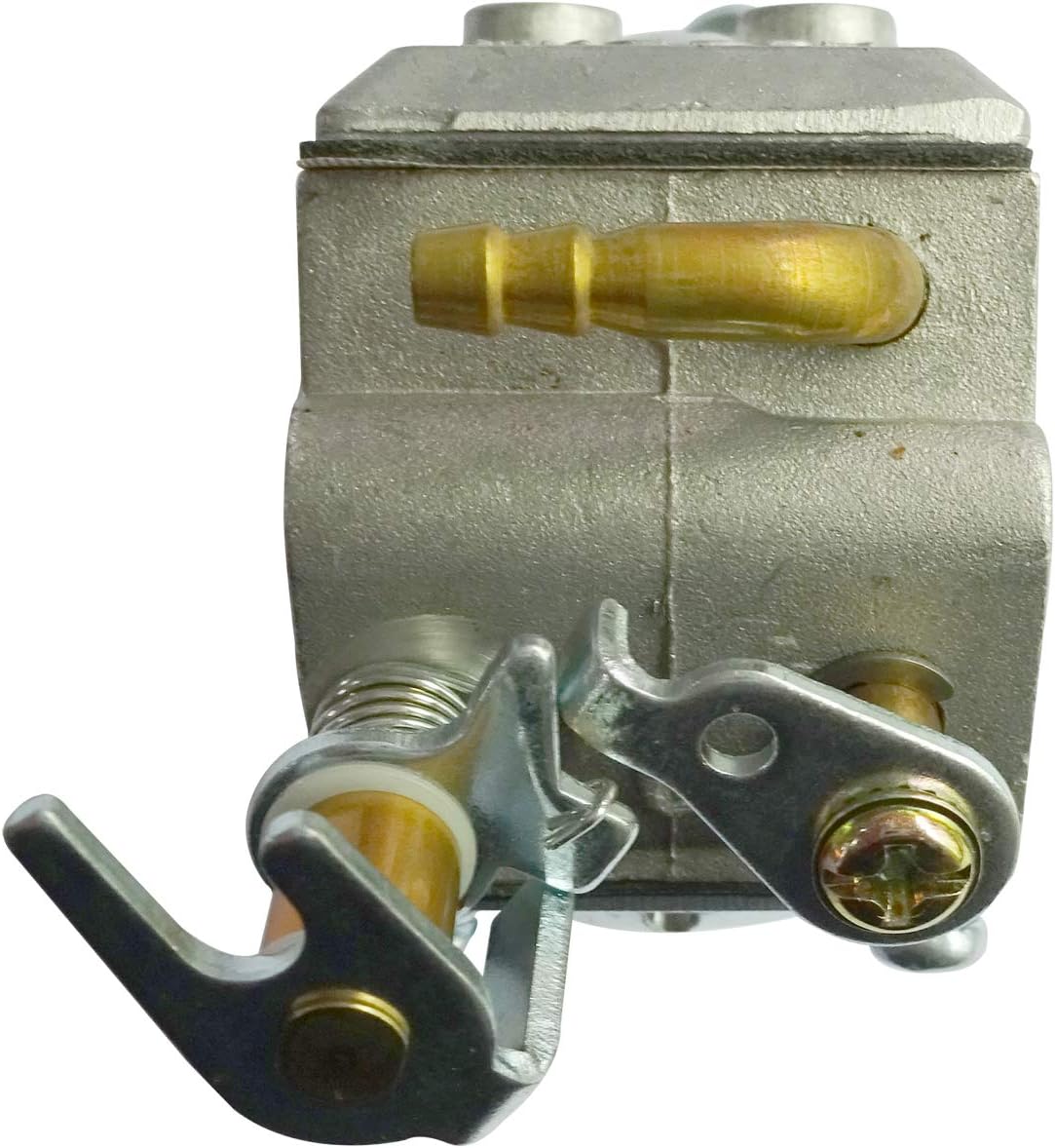

4.3 vaizdas: priekis view of the carburetor, illustrating the area where throttle and choke linkages connect.

7. Surinkti iš naujo: Reinstall the air filter, air filter cover, and any other components that were removed.
8. Refill Fuel and Prime: Refill the fuel tank with the appropriate fuel mixture. Prime the carburetor according to your chainsaw's instructions (e.g., by pressing the primer bulb several times until fuel is visible).
9. Prijunkite uždegimo žvakę iš naujo: Vėl prijunkite žvakės laidą.

5. Valdymas ir reguliavimas

After installation, the carburetor may require minor adjustments for optimal performance. Refer to your Oleo Mac 936 chainsaw's original manual for specific carburetor tuning procedures. Generally, carburetors have three adjustment screws:

• Tuščiosios eigos greitis (T): Adjusts the engine's RPM at idle.
• Mažas greitis (L): Controls the fuel/air mixture at low engine speeds.
• Didelis greitis (H): Controls the fuel/air mixture at high engine speeds.

Start with the factory default settings (often 1 to 1.5 turns out from lightly seated for L and H screws) and make small adjustments while the engine is running, listening for smooth operation and proper acceleration. Avoid over-leaning the mixture, as this can damage the engine.

6. Priežiūra

Regular maintenance helps ensure the longevity and performance of your carburetor and chainsaw.

• Kuro kokybė: Always use fresh, clean fuel mixed with the correct ratio of 2-stroke oil as specified by your chainsaw manufacturer. Stale or contaminated fuel is a common cause of carburetor issues.
• Oro filtras: Regularly inspect and clean or replace the air filter. A clogged air filter can restrict airflow, leading to a rich fuel mixture and poor engine performance.
• Kuro filtras: Check and replace the fuel filter periodically to prevent debris from reaching the carburetor.
• Karbiuratoriaus valymas: If performance issues persist, the carburetor may need cleaning. This involves disassembling the carburetor and cleaning its internal passages with carburetor cleaner. This task is best performed by experienced individuals or a professional.

7. Problemų sprendimas

If your chainsaw experiences issues after carburetor replacement, consider the following common problems and solutions:

Jei šie veiksmai neišsprendžia problemos, gali prireikti profesionalios diagnostikos ir remonto.

8. Specifikacijos

• Suderinamumas: Oleo Mac 936 Chainsaws (Replaces Walbro Carburetors)
• Pakuotės matmenys: 5.91 x 5.91 x 1.97 colio
• Prekės svoris: 5.3 uncijos
• Gamintojas: DCSPARES

9. Garantija ir palaikymas

For warranty information regarding this Generic Carburetor, please refer to the terms and conditions provided by the seller at the time of purchase. As this is an aftermarket part, warranty coverage may differ from original equipment manufacturer (OEM) parts.

For technical support or further assistance, please contact the seller directly through your purchase platform. Ensure you have your order details available when contacting support.
