This manual provides essential information for the proper installation, function, and maintenance of the Spartan Mowers 448-0001-00 Deck Height Adjustment Stud. This component is crucial for maintaining the correct cutting height of your mower deck, ensuring optimal lawn care performance.

Produktas baigtasview

The 448-0001-00 Deck Height Adjustment Stud is a genuine Spartan Mower factory replacement part designed to ensure precise deck height control. It is engineered for durability and reliable performance in demanding mowing conditions.

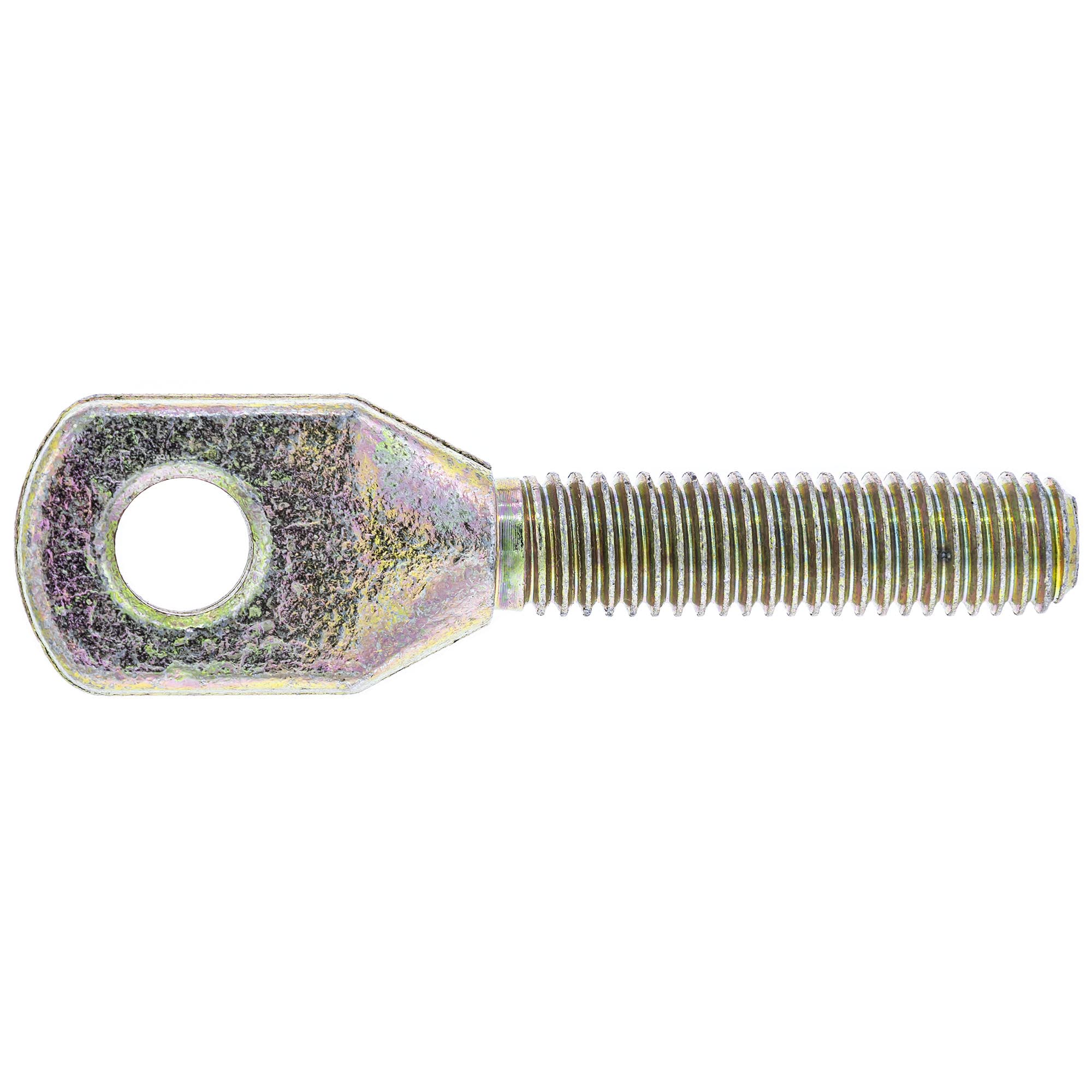

1 pav. Bendra view of the Spartan Mowers 448-0001-00 Deck Height Adjustment Stud.

2 pav. Iš arti view of the eyelet end of the adjustment stud, showing the attachment point.

Suderinamumas

This part is compatible with the following Spartan Mower models:

• Spartan Mowers 2016-2019 RT, 2020-2022 RT HD, 2020-2022 RT Pro
• Spartan Mowers 2016-2019 SRT, 2019-2022 SRT XD, 2020-2021 SRT Pro, 2020-2021 SRT HD
• Spartan Mowers 2021-2022 KG XD, 2021-2022 KG Pro, 2022 KGZ XD

Saugos informacija

Always prioritize safety when performing any maintenance or installation on your equipment. Failure to follow safety guidelines can result in serious injury.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation or maintenance.
• Ensure the mower engine is off, the ignition key is removed, the spark plug wire is disconnected, and the parking brake is engaged before performing any work on the machine.
• Refer to your specific mower's owner's manual for additional safety precautions and detailed instructions relevant to your model.
• If you are unsure about any procedure or lack the necessary tools, consult a qualified service technician.

Montavimo instrukcijos

This section outlines the general procedure for replacing the deck height adjustment stud. Specific steps may vary slightly depending on your mower model. Always consult your mower's service manual for precise instructions.

Reikalingi įrankiai (tipiniai)

• Wrench set (appropriate sizes for nuts/bolts)
• Pliers (if needed for cotter pins or clips)
• Grease or anti-seize compound (optional, for threads)

Procedūra

1. Paruošimas: Park the mower on a flat, stable surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting. Engage the parking brake.
2. Prieiga: Depending on your mower model, you may need to raise the mower deck or remove protective covers to access the existing deck height adjustment stud.
3. Removal of Old Stud: Carefully remove any retaining clips, washers, nuts, or bolts securing the old deck height adjustment stud. Note the orientation and position of all components for correct reassembly.
4. Patikra: Inspect the surrounding components, such as linkages and mounting points, for wear, bending, or damage. Replace any worn parts as necessary to ensure proper function.
5. Installation of New Stud: Insert the new Spartan Mowers 448-0001-00 Deck Height Adjustment Stud into its designated position.
6. Saugūs komponentai: Reattach all retaining clips, washers, nuts, and bolts. Tighten fasteners to the manufacturer's recommended torque specifications. Refer to your mower's service manual for specific torque values.
7. Patvirtinimas: After installation, ensure the deck height adjustment mechanism operates smoothly and securely. Check for any binding or excessive play.
8. Paskutiniai žingsniai: Reconnect the spark plug wire. Test the mower's deck height adjustment function across its full range before operating the machine.

3 pav. Iš arti view of the threaded end of the adjustment stud, illustrating the threading for secure fastening.

Funkcija ir paskirtis

The deck height adjustment stud is an integral part of the mower's cutting deck assembly. It provides a secure pivot point or attachment for the linkage system that controls the vertical position of the mower deck. By adjusting this stud, the operator can precisely set the desired cutting height for the lawn. Proper function of this component ensures consistent and even cutting performance across the entire mowing area.

Priežiūra

Regular maintenance of the deck height adjustment stud helps prolong its lifespan and ensures reliable operation of your mower's deck height mechanism.

Reguliarus patikrinimas

Periodically inspect the deck height adjustment stud for signs of wear, bending, corrosion, or damage. Pay close attention to the threads and the eyelet for any deformation. Check for loose fasteners that secure the stud to the mower frame or deck.

Valymas

Keep the stud and surrounding components free from dirt, grass clippings, and debris. Accumulation of foreign material can impede smooth operation and accelerate wear. A clean mechanism operates more efficiently and reliably.

Lubrication (Optional)

If your mower's manual recommends it, apply a light coat of appropriate grease or anti-seize compound to the threads of the stud. This can help prevent corrosion, reduce friction, and facilitate future adjustments or removal, especially in environments prone to rust.

Įprastų trikčių šalinimas

This section addresses common issues that may arise related to the deck height adjustment stud.

Difficulty Adjusting Deck Height

If the deck height is difficult to adjust, check the stud for excessive corrosion, bent threads, or binding within its mounting points. Ensure all associated linkages are clean, properly lubricated, and free from obstruction. A damaged stud may need replacement.

Netolygus pjovimas

An uneven cut can sometimes be attributed to a bent or damaged deck height adjustment stud, or loose fasteners securing it. Inspect the stud and its mounting points for any irregularities or play. Ensure the stud is correctly installed and tightened.

Loose or Unstable Deck

If the mower deck feels loose or unstable, verify that the deck height adjustment stud is securely fastened and not excessively worn. Worn threads or a damaged eyelet can lead to instability. Check all connecting hardware for proper tightness.

Gaminio specifikacijos

Informacija apie garantiją

For specific warranty details regarding the Spartan Mowers 448-0001-00 Deck Height Adjustment Stud, please refer to the official Spartan Mowers warranty policy provided with your original equipment or contact Spartan Mowers customer support directly. Warranty terms may vary based on purchase date and region.
