Intex Ultra Quadra XTR Frame Pool Set Instruction Manual

1. Įvadas

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Intex Ultra Quadra XTR Frame Pool Set (Model 2893200). This rectangular pool, measuring 549 x 274 x 132 cm, is designed for outdoor, freestanding use. Please read all instructions carefully before installation and keep this manual for future reference.

Figure 1: Assembled Intex Ultra Quadra XTR Frame Pool. This image shows the complete rectangular pool with its dark grey exterior and blue tiled interior pattern.

2. Saugos informacija

ĮSPĖJIMAS: Failure to follow these instructions can result in serious injury or death. Always supervise children. Drowning hazard exists. This pool is intended for outdoor use only.

• Niekada nepalikite vaikų be priežiūros baseine ar šalia jo.
• Įsitikinkite, kad baseinas pastatytas ant lygaus, stabilaus paviršiaus.
• Laikykite elektros prietaisus atokiau nuo baseino.
• Nerkite ir nešokite į baseiną.
• Empty the pool completely when not in use for extended periods.
• Regularly inspect the pool for damage or wear.

3. Pakuotės turinys

Carefully unpack all items and check against the list below. If any parts are missing or damaged, do not proceed with assembly and contact Intex customer support.

• Intex Ultra Quadra XTR Frame Pool Liner (549 x 274 x 132 cm)
• Plieninių rėmų komponentai (įvairūs stulpai ir jungtys)
• Pool Liner with 38 mm shut-off valve
• Inlet and Outlet Fittings (for water circulation, if a pump is added later)
• Išleidimo kamštis

Pastaba: This pool set does NE include a filtration system, ladder, ground cloth, pool cover, skimmer, hoses, or cleaning kit. These items must be purchased separately if desired.

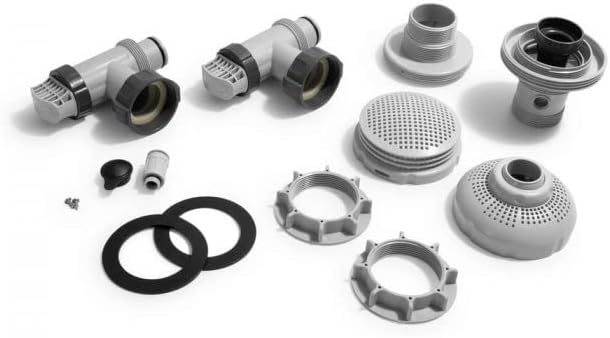

Figure 2: Assortment of pool parts. This image displays various components such as inlet/outlet fittings, gaskets, and caps, which are part of the pool's plumbing system.

4. Sąranka ir surinkimas

Assembly typically requires two people and takes approximately 60 minutes. No additional tools or safety pins are required due to the precision locking system.

4.1 Svetainės paruošimas

1. Choose a firm, level area free of sharp objects, debris, and excessive slopes.
2. Ensure the chosen site is large enough for the pool (605 x 330 cm including support legs) and allows for safe access around it.
3. Clear any vegetation or grass from the area to prevent damage to the liner.

4.2 Rėmo surinkimas

1. Spread the pool liner evenly on the prepared ground.
2. Identify the different frame components (horizontal beams, vertical legs, corner joints).
3. Įkiškite horizontalias sijas per įvores viršutiniame baseino įdėklo krašte.
4. Prijunkite horizontalias sijas naudodami kampines jungtis.
5. Attach the vertical support legs to the horizontal beams, ensuring they lock into place with the precision locking system.
6. Ensure all connections are secure and the frame is stable before proceeding.

4.3 Inlet and Outlet Installation

1. Locate the pre-cut holes in the pool liner for the inlet and outlet fittings.
2. Install the provided fittings according to the diagrams in the separate plumbing instructions (if applicable) or by pushing them through the liner from the inside and securing them with the external nuts/gaskets.
3. Ensure the 38 mm shut-off valve is correctly installed on the outlet.

Figure 3: Pool inlet and outlet fittings. This image shows the grey plastic fittings used for water circulation, including the shut-off valve and grilles.

5. Baseino valdymas

5.1 Baseino pripildymas

1. Įsitikinkite, kad išleidimo kamštis yra sandariai uždarytas.
2. Pradėkite pildyti baseiną vandeniu. Kylant vandens lygiui, švelniai išlyginkite visas įdėklo apačios raukšles.
3. Fill the pool to the recommended water height of 114 cm, which corresponds to approximately 90% capacity (17,203 liters). Do not overfill.

5.2 Vandens valymas

As this pool set does not include a filtration system, regular water treatment is crucial to maintain hygiene and water clarity. Consult a pool supply professional for appropriate chemicals and testing kits suitable for your pool's volume and local conditions. The pool is suitable for saltwater use if a compatible saltwater system is purchased separately.

6. Priežiūra

6.1 Cleaning the Pool

1. Regularly remove debris (leaves, insects) from the water surface using a skimmer net (not included).
2. Brush the pool walls and bottom to prevent algae growth.
3. For thorough cleaning, consider purchasing a compatible pool vacuum (not included).

6.2 Išleidimas ir sandėliavimas

1. To drain the pool, attach a garden hose to the drain valve and open the valve. Direct the water to a suitable drainage area.
2. Once empty, clean and dry the liner and frame components thoroughly.
3. Išardykite rėmą, atlikdami surinkimo veiksmus atvirkštine tvarka.
4. Store the pool liner and frame components in a dry, protected area, away from extreme temperatures and pests.

6.3 Liner and Frame Care

• The reinforced laminated vinyl liner (0.73 mm bottom, 0.73 mm wall) is durable, but avoid sharp objects.
• The high-quality powder-coated steel frame is designed for enhanced rust resistance and durability. Inspect for any signs of corrosion or damage periodically.

7. Problemų sprendimas

• Vandens nutekėjimas: Check the drain plug, inlet/outlet fittings, and the pool liner for punctures. Use a repair patch kit (not included) for small liner holes.
• Nestabilus rėmas: Ensure all frame components are fully connected and locked into place. Verify the pool is on a perfectly level surface.
• Debesuotas vanduo: This indicates a need for water treatment. Test water chemistry and add appropriate chemicals. Regular cleaning is also essential.

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information or technical support, please contact Intex customer service directly. Refer to the packaging or the official Intex websvetainėje rasite naujausią kontaktinę informaciją ir garantijos sąlygas, taikomas jūsų regione.

Websvetainė: www.intexcorp.com
