Victron Energy Smart IP43 24V 25A 3-Output Battery Charger (Model PSC242553095) User Manual

1. Įvadas

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Victron Energy Smart IP43 24-Volt 25 AMP 120-240 VAC, 3 Output Battery Charger with Bluetooth. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

1.1. Produktas baigtasview

The Victron Energy Smart IP43 Charger is designed for charging up to three independent battery banks. It features built-in Bluetooth Smart for monitoring, control, and firmware updates via the VictronConnect app. The charger also includes automatic voltage compensation to account for voltage drop in DC cabling.

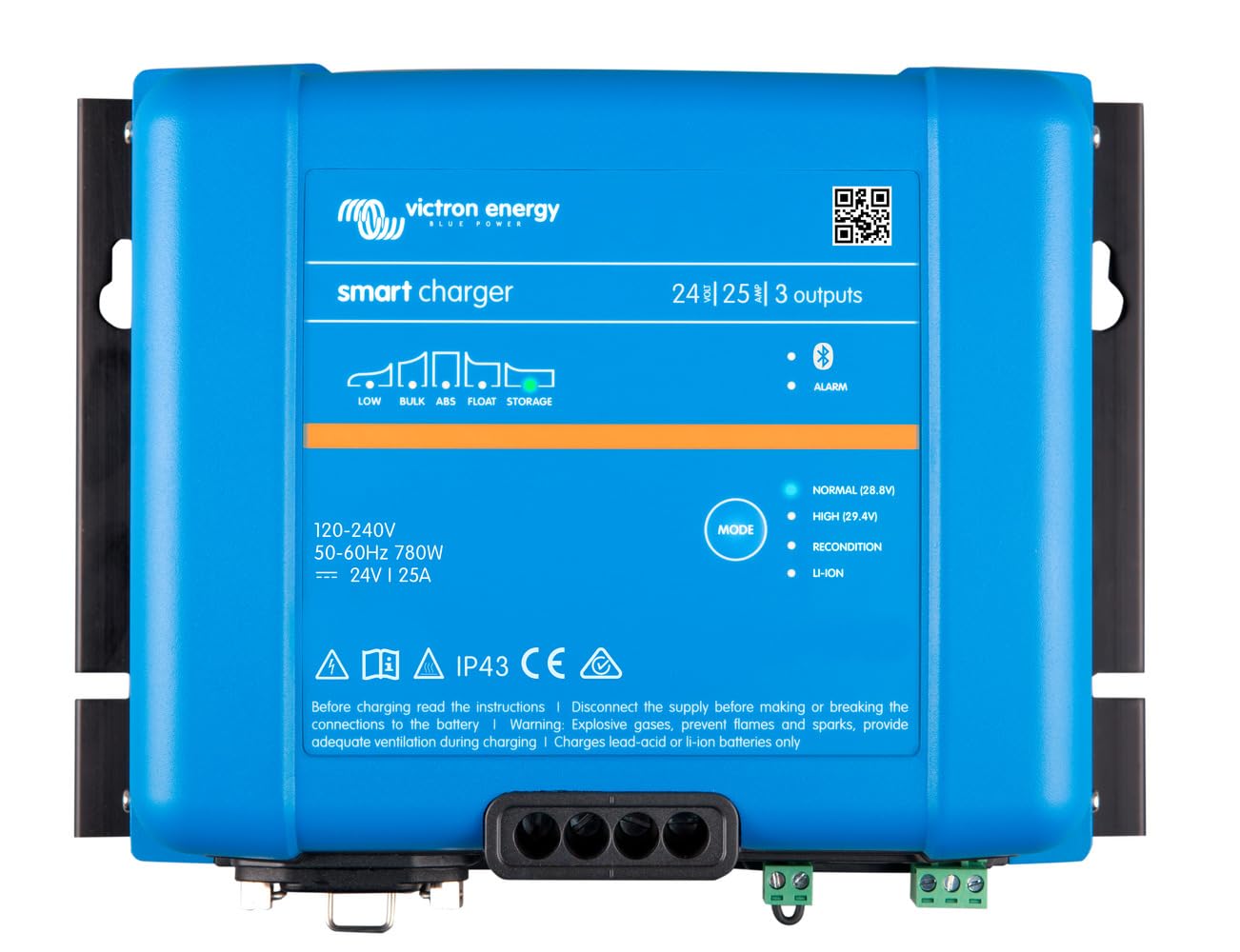

Vaizdas: priekis view of the Victron Energy Smart IP43 24V 25A 3-Output Battery Charger.

1.2. Kas yra dėžutėje

Išpakuodami patikrinkite, ar yra visi komponentai:

• Victron Energy Phoenix Smart IP43 24-Volt 25 AMP 120-240 VAC, 3 Output Battery Charger with Bluetooth (Model PSC242553095)
• Vartotojo vadovas (šis dokumentas)
• Montavimo įranga (jei taikoma)

2. Saugos instrukcijos

ĮSPĖJIMAS: Šiame gaminyje yra cheminių medžiagų, kurios Kalifornijos valstijoje žinomos kaip sukeliančios vėžį ir apsigimimus arba kitokią žalą reprodukcijai. Norėdami gauti daugiau informacijos, eikite į www.P65Warnings.ca.gov.

• Always disconnect AC power before making or breaking DC connections.
• Užtikrinkite tinkamą vėdinimą aplink įkroviklį.
• Saugokite įkroviklį nuo lietaus ar drėgmės.
• Consult a qualified electrician for installation if you are unsure.
• Use appropriate cable sizes for all connections to prevent overheating.
• This device is designed for indoor use or protected outdoor environments (IP43 rating).

3. Sąranka ir diegimas

3.1. Mounting the Charger

Select a suitable location for mounting the charger. The location should be dry, well-ventilated, and protected from direct sunlight and excessive heat. Ensure there is sufficient space around the unit for air circulation.

• Mount the charger vertically on a non-flammable surface.
• Use appropriate screws and fasteners for the mounting surface.
• Ensure all connections are easily accessible after mounting.

3.2. Elektros jungtys

The charger has three full current outputs designed to charge up to three separate battery banks. The total current drawn across all three outputs combined must not exceed the charger's rated output current (25 Amps).

1. Nuolatinės srovės akumuliatoriaus jungtys:
   • Connect the positive (+) terminals of your battery banks to the corresponding positive output terminals on the charger.
   • Connect the negative (-) terminals of your battery banks to the common negative terminal on the charger.
   • Use marine-style battery connectors (ring terminals or battery clamps) as appropriate for your setup.
   • Ensure all DC connections are tight and secure to prevent voltagkritimai ir perkaitimas.
2. Kintamosios srovės įvesties jungtis:
   • Connect the standard AC power cord (5-15P) to a compatible 120-240 VAC power outlet.
   • Patikrinkite, ar įvesties ttage matches the charger's specifications.

4. Operacija

4.1. Pradinis įjungimas

Once all connections are secure, plug the AC power cord into the wall outlet. The charger will initiate its startup sequence. Status indicators (LEDs) on the unit will provide information on the charging process.

4.2. Bluetooth Connectivity (VictronConnect App)

The charger features built-in Bluetooth Smart for advanced monitoring and control via the VictronConnect app. This app allows you to:

• Monitor real-time charging status and battery voltage.
• Configure charging parameters and battery presets (e.g., Gel, Lithium Iron Phosphate).
• Update the charger's firmware.
• Synchronize with other Victron Energy Smart devices.

Download the VictronConnect app from your device's app store. Follow the in-app instructions to connect to your charger via Bluetooth.

Image: Screenshot of the VictronConnect app interface on a smartphone, showing monitoring and configuration options.

4.3. Automatinis ttage Kompensacija

The charger automatically compensates for voltage drop that occurs over the DC cabling. As the DC current increases, the charger slightly increases its output voltage to ensure the batteries receive the correct charging voltage, optimizing charging efficiency and battery life.

4.4. Multi-Output Charging

The three outputs allow for simultaneous charging of up to three battery banks. While each output can deliver the full rated current, the combined total current from all three outputs will not exceed the charger's maximum output of 25 Amps.

Video: This video demonstrates the VictronConnect App for monitoring performance, showing how users can check key monitoring data, see device performance, and use simple controls for configuration and firmware updates.

Video: This video illustrates the Victron Remote Management (VRM) portal, demonstrating how to master remote systems by checking remote systems at a glance, managing devices with simple controls, and monitoring system performance in detail.

5. Specifikacijos

6. Priežiūra

• Reguliarus patikrinimas: Periodically inspect the charger and its connections for any signs of damage, corrosion, or loose wiring.
• Valymas: Keep the charger clean and free from dust and debris. Use a dry cloth for cleaning. Do not use liquid cleaners or solvents.
• Vėdinimas: Įsitikinkite, kad ventiliacijos angos nėra užblokuotos, kad išvengtumėte perkaitimo.
• Firmware atnaujinimai: Regularly check for and install firmware updates via the VictronConnect app to ensure optimal performance and access to new features.

7. Problemų sprendimas

If you encounter issues with your Victron Energy Smart IP43 charger, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Victron Energy customer support.

8. Garantija ir palaikymas

8.1. Informacija apie garantiją

This product comes with a manufacturer's warranty. Please refer to the "Warranty Description" provided with your product or visit the official Victron Energy webIšsamias garantijos sąlygas ir nuostatas rasite svetainėje. Išsaugokite pirkimo įrodymą, jei prireiktų pateikti garantijos pretenzijas.

8.2. Pagalba klientams

For technical assistance, troubleshooting, or service inquiries, please contact Victron Energy customer support through their official website or authorized service centers. You can also find additional resources and FAQs on the Victron Energy websvetainę.
