1. Įvadas
This manual provides essential information for the safe and efficient use of the BAYDE 1734-IE4C 4 Point I/O Analog Input Module. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper functionality and to prevent damage to the device or injury to personnel.
2. Saugos informacija
Visada laikykitės šių saugos priemonių:
- Ensure power is disconnected before installing or servicing the module.
- Šią įrangą turėtų montuoti, valdyti ir prižiūrėti tik kvalifikuoti darbuotojai.
- Laikykitės visų vietinių ir nacionalinių elektros taisyklių.
- Saugokite modulį nuo drėgmės, dulkių ir ekstremalių temperatūrų.
- Do not attempt to repair the module yourself. Refer to qualified service personnel.
3. Produktas baigtasview
The BAYDE 1734-IE4C is a 4-point analog input module designed for industrial automation applications. It provides reliable data acquisition from various analog sensors, converting physical signals into digital data for processing by a control system. This module is part of a modular I/O system, offering flexibility and scalability.

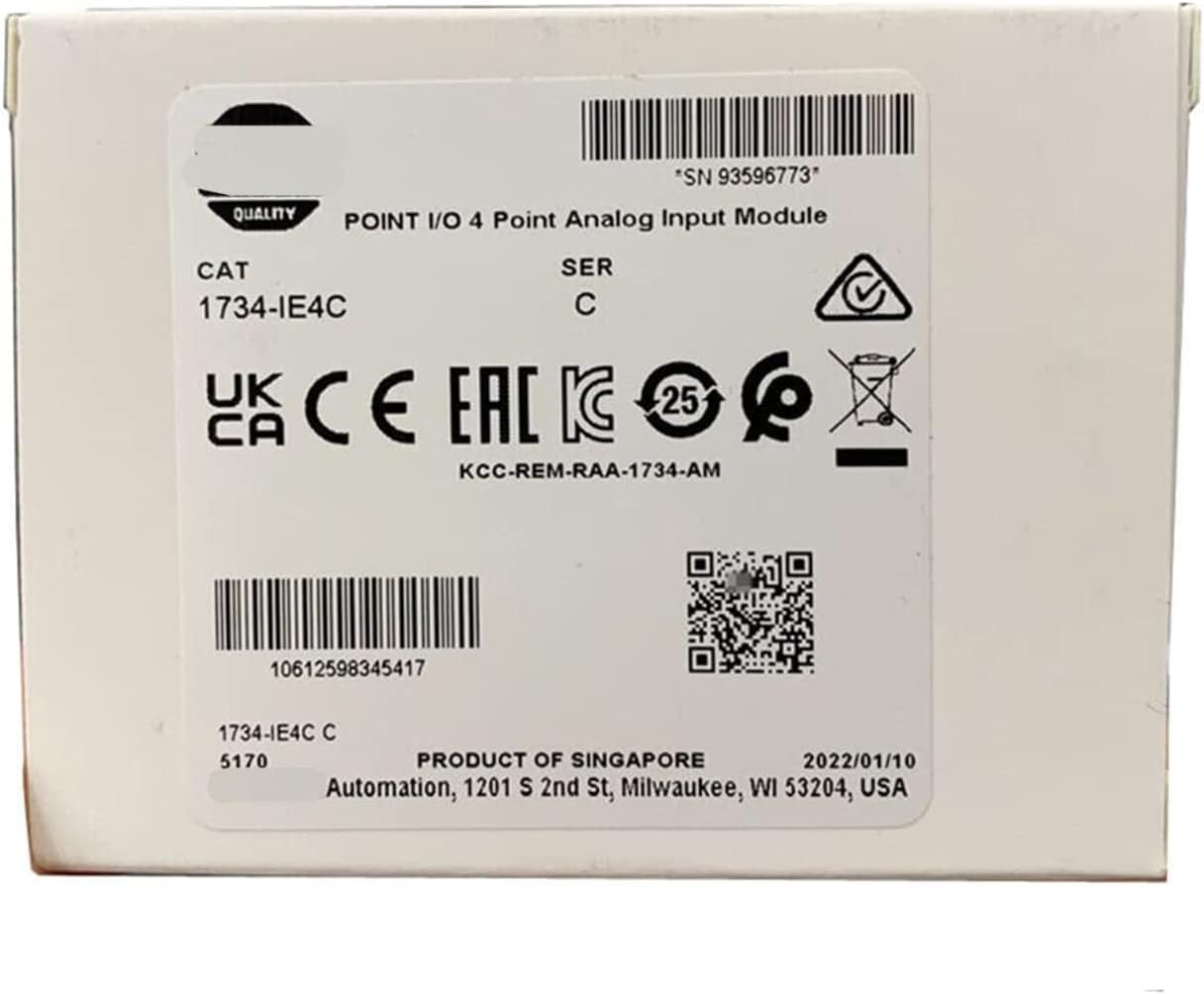

Figure 1: Packaging box for the BAYDE 1734-IE4C module, showing model number and certifications.
For more detailed product information, you can visit the official product page: BAYDE 1734-IE4C Product Page
4. Sąranka ir diegimas
4.1 Išpakavimas
Carefully remove the module from its packaging. Inspect for any signs of damage during transit. Report any damage to your supplier immediately.
4.2 Montavimas
The 1734-IE4C module is designed for DIN rail mounting. Ensure the DIN rail is securely fastened within the control cabinet. Slide the module onto the DIN rail until it clicks into place.
4.3 Laidai
Connect the analog input signals to the module's terminals according to the system's wiring diagram. Ensure proper polarity and shielding for analog signals to minimize noise interference. Refer to the system's documentation for specific terminal assignments.
- Maitinimas: Connect the module to a stable and appropriate power source as specified in the technical specifications.
- Analoginės įvestys: Connect sensor outputs to the designated input terminals.
- Įžeminimas: Ensure proper grounding to prevent electrical noise and ensure safety.
5. Naudojimo instrukcijos
5.1 Įjungimas
After installation and wiring are complete, apply power to the system. Observe the module's status indicators. A steady green light typically indicates normal operation.
5.2 konfigūracija
The 1734-IE4C module requires configuration through the associated control system's software. This includes setting input ranges, scaling, and data formats. Consult your control system's programming manual for detailed configuration procedures.
5.3 Duomenų rinkimas
Once configured, the module will begin acquiring analog data from connected sensors. This data will be available to the control system for monitoring, control, and logging purposes.
6. Priežiūra
The BAYDE 1734-IE4C module is designed for minimal maintenance. However, periodic checks are recommended:
- Vizuali apžiūra: Regularly inspect the module and its wiring for any signs of damage, loose connections, or corrosion.
- Valymas: Laikykite modulį švarų nuo dulkių ir šiukšlių. Valymui naudokite minkštą, sausą šluostę. Nenaudokite skystų valiklių.
- Aplinkos kontrolė: Užtikrinkite, kad darbo aplinka išliktų nurodytuose temperatūros ir drėgmės diapazonuose.
7. Problemų sprendimas
If the module is not functioning as expected, consider the following:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Module Status Indicator Off | No power supply or faulty module. | Check power connections. Verify power supply voltage. Replace module if necessary. |
| Incorrect Analog Readings | Incorrect wiring, sensor fault, or incorrect configuration. | Verify wiring against diagram. Test sensor. Check module configuration settings. |
| Ryšio klaida | Network issue or module fault. | Check network cables and connections. Verify network configuration. |
Jei problemos išlieka, kreipkitės į techninę pagalbą.
8. Specifikacijos
Key technical specifications for the BAYDE 1734-IE4C module:
- Modelis: 1734-IE4C
- Input Points: 4 analoginiai įėjimai
- Prekinis ženklas: BAYDE
- UPC: 614160205542
- ASIN: B0C5MJ4PNC
- Further detailed specifications (e.g., input ranges, resolution, accuracy, power consumption, operating temperature) should be obtained from the official product datasheet.
9. Garantija ir palaikymas
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your BAYDE distributor. Keep your purchase receipt for warranty claims.
