Įvadas
This manual provides essential information for the proper installation, operation, and maintenance of the BAYDE MP32 Alarm Fuse. Please read this manual thoroughly before use to ensure safe and efficient performance in your electrical systems, particularly those compatible with FANUC equipment.

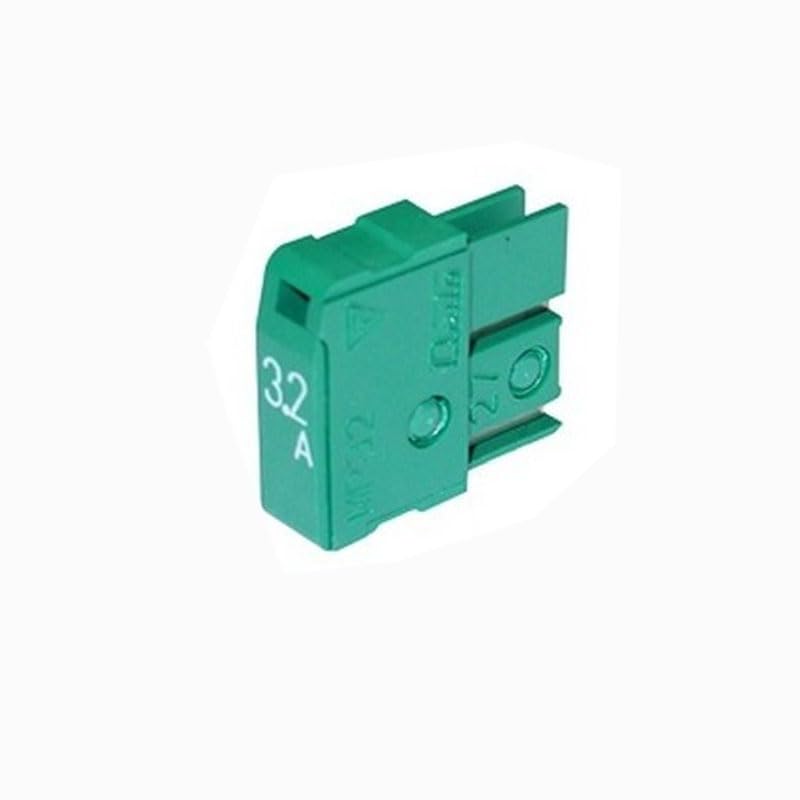

This image displays the BAYDE MP32 Alarm Fuse, a compact green component designed for electrical circuit protection. It features clear markings indicating its 3.2 Ampere rating and model number MP32. The fuse is constructed for reliable performance in 125V systems, commonly used in industrial applications like FANUC equipment.
Saugos informacija
Adherence to the following safety guidelines is crucial for preventing injury and damage to equipment:
- Always disconnect power to the circuit before installing, inspecting, or replacing fuses.
- Only qualified personnel should perform electrical work involving fuse installation or replacement.
- Ensure the replacement fuse has the correct amperage (3.2A) and voltage (125V) ratings as specified for the circuit. Using an incorrect fuse can lead to fire, equipment damage, or personal injury.
- Neapeiti arba tamper with fuses. Fuses are critical safety devices.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and insulated gloves, when working with electrical components.
Sąranka ir diegimas
Follow these steps for proper installation of the BAYDE MP32 Alarm Fuse:
- Maitinimo atjungimas: Before beginning any installation, ensure that the power supply to the circuit where the fuse will be installed is completely disconnected and locked out. Verify with a voltage testeris.
- Identify Fuse Holder: Locate the fuse holder designed for the MP32 type fuse within your equipment, typically in control panels or power supply units.
- Verify Ratings: Confirm that the circuit requires a 3.2A, 125V fuse. The BAYDE MP32 is specifically designed for these specifications.
- Insert Fuse: Carefully insert the BAYDE MP32 fuse into the designated fuse holder. Ensure it is seated firmly and correctly according to the holder's design.
- Saugus ryšys: If the fuse holder has a cover or locking mechanism, secure it to ensure the fuse remains in place during operation.
- Atkurti maitinimą: Once the fuse is securely installed and all safety checks are complete, restore power to the circuit.
Note: Incorrect fuse installation can lead to circuit malfunction or safety hazards.
Naudojimo instrukcijos
The BAYDE MP32 Alarm Fuse is a passive overcurrent protection device. It functions automatically to protect electrical circuits and components from damage caused by excessive current flow.
- Normalus veikimas: Under normal operating conditions, the fuse allows current to flow through the circuit without interruption.
- Overcurrent Event: If the current in the circuit exceeds 3.2 Amperes, the fuse element will melt, creating an open circuit and stopping the current flow. This action protects the downstream components from damage.
- Signalizacijos funkcija: As an 'Alarm Fuse', this type of fuse may provide a visual or electrical indication when it has blown, signaling the need for inspection and replacement. Consult your equipment's manual for specific alarm indications.
- Perdegusio saugiklio indikacija: A blown fuse typically results in a loss of power to the protected circuit. Some fuses may have a visible indicator or a continuity test can confirm its status.
Priežiūra
Regular inspection and proper maintenance ensure the continued reliability of your electrical system.
- Periodinis patikrinimas: Periodically inspect fuses and fuse holders for signs of wear, corrosion, or damage. Ensure connections are secure.
- Saugiklio keitimas: Fuses are single-use devices. Once a fuse blows, it must be replaced. Never attempt to repair a blown fuse.
- Pakeitimo procedūra: When replacing a blown fuse, always follow the safety guidelines outlined in the 'Safety Information' and 'Setup and Installation' sections. Ensure the replacement fuse is a BAYDE MP32 with the correct 3.2A, 125V rating.
- Švara: Keep the fuse and fuse holder free from dust, dirt, and moisture, which can affect performance.
Trikčių šalinimas
If you experience issues with your electrical circuit, consider the following troubleshooting steps related to the fuse:
| problema | Galima priežastis | Sprendimas |
|---|---|---|
| Equipment not powering on | Perdegęs saugiklis | Disconnect power, check the fuse for continuity or visual indication of being blown. Replace with a new BAYDE MP32 fuse if necessary. |
| Fuse blows immediately after replacement | Persistent overload or short circuit in the protected equipment/circuit; incorrect fuse rating | Do not replace the fuse again until the underlying electrical fault (overload, short circuit) is identified and corrected by a qualified electrician. Verify the fuse rating is correct for the application. |
| Fuse appears intact but circuit is dead | Poor contact in fuse holder; internal fault in fuse (rare); fault elsewhere in circuit | Disconnect power. Check fuse holder for corrosion or loose connections. Test fuse continuity with a multimeter. Investigate other components in the circuit. |
Specifikacijos
- Modelis: MP32
- Prekinis ženklas: BAYDE
- Amppakilimas: 3.2 Amps
- ttage: 125 voltų
- Medžiaga: Varis
- UPC: 758439736006
- Taikymas: Designed for overcurrent protection in various electrical systems, including those compatible with FANUC equipment.
Informacija apie garantiją
Specific warranty details for the BAYDE MP32 Alarm Fuse are not provided in the product information. For warranty inquiries, please refer to the retailer or manufacturer's official website where the product was purchased, or contact BAYDE customer service directly.
Palaikymas
For technical assistance, further product information, or support regarding the BAYDE MP32 Alarm Fuse, please contact the vendor or manufacturer through their official support channels. Always provide the model number (MP32) and UPC (758439736006) when seeking support.
