OTELETE Spatium SUP Water Bike Instruction Manual

1. Įvadas

This manual provides essential information for the safe and effective assembly, operation, and maintenance of your OTELETE Spatium SUP Water Bike. Please read all instructions carefully before use to ensure proper function and longevity of the product.

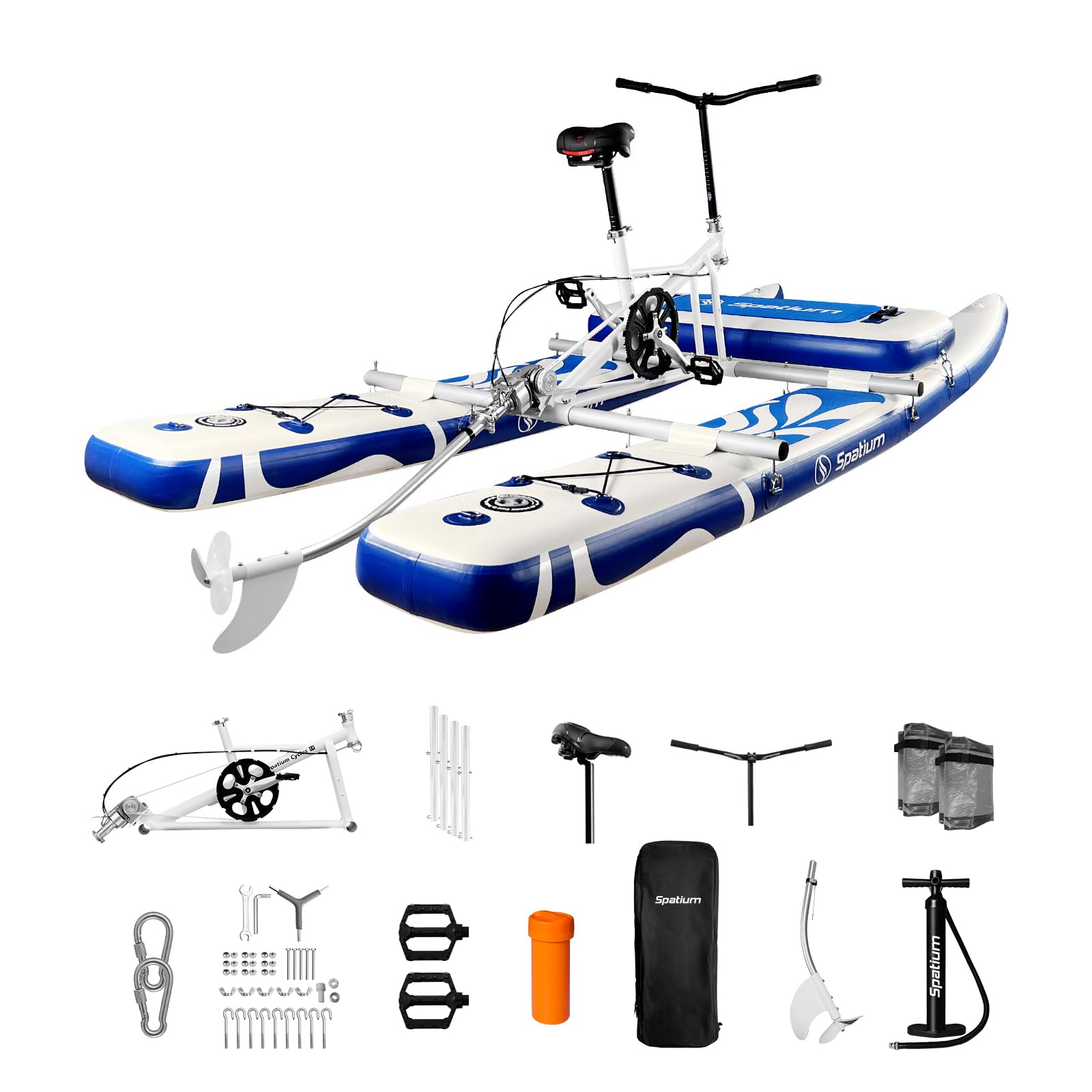

Image 1: The OTELETE Spatium SUP Water Bike, fully assembled and ready for use on the water.

2. Įtraukti komponentai

Patikrinkite, ar pakuotėje yra visi toliau išvardyti komponentai. Jei trūksta kokių nors dalių arba jos pažeistos, susisiekite su klientų aptarnavimo tarnyba.

• Bicycle Body Frame (x1)
• Bicycle Handle (x1)
• Aluminum Alloy Rod (x4)
• Bicycle Seat (x1)
• Manual Two-Way Pump (x1)
• Varžtų rinkinys (x1)
• Bicycle Pedal (x2)
• Inflatable Pontoon (x2)
• Repair Kit (x1)
• Backpack (x1)
• Detachable Propeller (x1)
• sagtis (x2)
• Mat (x1)

Image 2: Visual representation of all premium water bike accessories and components included in the package.

3. Sąranka ir surinkimas

Follow these steps for proper assembly of your water bike. It is recommended to perform assembly on a flat, stable surface.

3.1. Rėmo surinkimas

1. Unpack the bicycle body frame and identify the main components.
2. Attach the bicycle handle to the main frame using the provided screws and wrench. Ensure it is securely fastened.
3. Install the bicycle seat onto the seat post and adjust to a comfortable height.
4. Attach the pedals to the crank arms.
5. Connect the four aluminum alloy rods to the main frame, ensuring direct hole alignment for simple assembly.

3 pav.: Išsamus view of the main frame assembly, highlighting easy insertion points and the screw kit.

Image 4: Close-up of the water bike frame, showing adjustable seat height, handlebar distance, and the belt drive system.

3.2. Pontoon Inflation

1. Unfold the inflatable pontoons.
2. Using the manual two-way pump, inflate the pontoons to the recommended pressure of 10-12 PSI. Do not overinflate.
3. Attach the inflated pontoons to the aluminum alloy rods on the main frame using the provided buckles. Ensure they are securely fastened.
4. If using, inflate the mat and attach it to the designated area on the pontoons.

5 vaizdas: Baigtaview of the inflatable pontoons, detailing dimensions, weight capacity, and recommended inflation pressure.

3.3. Propelerio montavimas

1. Attach the detachable propeller to the drive mechanism at the rear of the frame.
2. Ensure the propeller is securely connected and can rotate freely. The propeller features a lifting design for varying water depths.

3.4. Priedų montavimas

The water bike includes a bicycle basket and a water cup holder. Follow the video instructions for installation.

Video 1: This video demonstrates the installation process for the water cup holder on the Spatium Water Bike frame.

Video 2: This video illustrates how to properly install the bike carry bag onto the Spatium Water Bike.

4. Operacija

The Spatium SUP Water Bike is designed for easy and quiet operation, suitable for various water activities.

4.1. Launching and Riding

• Carefully move the assembled water bike into the water, ensuring sufficient depth for the propeller.
• Mount the seat and place your feet on the pedals.
• Pedal forward to engage the propeller and propel the water bike. The aluminum alloy propeller (Surface Piercing Propeller) is driven by the pedal system.
• Steer the water bike using the bicycle handlebars. The direction of the propeller is controlled by the handlebar.
• The water bike offers a cruise speed of 6-8 km/h.

Image 6: A person demonstrating the operation of the Spatium Water Bike on calm water.

Image 7: Illustration of the water bike's propeller, highlighting its 3-blade design for efficiency and liftable feature for shallow water navigation.

4.2. Stability and Features

• The double-body pontoon design with a multi-air chamber structure provides excellent stability and anti-wind/wave performance.
• The water bike can carry 200-350 kg and can be used on small waves.
• The propeller's lifting design allows for use in varying water depths.
• The quiet driving mechanism minimizes disturbance to aquatic life, making it suitable for fishing and wildlife observation.

Video 3: This video showcases the Spatium water bike in use, highlighting its suitability for family water sports and rental businesses.

Video 4: A short demonstration of individuals riding the water bike with friends, illustrating its ease of use and social aspect.

5. Priežiūra

Regular maintenance ensures the longevity and optimal performance of your Spatium SUP Water Bike.

• After Use in Seawater: Always rinse the water bike thoroughly with clean fresh water after use in saltwater. Dry it completely before storage.
• Vamzdis Clamp Dalys: Periodically inspect and reinforce the pipe clamp parts to ensure they remain secure.
• Galinė pavara: Maintain the rear gear by applying oil as needed to ensure smooth operation.
• Saugykla: Store the water bike in a cool, dry place away from direct sunlight when not in use.
• Remonto komplektas: Use the included repair kit for minor punctures or damages to the inflatable pontoons.

Image 8: Maintenance tips for the water bike, emphasizing post-seawater cleaning and gear lubrication.

6. Specifikacijos

9 paveikslas: Skerspjūvis view illustrating the drop-stitch material and double-layer PVC construction of the inflatable pontoons, ensuring durability and airtightness.

7. Problemų sprendimas

This section addresses common issues you might encounter with your Spatium SUP Water Bike.

7.1. Loss of Air Pressure in Pontoons

• Patikrink vožtuvą: Ensure the air valve is securely closed after inflation.
• Patikrinkite, ar nėra pradūrimų: Carefully examine the pontoon surface for any small holes or tears. Use soapy water to locate leaks by observing bubbles.
• Use Repair Kit: For small punctures, use the provided repair kit according to its instructions. Ensure the surface is clean and dry before applying the patch.

7.2. Difficulty Pedaling or Steering

• Propeller Obstruction: Check if the propeller is entangled with weeds, fishing lines, or other debris. Clear any obstructions carefully.
• Propeller Depth: Ensure the propeller is adequately submerged for efficient propulsion. Adjust the lifting mechanism if necessary.
• Pavarų tepimas: Verify that the rear gear is properly lubricated as per maintenance instructions.
• Handlebar Connection: Confirm that the handlebar is securely attached and the steering mechanism is functioning correctly.

7.3. Instability on Water

• Pontoon Inflation: Ensure both pontoons are inflated to the correct pressure (10-12 PSI) and are evenly inflated. Uneven inflation can affect stability.
• Svorio pasiskirstymas: Distribute your weight evenly on the water bike. Avoid sudden shifts in weight.
• Saugūs ryšiai: Double-check that the pontoons are securely fastened to the frame.

8. Garantija ir palaikymas

Your OTELETE Spatium SUP Water Bike comes with a manufacturer warranty.

• Garantinis laikotarpis: Manufacturer warranty for 1 year from the date of purchase.
• Garantijos reikalavimas: For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official OTELETE websvetainę.
