MoMi MIYA EVA Buggy Stroller User Manual

1. Įvadas

Thank you for choosing the MoMi MIYA EVA Buggy Stroller. This manual provides essential information for the safe and proper use, assembly, maintenance, and troubleshooting of your stroller. Please read this manual carefully before first use and keep it for future reference.

The MoMi MIYA EVA is designed for children from 6 months up to a maximum weight of 22 kg. It offers comfort, safety, and convenience for both child and parent, featuring a robust design, adjustable components, and practical accessories for various weather conditions.

2. Saugos informacija

• Visada naudokite 5 taškų saugos diržus, kad pritvirtintumėte savo vaiką.
• Niekada nepalikite vaiko be priežiūros vežimėlyje.
• Prieš naudodami įsitikinkite, kad visi fiksavimo įtaisai yra įjungti.
• Do not overload the stroller or the shopping basket. The maximum recommended weight for the child is 22 kg.
• Nenaudokite kitų nei gamintojo patvirtintų priedų ar atsarginių dalių.
• Saugokitės atviros liepsnos ir kitų stiprios šilumos šaltinių, tokių kaip elektriniai židiniai, dujiniai židiniai ir pan., keliamo pavojaus šalia vežimėlio.
• Always apply the brake when parking the stroller.
• Ensure that children are kept clear of moving parts when making adjustments to the stroller.
• Šis gaminys netinka bėgimui ar čiuožimui.

3. Kas yra dėžutėje

Please check that all components are present and undamaged upon opening the package:

• 1x MoMi MIYA EVA Buggy Stroller, Gray
• 1x vartotojo vadovas
• 1x puodelio laikiklis
• 1x Mosquito Net
• 1x Footmuff

4. Sąranka

4.1 Vežimėlio išskleidimas

1. Sulankstytą vežimėlį padėkite ant lygaus paviršiaus.
2. Locate the folding lock mechanism, usually on the side of the frame. Release it.
3. Lift the handlebar firmly upwards until the frame clicks into place, indicating it is fully unfolded and locked. Ensure both side locks are engaged.

4.2 Attaching Wheels (if detached)

The MoMi MIYA EVA typically comes with wheels pre-attached. If not, insert the wheel axles into the designated slots on the frame until they click securely into place. Pull on the wheels to ensure they are firmly attached.

4.3 Priedų tvirtinimas

• Footmuff: Slide the footmuff over the seat and secure it using the straps or loops provided, ensuring the harness can pass through.
• Puodelio laikiklis: Clip the cup holder onto the designated attachment point on the handlebar.
• Mosquito Net/Rain Cover: Drape over the stroller and secure as per their individual instructions, ensuring full coverage.

5. Operacinis

5.1 Securing Your Child (5-Point Harness)

1. Padėkite vaiką į kėdutę.
2. Pečių dirželius perkelkite per vaiko pečius, o juosmens dirželius – aplink klubus.
3. Insert the buckles into the central buckle until they click.
4. Sureguliuokite dirželius, kad jie būtų tvirtai, bet patogiai prigludę.

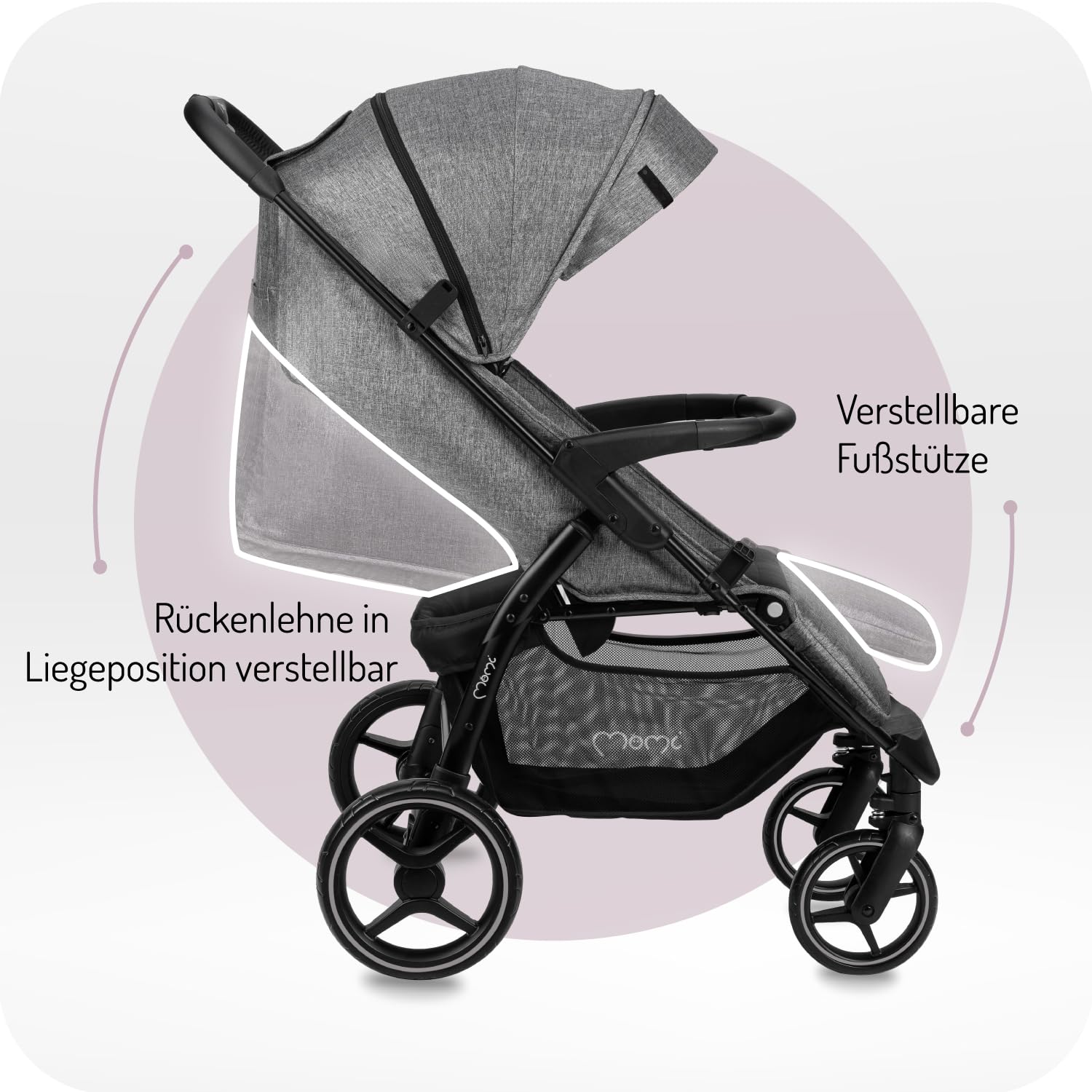

5.2 Atlošo reguliavimas

The backrest can be adjusted to multiple positions, including a lie-flat position for naps. Locate the adjustment lever or strap on the back of the seat and recline or raise the backrest to the desired angle.

5.3 Kojų atramos reguliavimas

The footrest is adjustable to provide comfort for your child as they grow. Press the buttons on either side of the footrest and move it up or down to the desired position.

5.4 Stabdžių naudojimas

The stroller is equipped with a convenient foot brake located on the rear axle. Press down on the brake pedal to engage the brake. Lift the pedal up to release it. Always engage the brake when the stroller is stationary.

5.5 Locking the Front Swivel Wheels

For stability on uneven terrain or when pushing straight, the front swivel wheels can be locked. Push down the locking mechanism above each front wheel to lock them in a forward-facing position. Lift to unlock for greater maneuverability.

5.6 Kupolo reguliavimas

The large, extendable canopy provides ample sun and wind protection. Pull the canopy forward or push it back to adjust its position. It also features a window for easy viewjūsų vaiko priežiūra.

5.7 Vežimėlio sulankstymas

The MoMi MIYA EVA stroller features a quick and easy one-hand folding mechanism for compact storage. Locate the folding button/lever on the handlebar, activate it, and push the handlebar forward while lifting the stroller to fold it. Ensure the double locking mechanism engages to prevent accidental unfolding.

6. Priežiūra

6.1 Valymas

Wipe the stroller frame and fabric components with a damp cloth and a mild soap solution. Do not use harsh abrasives or solvents. Allow all parts to dry completely before folding or storing the stroller.

6.2 Saugykla

Vežimėlį laikykite sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų. Prieš laikydami įsitikinkite, kad jis švarus ir sausas, kad neatsirastų pelėsis.

6.3 Wheel Care

Regularly check the wheels for debris and clean them if necessary. Ensure the wheels rotate freely. The EVA wheels are puncture-proof and require minimal maintenance.

7. Problemų sprendimas

• Stroller does not unfold/fold easily: Ensure all locking mechanisms are disengaged before unfolding. When folding, ensure the folding button/lever is fully activated. Check for any obstructions in the folding mechanism.
• Ratai kieti arba girgžda: Clean the wheels and axles to remove any dirt or debris. A small amount of silicone-based lubricant can be applied to the axle points if needed.
• Stabdžiai neįsijungia / neišsijungia: Check for any debris obstructing the brake mechanism. Ensure the brake pedal is fully pressed down or lifted. If issues persist, contact customer support.
• Vežimėlis traukia į vieną pusę: Check that all wheels are properly attached and inflated (if applicable, though MIYA EVA has solid EVA wheels). Ensure the front swivel wheels are not partially locked.

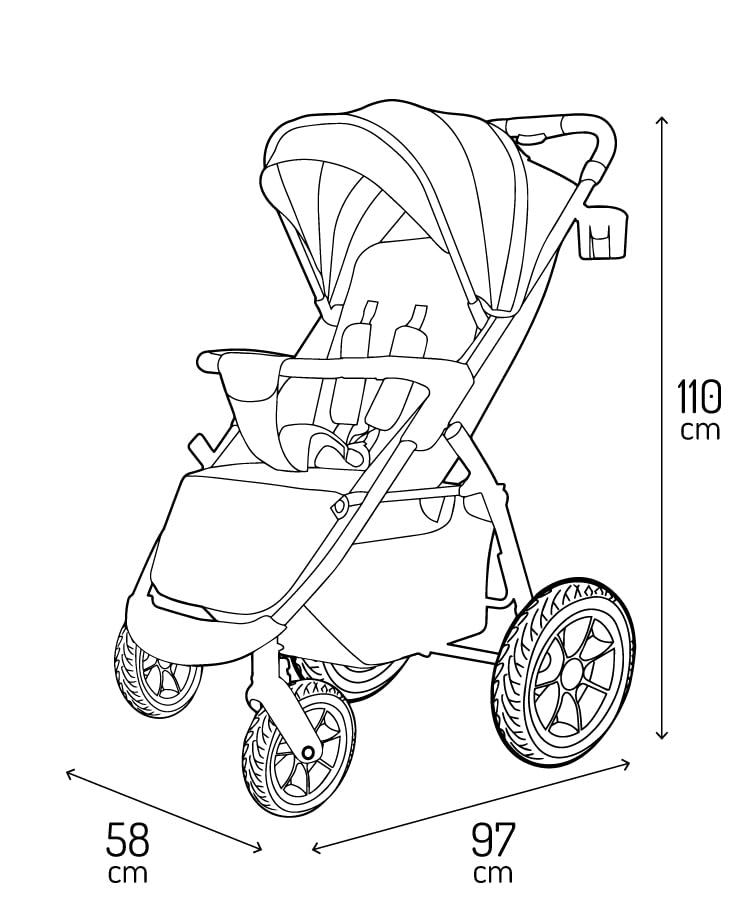

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information and customer support, please refer to the warranty card included with your purchase or contact the retailer or manufacturer directly. Keep your proof of purchase for any warranty claims.

For further assistance or inquiries, please visit the official MoMi websvetainėje arba susisiekite su klientų aptarnavimo skyriumi.
