Įvadas
Thank you for choosing the Newday 116cm Ceiling Fan with Light and Remote Control. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and keep them for future reference.
Saugos informacija
- Ensure the ceiling can support a weight greater than 45 kg (99 lbs).
- Maintain a minimum clearance of 76 cm (30 inches) between the fan blades and any obstacles.
- Ensure the fan blades are at least 213 cm (7 feet) from the floor.
- Prieš montuodami ar atlikdami techninę priežiūrą, visada atjunkite maitinimą nuo grandinės pertraukiklio.
- Jei nesate tikri dėl laidų prijungimo ar montavimo procedūrų, pasitarkite su kvalifikuotu elektriku.
Pakuotės turinys
Patikrinkite, ar yra visi komponentai ir ar jie nepažeisti:
- Ventiliatoriaus variklio korpusas
- 5 Reversible Fan Blades (Wood/Black finish)
- LED šviesos rinkinys
- Nuotolinio valdymo pultas (AAA baterijos nepridedamos)
- Montavimo laikiklis ir aparatūra
- Instrukcijų vadovas
Figure 1: Included components and remote control functions.
Sąranka ir diegimas
This ceiling fan is designed for flat mount installation. Follow these general steps. Refer to the detailed diagram for specific component placement.
- Paruoškite diegimo vietą: Ensure power is off at the circuit breaker. Securely attach the mounting bracket to a ceiling joist or a suitable electrical junction box capable of supporting the fan's weight.
- Assemble the Fan Blades: The blades are reversible with a wood finish on one side and black on the other. Choose your desired finish and attach the blades to the motor housing using the provided screws.
- Ventiliatoriaus prijungimas: Connect the fan's electrical wires to your household wiring according to local electrical codes. Ensure all connections are secure.
- Ventiliatoriaus montavimas: Atsargiai pakelkite ventiliatoriaus bloką ir pritvirtinkite jį prie tvirtinimo laikiklio.
- Įdiekite šviesos rinkinį: Connect the light kit wiring and secure the LED light panel to the fan housing.
- Bandomoji operacija: Restore power and test all fan and light functions using the remote control.

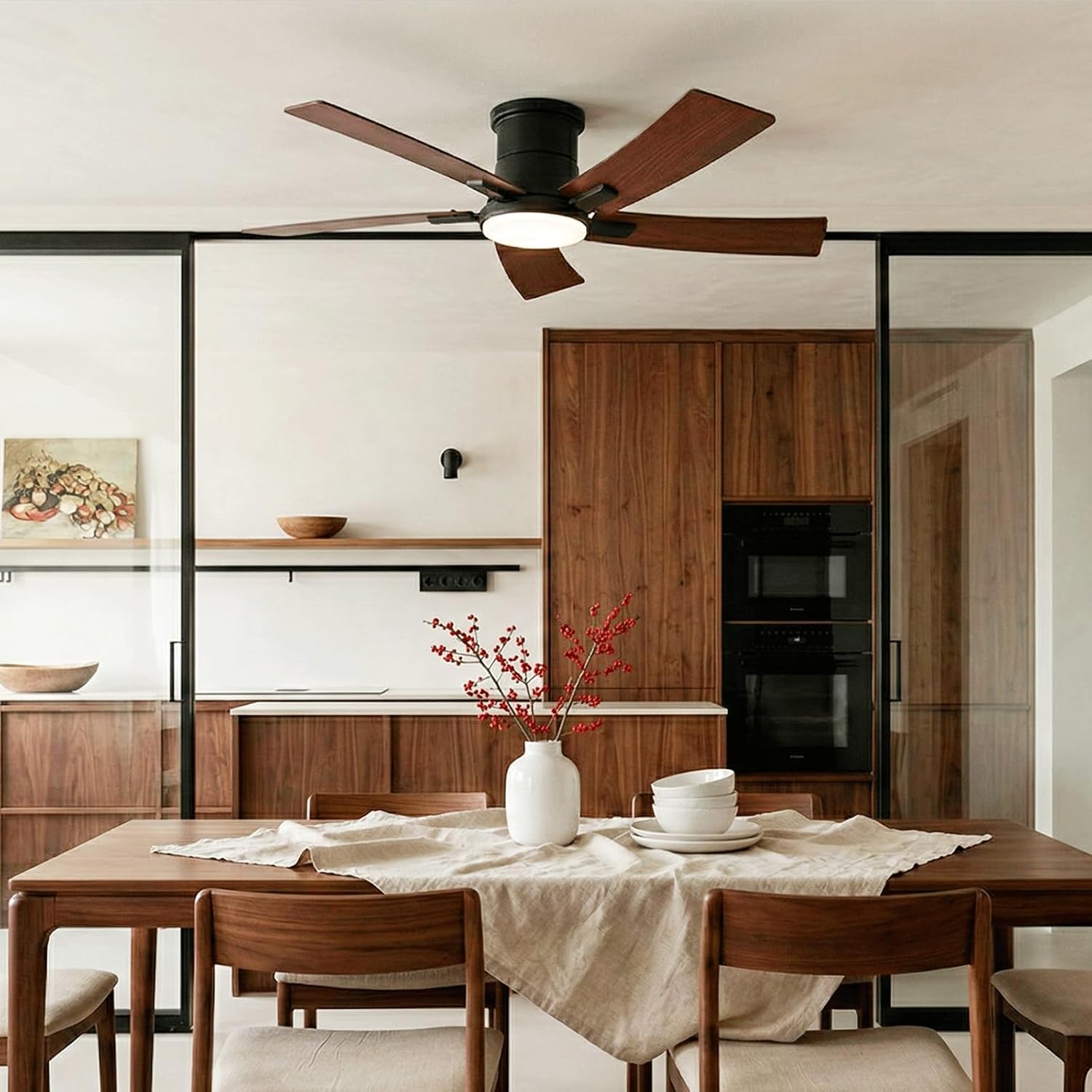

2 pav. Pvzample of installed ceiling fan in a dining area.
Figure 3: Fan dimensions and reversible blade options.
Naudojimo instrukcijos
Your Newday ceiling fan is operated via the included remote control. Insert two AAA batteries (not included) into the remote control.
Ventiliatoriaus veikimas
- Maitinimo įjungimas/išjungimas: Press the fan power button to turn the fan on or off.
- Greičio valdymas: Select from 6 fan speeds (1-6) using the numbered buttons on the remote.
- Miegojimo rezimas: Activate sleep mode for a gentle breeze. In this mode, the fan cycles automatically between speeds 1, 2, and 3 every 20 seconds to simulate natural wind.
- Laikmačio funkcija: Set the fan to turn off automatically after 1, 3, or 6 hours. Note: Once the timer is set, do not press any other remote buttons, as this will cancel the timer.
- Summer/Winter Mode (Reversible Function): Press the reverse button on the remote. The fan will slowly stop and then begin rotating in the opposite direction.
- Vasaros režimas (prieš laikrodžio rodyklę): Creates a downward airflow for a cooling effect.
- Žiemos režimas (pagal laikrodžio rodyklę): Creates an upward airflow to circulate warm air, balancing room temperature. In winter mode, the direct wind sensation will be minimal, which is normal.
Figure 4: Fan speed modes for different needs.
Figure 5: Reversible function for summer and winter use.
Šviesos veikimas
- Šviesos įjungimas / išjungimas: Press the light power button to turn the LED light on or off.
- Color Temperature Adjustment (Stepless Dimmer): The LED light offers stepless adjustment from 3000K (warm white) to 6500K (cool white).
- Press and hold "DW" to decrease color temperature (warmer).
- Press and hold "WW" to increase color temperature (cooler).
- Brightness Adjustment (Stepless Dimmer): Sureguliuokite ryškumą nuo 20% iki 100%.
- Press "+" to increase brightness.
- Press "-" to decrease brightness.
Figure 6: Stepless color temperature adjustment from 3000K to 6500K.
7 pav. Pvzample of 20% brightness at 3000K CCT.
Priežiūra
Reguliarus valymas užtikrina optimalų jūsų lubų ventiliatoriaus veikimą ir ilgaamžiškumą.
- Valymas: Reguliariai nuvalykite ventiliatoriaus mentes ir variklio korpusą minkšta šluoste.amp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Ašmenų balansas: If the fan wobbles, check that all blade screws are tight. A balancing kit (often included) can be used to correct minor wobbles.
- Šviesos šaltinis: The integrated LED light is designed for long life (approximately 30,000 hours). If replacement is needed, contact customer support.
Trikčių šalinimas
Jei kyla problemų, žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Ventiliatorius neįsijungia | No power; loose wiring; remote control issues. | Patikrinkite grandinės pertraukiklį. Įsitikinkite, kad visi laidai yra tvirtai sujungti. Pakeiskite nuotolinio valdymo pulto baterijas. |
| Šviesa neveikia | No power; loose wiring; LED module failure. | Check circuit breaker. Ensure light kit wiring is secure. Contact support if LED module is faulty. |
| Ventiliatorius pernelyg svyruoja | Atsilaisvinę peilių varžtai; nesubalansuoti peiliai; netinkamas tvirtinimas. | Tighten all blade screws. Use a blade balancing kit. Re-check mounting bracket security. |
| Nuotolinio valdymo pultas nereaguoja | Išsikrovusios baterijos; nuotolinio valdymo pultas nesuporuotas. | Replace AAA batteries. Refer to remote pairing instructions (if applicable, not detailed in provided data). |
| Timer function cancels | Other remote buttons pressed after setting timer. | Avoid pressing other buttons on the remote after activating the timer. |
Specifikacijos
| Prekės ženklas | Newday |
| Modelio numeris | ND-116L5F |
| Matmenys (I x P x A) | 116 cm ilgio x 116 cm pločio x 25 cm aukščio (46 cm ilgio x 46 cm pločio x 10.63 cm aukščio) |
| Grynasis svoris | 4.7 kg |
| Medžiaga | Acrylic, Wood (MDF), Metal |
| Ašmenų tipas | 5 Reversible Blades (Wood/Black finish) |
| Variklio tipas | 32 W nuolatinės srovės variklis |
| Ventiliatoriaus greičiai | 7 (6 regular speeds + Sleep Mode) |
| Maksimalus oro srautas | 4100 CFM |
| Šviesos šaltinis | 24W pritemdomas šviesos diodas |
| Spalvos temperatūra | 3000K - 6500K (Stepless adjustment) |
| Ryškumas | 20% - 100% (Stepless adjustment, 460LM-2300LM) |
| Laikmačio funkcijos | 1H, 3H, 6H |
| Kontrolės metodas | Nuotolinio valdymo pultas |
| ttage | 220 voltų |
| Energijos vartojimo efektyvumo klasė | E |
| Rekomenduojamas kambario dydis | 16-36 m² |
| Diegimo tipas | Flat Mount, Surface Mount |
8 pav.: Techninės specifikacijos ir matmenys.
9 pav.: Energinio efektyvumo etiketė.
Garantija ir palaikymas
Newday provides a 2 metų garantija for this product. We are committed to offering reliable customer service. If you require assistance with your ceiling fan, please contact us. We will provide the best possible solution.
10 pav.: Garantijos ir palaikymo informacija.
