DEWENWILS 150W žemos įtampostage Landscape Lighting Transformer (Model HCLT03A) Instruction Manual

Įvadas

This manual provides detailed instructions for the installation, operation, and maintenance of your DEWENWILS 150W Low Voltage Landscape Lighting Transformer, Model HCLT03A. This transformer is designed to convert 120V AC input to a safe 12V or 15V AC output, suitable for various outdoor landscape lighting applications such as garden lights, pathway lights, and other decorative outdoor lighting fixtures.

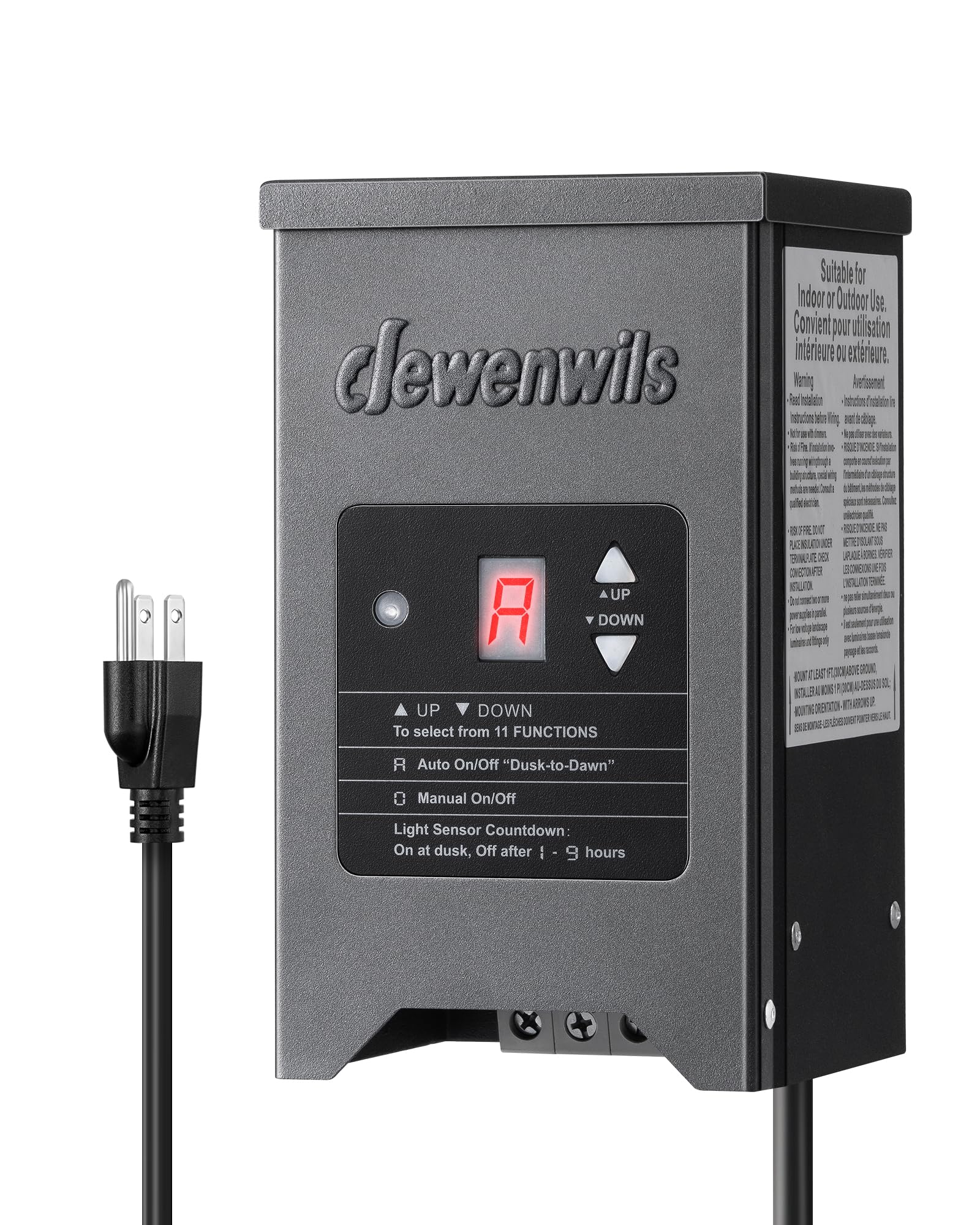

Image: The DEWENWILS 150W Low Voltage Landscape Lighting Transformer unit.

Kas yra dėžutėje

• Mažas tūristage landscape transformer

Saugos informacija

Prieš įrengdami arba naudodami šį gaminį, perskaitykite ir supraskite visas saugos instrukcijas. Nesilaikant šių instrukcijų, gali kilti elektros smūgis, gaisras ar kiti pavojai.

• Elektros sauga: Always disconnect power at the circuit breaker before installing or servicing the transformer. Ensure all wiring connections are secure and comply with local electrical codes.
• Naudojimas lauke: This transformer is designed for outdoor use. Ensure it is mounted in a location protected from direct heavy rain and excessive moisture, although it features a weatherproof design.
• Apkrova: Neviršykite didžiausios galiostage rating of 150W. Overloading the transformer can cause damage and create a fire hazard.
• Laidai: Naudokite tik mažo tūriotage landscape lighting wire suitable for outdoor burial or exposure.
• Vaikai ir augintiniai: Keep the transformer and wiring out of reach of children and pets.

Image: The transformer highlighting its safe and weatherproof design, including ETL listing and overload protection.

Sąranka

Transformatoriaus montavimas

The transformer features built-in hanging holes for easy wall mounting. Choose a suitable outdoor location that is close to a 120V AC power outlet and where the low voltage wiring can reach your landscape lights. Ensure the mounting surface is sturdy and can support the weight of the transformer.

1. Select a secure, vertical surface for mounting.
2. Use appropriate screws (not included) to secure the transformer to the wall through the hanging holes.

Laidų jungtys

The transformer provides 12V and 15V AC output terminals. Select the appropriate voltage for your landscape lighting fixtures. 12V is suitable for shorter runs or halogen lights, while 15V is recommended for longer wire runs or LED fixtures to compensate for voltage lašas.

Vaizdas: Stambus planas view of the transformer's wiring terminals, indicating 120V AC input and 12/15V AC output.

1. Ensure the transformer is unplugged from the 120V AC power source.
2. Open the terminal cover on the transformer.
3. Prijunkite žemą tūrįtage landscape lighting wires (typically red and black) from your fixtures to the appropriate terminal blocks (COM and either 12V or 15V). Ensure a tight and secure connection.
4. Close the terminal cover securely.
5. Plug the transformer into a grounded 120V AC outdoor-rated outlet.

Vaizdas: vidinis view of the transformer showing the circuit breaker and two terminal output ends for connecting lights.

Naudojimo instrukcijos

The DEWENWILS transformer offers multiple operating modes for flexible control of your landscape lighting. Use the "▲ AUKŠTYN"ir"▼ DOWN" buttons to navigate and select your desired mode.

Image: Close-up of the control panel showing the 'Always On', 'Dusk to Dawn', and 'Photocell on Timer Off' modes.

Veikimo režimai

• Visada įjungta: The lights will remain on continuously until manually turned off or power is disconnected.
• Auto (Dusk-to-Dawn): The built-in photocell sensor automatically turns the lights on at dusk and off at dawn. This mode is energy-efficient and requires no manual intervention.
• Countdown/Off (Photocell & Timer): In this mode, the lights will automatically turn on at dusk and then turn off after a set duration. You can set the countdown timer from 1 to 9 hours.

Image: Illustration of the photocell sensor functionality, showing lights turning on at dusk and off at dawn.

Atminties funkcija

The transformer is equipped with a memory function. It will retain the last selected timer mode even after a power outage, ensuring consistent operation without needing to reset your preferences.

Priežiūra

Regular maintenance ensures optimal performance and longevity of your DEWENWILS transformer.

• Valymas: Periodically wipe the exterior of the transformer with a soft, damp šluoste nešvarumams ir šiukšlėms pašalinti. Nenaudokite stiprių cheminių medžiagų ar abrazyvinių valiklių.
• Patikra: Annually inspect all wiring connections for tightness and signs of wear or damage. Ensure the power cord is free from cuts or fraying.
• Fotoelementų jutiklis: Keep the photocell sensor clean and free from obstructions (e.g., leaves, dirt) to ensure accurate dusk-to-dawn operation.

Trikčių šalinimas

If your landscape lighting system is not functioning as expected, refer to the following common troubleshooting steps:

Specifikacijos

Technical details for the DEWENWILS 150W Low Voltage Kraštovaizdžio apšvietimo transformatorius.

Image: The DEWENWILS 150W Transformer showing its dimensions (5.9" x 3.5" x 8.6") and 3.3ft heavy-duty 18AWG cord.

Garantija ir palaikymas

For warranty information or technical support, please refer to the product packaging or contact DEWENWILS customer service directly. Keep your purchase receipt for warranty claims.

Kontaktinė informacija: Please visit the official DEWENWILS website or refer to the contact details provided with your product for assistance.
