Kaschun T7 Professional Audio Mixer User Manual

1. Įvadas

Thank you for choosing the Kaschun T7 Professional Audio Mixer. This 7-channel mixer is designed for a wide range of audio applications, from home recording and live performances to parties and weddings. It features a robust metal construction, digital USB and MP3 input capabilities, 48V phantom power for condenser microphones, and built-in reverberation effects. This manual provides detailed instructions to help you set up, operate, and maintain your T7 mixer for optimal audio performance.

1.1 pav.: priekis view of the Kaschun T7 Professional Audio Mixer, showcasing its 7 channels, various inputs, faders, and control knobs.

2. Pagrindinės savybės

• 7 kanalų maišymo pultas: Suteikia ample inputs for microphones, instruments, and line-level devices.
• 48 V fantominis maitinimas: Essential for powering condenser microphones on channels 1-5.
• Digital USB & MP3 Input: Allows direct playback from USB drives or connection to a computer for recording and playback.
• Bluetooth ryšys: Seamlessly stream audio wirelessly from smartphones, tablets, and other Bluetooth-enabled devices.
• Built-in Reverberation Effect: Adds depth and ambiance to vocals and instruments.
• 3-Band Equalization (HIGH/MID/LOW): Per channel EQ for precise tone shaping.
• Stereo Main Output: Prisijungia prie ampkeltuvus, maitinamus garsiakalbius ar įrašymo įrenginius.
• Patvari konstrukcija: High-quality metal housing designed for reliability.

Figure 2.1: The T7 mixer functions as a music player, supporting 3rd/4th channel stereo audio input, USB interface audio input, and Bluetooth audio input.

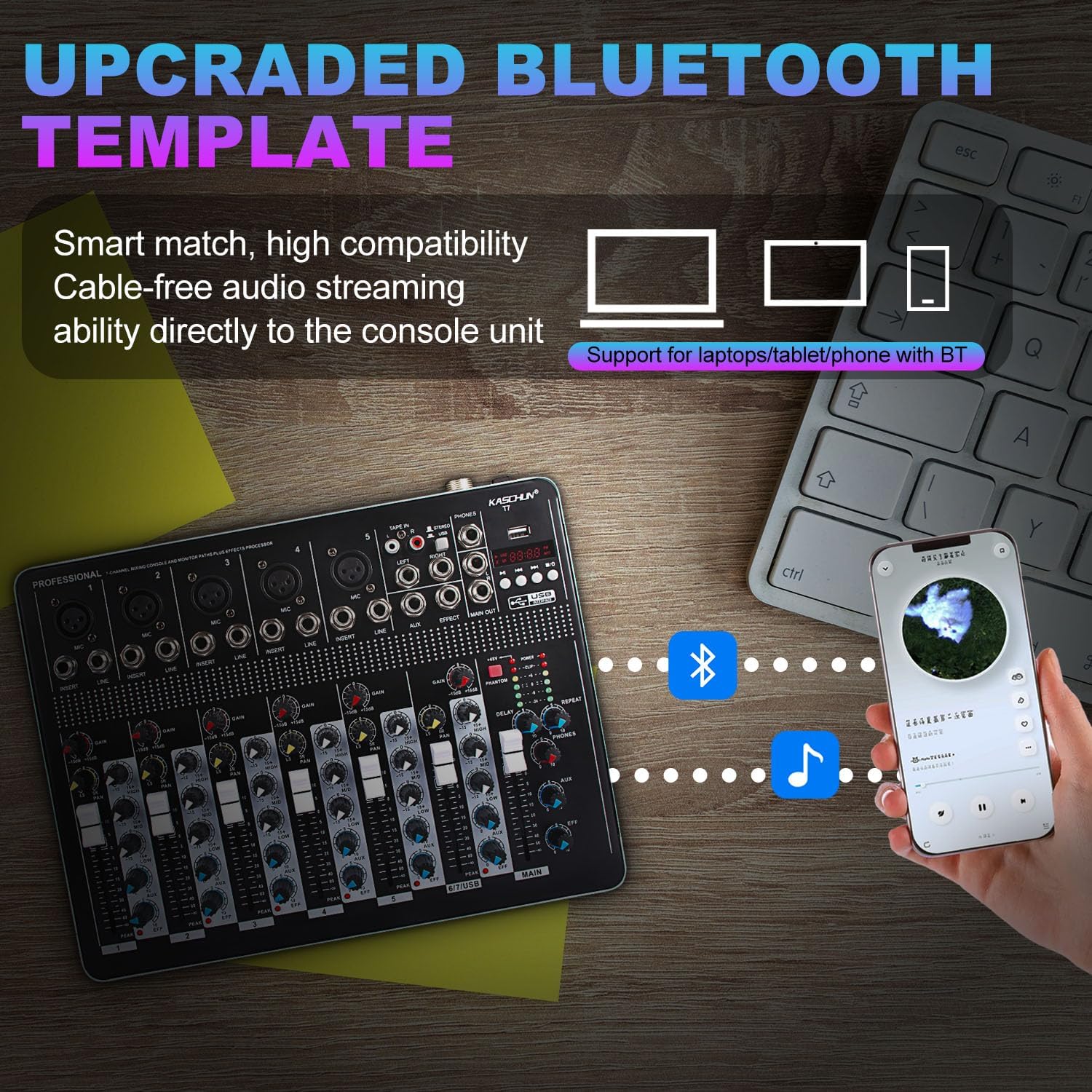

Figure 2.2: The upgraded Bluetooth template allows for cable-free audio streaming from laptops, tablets, and phones directly to the console unit.

3. Sąrankos vadovas

3.1 Išpakavimas ir patikrinimas

Carefully remove the mixer and all accessories from the packaging. Verify that all components listed below are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

• Kaschun T7 Audio Mixer
• Pakavimo dėžutė
• kintamosios srovės adapteris
• Vartotojo vadovas

Figure 3.1: Contents included in the Kaschun T7 product package.

3.2 Maitinimo jungtis

Connect the supplied AC adapter to the mixer's power input jack and then plug it into a suitable power outlet. The T7 mixer is USB powered and operates on 5 Volts DC.

3.3 Įrenginių prijungimas

The T7 mixer supports a variety of input and output connections. Refer to the diagram below for common connection types.

Figure 3.2: The mixer supports multiple device connections, including microphones, musical instruments, computers, and various audio equipment using 6.35mm mono, 3-pin XLR, and RCA plugs.

Microphone Inputs (Channels 1-5)

• Connect microphones using XLR cables to the MIC inputs.
• For condenser microphones, activate the +48V FANTOMINIS MAITINMAS button. Ensure all connections are made before activating phantom power to prevent damage.

Line Inputs (Channels 1-5)

• Connect line-level devices (keyboards, drum machines, etc.) using 6.35mm (1/4") TS/TRS cables to the LINE inputs.

Stereo Inputs (Channels 6/7)

• Connect stereo sources (CD players, media players) to the 6.35mm stereo input or RCA inputs.

USB/Bluetooth Input

• Įkiškite USB atmintinę į USB prievadą, kad galėtumėte atkurti MP3 failus.
• Pair your Bluetooth device with the mixer for wireless audio streaming.

Išėjimai

• PAGRINDINĖ IŠVADA: Prisijunkite prie savo amplifier or powered speakers using XLR cables.
• TELEFONAI: Prijunkite ausines stebėjimui.
• AUX OUT: For sending audio to external effects processors or monitors.
• REC OUT: RCA outputs for connecting to a recording device.

4. Naudojimo instrukcijos

This section details the functions of the various controls on your T7 mixer.

4.1 pav.: Išsamus aprašymasview of the T7 mixer's controls and their functions.

4.1 Channel Controls (Channels 1-7)

• GAIN rankenėlė: Adjusts the input sensitivity for each channel. Set this to achieve a strong signal without clipping (indicated by the PEAK LED).
• HIGH/MIDDLE/LOW Knobs: 3-band equalizer for adjusting the treble, midrange, and bass frequencies of each channel.
• AUX/EFFECT Knob: Controls the amount of signal sent from the channel to the internal effect processor or external AUX send.
• PAN rankenėlė: Adjusts the stereo position of the channel's signal (left to right).
• CHANNEL VOLUME Fader: Controls the overall output level of each individual channel.
• PEAK LED: Šviečia, kai įvesties signalas yra per stiprus, o tai rodo galimą iškraipymą. Jei šis LED lemputė dažnai šviečia, sumažinkite STIPRINIMĄ.

4.2 Master Section Controls

• +48V PHANTOM POWER Button: Activates/deactivates 48V phantom power for condenser microphones. Turn off before connecting/disconnecting microphones.
• REPEAT/DELAY Knobs: Adjust the parameters of the built-in reverberation effect.
• AUX/EFFECT CONTROL Knob: Adjusts the overall output level of the AUX bus and the effect level processed by the built-in effect processor to the main output.
• PHONE VOLUME Knob: Valdo ausinių išvesties garsumą.
• PAGRINDINIS faderis: Valdo bendrą maišytuvo išvesties garsumą.
• USB/BT Play Control Buttons: Controls for USB MP3 playback and Bluetooth functions (Play/Pause, Next/Previous Track).

5. Priežiūra

Proper maintenance ensures the longevity and optimal performance of your Kaschun T7 mixer.

• Valymas: Maišytuvo paviršių nuvalykite minkšta, sausa šluoste. Įsisenėjusius nešvarumus lengvai nuvalykite.amp galima naudoti šluostę, o po to – sausą. Venkite abrazyvinių valiklių ar tirpiklių.
• Saugykla: Maišytuvą laikykite vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių, ekstremalių temperatūrų ir didelės drėgmės.
• Vėdinimas: Ensure proper ventilation around the mixer during operation to prevent overheating. Do not block ventilation openings.
• Kabelių valdymas: Tinkamai tvarkykite laidus, kad išvengtumėte jungčių įtempimo ir atsitiktinio atjungimo.
• Išjungti: Always power off the mixer and disconnect the power adapter when not in use for extended periods.

6. Problemų sprendimas

If you encounter issues with your T7 mixer, refer to the following common problems and solutions:

7. Specifikacijos

Detailed technical specifications for the Kaschun T7 Professional Audio Mixer.

Figure 7.1: Approximate product dimensions of the Kaschun T7 mixer.

7.1 Input & Output Overview

Figure 7.2: Comprehensive diagram of the mixer's input and output configurations.

• Mikrofono įvestis: 2 x Mono XLR Input
• Linijos įvestis: 2 x 6.35mm Jack Input
• Stereo įvestis: 6 x 6.35mm L/R Stereo Input
• RCA įvestis: 1 x RCA L/R Stereo Input
• Headphone Monitoring Input: 1 x 6.35mm Jack Input
• RCA išvestis: 1 x RCA L/R Stereo Output
• AUX išvestis: 2 x 6.35mm Jack Output
• Returns Output: 1 x 6.35mm Jack Output
• Pagrindiniai išėjimai: 1 x XLR Jack Output

8. Garantija ir palaikymas

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Kaschun customer service through the retailer where you purchased the product. Keep your proof of purchase for warranty claims.
