Mould King 21075 Robot Dog Building Blocks Instruction Manual

Įvadas

This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your Mould King 21075 Robot Dog Building Blocks set. Please read this manual thoroughly before beginning assembly or operation to ensure correct usage and to maximize your experience with the product.

Image: The Mould King 21075 Robot Dog Building Blocks set, highlighting its model number, piece count, and recommended age.

Saugos informacija

• Įspėjimas dėl mažų dalių: Šis rinkinys turi smulkių detalių ir netinka vaikams iki 3 metų dėl užspringimo pavojaus.
• Rekomenduojamas amžius: Šis produktas rekomenduojamas asmenims nuo 14 metų amžiaus.
• Baterijos sauga: Ensure batteries are inserted with correct polarity. Do not mix old and new batteries, or different types of batteries. Remove batteries if the product will not be used for an extended period.
• Elektriniai komponentai: Handle electronic components with care. Avoid exposure to water or extreme temperatures.
• Priežiūra: Surinkimo ir naudojimo metu rekomenduojama suaugusiųjų priežiūra, ypač jaunesniems naudotojams.

Pakuotės turinys

The Mould King 21075 Robot Dog Building Blocks set includes the following components:

• 1887 statybinių kaladėlių dalys (surūšiuotos į sunumeruotus maišelius)
• 4 x Monster Motors
• 1 x MK4 Battery Box
• 1x nuotolinio valdymo pultas
• Mecanum ratai
• Specialūs priedai
• Išsami naudojimo instrukcija

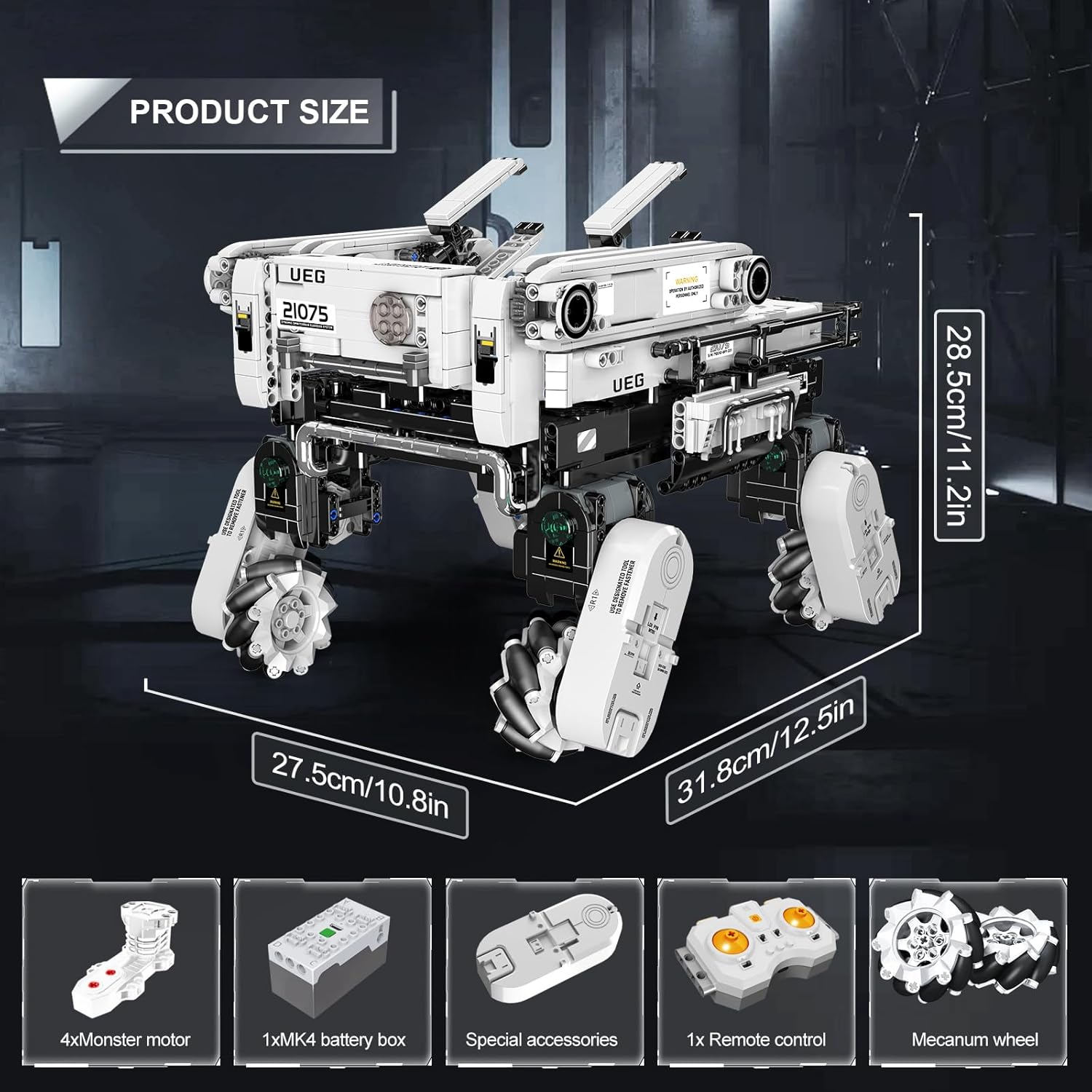

Vaizdas: Viršview of the robot dog's dimensions and included electronic components.

Surinkimo instrukcijos

Follow the colorful, step-by-step instructions provided in the manual included with your set. The 1887 pieces are organized into numbered bags to simplify the building process. It is recommended to open bags sequentially as indicated in the manual.

1. Išpakuokite komponentus: Carefully open the packaging and verify all numbered bags and the instruction manual are present.
2. Sekite vadovą: Begin assembly by following the detailed illustrations and instructions in the provided manual. Each step will guide you through connecting the building blocks.
3. Elektroninė integracija: Integrate the motors, battery box, and other electronic components as directed by the manual. Ensure all connections are secure.
4. Galutiniai patikrinimai: After completing assembly, review the model to ensure all parts are correctly attached and the structure is stable.

Image: The Mould King Robot Dog building set, showing the assembled model, packaging, and instruction manual.

Sąranka

Before operating your Mould King Robot Dog, ensure the power module is correctly installed and the control system is ready.

• Akumuliatoriaus montavimas: Install the required batteries into the MK4 battery box. Refer to the manual for specific battery type and orientation.
• Nuotolinio valdymo pulto poravimas: Turn on the robot dog and the remote control. Follow the pairing instructions in the manual to establish a connection.
• App Control (Optional): For app control, download the Mould King app from your device's app store. Follow the in-app instructions to connect your robot dog via Bluetooth.

Video: An official Mould King video demonstrating the assembly process, various features, and control options for the 21075 Robot Dog.

Naudojimo instrukcijos

Your Mould King 21075 Robot Dog can be controlled via the included remote control or a dedicated smartphone application. Familiarize yourself with the controls before operating.

Judėjimas

The robot dog features Mecanum wheels, allowing for omnidirectional movement, including forward, backward, lateral, diagonal, and rotational motions. Use the joysticks on the remote control or the virtual controls in the app to maneuver the robot.

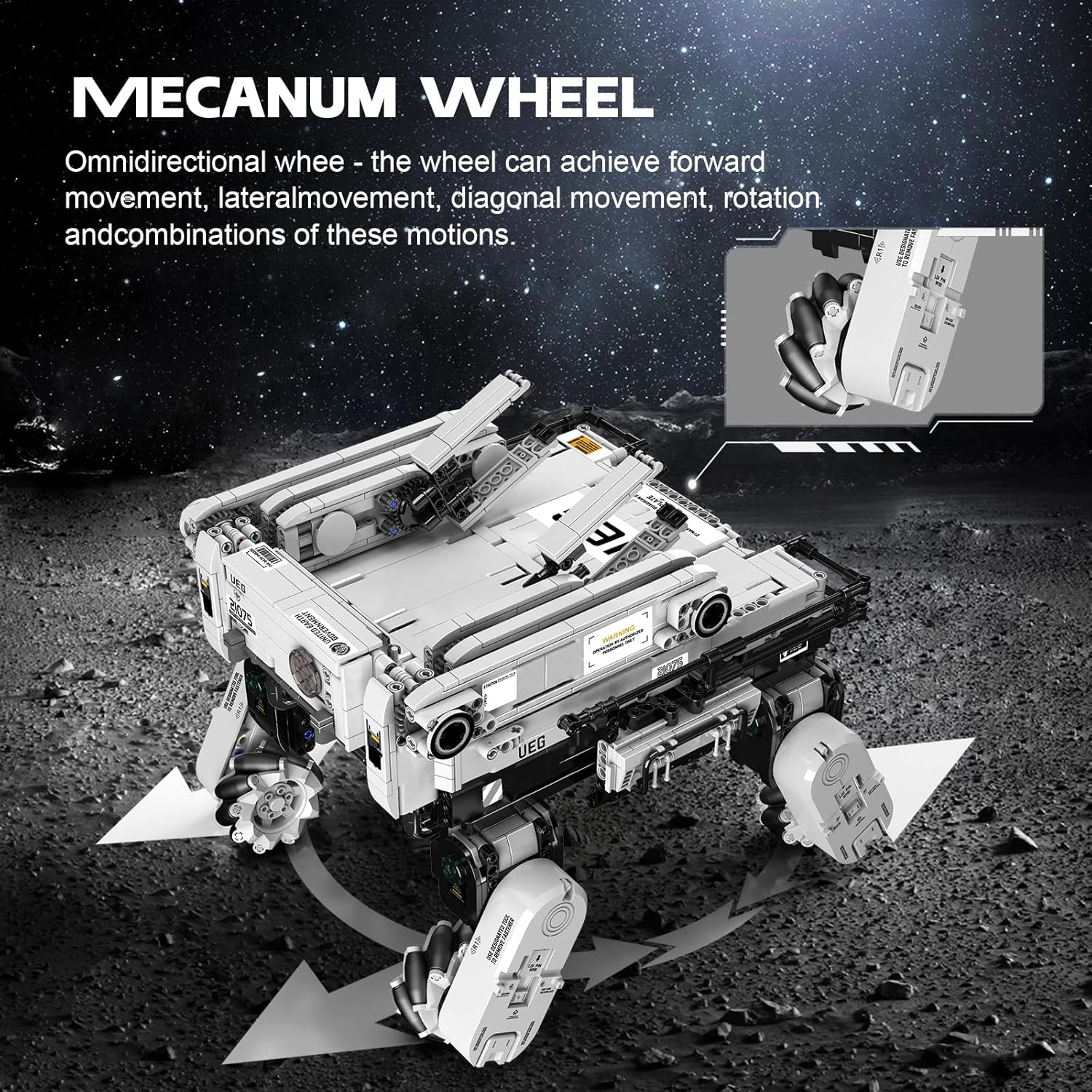

Image: The Mecanum wheels enable versatile movement, including side-slip driving and rotation.

Robotų ginklai

The robot dog is equipped with two robotic arms that can be manipulated. Each arm can fold into three sections, and the front arm features a terminal that can translate, open, and close like a gripper. Use the designated controls on the remote or app to operate the arms.

Image: The robot dog's multi-joint robotic arms offer extensive mobility and gripping functions.

Changeable Emoticons

The robot dog's display allows for changeable expressions by switching out sticker panels. This feature adds a customizable element to the robot's appearance.

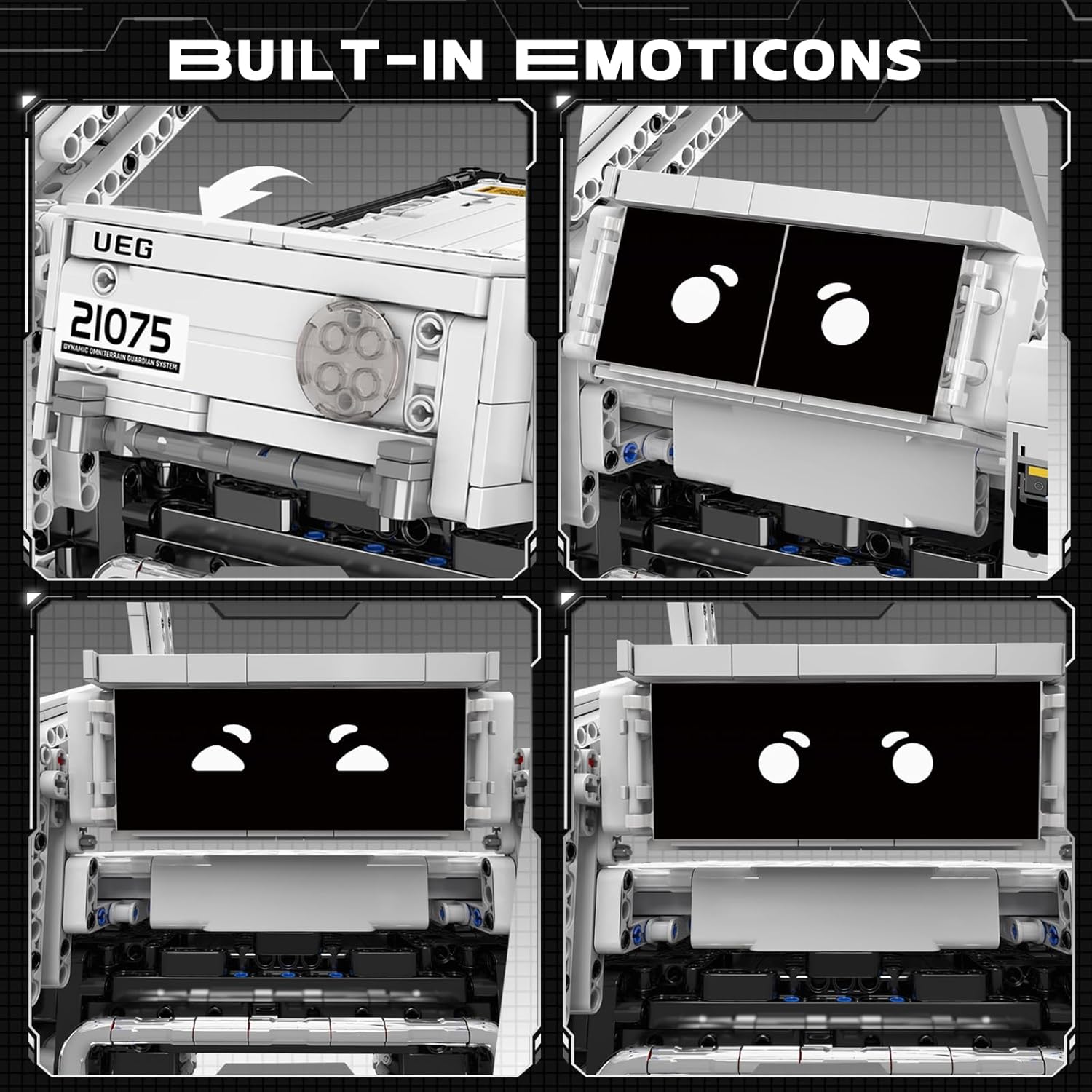

Image: Instructions for switching the robot dog's emoticon display.

Priežiūra

Proper maintenance ensures the longevity and optimal performance of your Mould King Robot Dog.

• Valymas: Use a soft, dry cloth to clean the building blocks and electronic components. Avoid using harsh chemicals or abrasive materials.
• Saugykla: Surinktą modelį arba išardytas kaladėles laikykite vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
• Akumuliatoriaus priežiūra: Remove batteries from the battery box and remote control if the product will not be used for an extended period to prevent leakage.
• Jungčių tepimas: If any mechanical joints become stiff, a small amount of plastic-safe lubricant can be applied, though this is rarely necessary for building block sets.

Trikčių šalinimas

If you encounter issues with your Mould King Robot Dog, refer to the following common solutions:

• Robotas nereaguoja:
  • Check battery levels in both the robot and the remote control. Replace if necessary.
  • Ensure the robot and remote are properly paired. Refer to the 'Setup' section for pairing instructions.
  • Verify all electronic connections within the robot are secure.
• Wheels Detaching During Operation:
  • This can occur due to excessive pressure during turns or impacts. Reattach the wheels firmly.
  • Ensure the axles and connecting pins are fully inserted and secure.
• Limited Movement or Stuttering:
  • Low battery power can affect motor performance. Charge or replace batteries.
  • Check for any obstructions in the wheels or joints.
  • Ensure no wires are pinched or disconnected.
• Programos ryšio problemos:
  • Įsitikinkite, kad jūsų įrenginyje įjungtas „Bluetooth“.
  • Restart the app and the robot dog.
  • Patikrinkite, ar yra programėlių atnaujinimų.

Specifikacijos

Garantija ir palaikymas

Mould King products are manufactured to high-quality standards. For any issues or inquiries regarding your Mould King 21075 Robot Dog Building Blocks set, please contact Mould King customer support. Details for contacting support are typically found on the product packaging or the official Mould King websvetainėje. Prašome išsaugoti pirkimo įrodymą garantiniams reikalavimams.
