ECD Germany 43L Electronic Safe User Manual - Model IP-2271

1. Įvadas

Thank you for choosing the ECD Germany 43L Electronic Safe. This safe is designed to provide secure storage for your valuables, including cash, jewelry, documents, and other important items. It features a robust steel construction, an electronic keypad for PIN access, and a traditional key override for emergency situations. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and security.

1 pav. Baigtaview of the ECD Germany 43L Electronic Safe and its key features.

2. Saugos instrukcijos

• Nelaikykite avarinių raktų seife. Always keep the emergency keys in a secure location outside the safe, accessible only to authorized individuals.
• Keep your PIN confidential. Do not share your personal identification number (PIN) with unauthorized persons.
• Saugokite seifą nuo ekstremalių temperatūrų ar drėgmės. This can damage the electronic components and affect the safe's functionality.
• Užtikrinkite tinkamą akumuliatoriaus įdėjimą. Incorrect battery polarity can cause damage to the electronic lock.
• Mount the safe securely. For maximum security, always utilize the pre-drilled mounting holes to anchor the safe to a wall or floor.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi šie komponentai:

• 1 x ECD Germany 43L Electronic Safe
• 1 x Fireproof Document Bag (18.5 x 23.5 cm)
• 2 x Security Keys
• 4 x Bolt Anchors for mounting
• 4 x AA baterijos

Figure 2: Included components: safe, mounting hardware, and batteries.

4. Sąranka ir diegimas

4.1 Akumuliatoriaus įdėjimas

1. Raskite baterijų skyrių seifo durelių vidinėje pusėje.
2. Atidarykite akumuliatoriaus skyriaus dangtelį.
3. Įdėkite 4 AA baterijas, užtikrindami teisingą poliškumą (+/-).
4. Uždarykite akumuliatoriaus skyriaus dangtelį.

4.2 Pradinis PIN kodo nustatymas

Upon first use, or after battery replacement, you will need to set your personal PIN.

1. Atidarę seifo dureles, suraskite raudoną atstatymo mygtuką durelių vidinėje pusėje, šalia vyrio.
2. Press the red reset button. You will hear a beep, and the yellow indicator light on the keypad will illuminate.
3. Within 5 seconds, enter your desired 3 to 8 digit PIN on the keypad.
4. Confirm your PIN by pressing the "#" button. You will hear a confirmation beep.
5. Test the new PIN with the door open to ensure it works correctly before closing the safe.

4.3 Seifo montavimas

For enhanced security, it is highly recommended to mount the safe to a wall or floor using the provided bolt anchors.

1. Choose a suitable location for mounting, such as a solid wall or floor.
2. Raskite iš anksto išgręžtas skyles seifo gale ir apačioje.
3. Padėkite seifą ir pažymėkite gręžimo taškus per iš anksto išgręžtas skyles.
4. Drill holes at the marked points using an appropriate drill bit for your wall/floor material.
5. Align the safe with the drilled holes and insert the bolt anchors.
6. Tighten the bolt anchors securely to fasten the safe in place.

Figure 3: Internal features including battery compartment and pre-drilled mounting holes.

Figure 4: Bolt anchors for secure installation.

5. Naudojimo instrukcijos

5.1 Opening the Safe with PIN

1. Enter your 3 to 8 digit PIN on the keypad.
2. Press the "#" button. The green indicator light will illuminate.
3. Per 5 sekundes pasukite rankenėlę pagal laikrodžio rodyklę, kad atidarytumėte seifo dureles.

5.2 Seifo atidarymas avariniu raktu

The emergency key provides access if you forget your PIN or if the batteries are depleted.

1. Locate the concealed keyhole, usually behind the ECD Germany logo plate or a removable cover on the keypad.
2. Insert the emergency key into the keyhole and turn it counter-clockwise.
3. While holding the key turned, turn the knob clockwise to open the safe door.
4. Remove the key once the door is open.

5.3 Changing the PIN

You can change your PIN at any time while the safe door is open.

1. Atidarę seifo dureles, paspauskite raudoną atstatymo mygtuką, esantį durelių vidinėje pusėje.
2. The yellow indicator light will illuminate.
3. Enter your new 3 to 8 digit PIN.
4. Confirm your new PIN by pressing the "#" button.
5. Test the new PIN with the door open before closing.

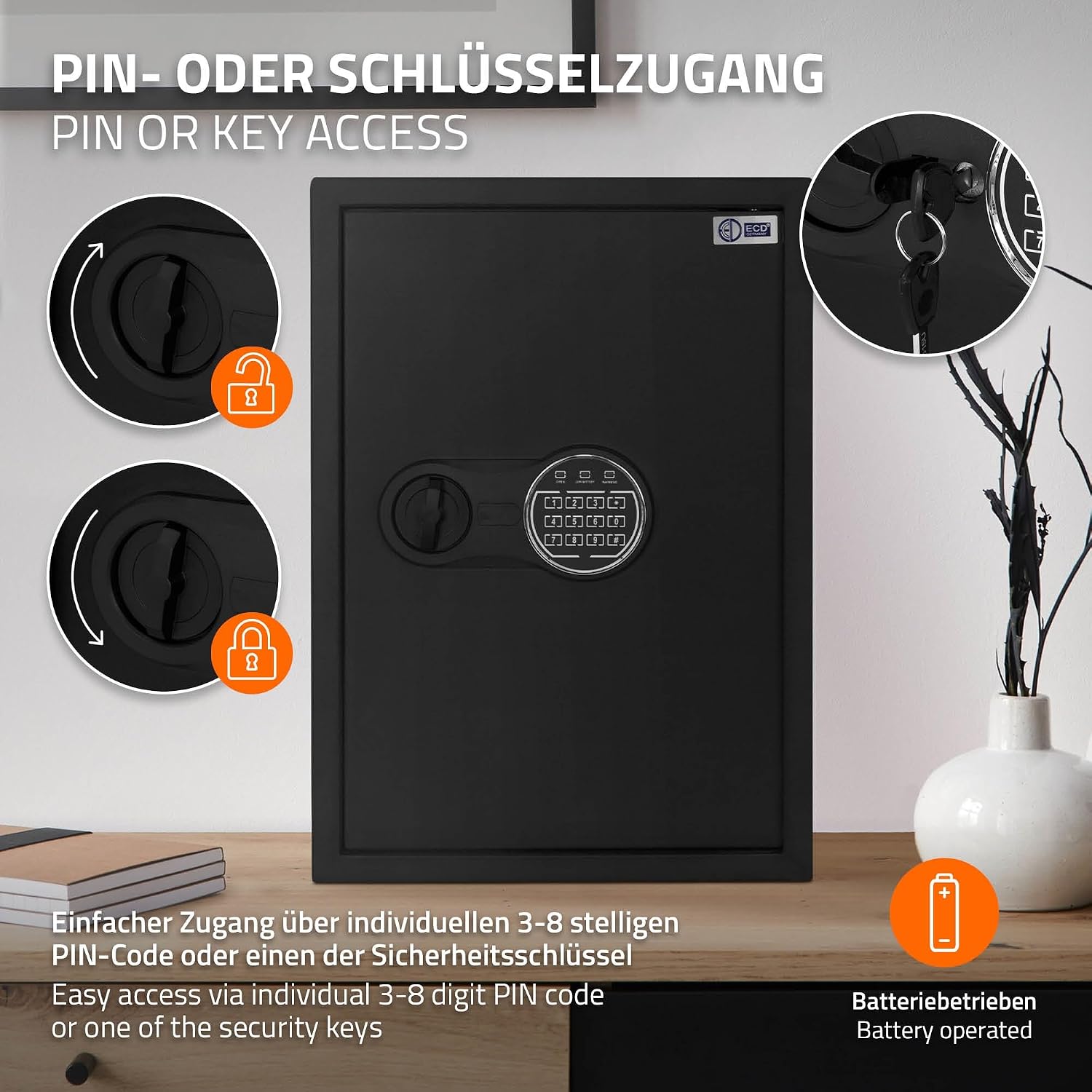

Figure 5: PIN or Key Access methods.

6. Priežiūra

6.1 Akumuliatoriaus keitimas

When the batteries are low, the red indicator light on the keypad may flash or the safe may not respond. Replace all 4 AA batteries promptly to ensure continuous operation.

1. Open the safe using your PIN or the emergency key.
2. Locate and open the battery compartment on the inside of the door.
3. Išimkite senas baterijas ir atsakingai jas išmeskite.
4. Insert 4 new AA batteries, observing correct polarity.
5. Uždarykite akumuliatoriaus skyrių.

6.2 Valymas

Seifo išorę valykite minkšta,amp cloth. Do not use abrasive cleaners or solvents, as these can damage the powder-coated finish.

6.3 Internal Protection

The safe includes a protective felt mat on the inside to prevent scratches and damage to your valuables. Ensure this mat is properly placed. The removable intermediate shelf can be adjusted or removed to accommodate items of various sizes.

Figure 6: Safe interior with removable shelf for flexible storage.

7. Problemų sprendimas

• Safe does not open with PIN:
  - Ensure you are entering the correct PIN. Try again carefully.
  - Check if the batteries are low. Replace them if necessary.
  - Use the emergency key to open the safe.
• Klaviatūra nereaguoja:
  - Replace the batteries with new ones.
  - Ensure the battery compartment is closed securely.
• Durys netinkamai užsidaro:
  - Check for any obstructions preventing the door from closing fully.
  - Ensure the locking bolts are retracted before attempting to close.
• Pamiršote PIN kodą:
  - Use the emergency key to open the safe.
  - Once open, reset the PIN using the red reset button as described in Section 4.2.

8. Specifikacijos

Figure 7: External and internal dimensions of the safe.

9. Garantija ir palaikymas

Your ECD Germany safe is manufactured with high-quality materials and undergoes strict quality control. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official ECD Germany websvetainėje. Prašome išsaugoti pirkimo įrodymą garantiniams reikalavimams.
