Teko Reachr Vacuum User Manual

1. Įvadas

Thank you for choosing the Teko Reachr Vacuum. This powerful and lightweight handheld vacuum is designed for efficient cleaning in various environments, from hard floors and carpets to car interiors and hard-to-reach areas. Its extendable design and multiple attachments make it a versatile tool for maintaining a clean living space. Please read this manual thoroughly before operating your new vacuum to ensure safe and optimal performance.

2. Saugos instrukcijos

• Always disconnect the vacuum from the power source before cleaning or performing maintenance.
• Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or fine dust like plaster dust.
• Plaukus, laisvus drabužius, pirštus ir visas kūno dalis laikykite toliau nuo angų ir judančių dalių.
• Nenaudokite dulkių siurblio su pažeistu laidu ar kištuku. Jei dulkių siurblys neveikia taip, kaip turėtų, buvo numestas, pažeistas, paliktas lauke arba įmestas į vandenį, grąžinkite jį į techninės priežiūros centrą.
• Naudokite tik taip, kaip aprašyta šiame vadove. Naudokite tik gamintojo rekomenduojamus priedus.
• Store the vacuum indoors in a dry place.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi toliau išvardyti daiktai:

• Teko Reachr Vacuum Unit
• Corner Attachment
• Grindų tvirtinimas
• Šepetėlio priedas
• Air Filter (pre-installed or spare)
• Įkrovimo kabelis

Figure 3.1: Teko Reachr Vacuum with all included accessories, including the main unit, corner attachment, floor attachment, brush attachment, and air filter.

3.2 pav. Išsamus view of the various cleaning attachments: Corner Attachment, Floor Attachment, Brush Attachment, and Air Filter, alongside the main Reachr unit.

4. Sąranka ir įkrovimas

4.1 Pradinis įkrovimas

1. Before first use, fully charge the Teko Reachr Vacuum.
2. Connect the charging cable to the vacuum's charging port.
3. Plug the other end of the charging cable into a standard wall outlet.
4. The indicator lights will show charging status. Allow several hours for a full charge.

4.2 Priedų tvirtinimas

To attach any accessory (Corner, Floor, or Brush Attachment), align the attachment with the vacuum's nozzle and push firmly until it clicks into place. To remove, press the release button (if present) and pull the attachment off.

5. Naudojimo instrukcijos

5.1 Powering On/Off and Adjusting Suction

Figure 5.1: The easy-to-use controls of the Teko Reachr Vacuum, showing the On/Off button, Level Indicator, and Vacuum Level settings.

• Press the On/Off button to power on the vacuum.
• Press the button again to cycle through different vacuum levels (if applicable) or to power off the unit.
• The Level Indicator lights will show the current suction power setting.

5.2 Using the Extendable Design

Figure 5.2: The Teko Reachr Vacuum's convenient extension feature allows it to reach high areas like ceiling fans and high corners, as well as under furniture and into cabinets.

The Teko Reachr Vacuum extends over 36 inches, making it ideal for reaching difficult areas. To extend, gently pull the extension rod until it locks into the desired length. To retract, press the release button on the rod and push it back in.

5.3 Utilizing Attachments

• Floor Attachment: Best for cleaning large surfaces like hard floors, rugs, and carpets.
• Corner Attachment: Ideal for narrow spaces, corners, and crevices.
• Šepečio priedas: Excellent for dusting delicate surfaces, upholstery, and car interiors.

Figure 5.3: The brush attachment is highly effective for cleaning tight spaces, such as those found in a car's interior, allowing for thorough cleaning of hard-to-reach spots.

5.4 Powerful and Lightweight Operation

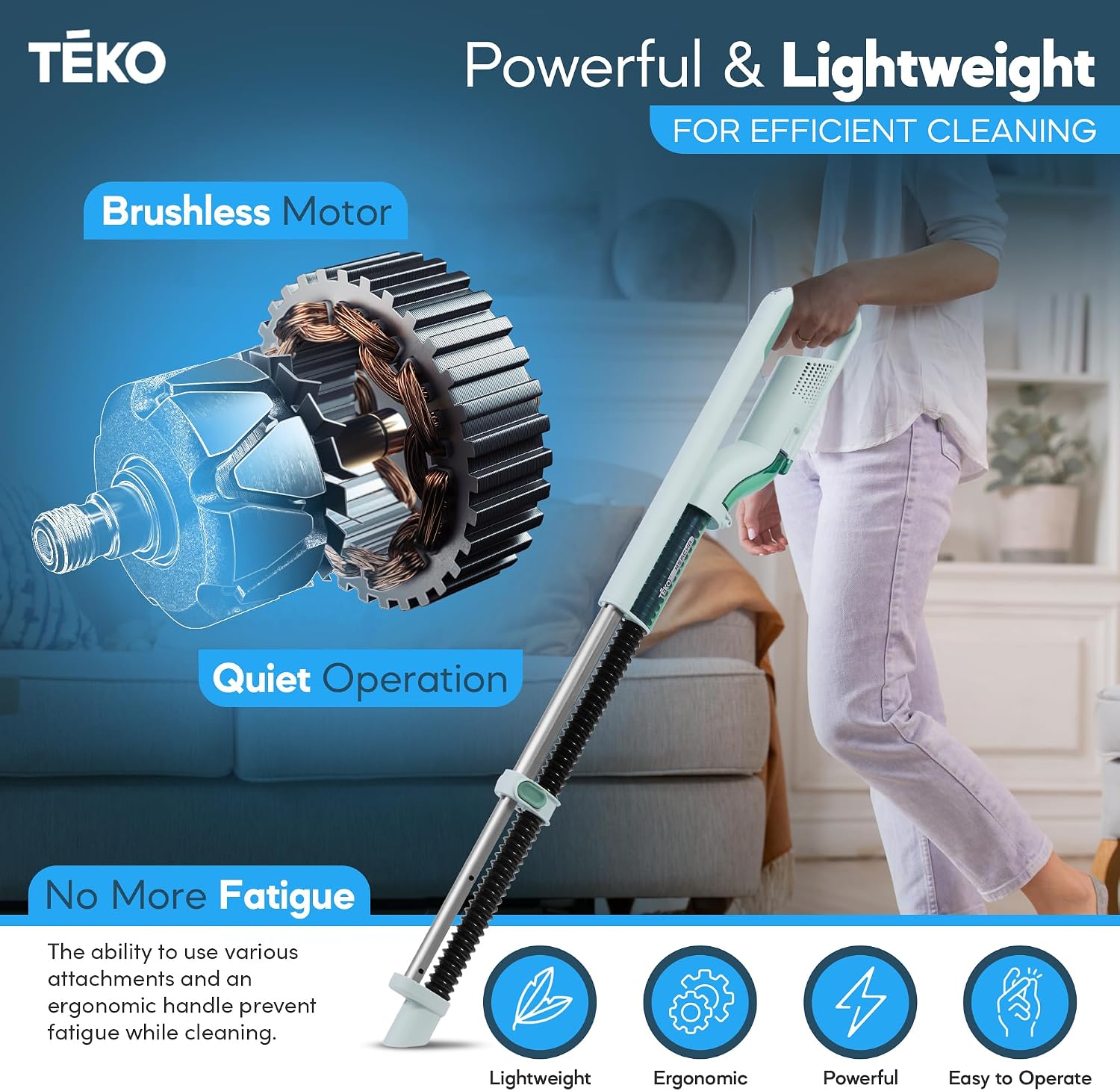

Figure 5.4: The Teko Reachr Vacuum features a powerful brushless motor for efficient cleaning and quiet operation, ensuring a comfortable user experience without fatigue.

Weighing only 2.3 lbs, the Teko Reachr Vacuum is designed for easy maneuverability and extended use without causing fatigue. Its powerful brushless motor effectively picks up dust, debris, and even denser particles.

6. Priežiūra

6.1 Šiukšlių dėžės ištuštinimas

1. Įsitikinkite, kad dulkių siurblys yra išjungtas.
2. Suraskite dulkių surinktuvo atlaisvinimo mygtuką ir paspauskite jį, kad atjungtumėte dulkių surinktuvą nuo pagrindinio įrenginio.
3. Carefully empty the contents of the dustbin into a trash receptacle.
4. Įstatykite dulkių konteinerį atgal, kol jis tvirtai užsifiksuos.

6.2 Filtro valymas

The foam filter should be cleaned regularly to maintain optimal suction power.

1. Išimkite dulkių siurblį, kaip aprašyta aukščiau.
2. Carefully remove the foam filter from the dustbin.
3. Švelniai pastuksenkite filtru virš šiukšliadėžės, kad pašalintumėte purias dulkes.
4. For a deeper clean, rinse the filter under cool running water until the water runs clear.
5. Allow the filter to air dry completely for at least 24 hours before reinserting it into the dustbin. Do not use the vacuum with a wet filter.

6.3 Cleaning Attachments and Exterior

Wipe down attachments and the exterior of the vacuum with a damp cloth. Do not immerse the main vacuum unit in water.

7. Problemų sprendimas

8. Specifikacijos

9. Informacija apie garantiją

Teko products are manufactured to the highest quality standards. Specific warranty details, including duration and coverage, are typically provided with your purchase documentation or can be found on the official Teko websvetainėje. Prašome išsaugoti pirkimo įrodymą garantiniams reikalavimams.

Optional protection plans may be available for extended coverage. For details on 2-Year or 3-Year Protection Plans, please refer to your retailer or the product's purchase page.

10. Pagalba klientams

For any questions, technical assistance, or support regarding your Teko Reachr Vacuum, please visit the official Teko website or contact their customer service department. Contact information is usually available on the product packaging or the brand's online presence.
