Instrukcijų vadovas

Įvadas

This manual provides essential information for the installation, operation, and maintenance of your Generic replacement water drain pump, compatible with Whirlpool Washer model CHW8990AW0. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.

Saugos informacija

• Always disconnect power to the washing machine before attempting any repairs or installation. Failure to do so can result in electric shock or injury.
• Turn off the water supply to the washing machine before beginning work to prevent water damage.
• Montavimo metu dėvėkite tinkamas asmenines apsaugos priemones, tokias kaip pirštinės ir apsauginiai akiniai.
• Jei abejojate dėl kurio nors įrengimo proceso etapo, kreipkitės į kvalifikuotą buitinės technikos specialistą.
• Ensure all connections are secure and watertight after installation to prevent leaks.

Pakuotės turinys

Jūsų pakuotėje turėtų būti šis elementas:

• 1 x Water Drain Pump (Compatible with Whirlpool Washer CHW8990AW0)

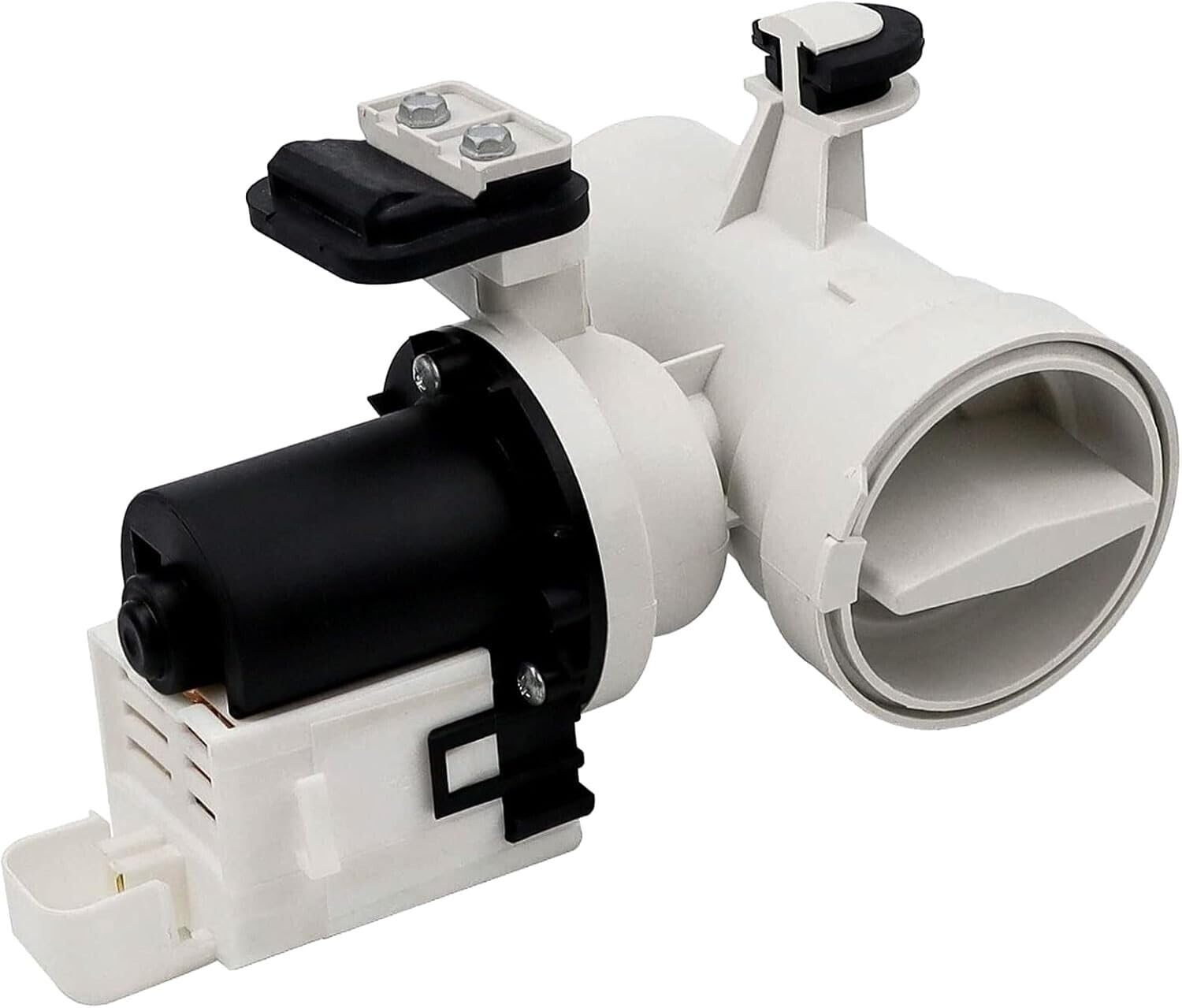

1 paveikslas: The complete water drain pump assembly. It features a black motor housing connected to a light grey pump body with an impeller cover. The overall color scheme is black and white/light grey, consistent with the product specifications.

Specifikacijos

Sąranka ir diegimas

This drain pump is a replacement part. Installation typically involves removing the old, faulty pump and installing the new one. Due to variations in washing machine models and designs, specific steps may differ. The following is a general guide. It is highly recommended to consult your washing machine's service manual or a qualified technician for detailed, model-specific instructions.

1. Paruoškite skalbyklę: Disconnect the washing machine from the electrical outlet and turn off the water supply. Move the washer away from the wall to access the rear or bottom panel.
2. Išleiskite likusį vandenį: Place a shallow pan or towels under the drain hose and pump area to catch any residual water.
3. Prieiga prie siurblio: Depending on your washer model, you may need to remove the front panel, rear panel, or tilt the washer back to access the drain pump.
4. Atjunkite žarnas ir laidus: Carefully disconnect the drain hoses and electrical wiring connected to the old pump. Note their positions for reassembly.
5. Seno siurblio išėmimas: Nuimkite seną drenažo siurblį nuo jo korpuso arba laikiklių.
6. Įdiekite naują siurblį: Mount the new drain pump in the same position as the old one. Ensure it is securely fastened.
7. Prijunkite žarnas ir laidus: Reconnect the drain hoses and electrical wiring to the new pump. Ensure all hose clamps are tight and electrical connections are secure.
8. Testas dėl nuotėkio: Restore the water supply and power to the washer. Run a short cycle to check for any leaks around the pump and hose connections.
9. Galutinė asamblėja: If no leaks are detected, reattach any panels removed during installation and push the washer back into place.

Atsisakymas: This is a general guide. Improper installation can lead to damage to the appliance or personal injury. If you are not confident in performing this repair, please seek professional assistance.

Naudojimo instrukcijos

The water drain pump operates automatically as part of your washing machine's cycle. Its primary function is to remove water from the wash tub during the drain and spin phases. No direct user interaction is required for the pump's operation once correctly installed.

• Ensure the washing machine is properly loaded and the selected wash cycle includes drain and spin functions.
• The pump will activate automatically to expel water from the tub at the appropriate times during the cycle.
• Listen for normal operating sounds. Excessive noise or lack of draining may indicate an issue.

Priežiūra

Regular maintenance can help prolong the life of your drain pump and prevent common issues.

• Patikrinkite, ar nėra kliūčių: Periodically inspect the drain pump filter (if accessible on your washer model) for lint, coins, or other small objects that can clog the pump and impede drainage. Refer to your washer's user manual for filter cleaning instructions.
• Patikrinkite žarnas: Check drain hoses for kinks, blockages, or damage that could affect water flow.
• Klausykite neįprastų garsų: Pay attention to any grinding, humming, or excessive noise during the drain cycle, which could indicate a foreign object in the pump or a failing motor.

Trikčių šalinimas

If you encounter issues with your washing machine's draining function, consider the following troubleshooting steps:

• Skalbimo mašina neišleidžia vandens:
  • Įsitikinkite, kad išleidimo žarna nėra sulenkta ar užsikimšusi.
  • Check the drain pump filter for obstructions (refer to your washer's manual).
  • Verify that the washer's lid/door switch is functioning correctly, as some washers will not drain if the lid is open or the switch is faulty.
  • Confirm the pump is receiving power (this may require a multimeter and technical knowledge).
• Unusual Noises During Drain Cycle:
  • A grinding or humming noise often indicates a foreign object lodged in the pump impeller. Disconnect power and water, then inspect the pump for debris.
  • If the noise persists after clearing debris, the pump motor may be failing and require replacement.
• Water Leaking from Pump Area:
  • Check all hose connections to the pump for tightness and proper sealing.
  • Patikrinkite siurblio korpusą, ar nėra įtrūkimų ar pažeidimų.

If these steps do not resolve the issue, it may indicate a more complex problem with the washing machine or the pump itself. Professional service is recommended.

Informacija apie garantiją

Specific warranty details for this replacement part are typically provided by the seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage, terms, and conditions.

Palaikymas

For technical assistance, installation queries, or to report a defective product, please contact the seller or manufacturer directly using the contact information provided with your purchase. When contacting support, please have your product model number (CHW8990AW0) and part number (ACTO-HAPT-PL-06032025-01195) readily available.
