Įvadas
This instruction manual provides guidance for the installation and maintenance of the replacement door latch handle for the Amana ADB1500AWW dishwasher. This component is designed to secure the dishwasher door, ensuring proper operation of the appliance. Please read all instructions carefully before proceeding with installation to ensure safety and correct functionality.
Svarbu: Appliance parts can appear similar. Always verify compatibility with your specific dishwasher model (ADB1500AWW) or part number before installation.
Produktas baigtasview
The replacement door latch handle is a critical component that allows the dishwasher door to close securely, enabling wash cycles to begin. This part is designed to match the specifications required for the Amana ADB1500AWW model.

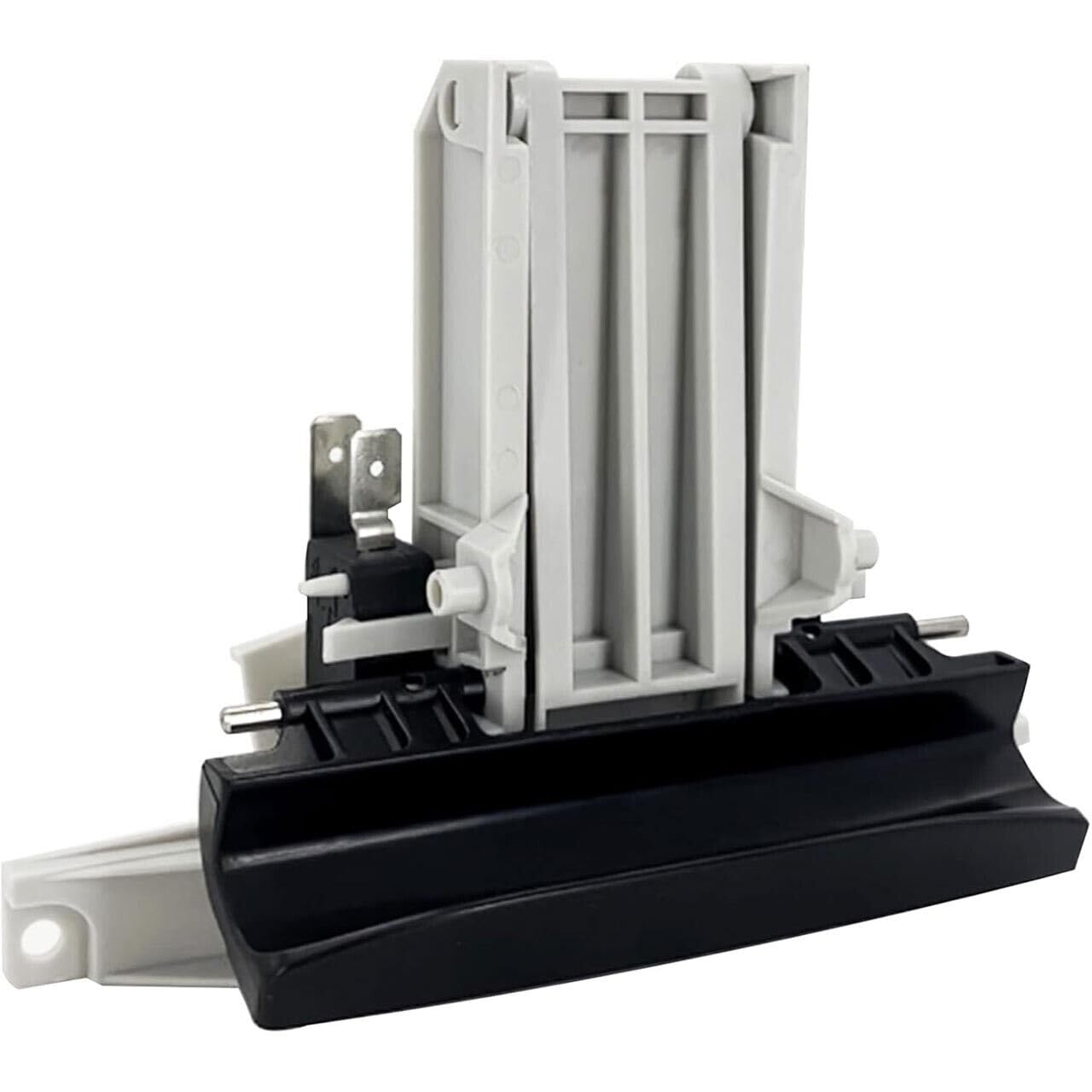

1 paveikslas: Replacement Dishwasher Door Latch Handle. This image displays the replacement door latch handle. It features a black handle component attached to a light gray housing, with electrical terminals visible on one side. The overall structure is designed to secure the dishwasher door.
Pakuotės turinys:
- 1 x Dishwasher Door Latch Handle (Color: Black/White)
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Suderinamas modelis | Amana ADB1500AWW |
| Dalies numeris | ACTO-HAPT-PL-06032025-13119 |
| Spalva | Juoda/Balta |
| Gamintojas | Actome-Parts |
| Prekės pakuotės kiekis | 1 |
| ASIN | B0F17HXCLR |
Diegimo instrukcijos (sąranka)
Pirmiausia sauga: Always disconnect power to the dishwasher before attempting any repairs or installations. Turn off the circuit breaker supplying power to the appliance. Wear appropriate safety gear, such as work gloves, to protect your hands.
Reikalingi įrankiai:
- Phillips galvos atsuktuvas
- Plokščiagalvis atsuktuvas
- Replės (neprivaloma, užsispyrusioms jungtims)
Žingsnis po žingsnio diegimas:
- Atjunkite maitinimą: Locate your home's electrical panel and turn off the circuit breaker that supplies power to the dishwasher. Verify power is off by attempting to turn on the dishwasher.
- Atidarykite indaplovės dureles: Fully open the dishwasher door to access the inner panel.
- Remove Inner Door Panel: Carefully locate and remove the screws securing the inner door panel to the outer door panel. These screws are typically found along the perimeter of the inner panel. Keep track of all screws for reassembly.
- Separate Door Panels: Gently separate the inner and outer door panels. You may need to support the outer panel as you do this. Be mindful of any wiring or components connected between the panels.
- Disconnect Old Latch Wiring: Identify the electrical connectors attached to the old door latch assembly. Carefully disconnect these wires. It may be helpful to take a photo before disconnecting to aid in reassembly.
- Remove Old Latch Assembly: Unscrew or unclip the old door latch assembly from its mounting position. Remove it from the dishwasher door.
- Install New Latch Assembly: Position the new replacement door latch handle in the same location as the old one. Secure it with the screws or clips previously removed.
- Prijunkite laidus iš naujo: Reconnect the electrical wires to the new latch assembly. Ensure connections are secure and match the original configuration (refer to your photo if taken).
- Reassemble Door Panels: Carefully align the inner and outer door panels. Reinsert and tighten all screws removed in Step 3. Ensure the door closes and latches properly before fully tightening all screws.
- Atkurkite maitinimą ir patikrinkite: Restore power to the dishwasher by turning the circuit breaker back on. Close the dishwasher door and attempt to start a wash cycle to confirm the new latch is functioning correctly.
Operacija
The door latch handle is designed for straightforward operation. To close the dishwasher door, simply push it firmly until the latch engages. A properly functioning latch will hold the door securely closed, allowing the dishwasher to begin and complete its wash cycle. If the door is not fully latched, the dishwasher may not start or may display an error code.
Priežiūra
Regular maintenance of the door latch handle is minimal. Keep the area around the latch clean and free of food debris or detergent residue, which can interfere with its mechanism. Avoid forcing the door open or closed if it feels stuck, as this can damage the latch or other door components. If the latch becomes stiff, a small amount of food-grade lubricant can be applied to moving parts, ensuring it does not come into contact with dishes or food.
Trikčių šalinimas
If you encounter issues after installing the new door latch handle, consider the following:
- Indaplovė neįsijungia: Ensure the door is fully closed and the latch is engaged. Check that power is supplied to the dishwasher and the circuit breaker is on. Verify all wiring connections to the latch are secure.
- Durys netinkamai užsidaro: Inspect the latch mechanism for any obstructions or misalignments. Ensure the strike plate on the dishwasher tub is correctly aligned with the latch on the door. Recheck the installation steps to confirm the latch was installed correctly.
- Error Codes Related to Door: Consult your dishwasher's main user manual for specific error codes related to the door or latch. This can help diagnose if the issue is with the latch itself or another component.
If problems persist after troubleshooting, it is recommended to contact a qualified appliance technician.
Garantija ir palaikymas
Specific warranty information for this replacement part is not provided in this manual. For details regarding warranty coverage or technical support, please contact the seller or manufacturer directly. Ensure you have your purchase information and the part number (ACTO-HAPT-PL-06032025-13119) available when contacting support.
