Įvadas
This manual provides essential instructions for the safe and efficient operation of your PYY Electric Kiln. Please read it thoroughly before first use and retain it for future reference. Understanding the features and safety precautions will ensure optimal performance and longevity of your kiln.
Svarbi saugos informacija
Operating an electric kiln involves high temperatures and electrical components. Adhere to all safety warnings to prevent injury or damage.
- Vėdinimas: Always operate the kiln in a well-ventilated, fire-resistant environment. Ensure adequate airflow to prevent heat buildup and dissipate fumes.
- Medžiagų sauga: Do not place flammable or explosive materials inside the kiln. Only use materials suitable for high-temperature firing.
- Temperatūros ribos: Do not exceed the maximum operating temperature of 1200°C (2200°F). Overloading the chamber can also lead to unsafe conditions.
- Asmeninės apsaugos priemonės: Always wear the provided heat-resistant gloves and use anti-slip crucible pliers when handling hot items or opening the kiln.
- Elektros sauga: Ensure the kiln is connected to a properly grounded electrical outlet. The unit features grounding protection.
- Automatinis išsijungimas: The kiln is equipped with an audible and visual over-temperature alarm and will automatically stop operation if the set temperature is exceeded.
- Durų saugumas: The top opening door design, combined with proper protective gear, helps prevent burns during use.
Produktas baigtasview
Komponentai
The PYY Electric Kiln package includes the main kiln unit, a pair of heat-resistant gloves, and anti-slip crucible pliers.
Vaizdas: priekis view of the PYY Electric Kiln, showing the control panel, power switch, and cooling vents. The top lid is closed and secured with a latch.
Pagrindinės savybės
- Efektyvus šildymas: Equipped with 1500W HRE and MO2 wire heating elements, ensuring even heat distribution. Capable of reaching temperatures up to 2200°F (1200°C) in approximately 25-30 minutes.
- Tikslus temperatūros valdymas: Features a PID digital control system with custom temperature settings, clear function buttons, and an LCD color screen for precise monitoring and adjustment.
- Išmanioji apsauga: Includes an audible and visual over-temperature alarm, automatic stop function, power outage memory, grounding protection, and timed operation capabilities.
- Reliable Cooling System: Designed with lightweight insulating materials and strategically placed ventilation ports for efficient heat dissipation, contributing to stable operation and extended product lifespan.
Sąranka
Tinkamas nustatymas yra labai svarbus saugiam ir efektyviam veikimui.
- Išpakuoti: Carefully unpack the kiln and all included accessories. Verify that the heat-resistant gloves and anti-slip crucible pliers are present.
- Vieta: Position the kiln on a stable, level, and fire-resistant surface. Ensure the area is well-ventilated and provides adequate clearance (at least 6 inches) around all sides for proper air circulation and heat dissipation.
- Maitinimo jungtis: Connect the power cord securely to the kiln's power inlet, then plug it into a properly grounded electrical outlet. Ensure the voltage matches the kiln's requirements.
- Susipažinimas: Take a moment to familiarize yourself with the control panel, power switch, and safety latch.
Image: Close-up of the kiln's control panel, showing the power input, green power switch, and digital temperature controller with display and buttons.
Naudojimo instrukcijos
Pagrindinė operacija
- Ensure the kiln is properly set up and connected to power as described in the Setup section.
- Disengage the safety latch and carefully open the kiln lid.
- Using the provided anti-slip crucible pliers, carefully place the items to be heated inside the kiln chamber. Ensure items are not touching the heating elements directly and allow for even heat distribution.
- Close the kiln lid and secure the safety latch.
- Turn on the main power switch located on the front panel.
- Use the PID digital control system to set your desired temperature. Refer to the 'Temperature Control' section below for detailed instructions.
- Monitor the temperature display. The kiln will begin heating to the set temperature.
- Once the heating process is complete and the kiln has cooled sufficiently (as indicated by the temperature display), carefully open the lid and remove items using the heat-resistant gloves and crucible pliers.
Video: This video demonstrates the basic operation of the PYY Electric Kiln, including powering on, opening the lid, placing items inside, and securing the lid. It highlights the control panel, cooling vents, and lock design.
Temperature Control (PID System)
The kiln utilizes a PID digital control system for precise and stable temperature management.
- The LCD color screen displays the Process Value (PV), which is the current temperature inside the kiln, and the Set Value (SV), which is your target temperature.
- Use the 'SET' button to enter temperature adjustment mode, and the 'UP' and 'DOWN' arrow buttons to adjust the target temperature.
- The alarm indicator (ALM1, ALM2) will illuminate if any security protection thresholds are met.
- For advanced programming, such as timed operation, refer to the specific instructions for the CKC TINNER REX-C100 PID controller model.
Image: Diagram illustrating the precise temperature control features of the PYY Electric Kiln, highlighting the digital display for current and set temperatures, alarm indicators, and setting buttons.
Priežiūra
Regular maintenance ensures the longevity and safe operation of your kiln.
- Maitinimo atjungimas: Always disconnect the kiln from the power supply before performing any cleaning or maintenance tasks.
- Atvėsinti: Allow the kiln to cool completely to room temperature before handling any internal components.
- Šildymo elementų patikra: Periodically inspect the HRE and MO2 heating elements for any signs of damage, cracks, or excessive wear. Replace damaged elements promptly.
- Chamber Cleaning: Keep the interior of the kiln chamber clean from debris, dust, and residue. Use a soft brush or a vacuum cleaner with a narrow attachment to remove ceramic dust.
- Vėdinimo patikrinimas: Ensure that all cooling vents are free from obstructions to maintain proper airflow and heat dissipation.
- Maitinimo laido apžiūra: Regularly check the power cord for any cuts, fraying, or damage. Replace if necessary.
Vaizdas: Vidinis vaizdas iš arti view of the PYY Electric Kiln chamber, showing the HRE and MO2 wire heating elements embedded within the insulating material.
Trikčių šalinimas
If you encounter issues with your kiln, refer to the table below for common problems and solutions.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Krosnis neįsijungia. | No power supply; power cord disconnected; main power switch off. | Check power outlet, ensure cord is securely plugged in, turn on the main power switch. |
| Kiln not heating to set temperature. | Incorrect temperature setting; faulty heating element; overloaded chamber. | Verify temperature setting on PID controller; inspect heating elements (if safe to do so); reduce load in the chamber. |
| Over-temperature alarm sounds. | Temperature exceeded set limit; sensor malfunction. | The kiln will automatically stop. Allow to cool. Check set temperature. If the alarm persists, contact support. |
| Netolygus šildymas. | Improper loading of items; damaged heating elements. | Ensure items are spaced evenly within the chamber. Inspect heating elements for damage. |
Specifikacijos
- Modelis: PYYTYJ0111WTUSP
- Prekinis ženklas: PYY
- Vattage: 1500 vatų
- Medžiaga: Metalas
- Maksimali temperatūra: 2200 °F (1200 °C)
- Valdymo tipas: PID Digital Control (Button Control, Touch)
- Prekės svoris: 34.72 svaro
- Įtraukti komponentai: Heat-resistant gloves, Anti-slip crucible pliers
- Apytiksliai matmenys (ilgis x plotis x aukštis): 13.5 x 13.5 x 15.7 inches (collapsed size)

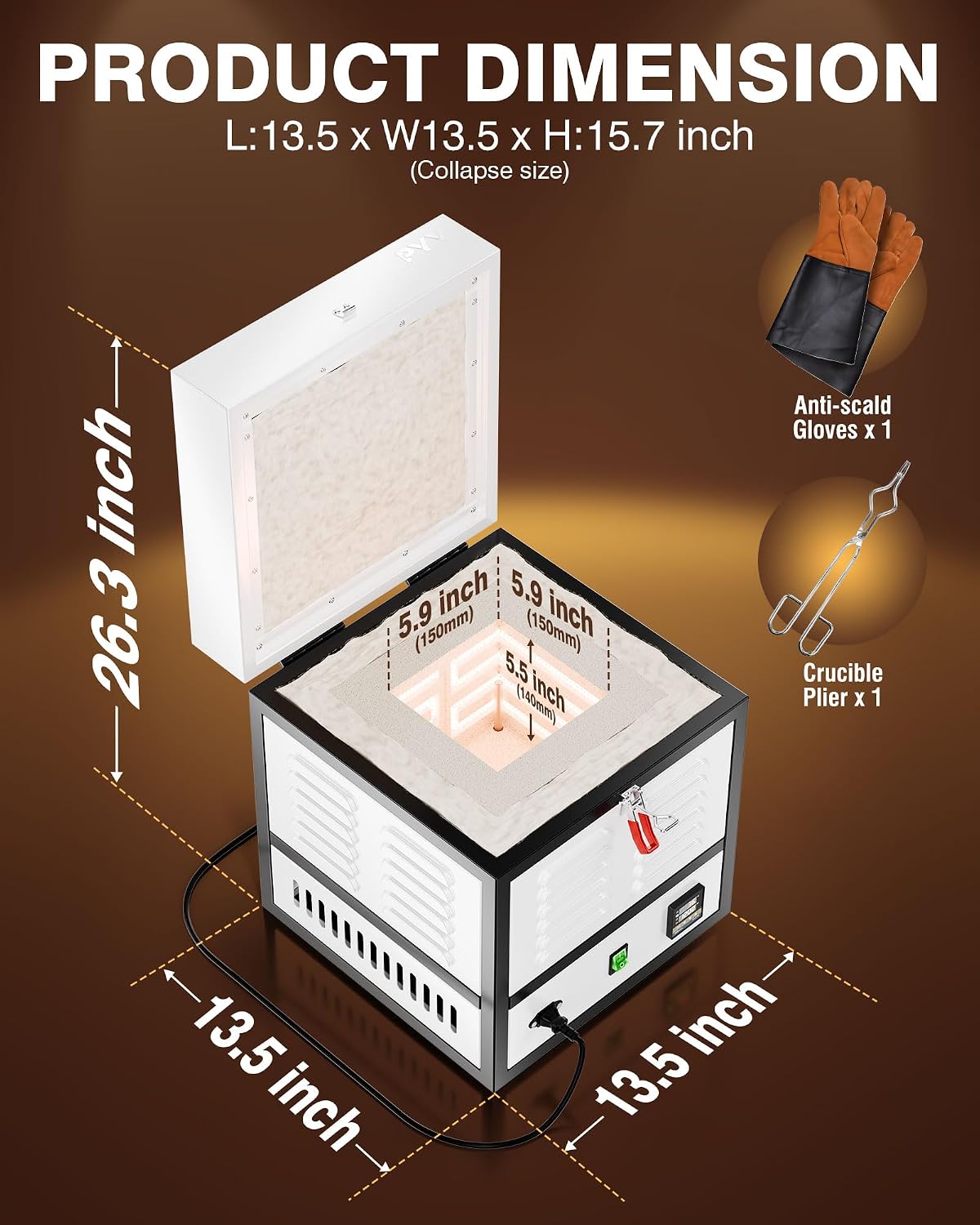

Image: Diagram showing the external and internal dimensions of the PYY Electric Kiln, along with illustrations of the included anti-scald gloves and crucible pliers.
Garantija ir palaikymas
For warranty information, technical assistance, or customer support, please refer to the contact details provided with your purchase documentation or visit the official PYY websvetainę.
- Gamintojas: PYY
- Modelio numeris: PYYTYJ0111WTUSP
- UPC/GTIN: 722549284375
