1. Įvadas
This manual provides essential information for the proper installation, operation, and maintenance of your new Generic 30mm PWK 30 Carburetor. Designed for various off-road vehicles including Dirt Pit Bikes, ATVs, and Go Karts, this carburetor features durable metal construction, resistance to high temperatures and wear, and an easy-adjustment design for optimal performance. Please read this manual thoroughly before attempting any installation or adjustments.
2. Produktas baigtasview
The 30mm PWK 30 Carburetor is a high-performance component designed to optimize fuel-air mixture delivery to your engine. Its modular design allows for easy disassembly, cleaning, and part replacement, ensuring minimal downtime and extended product life.
2.1 pav.: Priekinė dešinė view of the 30mm PWK 30 Carburetor, showing the air intake and various adjustment screws.

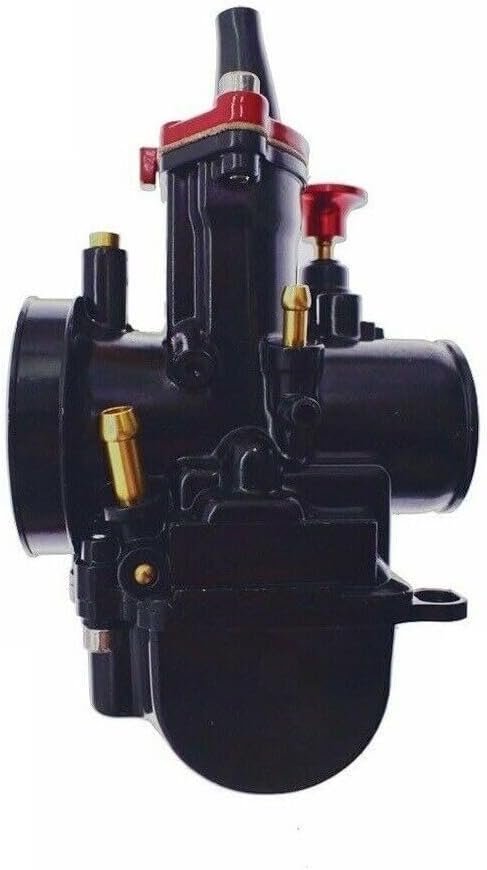

2.2 pav.: šonas view of the 30mm PWK 30 Carburetor, highlighting the float bowl and fuel inlet.
2.3 pav.: Galinis kairysis view of the 30mm PWK 30 Carburetor, showing the throttle cable connection point.
2.4 pav.: priekis view of the 30mm PWK 30 Carburetor, displaying the air intake bell.

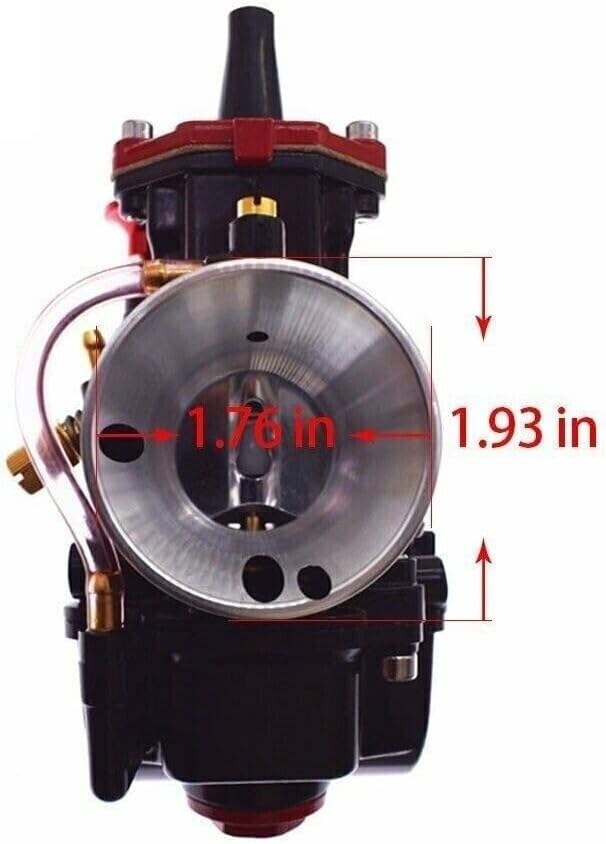

2.5 pav.: priekis view of the 30mm PWK 30 Carburetor with key dimensions indicated. The air intake diameter is approximately 1.76 inches (44.7 mm) and the overall height of the intake bell is approximately 1.93 inches (49 mm).
3. Sąranka ir diegimas
Proper installation is crucial for optimal performance and safety. If you are unsure about any step, consult a qualified mechanic.
- Pirmiausia sauga: Ensure the engine is off and cool. Disconnect the battery if necessary. Wear appropriate safety gear, including gloves and eye protection.
- Seno karbiuratoriaus nuėmimas: Carefully disconnect the fuel line, throttle cable, and any vacuum lines from the existing carburetor. Remove mounting bolts and detach the old carburetor.
- Inspect Intake Manifold: Clean the intake manifold and ensure there are no obstructions or damage. Replace gaskets if they are worn or damaged.
- Įdiekite naują karbiuratorių: Mount the new 30mm PWK 30 Carburetor onto the intake manifold, ensuring a snug fit. Use new gaskets if provided. Tighten mounting bolts evenly to prevent air leaks.
- Connect Lines: Reconnect the fuel line, throttle cable, and any vacuum lines. Ensure all connections are secure and free of leaks.
- Pradiniai koregavimai: Before starting the engine, perform initial adjustments for the idle speed screw and air/fuel mixture screw as per your vehicle's specifications or a general starting point (e.g., 1.5 to 2 turns out for the mixture screw).
4. Operating and Tuning
The 30mm PWK 30 Carburetor features an easy-adjustment design for optimal performance. Proper tuning is essential for engine efficiency and longevity.
4.1 Variklio užvedimas
- Ensure the fuel petcock is open.
- Jei variklis šaltas, įjunkite droselį.
- Start the engine. Once it warms up, gradually disengage the choke.
4.2 Tuning for Performance
Tuning involves adjusting the air/fuel mixture and idle speed to match your engine and environmental conditions. This carburetor is designed for easy adjustment.
- Tuščiosios eigos greičio reguliavimas: Use the idle speed screw to set the engine's idle RPM to the manufacturer's recommended level.
- Air/Fuel Mixture Adjustment: The mixture screw controls the amount of fuel or air at idle and off-idle. Turn it in (clockwise) to lean the mixture or out (counter-clockwise) to richen it. Adjust in small increments (1/8 to 1/4 turn) until the engine runs smoothly and accelerates cleanly from idle.
- Jetting: For significant changes in altitude, temperature, or engine modifications, you may need to change the main jet and pilot jet. Consult a service manual for your specific vehicle for recommended jetting specifications.
5. Priežiūra
Regular maintenance ensures the longevity and reliable performance of your carburetor. The modular design facilitates easy disassembly for cleaning and part replacement.
- Reguliarus valymas: Periodically clean the carburetor, especially if the vehicle is used in dusty or dirty environments. Disassemble the carburetor carefully, clean all passages and jets with carburetor cleaner, and blow dry with compressed air.
- Kuro filtras: Ensure your fuel system has a clean, functional fuel filter to prevent debris from entering the carburetor. Replace the fuel filter as recommended by your vehicle's manufacturer.
- Float Level: Check and adjust the float level periodically to ensure proper fuel delivery and prevent overflow or starvation.
- Gasket and O-Ring Inspection: Inspect all gaskets and O-rings for wear, cracks, or damage during cleaning. Replace them as needed to prevent air or fuel leaks.
- Throttle Cable: Ensure the throttle cable operates smoothly and is free from kinks or fraying. Lubricate as necessary.
6. Problemų sprendimas
This section addresses common issues you might encounter with your carburetor.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Engine won't start or starts with difficulty |
|
|
| Engine runs rough or idles poorly |
|
|
| Engine lacks power or bogs down |
|
|
| Kuro nuotėkis iš karbiuratoriaus |
|
|
7. Specifikacijos
- Carburetor Type: PWK 30
- Venturi Diameter: 30 mm
- Medžiaga: Patvari metalinė konstrukcija
- Suderinamumas: Keihin, KOSO, OKO compatible for Dirt Pit Bikes, ATVs, Go Karts
- Spalva: Juoda
- Prekės svoris: Maždaug 1 svaras (0.45 kg)
- Gaminio matmenys: Maždaug 1 x 1 x 1 colio (2.54 x 2.54 x 2.54 cm) - Note: These dimensions are generic; refer to Figure 2.5 for specific intake measurements.
