Newday 153cm Ceiling Fan with Light and Remote Control

1. Svarbi saugos informacija

Prieš montuodami ir naudodami atidžiai perskaitykite visas instrukcijas. Išsaugokite šį vadovą ateičiai.

• Prieš montuodami, valydami ar atlikdami techninę priežiūrą, įsitikinkite, kad maitinimo šaltinis yra atjungtas.
• Installation must be performed by a qualified electrician and in accordance with local wiring regulations.
• The mounting structure must be capable of supporting the weight of the fan (approximately 10 kg) and the dynamic load during operation.
• Nekiškite jokių daiktų į ventiliatoriaus mentes, kai ventiliatorius veikia.
• Šis ventiliatorius skirtas naudoti tik patalpose.
• Ventiliatoriui veikiant, laikykite vaikus atokiau nuo jo.

2. Produktas baigtasview

The Newday 153cm Ceiling Fan (Model ND-60-1015WT-DE) is a modern ceiling fan with an integrated LED light, designed for efficient air circulation and adjustable illumination. It features a silent DC motor and is controlled via a remote.

Pagrindinės funkcijos:

• Dydis: 153 cm diameter, 36 cm height.
• Svoris: 8.8 KG total.
• Variklis: Silent and durable DC motor.
• Ašmenys: 5 ABS plastic blades, resistant to deformation.
• Greičiai: 6 fan speeds (92-163 RPM) plus a sleep mode.
• Šviesa: 24W LED panel with continuous brightness adjustment (20%-100%) and color temperature adjustment (3000K-6500K).
• Valdymas: Easy-to-use remote control with wall mount.
• Režimai: Summer (downward airflow) and Winter (upward airflow) modes.
• Laikmatis: 1, 3, or 6-hour timer function.

Image 2.1: The Newday 153cm white ceiling fan with integrated LED light.

3. Sąranka ir diegimas

Installation requires careful attention to detail. It is recommended to have two people for installation and to consult a qualified electrician if you are unsure.

Patikrinimai prieš montavimą:

• Verify that the ceiling can support the fan's weight and operational forces.
• Ensure the maximum ceiling slope does not exceed 15°.
• Confirm all components are present before beginning.

Diegimo žingsniai:

1. Išjunkite maitinimą pagrindiniu grandinės pertraukikliu.
2. Mount the ceiling bracket securely to a joist or suitable support structure.
3. Assemble the fan motor and downrod (if applicable) according to the detailed diagrams in the included paper manual.
4. Connect the electrical wiring, ensuring correct polarity and secure connections.
5. Pritvirtinkite ventiliatoriaus bloką prie lubų laikiklio.
6. Install the fan blades, ensuring they are firmly attached.
7. Install the LED light panel and diffuser. Note: The light kit is pre-installed with the lampatspalvis ir LED skydelis.
8. Atkurkite elektros tiekimą ir patikrinkite ventiliatoriaus bei apšvietimo funkcijas.

Image 3.1: Diagram showing fan dimensions (153cm diameter, 39cm height from ceiling to bottom of light, 12.5cm from ceiling to top of blades) and suitable room sizes (16-36m²), along with flat installation and maximum 15° slope.

For a visual guide, an installation video is available:

4. Naudojimo instrukcijos

The Newday ceiling fan is operated using the included remote control.

Nuotolinio valdymo pulto funkcijos:

• Šviesos įjungimas/išjungimas: Press the 'Light On' or 'Light Off' button.
• Ventiliatoriaus ĮJUNGIMAS/IŠJUNGIMAS: Press the central fan button.
• Ventiliatoriaus greitis (1–6): Press buttons '1' through '6' to select desired fan speed.
• Miegojimo rezimas: In sleep mode, speeds 1, 2, and 3 will cycle every 20 seconds to simulate natural wind.
• Spalvos temperatūros reguliavimas:
  • Press 'WW' for warm light. Long press 'WW' to gradually decrease color temperature (towards 3000K).
  • Press 'DW' for cool light. Long press 'DW' to gradually increase color temperature (towards 6500K).
  • Press 'NW' for natural white light (4200K).
• Ryškumo reguliavimas: Press '+' to increase brightness and '-' to decrease brightness continuously (20%-100%).
• Laikmatis: Press '1H', '3H', or '6H' to set the fan to turn off after 1, 3, or 6 hours respectively. Note: If you use the remote control after setting the timer, the timer function will be automatically canceled.
• Vasaros / žiemos režimas (atvirkštinė funkcija): Press the reverse button (often indicated by a circular arrow icon). The fan will slowly stop and then begin rotating in the opposite direction. In summer, the fan rotates counter-clockwise for downward airflow. In winter, it rotates clockwise for upward airflow to balance room heating.

Image 4.1: Illustration of the remote control and its various functions, including fan speed, light control, color temperature, and timer settings.

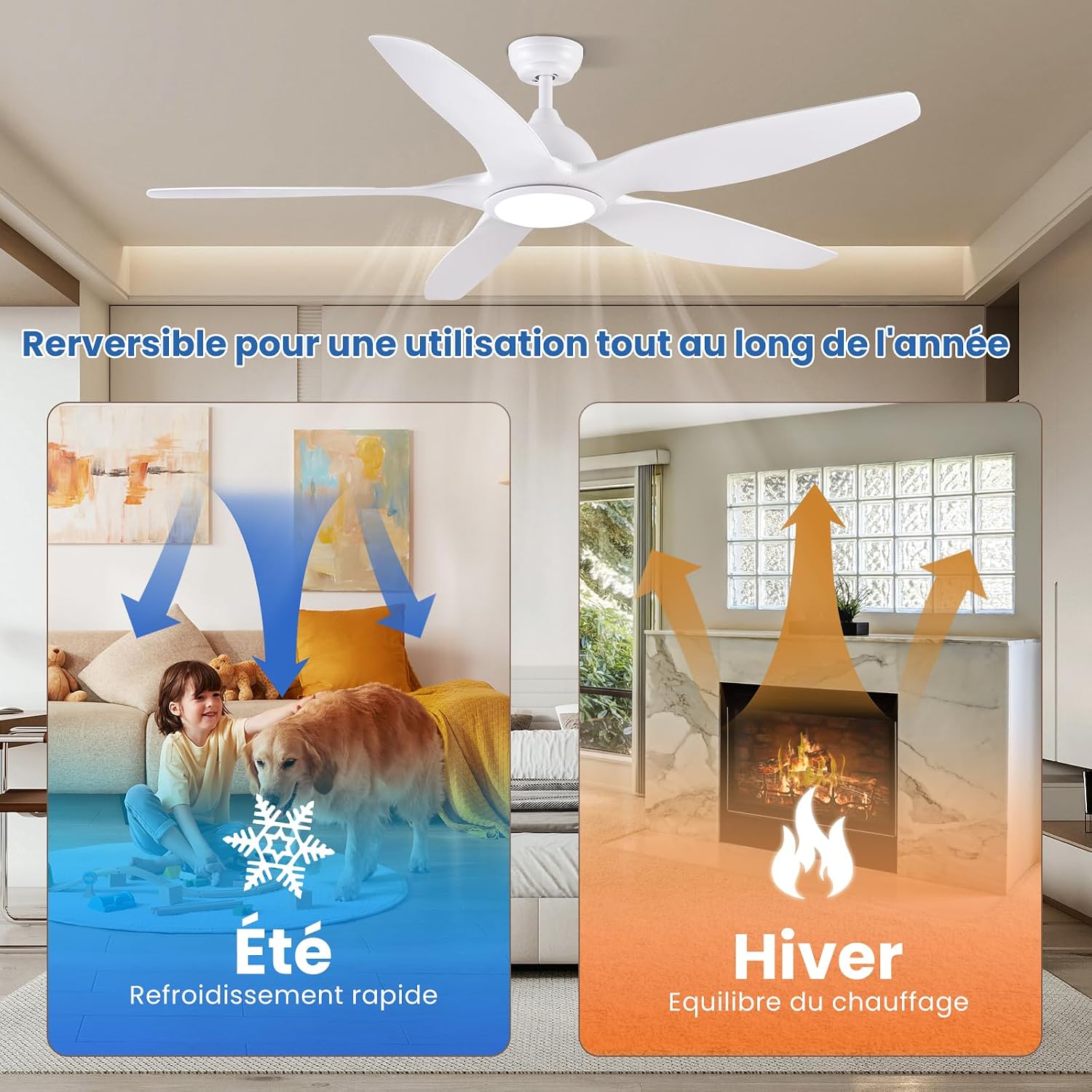

Image 4.2: Visual explanation of the reversible function, showing downward airflow for cooling in summer and upward airflow for heat distribution in winter.

5. Priežiūra

Reguliarus valymas užtikrina optimalų jūsų lubų ventiliatoriaus veikimą ir ilgaamžiškumą.

• Valymas: Norėdami išvalyti ventiliatorių, nuvalykite jį minkšta šluoste,amp šluoste. Nenaudokite abrazyvinių valiklių ar tirpiklių. Prieš valydami įsitikinkite, kad prietaisas išjungtas.
• Ašmenų patikrinimas: Periodically check the fan blades for any signs of damage or loosening. Tighten screws if necessary.
• Šviesos šaltinis: The integrated LED light panel has a long lifespan (30,000 hours). If replacement is ever needed, contact customer support.

6. Problemų sprendimas

If you encounter any issues with your Newday ceiling fan, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Newday customer support.

7. Specifikacijos

8. Garantija ir palaikymas

Newday is committed to providing reliable products and excellent customer service.

• Garantija: Šiam gaminiui suteikiama 2 metų garantija.
• Klientų aptarnavimas: For any assistance with your ceiling fan, please contact Newday customer service. We aim to provide support within 24 hours and offer the best possible solution.

Image 8.1: Newday customer service information, highlighting 24-hour support and a 2-year warranty.
