Generic Dual Fuel LPG Carburetor User Manual

1. Produktas baigtasview

This document provides instructions for the Generic Dual Fuel LPG Carburetor, an aftermarket component designed for use with Pulsar 6580 and 5500 Watts Generators, specifically model HD6580B. This carburetor enables the generator to operate on either gasoline or Liquefied Petroleum Gas (LPG), offering versatility in fuel choice.

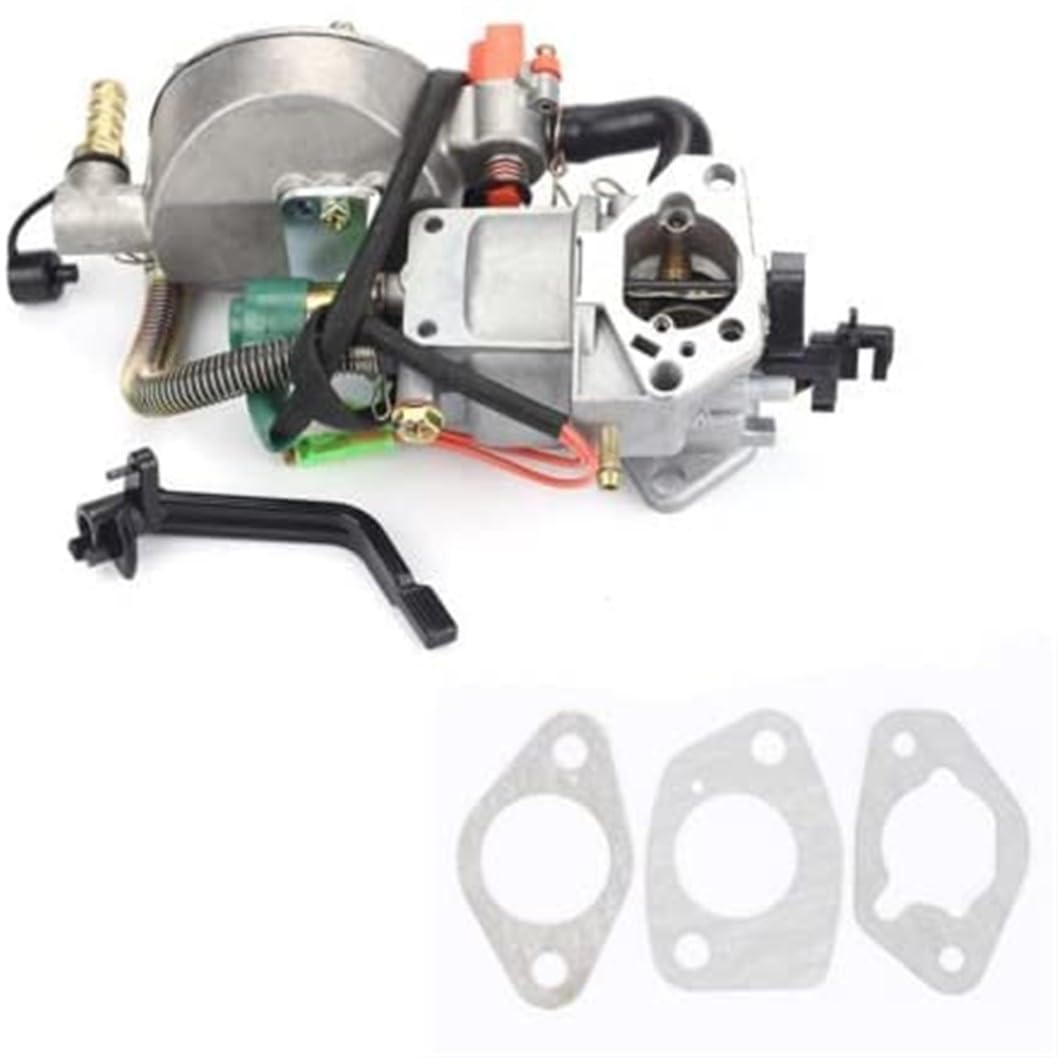

Image 1.1: Generic Dual Fuel LPG Carburetor. This image displays the main carburetor unit with its various ports and linkages, indicating its design for dual fuel operation.

2. Saugos informacija

Always prioritize safety when working with fuel systems and generators. Failure to follow these instructions may result in serious injury or property damage.

• Ensure the generator is completely shut off and cooled down before beginning any installation or maintenance.
• Atjunkite uždegimo žvakės laidą, kad išvengtumėte atsitiktinio užvedimo.
• Dirbkite gerai vėdinamoje patalpoje, kad neįkvėptumėte degalų garų.
• Keep open flames, sparks, and other ignition sources away from fuel and the generator.
• Dėvėkite tinkamas asmenines apsaugos priemones, įskaitant pirštines ir akių apsaugą.
• Handle gasoline and LPG with extreme care. Refer to your generator's manual for additional fuel handling safety.

3. Sąranka ir diegimas

3.1 Patikrinimai prieš diegimą

• Verify that the new carburetor matches the specifications of your generator model (Pulsar 6580/5500 Watts HD6580B).
• Gather necessary tools: wrenches, screwdrivers, pliers, and a clean cloth.
• Ensure the generator's fuel tank is empty or the fuel valve is closed, and the LPG tank is disconnected.

3.2 diegimo žingsniai

1. Nuimkite oro filtro mazgą: Atlaisvinti klamps and bolts to remove the air filter housing and element.
2. Atjunkite degalų tiekimo linijas: Carefully disconnect the gasoline fuel line from the old carburetor. If applicable, disconnect the LPG line. Be prepared for minor fuel spills.
3. Atjungti ryšius: Detach the throttle and choke linkages from the old carburetor. Note their positions for reassembly.
4. Seno karbiuratoriaus nuėmimas: Atjunkite seną karbiuratorių nuo variklio kolektoriaus. Nuimkite visas tarpines.
5. Įdiekite naują karbiuratorių: Place new gaskets (if supplied) on the manifold studs. Mount the new dual fuel carburetor, ensuring it seats correctly. Secure with bolts, tightening evenly.
6. Pakartotinis susiejimas: Reattach the throttle and choke linkages to the new carburetor. Verify smooth operation.
7. Prijunkite degalų linijas iš naujo: Connect the gasoline fuel line securely. For LPG operation, connect the LPG hose from the regulator to the carburetor's LPG inlet. Ensure all connections are tight to prevent leaks.
8. Įdiekite oro filtro mazgą iš naujo: Reattach the air filter housing and element.
9. Nuotėkio patikrinimas: Before starting, inspect all fuel connections for leaks.

4. Naudojimo instrukcijos

4.1 Kuro pasirinkimas

This carburetor allows operation on either gasoline or LPG. Do not attempt to run on both fuels simultaneously.

• Benzino varikliams: Ensure the LPG supply is off and disconnected. Open the gasoline fuel valve.
• For LPG Operation: Ensure the gasoline fuel valve is closed. Connect the LPG tank and open its valve.

4.2 Generatoriaus paleidimas

Refer to your generator's specific starting procedure. General steps include:

1. Įsitikinkite, kad generatorius stovi ant lygaus paviršiaus.
2. Select your desired fuel type (Gasoline or LPG) as described in Section 4.1.
3. Droselio svirtį nustatykite į padėtį „CHOKE“ (šaltas užvedimas).
4. Pull the recoil starter handle firmly or engage the electric start until the engine fires.
5. Varikliui užsivedus, palaipsniui perkelkite droselio svirtį į padėtį „RUN“.
6. Prieš įjungdami apkrovą, leiskite varikliui kelias minutes apšilti.

5. Priežiūra

Regular maintenance ensures optimal performance and longevity of your carburetor.

• Karbiuratoriaus valymas: Periodically inspect the carburetor for dirt or debris. If necessary, clean with a carburetor cleaner spray. Avoid using wire or hard objects that could damage jets.
• Fuel Line Inspection: Check gasoline and LPG fuel lines for cracks, leaks, or deterioration. Replace damaged lines immediately.
• Oro filtras: Ensure the air filter is clean and free of obstructions. A dirty air filter can affect carburetor performance. Refer to your generator manual for air filter maintenance.
• Saugykla: If storing the generator for an extended period, drain the gasoline from the fuel tank and carburetor bowl to prevent gumming. Disconnect the LPG tank.

6. Problemų sprendimas

Šiame skyriuje aptariamos dažniausiai pasitaikančios problemos, su kuriomis galite susidurti.

7. Specifikacijos

Key specifications for the Generic Dual Fuel LPG Carburetor.

8. Garantija ir palaikymas

No specific manufacturer warranty information is provided for this aftermarket carburetor. For any issues or support, please contact the seller directly through your purchase platform.

For technical assistance or questions regarding installation and operation, it is recommended to consult a qualified small engine technician or refer to your generator's original service manual.
