Thetford Aqua-Magic Style Plus High Profile Gravitacinio kemperio tualeto (34430 modelis) naudojimo instrukcija

1. Produktas baigtasview

The Thetford Aqua-Magic Style Plus is a high-profile gravity RV toilet featuring a durable ceramic bowl and a polymer base. Designed for comfort and ease of use, it offers a residential-like experience in your recreational vehicle.

Pagrindinės funkcijos:

Single-pedal flush mechanism for convenient operation.
Powerful flush with 100% bowl coverage for effective cleaning.
Flush valve designed to wipe clean with every use.
Comfortable, full-size residential seat and cover.
Taller 17.5-inch seat height for enhanced comfort.

Image 1: Thetford Aqua-Magic Style Plus High Profile Gravity RV Toilet in Bone color.

2. Sąranka ir diegimas

Installing the Thetford Aqua-Magic Style Plus RV toilet is a straightforward process. Ensure you have the necessary tools and materials before beginning.

Pastabos prieš montavimą:

Bolt Pattern: Verify the bolt pattern on your RV's floor flange. Some older installations may require an adapter plate if the pattern differs from the standard.
Vandens linijos jungtis: The water inlet location may vary. You might need a longer water line or an adapter to ensure a proper connection.
Vietos poreikis: This is a high-profile model. Confirm that your bathroom space can accommodate its dimensions (25"D x 22.5"W x 19.5"H) before installation.

Bendrieji diegimo žingsniai:

Remove the existing toilet and thoroughly clean the floor flange area.
Place the new floor seal ring onto the flange.
Carefully position the new Thetford Aqua-Magic Style Plus toilet over the flange, aligning the mounting bolts.
Secure the toilet to the floor using the provided bolts. Tighten them alternately and gradually to ensure a snug, leak-free fit without overtightening.
Connect the water supply line to the toilet's water inlet.
Test the toilet for proper flushing and check all connections for any leaks.

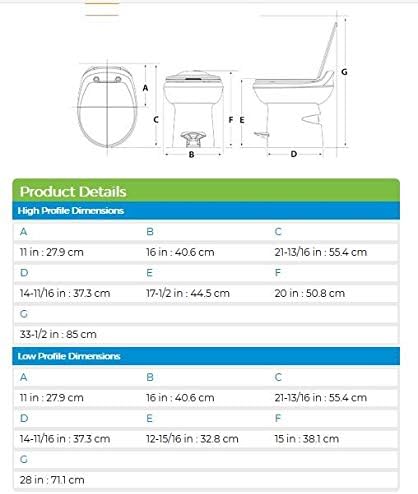

Thetford Aqua-Magic Style Plus RV Toilet Dimensions

Image 2: Product dimensions for both high and low profile models. Refer to the 'High Profile Dimensions' for Model 34430.

3. Naudojimo instrukcijos

The Aqua-Magic Style Plus features a user-friendly single-pedal flush mechanism.

Flushing and Filling:

To Add Water to the Bowl: Press the foot pedal halfway down. Water will enter the bowl. Release the pedal when the desired water level is reached.
To Flush the Toilet: Press the foot pedal all the way down. This action opens the flush valve, allowing water to clean the bowl and empty its contents into the black tank.

Visual Aid: Operation

Video 1: A close-up overview of the RV toilet, demonstrating the flushing mechanism and water filling.

Video 2: Demonstration of the toilet system in an RV, including the flushing action.

4. Priežiūra

Proper maintenance is essential for the longevity and hygienic operation of your Thetford RV toilet.

Valymas ir priežiūra:

Patvirtinti valikliai: Use only cleaners and deodorant products specifically designed for RV toilets. Household cleaners can damage the seals and internal components, leading to leaks or malfunctions.
Praleidimo vožtuvas: The design of the flush valve ensures it wipes clean with each flush, minimizing residue buildup.
Sandarinimo patikrinimas: Regularly inspect the flush ball seal for any signs of wear, cracking, or debris. A well-maintained seal is crucial for preventing water loss from the bowl and containing odors.

Žieminimas:

For detailed winterization procedures, refer to the comprehensive owner's manual.

5. Problemų sprendimas

Žemiau pateikiamos dažniausiai pasitaikančios problemos ir galimi jų sprendimai.

Dažnos problemos:

Water Not Holding in Bowl: If water consistently drains from the bowl, the flush ball seal may be dirty, worn, or improperly seated. Clean the seal thoroughly or consider replacement if damaged. Ensure the foot pedal is fully released after each flush.
Nuotėkis: Check all water line connections for tightness. Inspect the floor seal for proper installation and any signs of damage. A loose or damaged seal can cause leaks around the base of the toilet.
Kvapai: Persistent odors can indicate a problem with the black tank, inadequate use of RV toilet chemicals, or a faulty flush ball seal. Ensure proper black tank maintenance and check the seal's integrity.

Tolesnė pagalba:

For more detailed troubleshooting steps or complex issues, please consult the full owner's manual or contact Thetford customer support.

6. Specifikacijos

Detailed specifications for the Thetford Aqua-Magic Style Plus High Profile Gravity RV Toilet (Model 34430).

Modelio numeris	34430
Prekės ženklas	Tetfordas
Spalva	Baltas
Gaminio matmenys	25 "D x 22.5" P x 19.5" A
Medžiaga	Ceramic (Bowl), Plastic (Seat)
Prekės svoris	20.41 kilogramų (44.9 svarai)
Diegimo tipas	Grindų tvirtinimas
Forma	Pailgi
UPC	028985344308

7. Garantija ir palaikymas

The Thetford Aqua-Magic Style Plus RV Toilet is backed by a manufacturer's warranty. For complete details regarding warranty coverage, terms, and conditions, please refer to the official owner's manual provided with your product.

Klientų aptarnavimas:

Should you require further assistance, have questions about cleaning, maintenance, or winterization, or need to contact a service representative, please consult your owner's manual or visit the official Thetford websvetainė, kurioje rasite kontaktinę informaciją ir išteklius.
