Lansinoh Signature Pro Portable Double Electric Breast Pump

Įvadas

The Lansinoh Signature Pro Double Electric Breast Pump is designed to provide comfortable, efficient, and convenient breast milk expression. This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your breast pump.

Image: The main Lansinoh Signature Pro Double Electric Breast Pump unit, showcasing its compact design alongside collection bottles and flanges.

Saugos informacija

ĮSPĖJIMAS:

• Use only as instructed.
• Visas smulkias dalis ir pakavimo medžiagas laikykite vaikams nepasiekiamoje vietoje.
• Naudojimo metu nepalikite siurblio be priežiūros.
• Discontinue use if any parts become damaged.
• For personal use only; not intended for multiple users.
• Avoid exposing the motor unit or power components to water.

Kas įtraukta

Your Lansinoh Signature Pro Double Electric Breast Pump package includes:

• 1 Lansinoh Signature Pro Double Electric Breast Pump unit
• 2 Lansinoh Breastfeeding Bottles (5oz)
• 2 ComfortFit flanges (25mm)
• 2 Flange bodies
• 2 Diafragmos
• 2 Diaphragm caps
• 1 Apykaklė
• 1 NaturalWave Nipple (Slow Flow)
• 1 Nipple cover
• 2 Storage lids
• 2 White valves (+2 extra)
• 3 Connection tubes
• 1 Y tubing connector
• 1 Tubing strap
• 1 Pump connector
• 1 kintamosios srovės adapteris
• 1 Tote bag
• 1 Instruction booklet

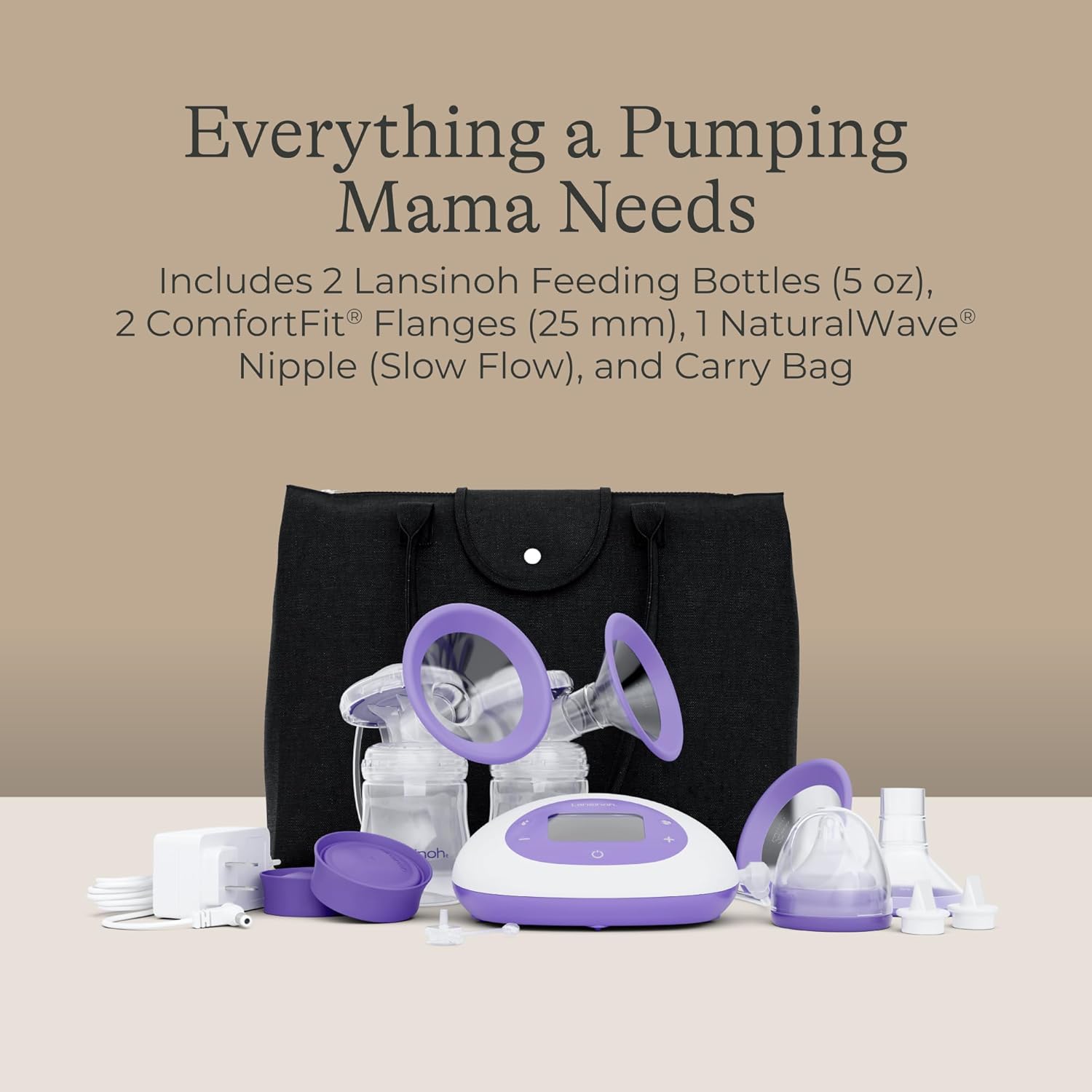

Image: A complete set of Lansinoh Signature Pro pump components, including the main unit, bottles, flanges, tubing, and accessories, arranged neatly.

Surinkimas

Follow these steps to assemble your breast pump before first use:

1. Valyti ir dezinfekuoti: Wash and sanitize all parts that come in contact with milk before first use. Refer to the 'Cleaning and Care' section for detailed instructions.
2. Assemble Flange and Bottle: Attach the ComfortFit flange to the flange body. Screw a Lansinoh Breastfeeding Bottle onto the bottom of the flange body.
3. Vamzdžių prijungimas: Connect the tubing to the flange body. If using for double pumping, use the Y tubing connector to attach both flange assemblies to the pump unit. For single pumping, attach one flange assembly and use the tubing strap to cap the unused port on the Y connector.
4. Prijunkite prie siurblio bloko: Connect the other end of the tubing (or Y connector) to the pump connector on the main pump unit.

Image: A pair of Lansinoh ComfortFit flanges, highlighting their soft and flexible design for comfortable pumping.

Naudojimo instrukcijos

The Lansinoh Signature Pro offers customizable settings for an optimal pumping experience.

1. Position Flanges: Place the assembled flanges comfortably over your breasts, ensuring a proper seal.
2. Maitinimas: Press the power button on the pump unit. The LCD screen will illuminate.
3. Pasirinkite režimą: The pump features 2-phase technology with let-down and expression modes. Use the mode button to switch between these phases.
4. Siurbimo reguliavimas: Use the '+' and '-' buttons to select your desired suction level. There are 8 adjustable suction levels to maximize milk flow.
5. Choose Pumping Style: The pump offers 3 pumping styles to mimic baby's natural feeding patterns. Adjust as needed for comfort and efficiency.
6. Stebėjimo sesija: The LCD screen provides easy reading in low light, displaying session time and settings.

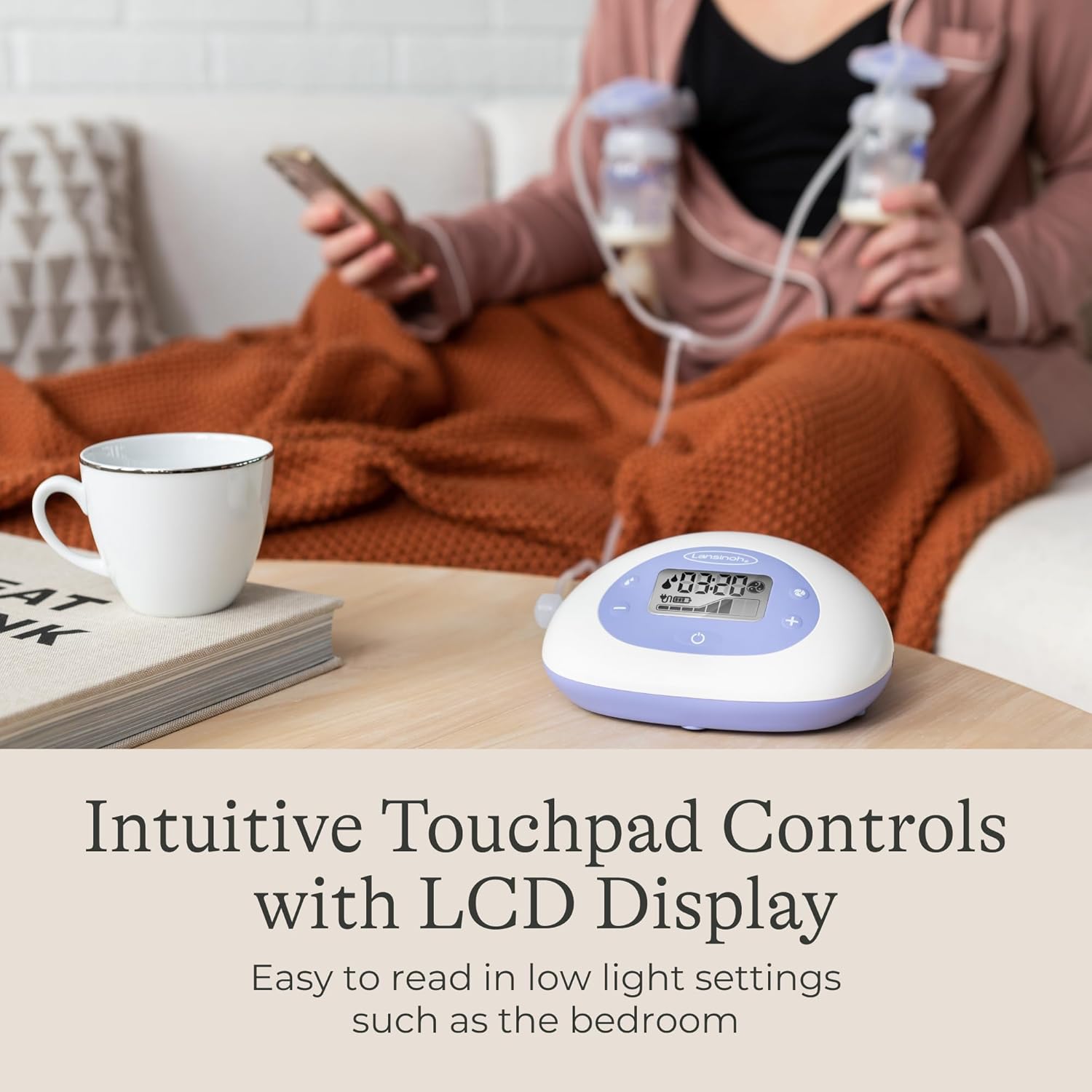

Paveikslėlis: detalus view of the pump's LCD screen and intuitive touchpad controls, showing various settings and indicators.

Image: A user demonstrating the comfortable and hands-free use of the Lansinoh Signature Pro pump with a pumping bra.

Helpful Videos:

Maitinimo parinktys

The Lansinoh Signature Pro offers flexible power options for use at home or on the go:

• Kintamosios srovės adapteris: Use the included AC adapter to plug the pump into a standard wall outlet.
• AA baterijos: For cordless pumping, insert 6 AA batteries (sold separately) into the battery compartment.
• Automobilinis adapteris: A Lansinoh-approved car adapter is available separately for use in vehicles.

Valymas ir priežiūra

Proper cleaning and care are essential for hygiene and pump longevity.

1. Išardyti: After each pumping session, disassemble all parts that came into contact with breast milk.
2. Skalbti: Wash all disassembled parts in warm, soapy water. Use a soft brush for thorough cleaning. All parts are dishwasher safe.
3. Išskalauti: Kruopščiai nuplaukite švariu vandeniu.
4. Oro džiovinimas: Allow all parts to fully air dry on a clean surface or drying rack before reassembling or storing.
5. Variklio blokas: Nuvalykite variklio bloką su skelbimuamp audinys. Nenardinkite variklio bloko į vandenį.

Image: Hands cleaning disassembled breast pump components in soapy water, demonstrating the ease of washing.

Trikčių šalinimas

If you encounter issues with your Lansinoh Signature Pro breast pump, consider the following:

• Nėra siurbimo arba silpnas siurbimas:
  • Check that all pump parts are correctly assembled and securely connected.
  • Ensure the tubing is free from kinks or damage.
  • Verify that the diaphragm and valves are properly seated and not damaged. Replace if necessary.
  • If using batteries, check if they are fresh and correctly inserted.
  • Ensure the AC adapter is securely plugged into both the pump and the power outlet.
• Siurblys neįsijungia:
  • Confirm the AC adapter is properly connected and the power outlet is functional.
  • If using batteries, check battery orientation and charge level. Replace batteries if low.
• Skausmas ar diskomfortas pumpavimo metu:
  • Ensure your flange size is correct. Incorrect flange size can cause discomfort and reduce milk output.
  • Adjust the suction level to a comfortable setting. Start with a lower setting and gradually increase.
  • Consult the instruction booklet for proper flange placement and technique.

Specifikacijos

Garantija ir palaikymas

Lansinoh is committed to supporting you throughout your breast pump journey. For any questions, concerns, or assistance with warranty claims, please reach out to Lansinoh's dedicated support team. Refer to the contact information provided in your product packaging or visit the official Lansinoh websvetainėje, kur rasite daugiau informacijos.
