TC Electronic G-System User Manual

Įvadas

The TC Electronic G-System is a comprehensive, high-quality floor-based guitar system designed to provide a complete and integrated solution for guitar effects, control, and management. It combines two DSP sections to deliver top-tier effects, analog loops, amplifier switching capabilities, and floor control. The unit also offers 9VDC power outputs for external pedals, ensuring a high level of integration within your guitar rig.

The G-System offers flexibility in setup, allowing it to be used as a single floor unit or separated into a 19-inch rackmount processor with a dedicated floor control board. Users can customize effect routing, tailor the footswitch layout, and choose from over 25 different on-board effects to suit their specific needs.

Figure 1: TC Electronic G-System Floor Unit Overview

Pagrindinės savybės

• Integruotas efektų apdorojimas: Over 25 built-in effects, including Filter, Compressor, Modulation, Pitch, Delay, and Reverb.
• Lankstus dizainas: Can be used as a standalone floor unit or separated into a 19-inch rackmount processor with a floor control board.
• External Pedal Integration: Four switchable mono-loops for integrating external effect pedals into the signal chain.
• Amplifier Switching: Built-in capabilities for controlling ampkėlimo kanalai.
• Maitinimo išėjimai: Provides 9VDC power outputs for powering up to 9 external effects pedals.
• Seamless Preset Changes: Features fast and smooth preset changes with delay spill-over functionality.
• Patogi vartotojo sąsaja: Intuitive footswitches and encoders for easy navigation and parameter editing.

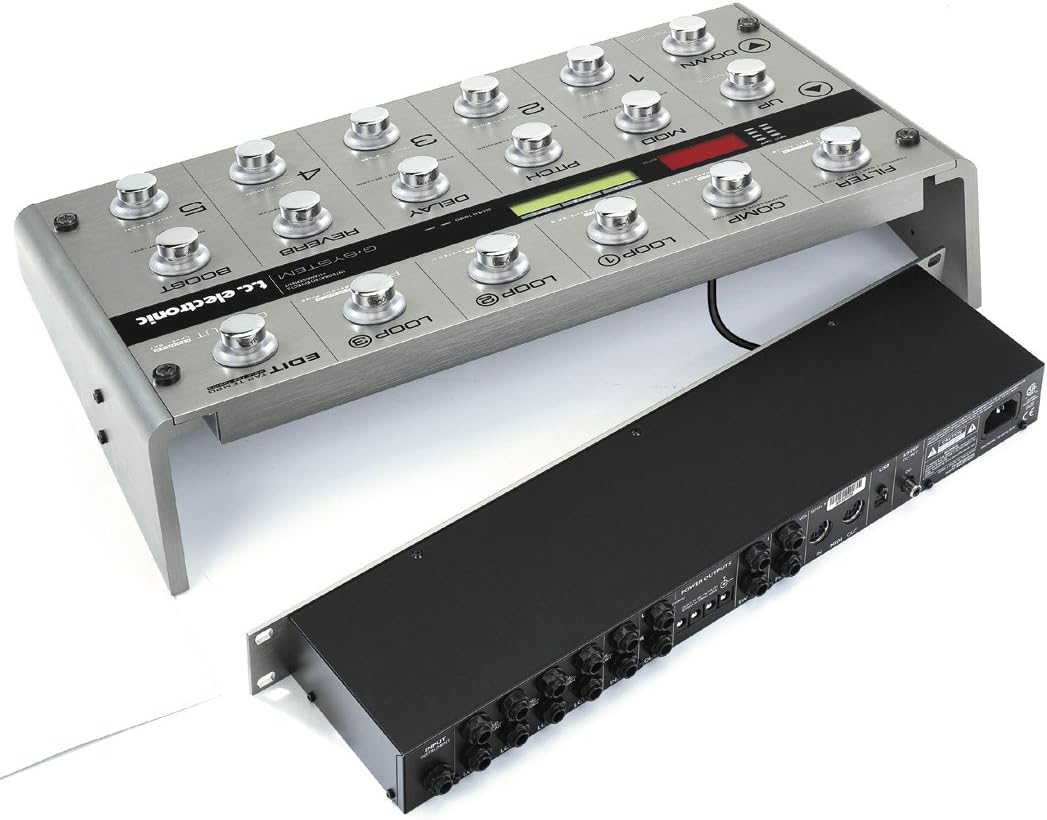

Figure 2: G-System Floor Unit and Rackmount Processor

Sąranka

Proper setup of your G-System is crucial for optimal performance. The unit offers versatile configuration options to integrate seamlessly with your existing guitar rig.

Fizinis išdėstymas

• Floor Unit Configuration: Place the G-System floor unit on a stable surface where it can be easily accessed by foot.
• Rackmount Configuration: If using the rackmount processor separately, install it in a standard 19-inch equipment rack. Connect the floor control board to the rack unit using a standard CAT5 cable (not included).

Jungtys

Visas įvesties ir išvesties jungtis žr. galinio skydelio schemoje.

Figure 3: G-System Rackmount Processor Rear Panel Connections

1. Gitaros įvestis: Connect your guitar to the 'INPUT INSTRUMENT' jack.
2. AmpLifto jungtis: Connect the 'OUTPUT 1' and 'OUTPUT 2' (L/R) jacks to your amplifier's input or effects return.
3. External Effects Loops: Use the 'LOOP 1' through 'LOOP 4' Send/Return jacks to integrate your favorite external pedals. These loops are typically used for drive/distortion pedals.
4. Galia: Connect the included power cable to the 'AC IN' port and a suitable power outlet.
5. USB: The USB port can be used for software updates and communication with a computer.
6. MIDI: MIDI IN/OUT ports allow for external MIDI control or synchronization.
7. S/PDIF išvestis: For digital audio output to a DAW or other digital devices.

Powering External Pedals

The G-System provides dedicated 9VDC power outputs for your external pedals. Connect your pedals to these outputs using appropriate power cables.

Figure 4: G-System with External Pedals

Veikiantis

The G-System is designed for intuitive operation, allowing quick access to effects and presets.

Pagrindinė navigacija

• UP/DOWN Footswitches: Navigate through presets or menu options.
• MENU MODE Footswitch: Access the main menu for deeper editing and system settings.
• ENTER/RETURN Footswitch: Confirm selections or return to the previous screen.

Iš anksto nustatytas pasirinkimas

The five footswitches (1-5) directly select presets within the current bank. The G-System holds 100 factory presets and 200 user memories, organized in banks of five.

Effect Control and Editing

The G-System features dedicated footswitches and encoders for controlling individual effects and parameters.

• Effect Footswitches: Engage or bypass individual effects such as MOD (Modulation), PITCH, DELAY, REVERB, FILTER, and COMP (Compressor).
• Encoders (A, B, C): Adjust parameters displayed on the LCD screen. The function of these encoders changes based on the selected effect or menu.
• LOOP Footswitches: Engage or bypass the external effects loops.
• TAP TEMPO: Set the tempo for time-based effects by tapping this footswitch.
• PAdidinti: Activate the pre-set boost level for solos or emphasis.

Išankstinių nustatymų išsaugojimas

To save your customized settings, hold down one of the footswitches (1-5) labeled 'HOLD TO STORE' until the save menu appears. Follow the on-screen prompts to store your preset.

Priežiūra

To ensure the longevity and optimal performance of your TC Electronic G-System, follow these maintenance guidelines:

• Valymas: Regularly wipe the unit with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or waxes, as these can damage the finish and internal components.
• Aplinkos sąlygos: Operate and store the G-System in a clean, dry environment. Avoid exposure to extreme temperatures, high humidity, direct sunlight, or excessive dust.
• Vėdinimas: Įsitikinkite, kad įrenginio ventiliacijos angos nėra užblokuotos, kad išvengtumėte perkaitimo.
• Firmware atnaujinimai: Periodically check the official TC Electronic website for firmware updates. Updates can provide new features, improvements, and bug fixes. Firmware can typically be updated via the USB port.
• Kabelių valdymas: Ensure all cables are securely connected and not under undue stress. Avoid bending cables sharply or placing heavy objects on them.

Trikčių šalinimas

If you encounter issues with your G-System, consider the following troubleshooting steps:

Nėra garso arba garsas skamba pertraukiamai

• Patikrinkite jungtis: Ensure all guitar, amplifier, and effects loop cables are securely plugged in and in the correct jacks.
• Maitinimas: Verify that the G-System is receiving power and the power cable is firmly connected.
• Garsumo lygiai: Check the input and output levels on the G-System, as well as your ampliferio tūris.
• Bypassed Effects: Ensure that the desired effects or loops are engaged and not bypassed.
• Išoriniai pedalai: If using external pedals in the loops, bypass them one by one to identify if a specific pedal is causing the issue.

Unexpected Effect Behavior

• Preset Check: Verify that you are on the intended preset and that its parameters are set correctly.
• Visuotiniai nustatymai: Some settings can affect all presets. Check the global settings menu for any unintended configurations.
• Gamykliniai nustatymai: As a last resort, a factory reset can restore the unit to its original settings. Consult the full manual on the TC Electronic website for instructions on performing a factory reset, as this will erase all user presets.

Ekrano problemos

• Kontrastas: Adjust the display contrast in the system settings if the screen is difficult to read.
• Maitinimo ciklas: Turn the unit off, wait a few seconds, and turn it back on.

For more detailed troubleshooting or issues not covered here, please refer to the comprehensive manual available on the official TC Electronic websvetainėje arba susisiekite su jų klientų aptarnavimo tarnyba.

Specifikacijos

Garantija ir palaikymas

For detailed warranty information, product registration, and technical support, please visit the official TC Electronic website. You can find comprehensive FAQs, downloadable manuals, and contact information for customer service there.

Oficialus Websvetainė: www.tcelectronic.com
