Wilson Antennas T5000 Center Loaded Mobile CB Antenna

Produktas baigtasview

The Wilson T5000 is a high-performance center-loaded mobile CB antenna designed for robust communication. It is engineered for exceptional power handling and durability, making it a preferred choice for mobile CB radio users. This antenna is built to withstand various weather conditions and offers flexible installation options.

• Worlds most powerful center loaded mobile CB antenna: Engineered for superior performance.
• 5,000 AM & 20,000 SSB Watts power handling capability (ICAS): Ensures reliable operation with high-power CB radios.
• Includes 5-inch and 10-inch shafts: Provides versatility for different mounting requirements.
• Weather-band ready: Capable of receiving weather band broadcasts.
• AM/FM Ready | Optimized for Maximum Performance: Designed for broad compatibility and efficiency.

Sąranka ir diegimas

Proper installation is crucial for the optimal performance of your Wilson T5000 antenna. Follow these guidelines carefully.

Įtraukti komponentai:

• Wilson T5000 Center Loaded Mobile CB Antenna
• 5-inch shaft
• 10-inch shaft
• 49-inch 17-7PH tapered spring stainless-steel whip

Antenos montavimas:

The T5000 antenna is designed for mobile applications, typically mounted on vehicles. Ensure a secure and stable mounting location, such as a mirror mount or a magnetic mount base. The antenna includes both 5-inch and 10-inch shafts to accommodate various mounting heights and vehicle types.

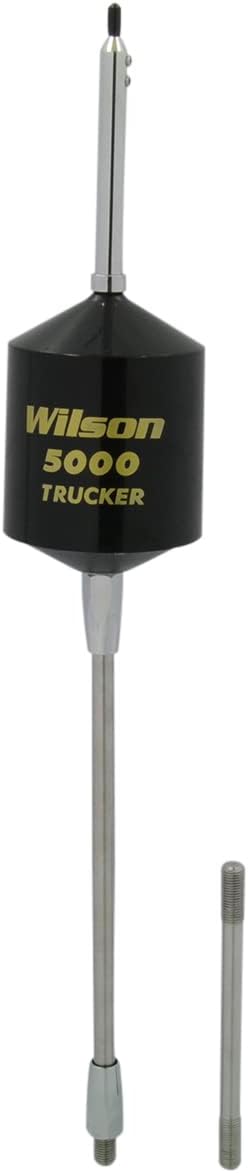

Figure 1: Wilson T5000 Center Loaded Mobile CB Antenna with included 5-inch and 10-inch shafts.

2 pav. Pvzample of the Wilson T5000 antenna mounted on a truck, demonstrating typical mobile installation.

Įžeminimas:

Proper grounding is essential for optimal antenna performance and to minimize interference. Ensure your antenna mount has a solid electrical connection to the vehicle's chassis or frame. In some cases, running additional 12-AWG wire grounds may be beneficial to ensure a robust ground connection.

SWR derinimas:

After installation, it is critical to tune the antenna for the lowest Standing Wave Ratio (SWR). This process involves adjusting the insertion depth of the whip into its mounting hole. A low SWR (ideally below 1.5:1 across the band) ensures maximum power transfer from your CB radio to the antenna and prevents damage to your radio. Use an SWR meter or an antenna tuner for accurate adjustment.

Atsargiai: The set screws securing the whip can be soft. Exercise extreme care during the tuning process to avoid stripping the inner hex (allen) slot.

Naudojimo instrukcijos

Once installed and tuned, the Wilson T5000 antenna is ready for operation with your CB radio.

• Galios valdymas: The antenna is rated for 5,000 AM and 20,000 SSB Watts ICAS (Intermittent Commercial and Amateur Service) power handling. Ensure your radio's output power does not exceed these limits to prevent antenna damage.
• Dažnių diapazonas: The antenna is optimized for the CB radio frequency band (26.965-27.405 MHz).
• Orų grupė: The T5000 is weather-band ready, allowing reception of NOAA weather radio broadcasts if your CB radio supports this feature.
• Optimalus našumas: For best results, operate your CB radio within its specified power limits and ensure the antenna remains properly tuned.

Priežiūra

Regular maintenance will extend the life and performance of your Wilson T5000 antenna.

• Valymas: Periodically clean the antenna, especially the coil and whip, to remove dirt, grime, and road salt. Use a mild soap and water solution, then rinse thoroughly.
• Patikra: Regularly inspect the antenna for any signs of wear, damage, or loose connections. Check the mounting hardware and coaxial cable for integrity.
• Apsauga: The high-impact Mobay thermoplastic protects the antenna in various weather conditions. However, avoid physical impacts, such as hitting tree limbs, as this can cause cracks or breaks in the load coil housing.
• Saugykla: The removable coil design allows for safe storage and makes it easier to pull into garages or low-clearance areas. When storing the antenna for extended periods, ensure it is clean and dry.

Trikčių šalinimas

Jei kyla problemų dėl antenos, apsvarstykite šiuos trikčių šalinimo veiksmus:

• Dideli SWR rodmenys:
  • Re-check SWR tuning by adjusting the whip's insertion depth.
  • Patikrinkite, ar antenos laikiklis tinkamai įžemintas prie transporto priemonės važiuoklės.
  • Inspect the coaxial cable for kinks, damage, or faulty connectors.
  • Ensure the antenna is not too close to other metal objects on the vehicle that could interfere with its radiation pattern.
• Prastas priėmimas / perdavimas:
  • Confirm low SWR. High SWR can significantly reduce performance.
  • Check all connections between the antenna, coaxial cable, and CB radio.
  • Įsitikinkite, kad antena sumontuota švarioje, neuždengtoje vietoje.
• Loose or Damaged Plastic Housing:
  • If the outer plastic housing turns while tightening the antenna, it may need to be re-glued. Handle gently during installation.
  • Physical damage from impacts (e.g., tree limbs) can crack the housing. While the Mobay thermoplastic is durable, extreme force can cause damage.

Specifikacijos

Informacija apie garantiją

The Wilson T5000 Center Loaded Mobile CB Antenna comes with a 1 metų ribota garantija iš gamintojo. Ši garantija taikoma medžiagų ir gamybos defektams, atsiradusiems įprasto naudojimo sąlygomis. Išsaugokite pirkimo įrodymą, jei galėtumėte pateikti pretenzijas dėl garantijos.

For detailed warranty terms and conditions, please refer to the official Wilson Antennas websvetainėje arba susisiekite su jų klientų aptarnavimo tarnyba.

Pagalba klientams

For further assistance, technical support, or inquiries regarding your Wilson T5000 antenna, please contact Wilson Antennas customer service or visit their official websvetainę.
