Welcome to your new Laney CUB-Head amplifier. This manual provides essential information for the safe and optimal use of your amplifier. The CUB-Head is a compact, all-tube amplifier head designed to deliver classic British valve tone. It features a versatile control set and flexible power options suitable for various playing environments.
Image: Laney CUB-Head ampkeltuvo galva.
Svarbios saugos instrukcijos
- Perskaitykite šias instrukcijas. Išsaugokite šias instrukcijas. Atkreipkite dėmesį į visus įspėjimus. Vykdykite visas instrukcijas.
- Nenaudokite šio prietaiso šalia vandens.
- Valykite tik sausa šluoste.
- Neužblokuokite jokių ventiliacijos angų. Montuokite pagal gamintojo instrukcijas.
- Nemontuokite šalia jokių šilumos šaltinių, pvz., radiatorių, šilumokaičių, viryklių ar kitų įrenginių (įskaitant ampkeltuvai), kurie gamina šilumą.
- Nepažeiskite poliarizuoto arba įžeminto kištuko saugos tikslo.
- Saugokite maitinimo laidą, kad ant jo neužeitų ar nesuspaustų.
- Naudokite tik gamintojo nurodytus priedus/priedus.
- Atjunkite šį įrenginį žaibuojant arba kai nenaudojate ilgą laiką.
- Visus techninės priežiūros darbus patikėkite kvalifikuotam techninės priežiūros personalui.
Pagrindinės savybės
- 15 Watts RMS or <1 Watt RMS selectable power output.
- Preamp section features 3 x ECC83 tubes.
- Galia amp section features 2 x EL84 tubes.
- Comprehensive tone controls: Gain, Treble, Middle, Bass, Volume, Tone, and Reverb.
- Integrated Effects Loop for external effects pedals.
- Footswitch socket for Reverb control.
- Multiple speaker output options (8 Ohm & 16 Ohm).
Sąranka ir jungtys
Išpakavimas
Carefully unpack your CUB-Head amplifier. Retain all packaging materials for future transport.
Maitinimo prijungimas
Užtikrinti, amplifier's power switch is in the OFF position. Connect the supplied power cord to the IEC inlet on the rear panel and then to a suitable mains power outlet.
Garsiakalbio prijungimas
The CUB-Head requires an external speaker cabinet. Connect a speaker cable from one of the speaker output sockets (8 Ohm or 16 Ohm) on the rear panel to your speaker cabinet's input. Ensure the impedance matches.
ĮSPĖJIMAS:
Niekada nenaudokite amplifier without a speaker cabinet connected. This can cause severe damage to the ampgyvesnis.
Instrumento prijungimas
Connect your guitar to either the 15W or <1W input jack on the front panel using a high-quality instrument cable.
Effects Loop Connection
For connecting external effects pedals, use the FX Send/Line Out and FX Return sockets on the rear panel. Connect the FX Send to the input of your effects unit and the output of your effects unit to the FX Return.
Kojinio jungiklio jungtis
Connect an optional footswitch to the Footswitch socket on the rear panel to remotely switch the Reverb effect.
Operacija
Priekinio skydelio valdikliai
Image: Front control panel of the Laney CUB-Head ampgyvesnis.
- Maitinimo jungiklis: Perjungia amplifier ON/OFF. Allow a brief warm-up period after switching ON.
- INPUT 15W: Standard input for full 15-watt output.
- INPUT <1W: Low power input, reducing output to approximately 0.75 watts. Ideal for achieving power amp compression at lower volumes.
- GAUTIS: Kontroliuoja iš anksto kiekįamp overdrive and distortion. Higher settings increase saturation.
- TREBLE: Reguliuoja aukšto dažnio atsaką.
- VIDURIO: Reguliuoja vidutinio dažnio atsaką.
- BOSAS: Reguliuoja žemo dažnio atsaką.
- TŪRIS: Valdo bendrą išvesties lygį ampgyvesnis.
- TONAS: A global tone control that shapes the overall frequency balance.
- REVERB: Adjusts the amount of built-in digital reverb effect.
Galinio skydelio jungtys

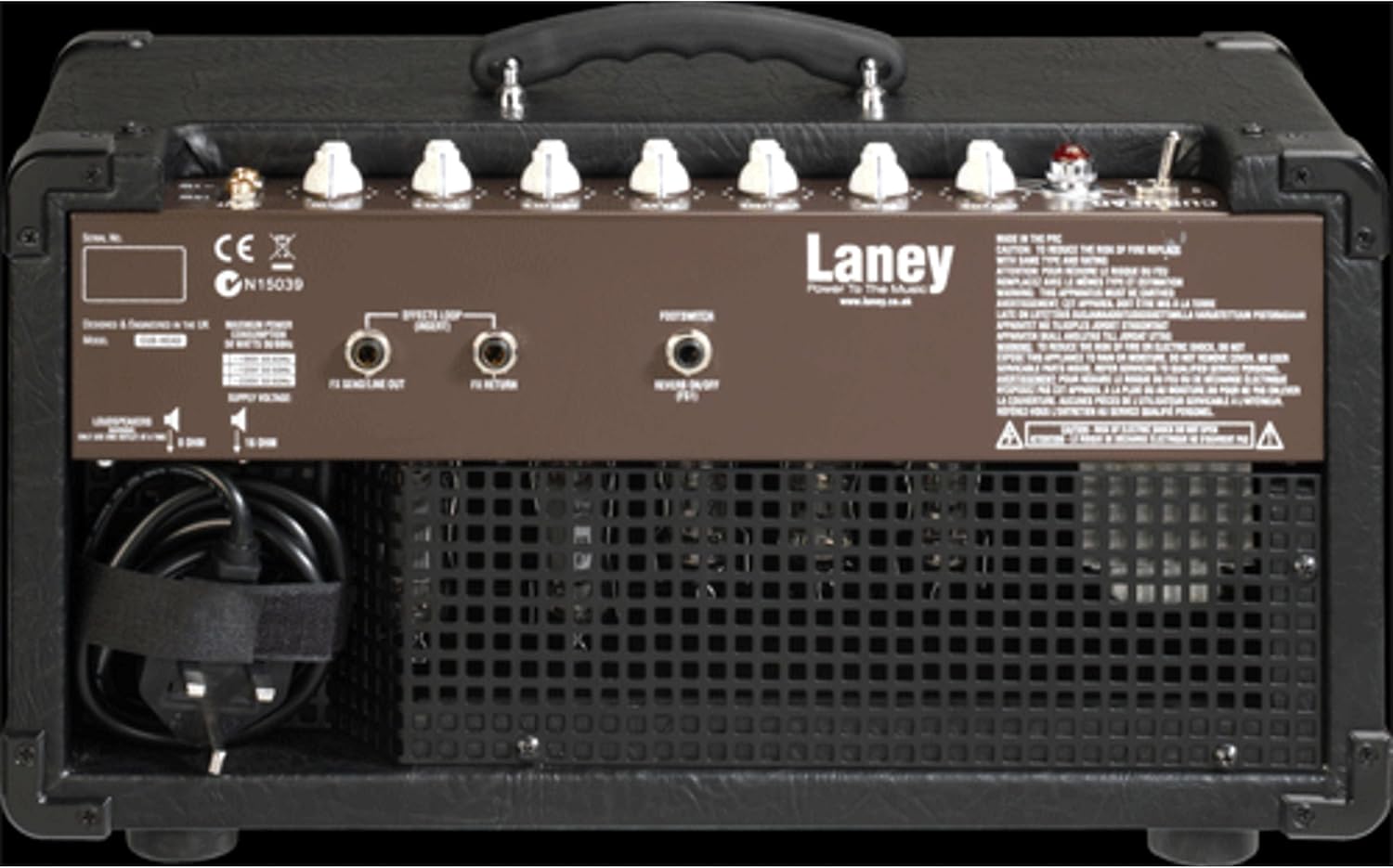

Image: Rear panel connections of the Laney CUB-Head ampgyvesnis.
- MAITINIMO ĮVADAS: Connects to mains power via the supplied IEC cable.
- SPEAKER OUT (8 Ohm & 16 Ohm): Connect to external speaker cabinets. Ensure correct impedance matching.
- FX SEND/LINE OUT: Output for the effects loop, can also be used as a line out.
- FX RETURN: Input for the effects loop.
- JUNGIKLIS KOJONAS: Connects an optional footswitch for remote Reverb control.
Priežiūra
Valymas
Išvalykite amplifier's exterior with a soft, dry cloth. Avoid abrasive cleaners or solvents.
Vamzdžio keitimas
Vacuum tubes have a finite lifespan and will eventually need replacement. This should only be performed by qualified service personnel. Contact an authorized Laney service center for tube replacement.
Sandėliavimas
Kai nenaudojate, laikykite amplifier in a dry, cool environment, away from direct sunlight and extreme temperatures.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra galios | Power cord disconnected; Power outlet faulty; Fuse blown. | Check power cord connection; Try a different outlet; Consult qualified service personnel for fuse replacement. |
| Nėra garso | Speaker not connected; Instrument cable faulty; Volume/Gain set to zero; Faulty tubes. | Ensure speaker is connected and impedance matched; Test with a different instrument cable; Check Volume/Gain settings; Consult qualified service personnel. |
| Silpnas arba iškraipytas garsas | Faulty tubes; Incorrect impedance match; Speaker damage. | Consult qualified service personnel for tube inspection; Verify speaker impedance; Check speaker for damage. |
| Per didelis ūžesys ar triukšmas | Ground loop; Faulty instrument cable; Proximity to other electronic devices. | Ensure proper grounding; Try a different instrument cable; Move ampatokiau nuo kitų elektronikos prietaisų. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelis | CUB-HEAD |
| Išėjimo vattage | 15 Watts RMS (selectable to <1 Watt) |
| Preamp Vamzdžiai | 3 x ECC83 |
| Galia Amp Vamzdžiai | 2 x EL84 |
| Valdikliai | Gain, Treble, Middle, Bass, Volume, Tone, Reverb |
| Įėjimai | 15W Input, <1W Input (6.35mm Jack) |
| Išėjimai | 8 Ohm Speaker Out, 16 Ohm Speaker Out |
| Efektų kilpa | Send/Line Out, Return |
| Kojinis jungiklis | Yes (for Reverb) |
| Maitinimo šaltinis | Su laidu elektra |
| Prekės svoris | 8.48 svaro (3.85 kg) |
| Gaminio matmenys (D x P x A) | 9.25 x 17.13 x 9.76 colio (23.5 x 43.5 x 24.8 cm) |
Image: Dimensions of the Laney CUB-Head ampgyvesnis.
Informacija apie garantiją
Laney products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Laney websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.
Pagalba ir aptarnavimas
Should you encounter any issues or require technical assistance, please contact your authorized Laney dealer or visit the official Laney webpagalbos išteklių ir aptarnavimo centrų adresų svetainė.
Official Laney Websvetainė: www.laney.co.uk
