Įvadas
Thank you for choosing the GROHE Rainshower Cosmopolitan 310 Shower Head. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower head. Please read these instructions carefully before installation and retain them for future reference.

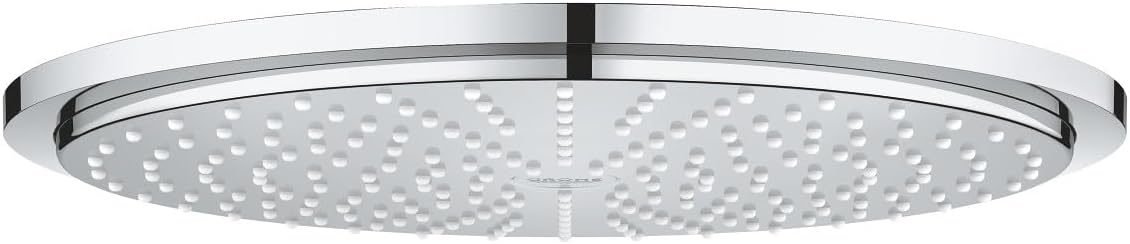

Image: The GROHE Rainshower Cosmopolitan 310 Shower Head, showcasing its sleek chrome finish and wide spray face.
Saugos informacija
Kad išvengtumėte sužalojimų ar gaminio sugadinimo, laikykitės šių saugos priemonių:
- Prieš pradėdami montuoti, įsitikinkite, kad visos vandens tiekimo linijos yra išjungtos.
- Naudokite tinkamus įrankius ir laikykitės visų vietinių santechnikos taisyklių.
- Neperveržkite jungčių, nes tai gali pažeisti gaminį arba santechniką.
- Jei abejojate dėl kurio nors žingsnio, kreipkitės į kvalifikuotą santechniką.
- Smulkias dalis laikykite vaikams nepasiekiamoje vietoje.
Pakuotės turinys
Prieš tęsdami montavimą, patikrinkite, ar yra visi komponentai:
- GROHE Rainshower Cosmopolitan 310 Shower Head (Model 27477000)
- Montavimo instrukcijos
Note: Additional components such as a shower arm or rough-in valve are sold separately.
Sąranka ir diegimas
This section outlines the steps for installing your GROHE Rainshower Cosmopolitan 310 Shower Head. Professional installation is recommended.
- Paruoškite montavimo vietą: Ensure the water supply to the shower is turned off. Remove any existing shower head and clean the shower arm threads.
- Užtepkite sriegių sandariklį: Apply plumber's tape (PTFE tape) clockwise around the threads of the shower arm. This helps create a watertight seal.
- Pritvirtinkite dušo galvutę: Carefully screw the GROHE Rainshower Cosmopolitan 310 Shower Head onto the shower arm. Hand-tighten first, then use a wrench to tighten an additional quarter to half turn. Do not overtighten.
- Sureguliuokite kampą: The shower head features a ball joint with a ±20° rotation angle, allowing you to adjust the spray direction.
- Patikrinkite, ar nėra nuotėkių: Turn on the water supply and check all connections for leaks. If leaks occur, tighten slightly more or reapply thread sealant.
Image: Technical drawing illustrating the dimensions and G 1/2 inch connection thread of the GROHE Rainshower Cosmopolitan 310 Shower Head. The diameter is 310mm.

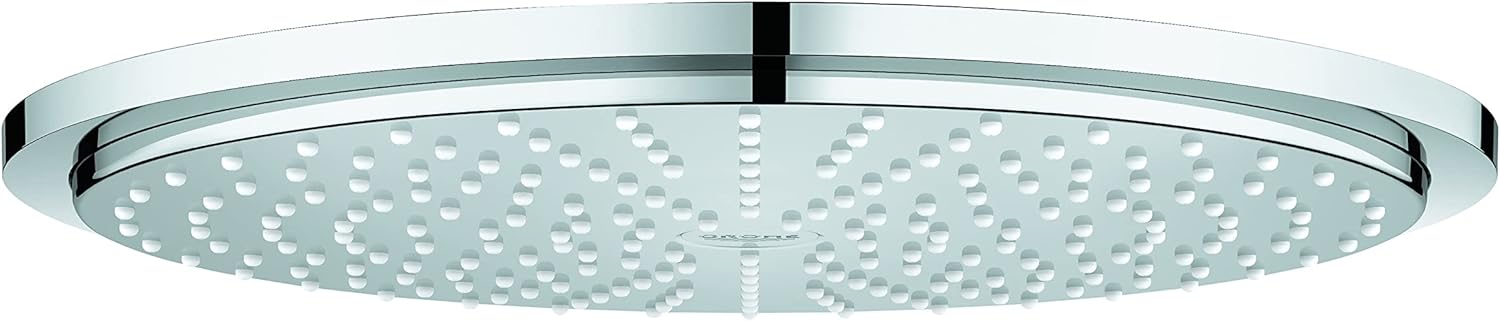

Vaizdas: Stambus planas view of the GROHE Rainshower Cosmopolitan 310 Shower Head's spray face, highlighting the SpeedClean anti-limescale nozzles.
Naudojimo instrukcijos
The GROHE Rainshower Cosmopolitan 310 Shower Head is designed for a single, luxurious Rain spray pattern.
- Activating the Spray: Once installed, simply turn on your shower's water supply. The shower head will immediately deliver a wide, even Rain spray.
- Kampo reguliavimas: The integrated ball joint allows for a ±20° rotation. Gently tilt the shower head to direct the water flow as desired.
- Vandens slėgis: The GROHE DreamSpray technology ensures a perfect spray pattern even with varying water pressures.
Priežiūra
Regular cleaning will ensure the longevity and optimal performance of your shower head.
- Paviršiaus valymas: Clean the chrome surface with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or cleaners containing alcohol, acid, or ammonia, as these can damage the finish.
- „SpeedClean“ apsaugos nuo kalkių sistema: The nozzles are equipped with GROHE SpeedClean. To remove limescale deposits, simply wipe the silicone nozzles with your finger or a soft cloth. This should be done regularly to maintain the spray pattern.
- Filter Screen (if applicable): Periodically check and clean any filter screen located at the connection point to prevent debris from affecting water flow.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Sumažėjęs vandens srautas arba netolygus purškimas. | Limescale buildup in nozzles or debris in the filter screen. | Clean SpeedClean nozzles by wiping them. Check and clean the filter screen at the shower arm connection. |
| Vanduo teka iš prijungimo taško. | Atsilaisvinusi jungtis arba nepakankamas sriegių sandariklis. | Ensure the shower head is securely tightened. Reapply plumber's tape to the shower arm threads and reattach. |
| Shower head does not stay in desired angle. | Ball joint may be loose or worn. | Check if the ball joint can be tightened (some models allow this). If not, contact GROHE customer support. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelio numeris | 27477000 |
| Prekės ženklas | GROHE |
| Stilius | Cosmopolitan shower head |
| Forma | Apvalus |
| Medžiaga | Metalas |
| Apdailos tipas | Chrome |
| Diegimo tipas | Universalus naudojimas |
| Nustatymų skaičius | 1 (Rain) |
| Efektyvumas | 9.5 LPM |
| Ryšio gija | G 1/2 colio |
| Sukimosi kampas | ±20° |
| Skersmuo | 310 mm (maždaug 12.2 coliai) |
| Svoris | 4.07 kilogramo (maždaug 8.97 svarai) |
| Ypatingos savybės | GROHE DreamSpray, GROHE StarLight, SpeedClean anti-limescale system |
| Suderinamumas | Tinka momentiniams vandens šildytuvams |
Garantija ir palaikymas
The GROHE Rainshower Cosmopolitan 310 Shower Head comes with a 5 metų gamintojo garantija.
For warranty claims, technical assistance, or further inquiries, please contact GROHE customer support through their official website or authorized service centers. Please have your model number (27477000) and proof of purchase available.
You can find more information and contact details on the official GROHE websvetainė: www.grohe.com
