Svarbi saugos informacija
Operating power equipment requires adherence to strict safety guidelines to prevent injury. Always read and understand the entire manual before operating the trimmer.
- Visada dėvėkite akių apsaugos priemones ir tvirtus batus.
- Laikykite pašalinius žmones saugiu atstumu.
- Neeksploatuokite ant šlapių ar slidžių paviršių.
- Always turn off the trimmer and allow the engine to cool before refueling.
- Never carry the trimmer with the engine running.
- Always follow the manufacturer's instructions for safe operation.
Produktas baigtasview
The ECHO GT-225 is a 2-cycle, 21.2cc gas-powered string trimmer designed for efficient lawn and garden maintenance. It features a curved shaft for maneuverability and an easy-to-use design.
Pagrindinės savybės
- 21.2cc professional-grade, 2-stroke engine for reliable power.
- 48-inch curved shaft with flex cable drive for comfortable operation.
- i-30 starting system designed to reduce starting effort by 30%.
- 14.9 fl oz capacity see-through fuel tank for easy fuel level monitoring.
- Equipped with a 2-line Rapid-Loader™ trimmer head for quick line changes.
- Lightweight design at approximately 10 pounds for reduced user fatigue.
- 16-inch cutting swath for efficient trimming.

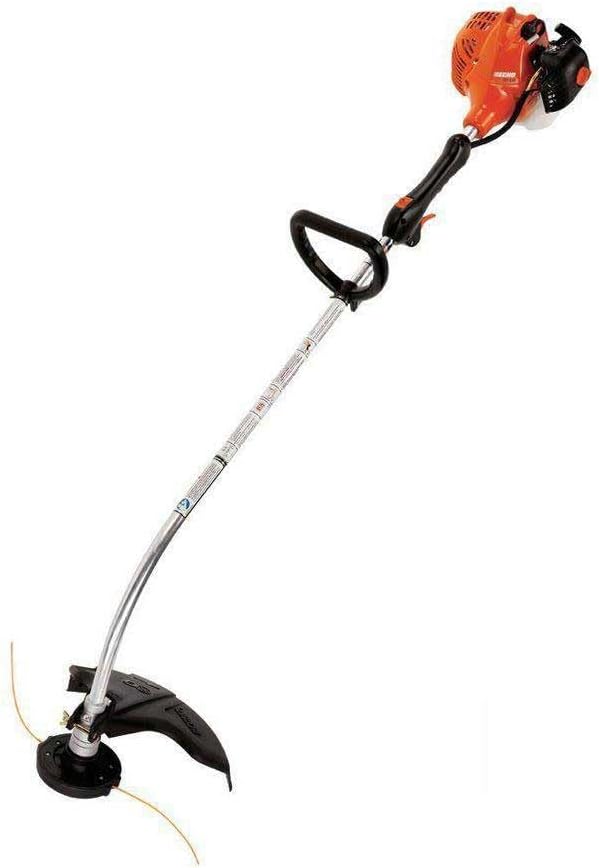

1 pav.: Pilnas view of the ECHO GT-225 Curved Shaft Gas Trimmer.
Figure 2: Labeled diagram highlighting key features such as the engine, shaft, fuel tank, and trimmer head.
Figure 3: Close-up of the ergonomic handle and integrated controls, including the throttle and stop switch.
4 paveikslas: View of the 21.2cc engine and the translucent fuel tank, allowing for easy fuel level checks.
Figure 5: Top-down perspective of the engine, showing the air filter cover and starter mechanism.
Figure 6: Close-up of the trimmer head with the protective guard, designed for user safety and debris deflection.
Sąranka ir surinkimas
The ECHO GT-225 may require minor assembly before first use. Follow these steps to prepare your trimmer for operation:
- Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar yra visos pakavimo sąraše išvardytos dalys.
- Rankenos surinkimas: Attach the auxiliary handle to the shaft at a comfortable operating position. Ensure it is securely tightened.
- Apsauginio dangčio montavimas: Mount the debris shield/guard over the trimmer head according to the instructions. This guard is crucial for operator safety.
- Kuro paruošimas: The GT-225 uses a 2-cycle engine. Mix fresh unleaded gasoline with a high-quality 2-cycle engine oil at the ratio specified in your engine manual (typically 50:1). Do not use E85 fuel.
- Degalų papildymas: Fill the fuel tank with the prepared fuel mixture. Ensure the fuel cap is securely fastened.
- Žoliapjovės valas: Ensure the trimmer head is loaded with the appropriate pre-cut trimmer line. Refer to the maintenance section for detailed line replacement instructions.
Naudojimo instrukcijos
Starting the Engine (Cold Start)
- Padėkite žoliapjovę ant lygaus, stabilaus paviršiaus.
- Move the choke lever to the 'COLD START' position.
- Kelis kartus paspauskite degalų pildymo lemputę, kol grįžtamojoje linijoje pamatysite degalų.
- Tvirtai ir sklandžiai traukite starterio virvę, kol variklis bandys užsivesti (paprastai 1–2 kartus).
- Once the engine 'coughs' or attempts to start, move the choke lever to the 'RUN' position.
- Dar kartą traukite starterio virvę, kol variklis užsives ir veiks sklandžiai.
- Prieš įjungdami akceleratorių, leiskite varikliui kelias akimirkas apšilti.
Naudojant žoliapjovę
- Tvirtai laikykite žoliapjovę abiem rankomis, išlaikydami pusiausvyrą.
- Laikykite žoliapjovės galvutę lygiagrečiai žemei, kad pjovimas būtų lygus.
- Maintain a safe distance from objects, people, and animals.
- Avoid hitting hard surfaces, rocks, or metal objects with the trimmer line, as this can cause line breakage and potential damage.
- To feed more line, gently tap the trimmer head on the ground while the engine is running at full throttle. The Rapid-Loader™ head will automatically advance the line.
Variklio sustabdymas
- Atleiskite droselio gaiduką.
- Press the engine stop switch to the 'OFF' position.
Priežiūra
Regular maintenance ensures optimal performance and extends the life of your ECHO GT-225 trimmer.
Kuras ir alyva
- Always use fresh, properly mixed 2-cycle fuel. Stale fuel can cause starting issues and engine damage.
- Kurą laikykite patvirtintoje talpykloje vėsioje, sausoje vietoje.
Žoliapjovės valo keitimas
The GT-225 uses a Rapid-Loader™ head designed for pre-cut line segments. This system simplifies line replacement compared to traditional spool winding.
- Įsitikinkite, kad variklis išjungtas ir atvėsęs.
- Locate the two holes on the trimmer head where the line exits.
- Pull out any remaining short pieces of trimmer line.
- Insert new pre-cut line segments (typically 9-10 inches long) into the holes until they are securely seated.
- Use high-quality trimmer line for best performance and durability.
Valymas
- After each use, clean debris from the trimmer head, guard, and engine cooling fins.
- Periodically clean or replace the air filter to ensure proper engine breathing.
Sandėliavimas
- Ilgalaikio sandėliavimo metu ištuštinkite degalų baką ir leiskite varikliui veikti, kol jis sustos, kad išvalytumėte karbiuratorių.
- Store the trimmer in a clean, dry place, away from direct sunlight and extreme temperatures.
Trikčių šalinimas
This section provides solutions to common operational issues. For problems not listed here, consult an authorized service center.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Variklis neužsiveda | No fuel, stale fuel, incorrect choke setting, fouled spark plug, clogged fuel filter. | Check fuel level and freshness. Ensure choke is set correctly. Clean/replace spark plug. Check/replace fuel filter. |
| Variklis veikia prastai arba užgęsta | Incorrect fuel mixture, clogged air filter, dirty carburetor, spark plug issue. | Verify fuel mixture. Clean air filter. Clean carburetor (professional service recommended). Inspect spark plug. |
| Žoliapjovės linija nesimaitina | Line too short, incorrect line installation, debris in head. | Replace with new pre-cut line segments. Ensure line is properly inserted. Clear any debris from the trimmer head. |
| Per didelė vibracija | Pažeista žoliapjovės galvutė, sulenktas velenas, atsilaisvinusios dalys. | Inspect trimmer head for damage. Check all fasteners for tightness. If shaft is bent, seek professional service. |
Techninės specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Prekės ženklas | ECHO |
| Modelio numeris | GT-225 |
| Maitinimo šaltinis | Varomas benzinu |
| Variklio darbinis tūris | 21.2cc |
| Variklio tipas | 2-ciklas |
| Prekės svoris | 10 svaro |
| Pjovimo plotis | 16 inches (Note: '1700 Inches' from source is likely an error and corrected to 16 inches based on common trimmer specs and labeled image) |
| Gaminio matmenys | 15.13"L x 12.36"W (Engine/Head dimensions, overall length not specified but shaft is 48") |
| Greitis | 7500 aps./min |
| Reikalingas surinkimas | Taip |
| UPC | 743184994719 |
Garantija ir palaikymas
For specific warranty details, please refer to the warranty card included with your product or visit the official ECHO websvetainėje. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą bet kokiems garantiniams prašymams.
If you require technical assistance, replacement parts, or service, please contact ECHO customer support or an authorized ECHO service dealer. Contact information can typically be found on the ECHO websvetainėje arba savo produkto dokumentacijoje.
