„Zurn P6003-H 3/4“ „Spud“ apsauginio dangtelio ir movos mazgo naudotojo vadovas

1. Įvadas

This manual provides detailed instructions for the proper installation, operation, and maintenance of the Zurn P6003-H 3/4" Spud Escutcheon and Coupling Assembly. This component is designed for use with Zurn AquaVantage/Aquaflush and Sloan Royal/Regal valve bodies, ensuring a secure and leak-free connection in plumbing systems.

Please read this manual thoroughly before beginning installation to ensure correct procedures are followed and to prevent potential damage or malfunction.

2. Produkto aprašymas ir komponentai

The Zurn P6003-H assembly consists of a spud escutcheon, a coupling, and associated seals/gaskets. These parts work together to connect a flush valve to the fixture, providing a finished appearance and a watertight seal.

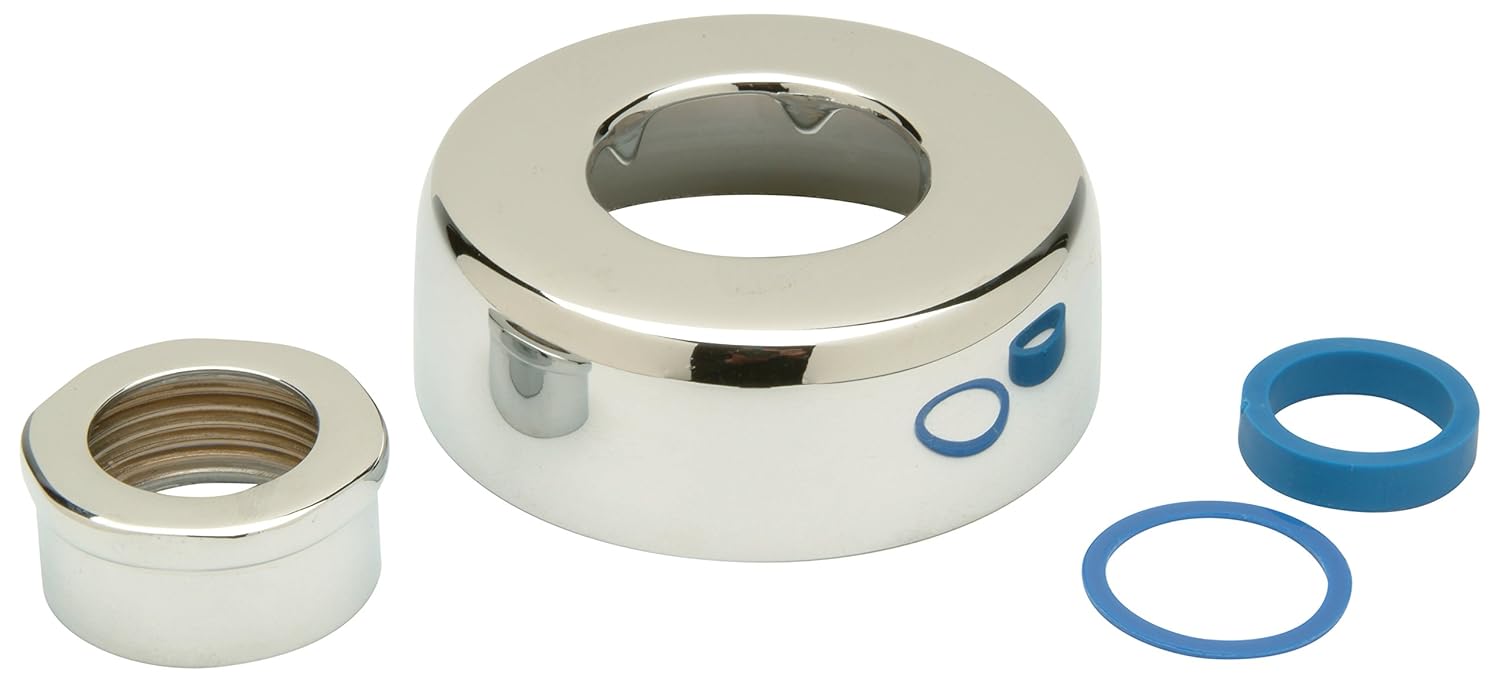

Figure 2.1: Components of the Zurn P6003-H assembly. Shown are the chrome-plated escutcheon, the threaded coupling, and two blue rubber seals/gaskets.

Pagrindiniai komponentai:

• Escutcheon: The decorative cover that conceals the connection point, typically chrome-plated.
• Sujungimas: The threaded component that secures the flush valve to the fixture's spud.
• Seals/Gaskets: Rubber or synthetic rings that provide a watertight seal between components.

3. Montavimas

Reikalingi įrankiai:

• Adjustable wrench or spud wrench
• Santechniko juosta (nebūtina, srieginėms jungtims)
• Švarus audinys

Diegimo žingsniai:

1. Paruoškite tvirtinimą: Ensure the fixture's spud opening is clean and free of debris. If replacing an old assembly, remove all old components and clean the area thoroughly.
2. Install the First Seal: Place one of the blue rubber seals onto the spud of the fixture. Ensure it sits flush against the fixture surface.
3. Position the Escutcheon: Slide the chrome escutcheon over the spud, resting it against the first seal.
4. Install the Second Seal: Place the second blue rubber seal onto the spud, on top of the escutcheon.
5. Attach the Coupling: Thread the coupling onto the spud. Hand-tighten first to ensure proper alignment and to avoid cross-threading.
6. Tighten the Coupling: Using an adjustable wrench or spud wrench, carefully tighten the coupling. Do not overtighten, as this can damage the seals or the fixture. Tighten until snug and the escutcheon is held firmly in place, providing a watertight seal.
7. Connect Flush Valve: Once the spud assembly is secure, proceed with connecting the flush valve body according to its specific instructions.
8. Testas dėl nuotėkio: After completing the flush valve installation, turn on the water supply and check for any leaks around the spud escutcheon and coupling assembly. If leaks are present, gently tighten the coupling further or re-evaluate the seal placement.

4. Operacija

The Zurn P6003-H Spud Escutcheon and Coupling Assembly is a passive component designed to provide a secure and aesthetic connection for flush valves. Its "operation" is inherent in its proper installation, ensuring the flush valve functions correctly without leaks at the fixture connection point.

Once installed, the assembly requires no active user interaction for its function. Its primary role is to maintain a sealed connection between the flush valve and the urinal or water closet spud.

5. Priežiūra

Regular maintenance of the Zurn P6003-H assembly is minimal but important for longevity and preventing issues.

• Periodinis patikrinimas: Periodically inspect the area around the escutcheon and coupling for any signs of water leaks, corrosion, or damage to the seals.
• Valymas: Clean the chrome escutcheon with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.
• Sandariklio keitimas: If leaks occur and tightening does not resolve the issue, the rubber seals may be worn or damaged. Replace them with genuine Zurn replacement parts to ensure proper fit and sealing.

6. Problemų sprendimas

7. Specifikacijos

8. Garantija ir palaikymas

Specific warranty information for the Zurn P6003-H 3/4" Spud Escutcheon and Coupling Assembly is typically provided with the product packaging or can be found on the official Zurn websvetainėje. Išsamesnės informacijos apie garantijos aprėptį ir sąlygas rasite prie pirkimo pridėtoje dokumentacijoje.

For technical support, replacement parts, or further assistance, please contact Zurn customer service through their official websvetainėje arba kontaktinę informaciją, pateiktą jūsų produkto dokumentuose.

Note: Always use genuine Zurn replacement parts to ensure compatibility and maintain product performance.
