Medline Guardian G30213-1F Deluxe Folding Bedside Commode Instruction Manual

Įvadas

Welcome to your Medline Guardian G30213-1F Deluxe Folding Bedside Commode. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your commode. Please read all instructions carefully before use and retain this manual for future reference.

This versatile 3-in-1 unit functions as a bedside commode, a toilet seat riser, and safety rails over an existing toilet. Its folding design allows for easy storage and transport, making it a convenient solution for various needs.

Svarbi saugos informacija

Norėdami užtikrinti saugų darbą ir išvengti sužalojimų, laikykitės šių saugos nurodymų:

• Didžiausia svorio talpa: Do not exceed the maximum weight capacity of 350 pounds (158 kg). Exceeding this limit may result in product failure and serious injury.
• Tinkamas surinkimas: Ensure all parts are correctly assembled and securely locked into place before each use.
• Stabilus paviršius: Always use the commode on a flat, level, and stable surface to prevent tipping.
• Reguliarus patikrinimas: Periodically inspect the commode for any signs of wear, damage, or loose components. Do not use the commode if any parts are damaged, missing, or if it appears unstable. Contact Medline customer service for replacement parts or assistance.
• Profesionali konsultacija: Consult a healthcare professional or caregiver for proper usage guidance, especially if you have mobility limitations or specific medical conditions.
• Avoid Standing: Do not stand on the commode. It is designed for sitting only.
• Švara: Maintain proper hygiene by cleaning the commode regularly as instructed in the Maintenance section.

Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi šie komponentai:

• Folding Commode Frame (with adjustable legs)
• Clip-on Seat
• Commode Pail
• Pail Lid
• Purslų apsauga

Sąranka ir surinkimas

The Medline Guardian G30213-1F commode is designed for quick, tool-free assembly. Follow these steps:

1. Išskleiskite rėmą: Carefully unfold the commode frame until it is fully open. Ensure that all locking mechanisms on the frame click into place, indicating a secure setup.
2. Pritvirtinkite sėdynę: Position the clip-on seat onto the top of the commode frame. Press down firmly on all sides until the seat snaps securely into place.
3. Insert Pail or Splash Guard: From underneath the seat, insert either the commode pail or the splash guard into the opening. Ensure it is seated correctly and securely.
4. Pail Lid: If using the commode pail, place the pail lid on top when the commode is not in use to contain odors.

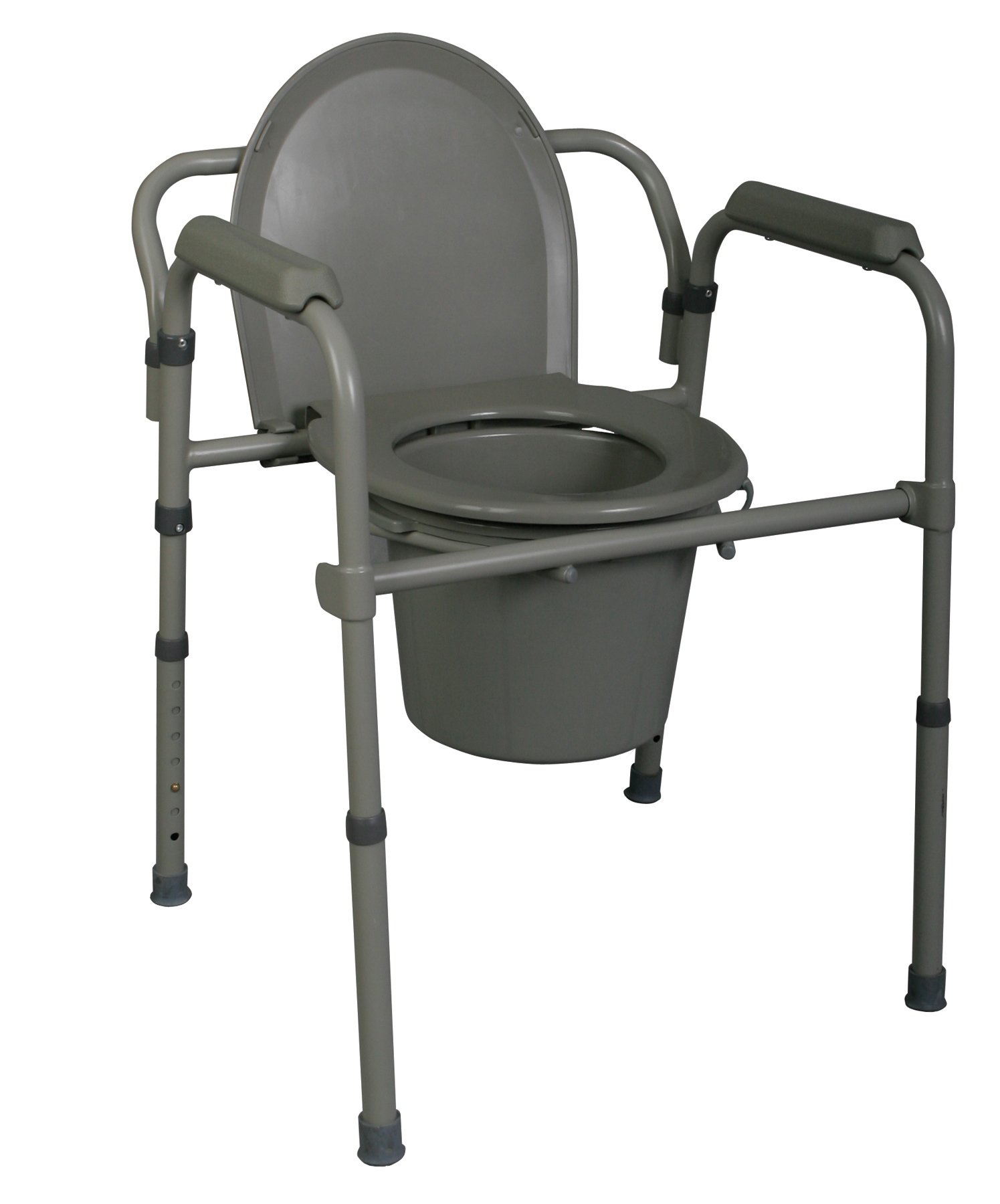

Image: The Medline Guardian G30213-1F Deluxe Folding Bedside Commode, fully assembled and ready for use. It features a grey seat, a pail underneath, and a chrome-finished steel frame.

Naudojimo instrukcijos

As a Bedside Commode

Place the commode next to the bed on a flat, stable surface. Ensure the commode pail is correctly inserted and the pail lid is removed before use. After use, replace the lid and empty the pail as soon as possible.

As a Toilet Seat Riser and Safety Rails

To use the commode over an existing toilet, first remove the commode pail and insert the splash guard. Position the commode over the toilet bowl, ensuring it is stable and centered. Adjust the height as needed (refer to the 'Height Adjustment' section) so that the commode legs are firmly on the floor. The sturdy arms provide stable support for sitting down and standing up from the toilet.

Aukščio reguliavimas

The commode's height can be adjusted to suit individual user needs and to fit over various toilet heights. Follow these steps:

1. Raskite reguliavimo kaiščius: On each leg of the commode, locate the spring-loaded push-button pins.
2. Reguliuoti aukštį: Press the pin and slide the leg up or down to the desired height. Release the pin, ensuring it fully engages in one of the adjustment holes.
3. Ensure Even Height: Repeat for all four legs, ensuring they are all adjusted to the same height. Verify that all pins are fully engaged and the commode is stable before use.

The minimum height for the commode seat is approximately 16.5 inches.

Priežiūra ir valymas

Regular cleaning and maintenance are crucial for hygiene, safety, and extending the life of your commode.

• Kasdienis valymas: After each use, empty and clean the commode pail. Use a mild disinfectant and water, then rinse thoroughly and dry.
• Seat and Frame Cleaning: The clip-on seat can be easily removed for comprehensive cleaning. Clean the seat, splash guard, and commode frame with a mild household cleaner or disinfectant. Avoid abrasive cleaners that may damage the finish.
• Skalavimas ir džiovinimas: Rinse all components thoroughly with clean water and dry completely before reassembly or storage.
• Patikra: Periodically inspect the commode for any signs of rust, cracks, loose screws, or other damage. Ensure all rubber tips on the legs are intact and not worn. Replace any damaged parts immediately.

Trikčių šalinimas

If you encounter any issues with your Medline Guardian G30213-1F commode, please refer to the following common solutions:

• Commode Feels Unstable: Ensure all four legs are adjusted to the same height and that the push-button pins are fully engaged in the adjustment holes. Verify the commode is on a flat, level surface. Check for any loose connections or damaged parts.
• Difficulty Attaching/Removing Seat: Ensure the seat is aligned correctly with the frame. Apply firm, even pressure to snap it into place. For removal, gently pry up the clips around the edges.
• Pail/Splash Guard Not Fitting: Ensure the pail or splash guard is oriented correctly and fully inserted into the seat opening from below.

If problems persist or you have concerns about the commode's safety, discontinue use and contact Medline customer service.

Specifikacijos

Garantija ir palaikymas

For specific warranty information, product support, or to inquire about replacement parts, please contact Medline customer service. Refer to the product packaging or Medline's official websvetainėje rasite naujausią kontaktinę informaciją ir garantijos sąlygas.
