Įvadas
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Rx Clear Radiant Complete Sand Filter System. This system is designed for above-ground swimming pools up to 26,000 gallons, ensuring clean and safe water through efficient filtration. The system includes a 22-inch filter tank, an Extreme Force 1 1/2 HP pump, a 3-foot high-pressure hose, stainless steel clamps, and backwash hose fittings.

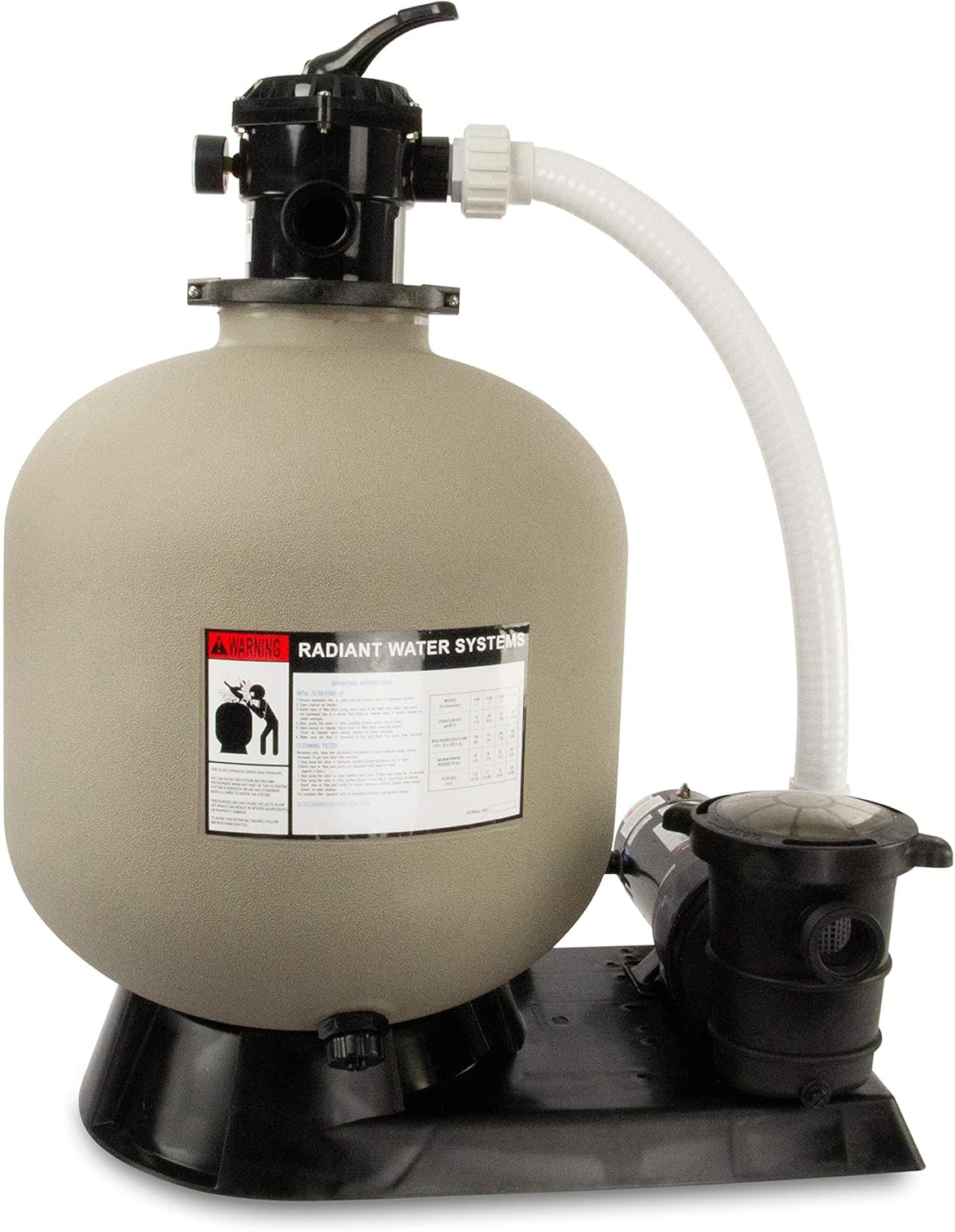

Image: The complete Rx Clear Radiant Sand Filter System, showcasing the filter tank, pump, and connecting hoses.

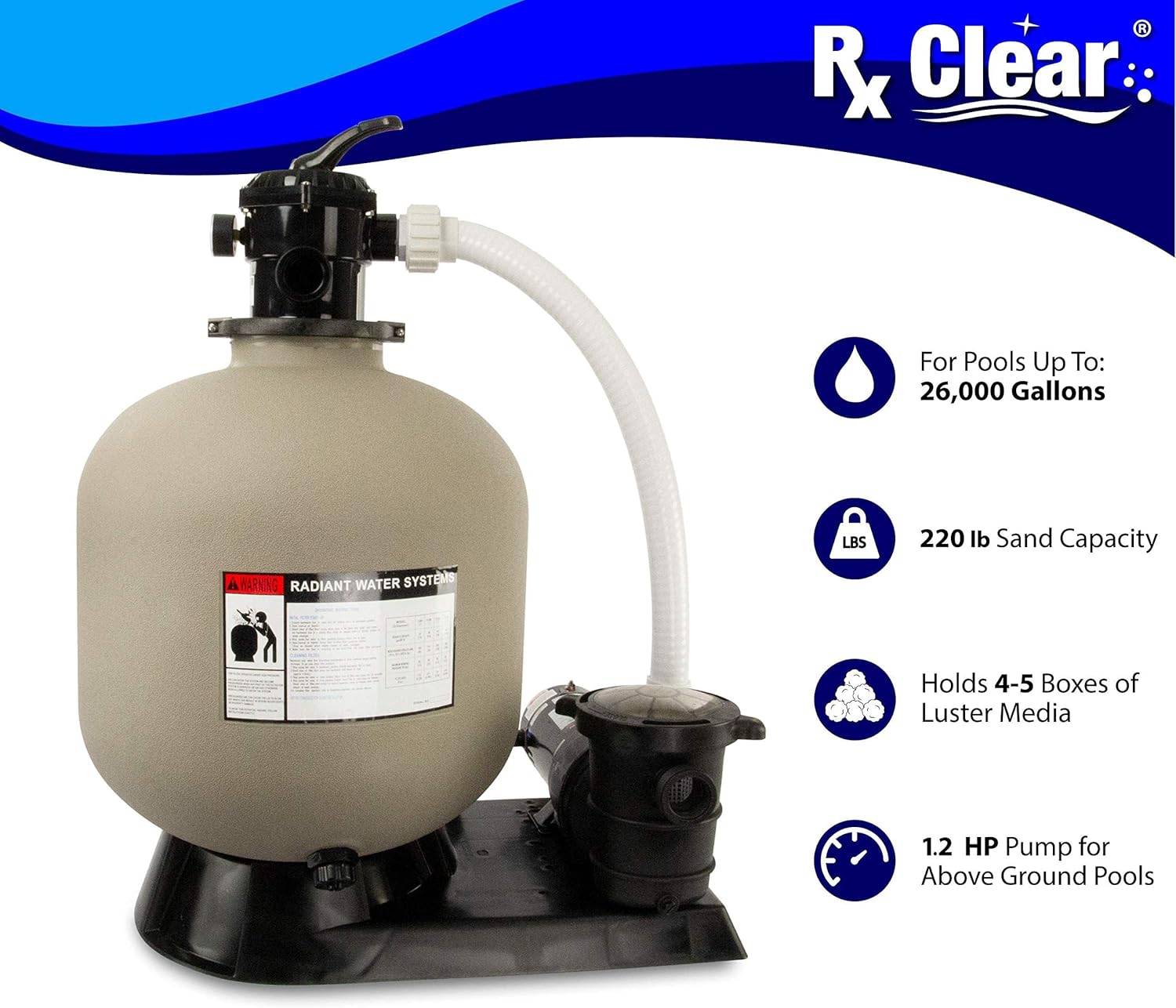

Image: Visual representation of the system highlighting its key specifications: suitable for pools up to 26,000 gallons, 220 lb sand capacity, and powered by a 1.2 HP pump.
Sąranka ir diegimas
Careful assembly is crucial for optimal performance. Follow these steps for proper installation:
- Išpakavimas ir komponentų identifikavimas: Unpack all components and verify against the packing list. Ensure the filter tank, pump, multi-port valve, hoses, and fittings are present.
- Pagrindo surinkimas: Place the universal base on a firm, level surface. Position the filter tank securely onto the base.
- Smėlio pakrovimas: Remove the multi-port valve from the top of the filter tank. Cover the standpipe opening to prevent sand from entering. Carefully add approximately 220 lbs of filter sand (not included) into the tank. Ensure the sand is evenly distributed.
- Daugiafunkcinio vožtuvo montavimas: Clean any sand from the tank opening and the multi-port valve O-ring. Lubricate the O-ring with a silicone-based lubricant. Carefully place the multi-port valve onto the tank, ensuring the standpipe aligns correctly with the valve's opening. Secure the valve with the provided clamp.
- Siurblio jungtis: Position the Extreme Force pump on the base next to the filter tank. Connect the pump to the multi-port valve using the provided high-pressure hose and fittings. Ensure all connections are tight to prevent leaks.
- Žarnų jungtys: Connect the pool skimmer line to the pump's inlet. Connect the multi-port valve's 'RETURN' port to the pool's return line. Connect a backwash hose to the 'WASTE' port for draining during backwash cycles.
- Elektros jungtis: Ensure the pump is connected to a properly grounded electrical outlet. The pump includes a 6-foot power cord. Always follow local electrical codes and safety guidelines.
- Pradinis paleidimas: Before starting the pump, ensure the pool is filled to the proper level and all valves are open. Prime the pump by filling the pump's strainer basket housing with water until it overflows. Secure the strainer lid. Set the multi-port valve to 'BACKWASH' and start the pump. Backwash for 2-3 minutes or until the water from the waste line runs clear. Then, set the valve to 'RINSE' for 30-60 seconds. Finally, set the valve to 'FILTER' for normal operation.
Vaizdas: A view of the system from the rear, illustrating the various hose connections between the pump, filter, and pool lines.
Naudojimo instrukcijos
Daugiafunkcis vožtuvas kontroliuoja vandens srautą per filtro sistemą. Prieš keisdami vožtuvo padėtį, visada išjunkite siurblį.
- FILTRAS: This is the standard operating position for daily filtration. Water flows through the sand bed, trapping debris, and returns to the pool.
- BACKWASH: Used to clean the filter sand. Water flows in reverse through the sand bed, dislodging trapped debris, and exits through the waste port.
- IŠSKALAUTI: Used after backwashing to flush any remaining dirty water from the valve and sand bed to the waste port, ensuring clean water returns to the pool.
- ATLIEKOS: Bypasses the filter and sends water directly out the waste port. Useful for vacuuming heavy debris directly to waste or lowering the pool water level.
- RECIRIKULIUOTI: Bypasses the filter and circulates water directly back to the pool. Useful for chemical distribution without filtration.
- UŽDARYTA: Išjungia visą srautą į filtrą ir siurblį. Naudokite tik atlikdami siurblio ar filtro techninę priežiūrą.
Monitor the pressure gauge on the multi-port valve. When the pressure rises 8-10 PSI above the clean filter pressure, it indicates the filter needs backwashing.

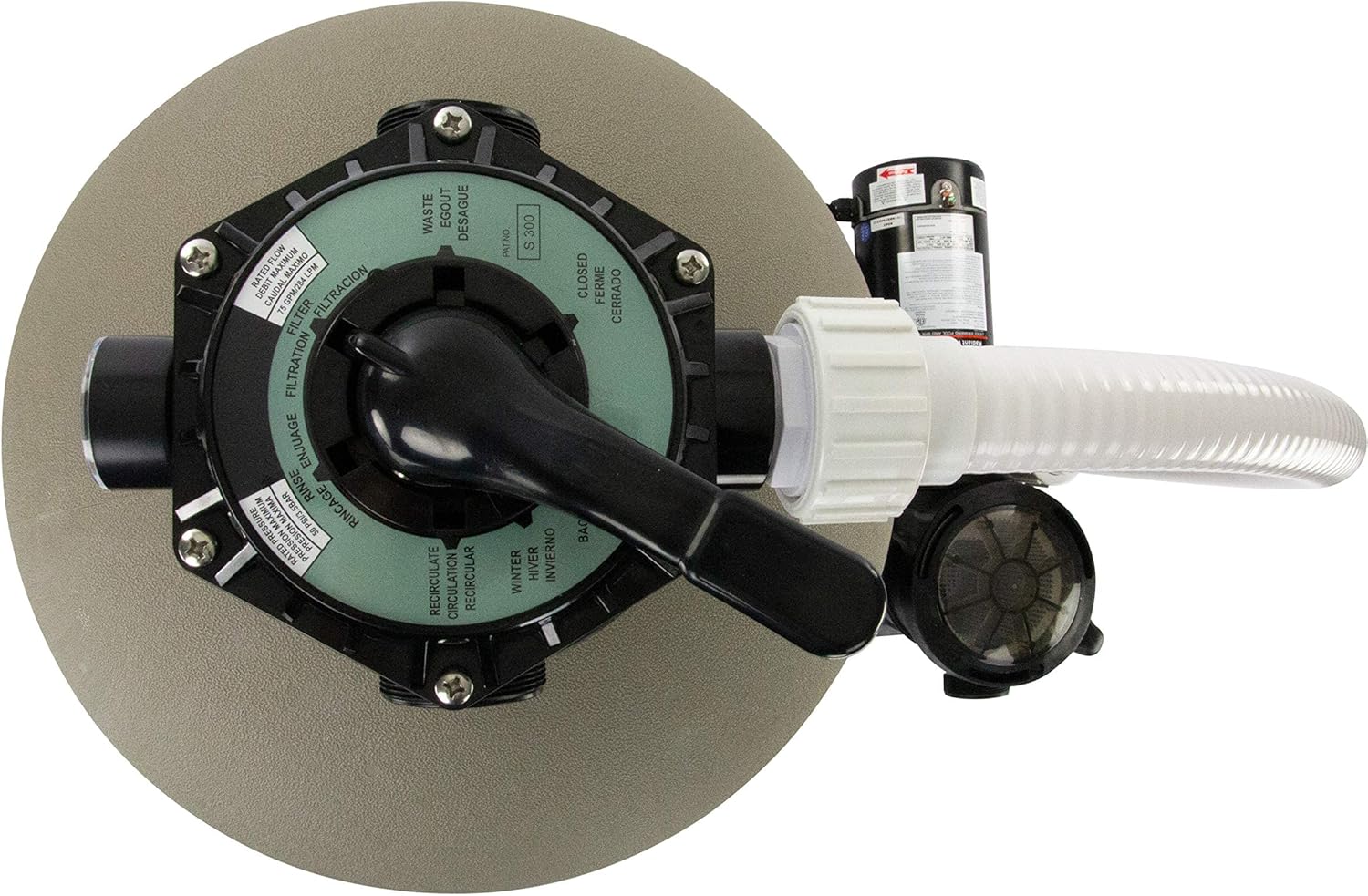

Vaizdas: Stambus planas view of the multi-port valve, clearly showing its handle and the labels for each of the six operational settings.
Vaizdas: Išsamus view of the filter's key components, including the multi-port valve, pressure gauge for monitoring system pressure, sight glass for observing backwash water clarity, and the drain plug.
Priežiūra
Reguliarus valymas užtikrina filtrų sistemos ilgaamžiškumą ir efektyvumą.
- Atgalinis plovimas: Perform backwashing when the pressure gauge indicates a rise of 8-10 PSI above the clean operating pressure, or when water clarity diminishes. Turn off the pump, set the multi-port valve to 'BACKWASH', turn on the pump, and backwash until the sight glass shows clear water (typically 2-3 minutes). Turn off the pump.
- Skalavimas: After backwashing, set the multi-port valve to 'RINSE'. Turn on the pump and rinse for 30-60 seconds. Turn off the pump. This step settles the sand and flushes residual dirty water.
- Pump Strainer Basket Cleaning: Periodically inspect and clean the pump's strainer basket. Turn off the pump, close any necessary valves, twist and remove the strainer lid, remove the basket, clear debris, and replace. Ensure the lid is securely fastened to prevent air leaks.
- Smėlio pakeitimas: Filter sand typically lasts 3-5 years, depending on usage and water chemistry. Replace the sand when filtration efficiency decreases despite regular backwashing.
- Žieminimas: Before freezing temperatures, drain all water from the filter tank and pump. Remove the drain plug from the bottom of the filter tank and the pump's drain plugs. Store the pump and multi-port valve in a dry, protected area.
Image: A two-panel image demonstrating how to access the pump's strainer basket by twisting and removing the lid.
Trikčių šalinimas
Refer to this section for common issues and their resolutions.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Mažas vandens srautas / Prastas filtravimas | Clogged filter sand; dirty pump strainer basket; air leak in suction line; low water level in pool. | Backwash and rinse filter; clean pump strainer basket; check all connections for air leaks; ensure adequate pool water level. |
| Debesuotas baseino vanduo | Insufficient filtration time; improper water chemistry; clogged filter; worn-out sand. | Increase filtration time; test and balance pool chemicals; backwash and rinse filter; consider replacing filter sand. |
| Water leaking from filter or pump | Loose connections; damaged O-rings/gaskets; cracked housing; improperly seated drain plug. | Tighten all connections; inspect and replace damaged O-rings/gaskets; check for cracks; ensure drain plug is securely tightened. |
| Siurblys neužpildytas | Air leak in suction line; low water level; clogged skimmer/pump basket; pump not filled with water. | Check for air leaks; ensure adequate pool water level; clean skimmer and pump baskets; fill pump housing with water before starting. |
Specifikacijos
- Prekinis ženklas: Rx Aišku
- Modelio numeris: 2772268
- UPC: 635963649197
- Talpa: Iki 26,000 XNUMX galonų
- Smėlio talpa: 220 svaro
- Filtro bako dydis: 22 colių
- Siurblio galia: 1 1/2 AG
- Medžiaga: Plastikiniai
- Spalva: Black (Pump), Tan (Filter Tank)
- Product Dimensions (Filter): Maždaug 21.75 x 8 x 38.7 colio
- Prekės svoris: 61.8 svaro
- Įtraukti komponentai: 22" Filter Tank, Filter Pump, Hoses, Fittings, & Hardware
- Naudojimas viduje / lauke: Lauke
Image: Diagram illustrating the physical dimensions of the 22-inch Rx Clear Radiant Filter tank, including its height and width.
Image: Diagram illustrating the physical dimensions of the Rx Clear 1.2 HP pump, including its length, width, and height.
Garantija ir palaikymas
The Rx Clear Radiant Complete Sand Filter System comes with a 3 metų ribota garantija against manufacturer’s defects for the filter tank. Filter media and hoses are sold separately and may have different warranty terms.
For technical assistance, troubleshooting, or warranty claims, please contact Rx Clear customer support through their official website or the retailer from whom the product was purchased. Ensure you have your model number (2772268) and proof of purchase available.
