V-Guard Sprinhot Plus 6L Wall Mounted Water Heater User Manual

1. Įvadas

Thank you for choosing the V-Guard Sprinhot Plus 6L Wall Mounted Water Heater. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new water heater. Please read these instructions carefully before use and retain them for future reference.

Image 1.1: The V-Guard Sprinhot Plus 6L Water Heater in Ivory, highlighting its key features such as instant hot water, efficient operation, compact design, and high quality.

2. Saugos instrukcijos

Visada laikykitės pagrindinių saugos priemonių, kad sumažintumėte gaisro, elektros smūgio ir sužalojimo pavojų.

• Prieš naudodami prietaisą perskaitykite visas instrukcijas.
• Ensure the water heater is properly grounded.
• Nenaudokite, jei pažeistas maitinimo laidas arba kištukas.
• Montuoti turėtų tik kvalifikuotas personalas.
• Neužblokuokite slėgio mažinimo vožtuvo.
• Degias medžiagas laikykite toliau nuo vandens šildytuvo.
• Prieš atlikdami bet kokius techninės priežiūros ar valymo darbus, visada atjunkite maitinimą.
• Šis prietaisas skirtas montuoti tik patalpose.

Image 2.1: The V-Guard Sprinhot Plus 6L Water Heater features triple safety protection, including a capillary thermostat for temperature control, IPX4 weatherproofing, and a brass fusible plug for enhanced safety.

3. Pakuotės turinys

Išpakuodami patikrinkite, ar yra visi komponentai ir ar jie nepažeisti:

• 1 x V-Guard Sprinhot Plus 6L Water Heater Unit
• Mounting Plate and Hooks (for wall installation)
• Vartotojo vadovas (šis dokumentas)

Pastaba: Water inlet and outlet tubes are not included in the package and must be purchased separately.

4. Diegimas ir sąranka

For optimal performance and safety, it is highly recommended that installation be carried out by a certified technician or V-Guard service provider.

4.1 Montavimo vieta

• Choose a wall-mounted location that is sturdy enough to support the weight of the water heater when full.
• Užtikrinkite pakankamą atstumą aplink įrenginį techninei priežiūrai ir ventiliacijai.
• The appliance is designed for indoor installation.

4.2 Santechnikos jungtys

• Connect the cold water inlet to the designated inlet pipe on the water heater.
• Connect the hot water outlet to your household hot water supply.
• Įsitikinkite, kad visos jungtys yra saugios ir nesandarios.
• Install a pressure relief valve as per local plumbing codes.

4.3 Elektros prijungimas

• Įsitikinkite, kad maitinimo šaltinis atitinka tūrįtage ir vattage requirements of the water heater (230 Volts, 3000 Watts).
• Connect the water heater to a dedicated, grounded electrical circuit with appropriate overcurrent protection.
• Nenaudokite ilginamųjų laidų ar adapterių.

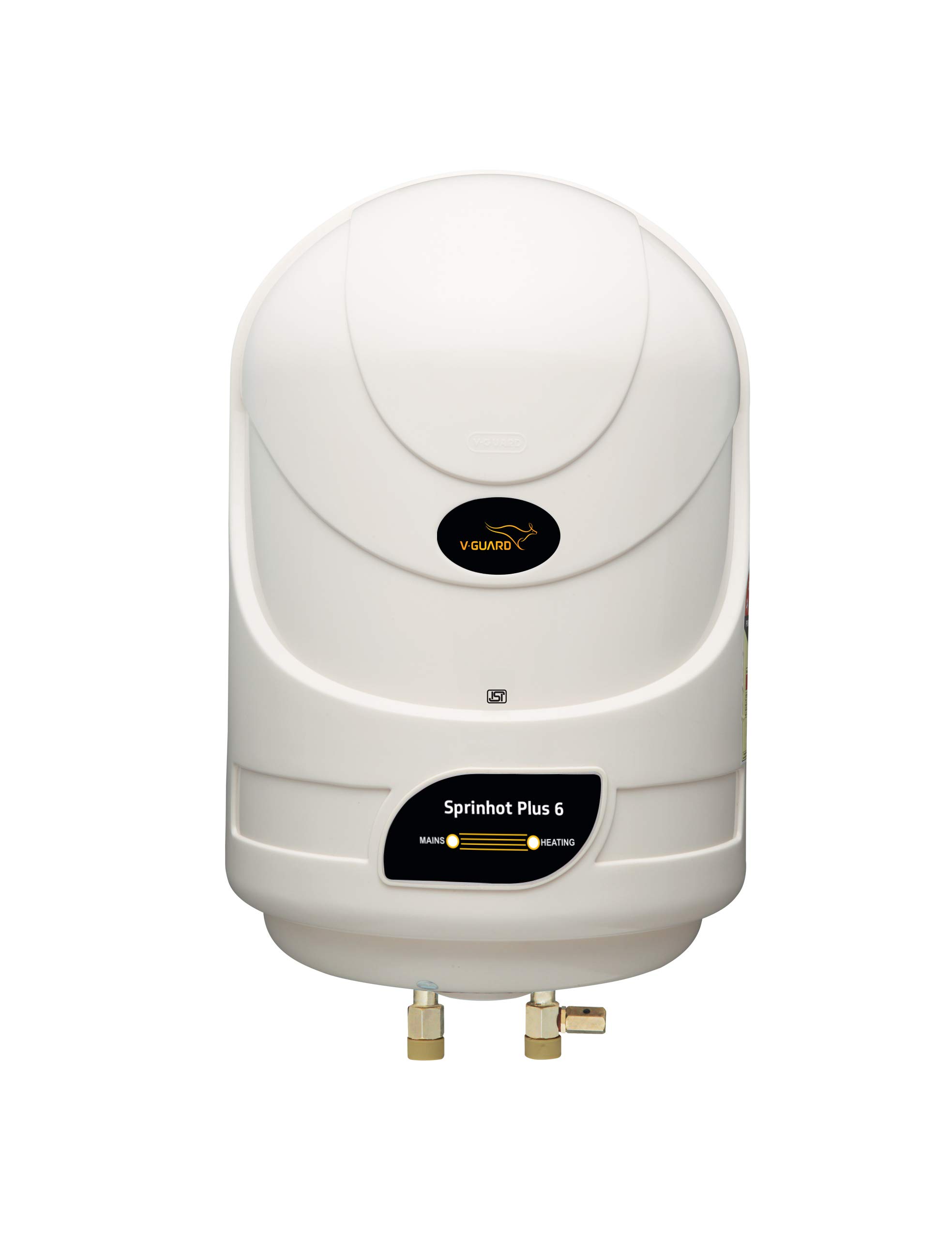

4.1 vaizdas: priekis view of the V-Guard Sprinhot Plus 6L Water Heater, illustrating its compact design and the location of the water inlet and outlet connections at the bottom.

5. Naudojimo instrukcijos

Once installed and filled with water, your V-Guard Sprinhot Plus 6L Water Heater is ready for operation.

5.1 Pirminis paleidimas

1. Ensure the water heater is completely filled with water before switching on the power. Open a hot water tap to allow air to escape until water flows steadily.
2. Switch on the electrical power supply to the water heater.
3. The "MAINS" indicator light will illuminate, indicating power is supplied.
4. The "HEATING" indicator light will illuminate when the heating element is active.

5.2 Temperatūros reguliavimas

The water heater features an automatic temperature regulation system via a thermostat. This system maintains your desired water temperature and optimizes electricity consumption. The heating element will automatically switch off once the set temperature is reached and reactivate when the temperature drops.

Image 5.1: Detail of the control panel on the Sprinhot Plus 6L, showing the 'MAINS' and 'HEATING' indicator lights which provide operational status.

6. Priežiūra

Reguliarus vandens šildytuvo aptarnavimas užtikrina jo ilgaamžiškumą ir efektyvų veikimą.

• Išorės valymas: Išorinį korpusą nuvalykite minkšta, damp cloth. Do not use abrasive cleaners or solvents. The outer body is made of rust-proof ABS material.
• Bako ištuštinimas: Periodically drain the tank to remove sediment buildup, especially in areas with hard water. Refer to the detailed instructions in the full manual for this procedure. The sturdy inner tank is made of 304 grade stainless steel, offering resistance to corrosion.
• Anodo strypo apžiūra: The anode rod helps protect the tank from corrosion. It should be inspected and replaced periodically by a qualified technician.
• Slėgio sumažinimo vožtuvas: Test the pressure relief valve annually to ensure it is functioning correctly.

7. Problemų sprendimas

Prieš kreipdamiesi į klientų aptarnavimo tarnybą, peržiūrėkite šias dažniausiai pasitaikančias problemas ir jų sprendimus:

If the problem persists after attempting these solutions, please contact V-Guard customer support.

8. Specifikacijos

Key technical specifications for the V-Guard Sprinhot Plus 6L Water Heater:

• Prekinis ženklas: V-Guard
• Modelis: Sprinhot Plus 6L
• Talpa: 6 litrai
• Spalva: Dramblio kaulas
• Vattage: 3000 vatų
• ttage: 230 voltų
• Ypatinga funkcija: Rustproof (ABS outer body, 304 grade stainless steel inner tank)
• Efektyvumas: Didelis efektyvumas
• Stilius: Instaliacija viduje
• Montavimo tipas: Siena
• Prekės svoris: 4 kg 750 g
• Korpuso skersmuo: 29.7 cm
• Kūno aukštis: 41.2 cm

9. Garantija ir palaikymas

V-Guard stands by the quality of its products.

• Inner Tank Warranty: 5 metai
• Gaminio garantija: 2 metai

For any service requests, technical assistance, or warranty claims, please contact V-Guard customer care. You can find their contact information on the official V-Guard website or your product's warranty card.

Palaikymas internetu: Visit V-Guard Support
