Įvadas
This manual provides detailed instructions for the installation, operation, and maintenance of your hansgrohe Logis Basin Mixer Tap 70. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product.
The hansgrohe Logis Basin Mixer Tap 70 features a ComfortZone 70 for enhanced usability, a 107 mm long spout, and a normal spray pattern with a flow rate of 5 liters per minute at 3 bar. It is designed for deck mounting and includes a ceramic cartridge and a pop-up waste set.
Image: The hansgrohe Logis Basin Mixer Tap 70, showcasing its sleek chrome design and compact form factor suitable for various basin tipai.
Saugos informacija
- Prieš pradėdami bet kokius montavimo ar techninės priežiūros darbus, visada išjunkite pagrindinį vandens tiekimą.
- Įsitikinkite, kad visos jungtys yra sandariai uždarytos, kad išvengtumėte nuotėkio.
- Montavimo metu naudokite tinkamus įrankius ir dėvėkite apsaugines priemones.
- Jei abejojate dėl kurio nors žingsnio, kreipkitės į kvalifikuotą santechniką.
- Operating pressure: min. 1 bar / max. 10 bar. Ensure your water system operates within these limits.
Sąranka ir diegimas
The hansgrohe Logis Basin Mixer Tap 70 is designed for single-hole, deck-mounted installation. Follow these steps for a secure setup.
- Paruoškite B.asin: Ensure the mounting surface is clean and dry. The basin should have a single faucet hole.
- Sumontuokite maišytuvą: Insert the faucet into the basin hole. Secure it from underneath using the provided mounting hardware. Ensure the faucet is aligned correctly.
- Prijunkite vandens linijas: Connect the hot and cold water supply lines to the corresponding inlets on the faucet. Use appropriate sealing materials (e.g., plumber's tape) to prevent leaks.
- Install Pop-up Waste: Assemble and install the pop-up waste mechanism according to the separate instructions provided with the waste set. Connect the pull rod to the faucet's lever.
- Testas dėl nuotėkio: Lėtai atsukite pagrindinį vandens tiekimą ir patikrinkite, ar nėra nuotėkių visose jungtyse. Atsukite čiaupą, kad užtikrintumėte tinkamą vandens srautą ir temperatūros reguliavimą.

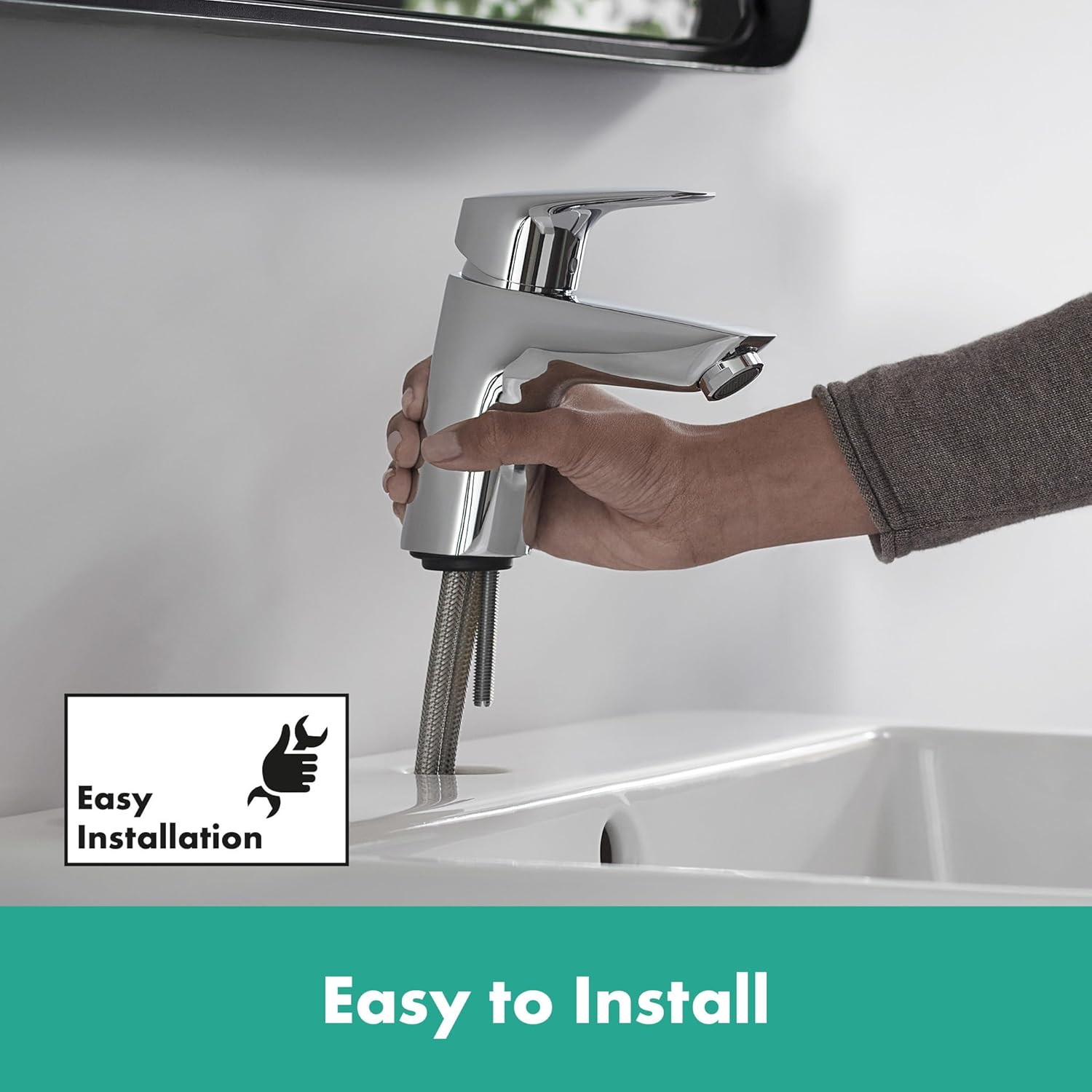

Image: Visual representation of the easy installation process for the hansgrohe Logis Basin Mixer Tap, demonstrating how the faucet is secured to the basin.
Image: Detailed technical drawing providing precise dimensions and connection points for the hansgrohe Logis Basin Mixer Tap, essential for accurate installation planning.
Naudojimo instrukcijos
Your hansgrohe Logis Basin Mixer Tap is designed for intuitive operation and water efficiency.
- Vandens srauto valdymas: Lift the single lever handle to turn the water on and off. The further you lift, the greater the flow.
- Temperatūros valdymas: Norėdami karšto vandens, svirtelės rankenėlę pastumkite į kairę, o norėdami šalto vandens – į dešinę. Reguliuokite, kad pasiektumėte norimą temperatūrą.
- Pop-up Waste Operation: Use the pull rod located at the back of the faucet to open and close the basin's drain stopper.
- „EcoSmart“ technologija: This faucet incorporates EcoSmart technology, reducing water consumption to 5 liters per minute without compromising performance.
- „AirPower“ technologija: The faucet mixes water with air to create a softer, more voluminous spray, resulting in less splashing.
Image: The hansgrohe Logis Basin Mixer Tap delivering a consistent "Normal Spray" water flow, suitable for everyday use.
Image: Demonstration of hansgrohe's AirPower technology, showing how the faucet mixes air with water to create a softer, more voluminous stream, resulting in "Less Water Splashing".
Image: Graphic illustrating the "EcoSmart" feature, highlighting its benefit of "Saves Water and Money" through efficient water usage.
Image: A hand demonstrating the operation of the pull rod, confirming that a "Pop-up Waste Set Included" with the faucet for convenient drain control.
Priežiūra
Regular cleaning and maintenance will ensure the optimal performance and appearance of your hansgrohe faucet.
- Maišytuvo valymas: Clean the chrome surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or cleaners containing acid or chlorine, as these can damage the finish.
- Greito valymo funkcija: The aerator is equipped with hansgrohe QuickClean technology. To remove limescale and dirt residues, simply rub the silicone nozzles on the aerator with your fingers. This should be done regularly to maintain optimal spray performance.
- Keraminė kasetė: The faucet features a durable ceramic cartridge. If you experience persistent drips or difficulty in controlling water flow/temperature, the cartridge may need inspection or replacement. This typically requires professional assistance.
Image: Graphic highlighting the "Ceramic Cartridge" component, emphasizing its "Durable and Easy to Operate" qualities for long-lasting performance.
Trikčių šalinimas
If you encounter issues with your faucet, refer to the common problems and solutions below. For complex issues, contact customer support or a qualified plumber.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Mažas vandens srautas | Užsikimšęs aeratorius; iš dalies uždarytas uždarymo vožtuvas; žemas vandens slėgis. | Išvalykite aeratorių naudodami „QuickClean“. Įsitikinkite, kad uždarymo vožtuvai yra visiškai atidaryti. Patikrinkite vandens slėgį buityje. |
| Nuotėkis iš snapelio | Worn ceramic cartridge; debris in cartridge. | Contact a plumber for cartridge inspection or replacement. |
| Nuotėkis bazėje | Atsilaisvinusi tvirtinimo veržlė; susidėvėję O formos žiedai. | Priveržkite tvirtinimo veržlę. Patikrinkite ir, jei reikia, pakeiskite O formos žiedus (rekomenduojama profesionali pagalba). |
| Sunku reguliuoti temperatūrą | Faulty ceramic cartridge. | Contact a plumber for cartridge inspection or replacement. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | hansgrohe |
| Modelio pavadinimas | Logis Basin Mixer Tap 70 |
| Modelio numeris | 71070000 |
| Apdailos tipas | Chrome |
| Montavimo tipas | Denio tvirtinimas, viena skylė |
| Rankenų skaičius | 1 |
| Snukio aukštis | 7 cm (107 mm) |
| Snapo pasiekimas | 107 mm |
| Maksimalus srautas | 5 Liters Per Minute (at 3 bar) |
| Darbinis slėgis | Min. 1 bar / Maks. 10 bar |
| Įtraukti komponentai | 1 x Logis 70 single-lever mixer for washbasin, chrome; Pop-up waste set |
| Medžiaga | Silicone, Ceramic |
| Prekės svoris | 3.7 svaro |
| Gaminio matmenys | 6.3 "D x 1.81" P x 5.43" A |
Garantija ir palaikymas
Your hansgrohe Logis Basin Mixer Tap 70 comes with a commitment to quality and durability.
- Garantija: This premium-quality basin tap with a durable ceramic cartridge is backed by a 5-year warranty. Please retain your proof of purchase for warranty claims.
- Atsarginės dalys: hansgrohe ensures EU spare part availability for 15 years from the date of purchase.
- Klientų aptarnavimas: For technical assistance, warranty claims, or to inquire about spare parts, please contact hansgrohe customer service. Visit the official hansgrohe websvetainė kontaktinei informacijai: www.hansgrohe.com
