hansgrohe Ecostat S Thermostatic Mixer for 2 Outlets

1. Produktas baigtasview

The hansgrohe Ecostat S thermostatic mixer (model 15758000) is designed for concealed installation, providing precise temperature control for two outlets. This unit ensures a safe and comfortable showering experience by maintaining a constant water temperature and featuring an integrated safety lock.

Pagrindinės funkcijos:

• Thermostatic control to maintain consistent water temperature.
• Safety lock at 40°C to prevent scalding.
• Integrated shut-off/diverter valve for two outlets.
• Durable chrome finish.

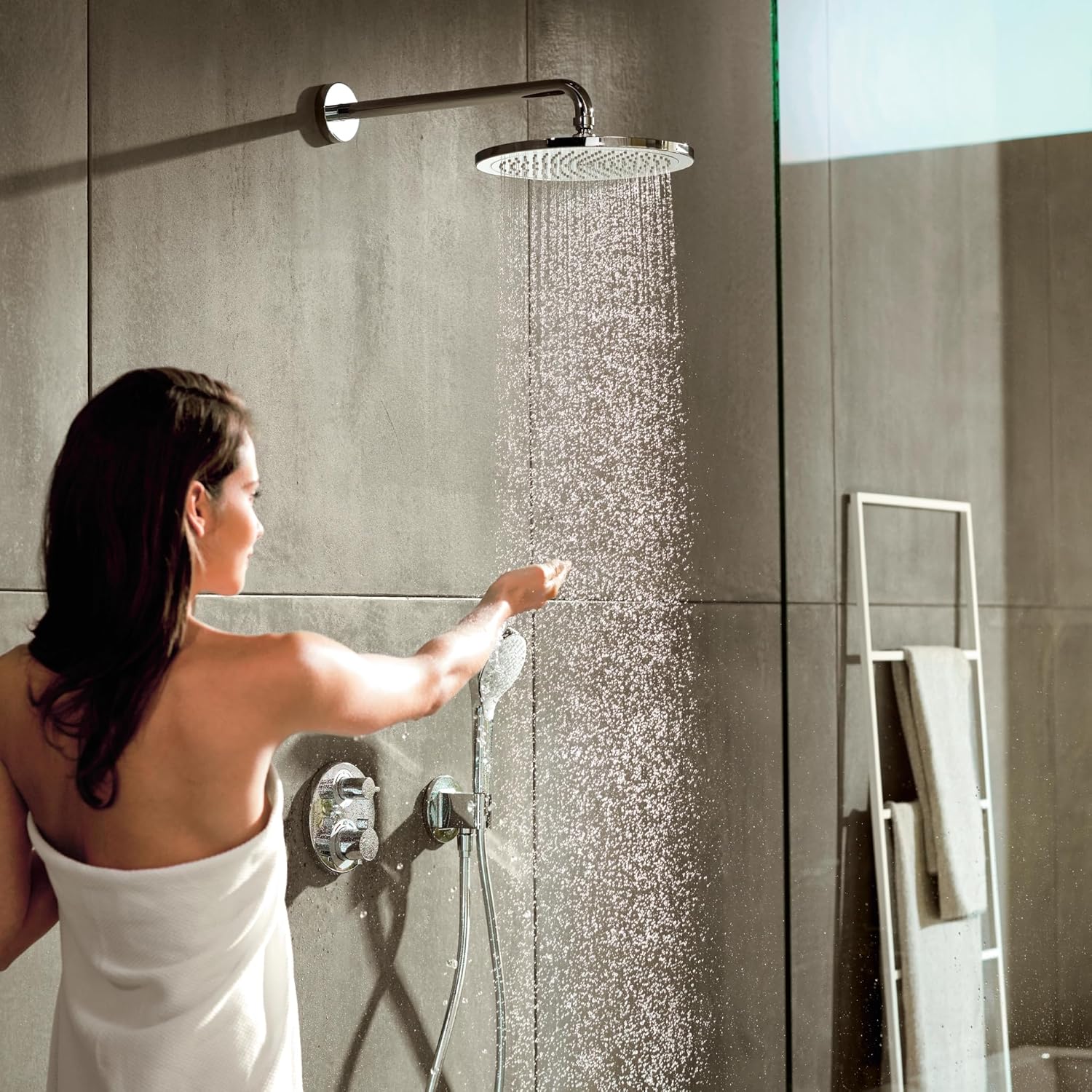

Figure 1: hansgrohe Ecostat S Thermostatic Mixer in use, providing a comfortable shower experience.

2. Saugos informacija

Prieš montuodami ir naudodami atidžiai perskaitykite visas instrukcijas. Išsaugokite šį vadovą ateičiai.

• Apsauga nuo nudegimų: The Ecostat S features a safety lock at 40°C (104°F) to prevent accidental selection of excessively hot water. This is particularly important for households with children or elderly individuals.
• Temperatūros reguliavimas: The maximum temperature can be adjusted during installation by a qualified professional.
• Vandens slėgis: This product is suitable for high-pressure water systems only. Ensure your water supply meets this requirement.
• Profesionalus montavimas: Installation should be performed by a qualified plumber to ensure proper function and adherence to local plumbing codes.

Figure 2: The 40°C safety stop mechanism on the thermostatic mixer, designed to prevent scalding.

3. Pakuotės turinys

Prieš pradėdami diegti, patikrinkite, ar yra visi komponentai:

• 1 x hansgrohe Ecostat S Thermostatic Mixer for Concealed Installation with Integrated Shut Off/Diverter Valve
• Rankena
• Rankovė
• Funkcinis blokas
• Sienos flanšas
• Mounting hardware (screws, mounting grease)
• Montavimo instrukcijos

Pastaba: The hansgrohe iBox universal base set (B0017VDYGI) is required for concealed installation and is sold separately.

4. Sąranka ir diegimas

This thermostatic mixer is designed for concealed installation. A hansgrohe iBox universal base set is essential for proper installation.

4.1 Išankstinio montavimo reikalavimai

• Ensure you have the hansgrohe iBox universal base set (model B0017VDYGI).
• Verify that water supply lines are correctly installed and flushed.
• Confirm adequate water pressure for high-pressure systems.

4.2 Įdiegimo žingsniai (viršview)

1. Install the iBox universal base set into the wall according to its specific instructions.
2. Connect the water supply lines to the iBox.
3. Insert the function block of the Ecostat S mixer into the iBox.
4. Attach the wall flange and secure the mixer assembly.
5. Install the handle and sleeve.
6. Patikrinkite, ar nėra nuotėkių ir ar tinkamai veikia.

Figure 3: Illustration of the concealed installation process, highlighting the iBox universal base set.

For detailed installation instructions, refer to the separate manual provided with the iBox universal base set and the specific installation guide included with this product.

5. Naudojimo instrukcijos

The Ecostat S thermostatic mixer features two controls: one for temperature and one for water flow and outlet selection.

5.1 Temperatūros valdymas

• The temperature handle allows you to set your desired water temperature.
• Rotate the handle to adjust the temperature. The 40°C safety stop prevents accidental selection of higher temperatures. To exceed 40°C, you must consciously override the safety stop by pressing a button or similar mechanism on the handle while turning.
• The thermostatic element will maintain the selected temperature, compensating for fluctuations in water pressure or temperature from the supply.

5.2 Water Flow and Outlet Selection

• The second handle controls the water flow rate and selects between the two connected outlets (e.g., overhead shower and hand shower).
• Rotate the handle to turn the water on or off and to adjust the flow intensity.
• Push or pull the handle, or rotate it to a specific position, to switch between the two outlets. Refer to the markings on the mixer for specific outlet indications.

6. Priežiūra

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe Ecostat S thermostatic mixer.

• Valymas: Clean the chrome surfaces with a soft cloth and a mild, non-abrasive cleaning agent specifically designed for bathroom fixtures. Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Skalavimas: After cleaning, rinse the mixer thoroughly with clean water and dry it with a soft cloth to prevent water spots.
• Termostatinė kasetė: If you notice inconsistent temperature control, it may indicate a need for professional servicing or cartridge replacement. Contact a qualified plumber.

7. Problemų sprendimas

If you encounter issues with your thermostatic mixer, consider the following common solutions:

If problems persist after attempting these solutions, contact a qualified plumber or hansgrohe customer support for assistance.

8. Specifikacijos

Figure 4: Dimensional drawing of the hansgrohe Ecostat S thermostatic mixer.

9. Garantija ir palaikymas

9.1 Informacija apie garantiją

The hansgrohe Ecostat S thermostatic mixer comes with a 5 metų garantija, covering manufacturing defects and material faults. Please retain your proof of purchase for warranty claims.

9.2 Pagalba klientams

For technical assistance, spare parts, or warranty inquiries, please contact hansgrohe customer service. Visit the official hansgrohe websvetainėje, kur rasite jūsų regionui būdingos kontaktinės informacijos.

Figure 5: hansgrohe quality assurance emblem.
