Littelfuse FLM3-2/10 FLM3.20 Cartridge Fuse User Manual

1. Įvadas

This manual provides essential information for the safe and proper use of the Littelfuse FLM3-2/10 FLM3.20 Cartridge Fuse. This fuse is designed to protect electrical circuits from overcurrent conditions, preventing damage to equipment and reducing fire hazards. Please read this manual thoroughly before installation or replacement.

2. Saugos informacija

ĮSPĖJIMAS: Electrical shock hazard. Improper installation or handling of electrical components can result in serious injury or death. Always follow these safety guidelines:

• Always disconnect power to the circuit before installing, inspecting, or replacing fuses.
• Use only fuses with the correct voltage ir amperage ratings for the specific application. Using an incorrect fuse can lead to inadequate protection or circuit damage.
• Neapeiti arba tamper with fuses.
• If you are unsure about any electrical work, consult a qualified electrician.
• Wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, when working with electrical circuits.

3. Produktas baigtasview

The Littelfuse FLM3-2/10 FLM3.20 is a cartridge fuse designed for reliable overcurrent protection. It features a 3-2/10 Amp current rating and a 250 Volt voltage rating, suitable for various electrical applications. The fuse is constructed from ceramic, metal, and plastic components, and is designed for through-hole mounting.

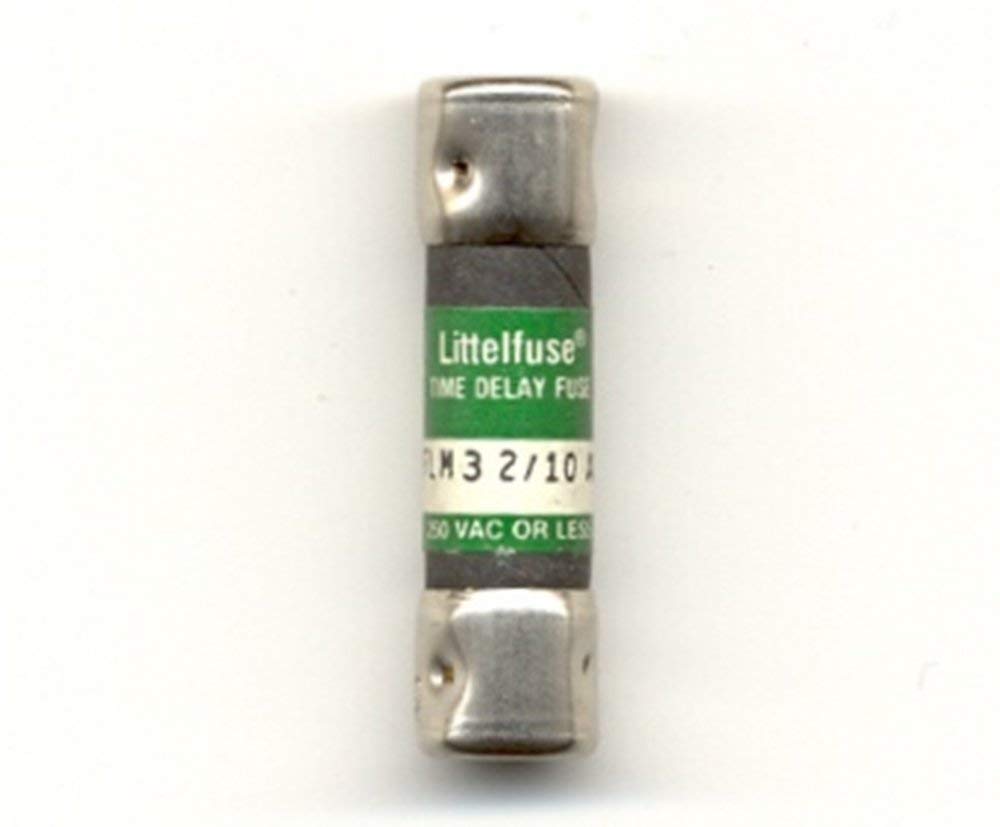

Figure 1: Image of the Littelfuse FLM3-2/10 FLM3.20 Cartridge Fuse. This image displays the cylindrical body of the fuse, typically with metal end caps and markings indicating its current and voltage reitingai.

4. Diegimas ir sąranka

Follow these steps for safe installation or replacement of the fuse:

1. Atjunkite maitinimą: Ensure that the main power supply to the circuit is completely turned off and locked out, if applicable. Verify with a voltage testeris.
2. Identify Fuse Holder: Locate the fuse holder or circuit board where the fuse is to be installed or replaced.
3. Remove Old Fuse (if applicable): Carefully remove the old or blown fuse from its holder. Note its orientation if it's a directional fuse (though cartridge fuses are typically non-directional).
4. Verify Ratings: Confirm that the new Littelfuse FLM3-2/10 FLM3.20 fuse matches the required amperage (3-2/10 Amp) ir ttage (250V) ratings for the circuit.
5. Įdėkite naują saugiklį: Insert the new fuse into the fuse holder. For through-hole mounting, ensure the leads are correctly aligned with the holes on the circuit board or terminal block.
6. Saugus ryšys: Ensure the fuse is securely seated in its holder or properly soldered if it's a permanent through-hole mount.
7. Atkurti maitinimą: Once the fuse is securely installed, restore power to the circuit.

5. Veikimo principas

The Littelfuse FLM3-2/10 FLM3.20 fuse functions as a sacrificial device designed to protect electrical circuits. When an overcurrent condition occurs (current exceeding 3-2/10 Amps), the metallic element inside the fuse melts, creating an open circuit and interrupting the flow of electricity. This prevents damage to more expensive components or wiring downstream from the fuse. The fuse does not require any active "operation" by the user; its function is passive and automatic upon an overcurrent event.

6. Priežiūra

Fuses are generally maintenance-free components. Their primary function is to blow and protect the circuit. Regular maintenance involves:

• Periodinis patikrinimas: Visually inspect fuses during routine equipment maintenance for any signs of damage or discoloration, though a blown fuse is often not visually obvious without removal.
• Pakeitimas: A blown fuse must always be replaced with a new fuse of the exact same type, ampera, ir ttage rating (e.g., Littelfuse FLM3-2/10 FLM3.20). Never attempt to repair a blown fuse.

7. Problemų sprendimas

If a fuse blows, it indicates an overcurrent condition in the circuit it protects. Follow these troubleshooting steps:

1. Perdegusio saugiklio nustatymas: Disconnect power and visually inspect the fuse. Some fuses have an indicator, or you can use a multimeter to check for continuity.
2. Investigate Cause: Before replacing the fuse, identify and rectify the cause of the overcurrent. Common causes include:
   • Short circuits in wiring or components.
   • Overloaded circuits (too many devices drawing power).
   • Faulty electrical appliances or equipment.
3. Pakeiskite saugiklį: Only after the cause has been identified and corrected, replace the blown fuse with a new Littelfuse FLM3-2/10 FLM3.20 fuse of the identical rating.
4. Pakartotinis pūtimas: If the new fuse blows immediately or shortly after replacement, it indicates that the underlying problem has not been resolved. Disconnect power and seek professional assistance.

8. Specifikacijos

9. Garantija ir palaikymas

Littelfuse products are manufactured to high-quality standards. For specific warranty information, please refer to the official Littelfuse websvetainėje arba susisiekite tiesiogiai su jų klientų aptarnavimo tarnyba. Išsaugokite pirkimo kvitą garantiniams reikalavimams.

Dėl techninės pagalbos ar užklausų apsilankykite Littelfuse official websvetainę arba susisiekite su jų klientų aptarnavimo skyriumi.
