1. Įvadas
This manual provides detailed instructions for the installation, operation, and maintenance of the Securitron PB3A Alternate Action Push Button. The PB3A is a single-gang, alternate action push button designed for various control applications, typically in access control or industrial settings. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

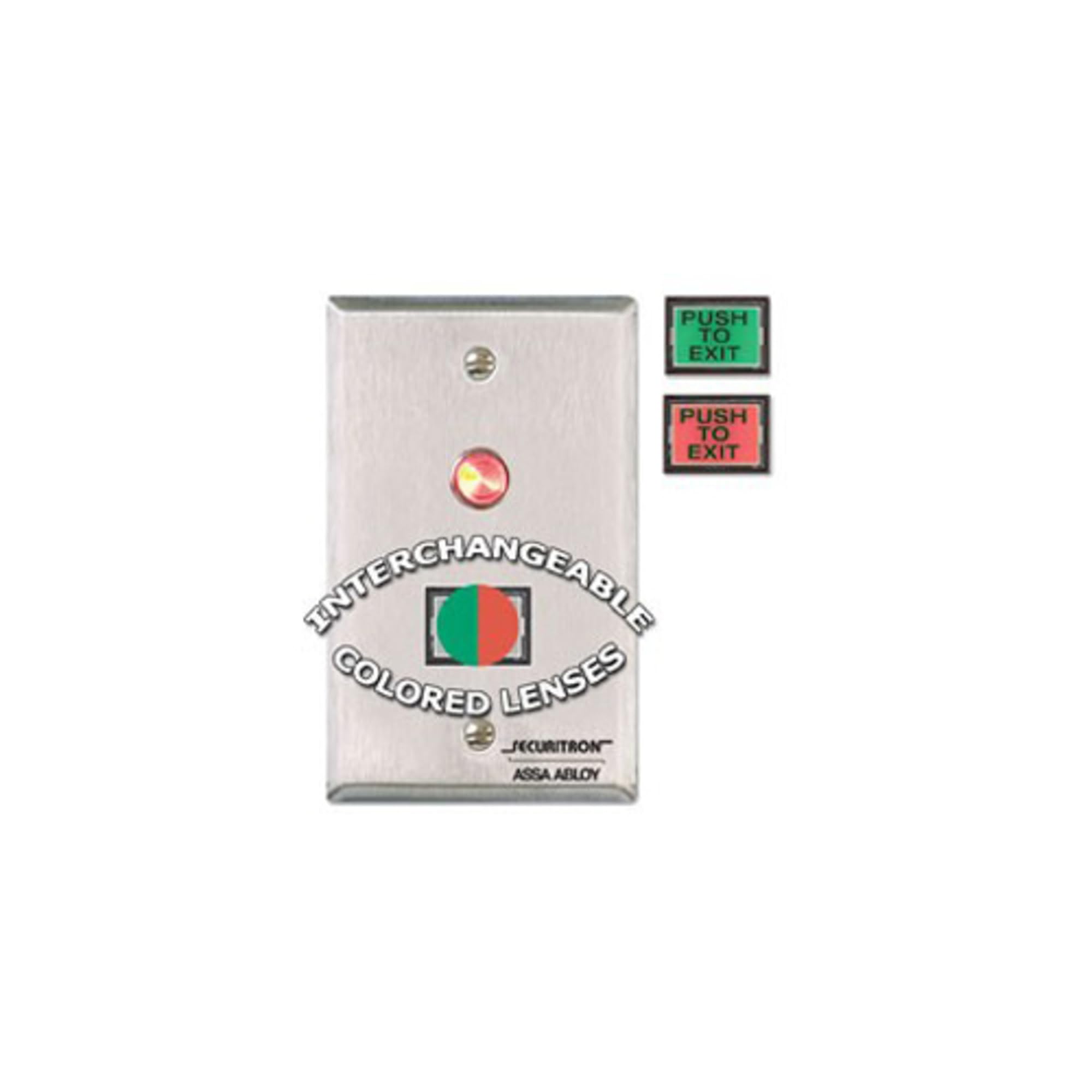

1 paveikslas: Securitron PB3A Alternate Action Push Button. This image shows the front view of the single-gang push button with its rectangular faceplate and central button.
2. Sąranka ir diegimas
Proper installation is crucial for the reliable operation of the PB3A push button. Always ensure power is disconnected before beginning any wiring procedures.
2.1 Saugos priemonės
- Disconnect all power to the circuit before installation or servicing.
- Montavimą turi atlikti kvalifikuoti specialistai, laikydamiesi visų vietinių ir nacionalinių elektros kodeksų.
- Dėvėkite tinkamas asmenines apsaugos priemones (AAP).
2.2 Montavimas
The PB3A is designed for single-gang box mounting. It can be installed in a standard electrical wall box.
- Ensure the electrical box is securely mounted in the desired location.
- Carefully remove the existing cover plate, if any.
- Align the PB3A push button with the mounting holes of the single-gang box.
- Secure the push button using the provided screws. Do not overtighten.
2.3 Laidai
The PB3A features contacts for alternate action operation. Refer to your control panel or power supply documentation for specific wiring requirements.
- Identify the Common (C), Normally Open (NO), and Normally Closed (NC) terminals on the push button.
- Connect the appropriate wires from your control system or power supply to these terminals.
- Įsitikinkite, kad visos jungtys yra saugios ir izoliuotos, kad išvengtumėte trumpojo jungimo.
- After wiring, carefully place the push button assembly into the electrical box, ensuring no wires are pinched.
3. Naudojimo instrukcijos
The Securitron PB3A is an alternate action push button. This means its state changes with each press and remains in that state until pressed again.
- Pirmas paspaudimas: When the button is pressed for the first time, its internal contacts will switch state (e.g., from Normally Open to Closed, or Normally Closed to Open). This action will be maintained.
- Antrasis spaudimas: When the button is pressed a second time, its internal contacts will switch back to their original state. This action will also be maintained.
- Repeat presses will toggle the contact state.
The specific function (e.g., locking/unlocking a door, activating a light) depends on how the PB3A is wired into your control system.
4. Priežiūra
The Securitron PB3A push button requires minimal maintenance to ensure long-term reliable operation.
4.1 Valymas
- Clean the surface of the push button with a soft, damp audinys.
- Nenaudokite abrazyvinių valiklių, tirpiklių ar stiprių cheminių medžiagų, nes jos gali pažeisti apdailą ar vidinius komponentus.
- Ensure no liquid enters the internal mechanism of the button.
4.2 Patikra
- Periodically inspect the push button for any signs of physical damage, such as cracks or loose components.
- Check for secure mounting and ensure all wiring connections remain tight.
- Test the button's functionality regularly to confirm it is operating as expected.
5. Problemų sprendimas
If the PB3A push button is not functioning correctly, refer to the following troubleshooting steps:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Button does not respond to press. | No power to the circuit; Loose or incorrect wiring; Faulty control panel input. | Verify power supply; Check all wiring connections for continuity and correct polarity; Consult control panel manual for input status. |
| Mygtukas užstrigo arba jį sunku paspausti. | Physical obstruction; Internal mechanism damage. | Inspect for debris around the button; If damage is suspected, contact support for replacement. |
| Button does not alternate state. | Incorrect wiring for alternate action; Internal switch failure. | Double-check wiring against the control system's requirements; If wiring is correct, the unit may be faulty and require replacement. |
If the problem persists after attempting these solutions, please contact Securitron technical support or your authorized dealer.
6. Specifikacijos
- Modelis: PB3A
- Tipas: Alternate Action Push Button
- Montavimas: Viena gauja
- Svoris: Maždaug 2 svarų (0.91 kg)
- Gamintojas: Securitron ASSA ABLOY
- Pirmą kartą pasiekiama data: 31 m. gruodžio 2009 d
- Note: Specific electrical ratings (e.g., voltage, current) should be confirmed on the product label or manufacturer's datasheet.
7. Informacija apie garantiją
Securitron products are typically backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Securitron websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.
8. Techninė pagalba
For technical assistance, installation questions, or troubleshooting beyond the scope of this manual, please contact:
- Your authorized Securitron dealer or distributor.
- Securitron Customer Service (refer to the official Securitron websvetainėje, kurioje pateikiami kontaktiniai duomenys).
When contacting support, please have your product model number (PB3A) and a detailed description of the issue ready.
